Monacor TF0615/8
Monacor TF0615/8 is a 6" 8 ohm LF driver rated at 100W RMS. The validated T/S data includes Fs 105Hz, Qts 0.61, Vas 6.4L, Xmax 1.8mm, sensitivity 92.1dB, plus 27cm³ Vd and 146 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
6"
Impedance
8Ω
RMS Power
100W
Sensitivity
92.1dB
95.0dBmanufacturer; using T/S-derived value (2.9dB delta).
EBP
146
Vented alignment
Vd
27cm³
T/S Parameters
Valid
Fs105Hz
Qts0.61
Qes0.72
Qms3.9
Vas6.4L
Re7.1Ω
Le0.47mH
BL8.8Tm
Sd154cm²
Mms12g
Xmax1.8mm
SPL92dB
Power100W
Impedance8Ω
F Low85Hz
F High6000Hz
Voice Coil38mm
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight1.4kg
Diameter178.0mm
Overall Depth74.0mm
Cutout Diameter147.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Monacor
TF0615/8
6"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
2 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
92%
Similarity
£47.00

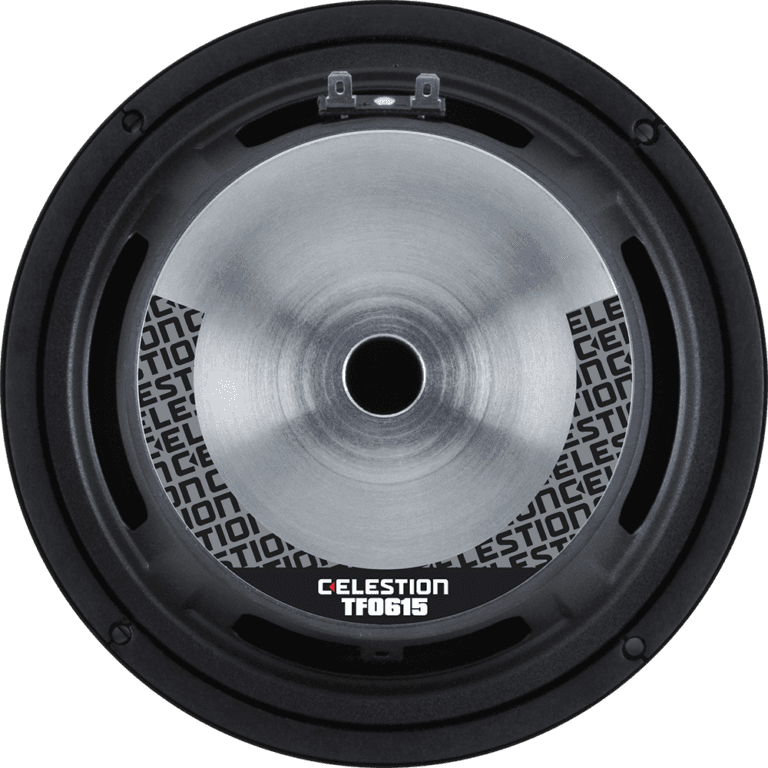

Celestion
