LF DriverCSW series
CIARE

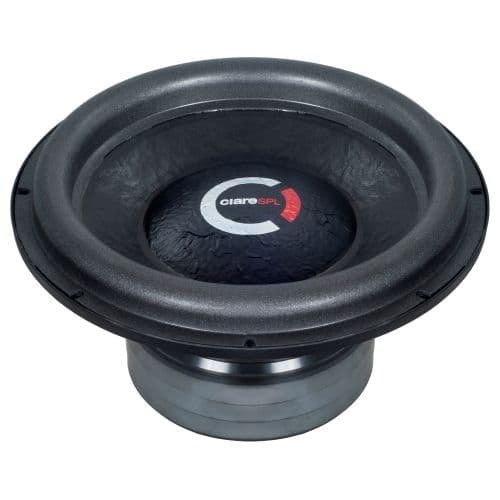

CIARE CSW7112EVO
CIARE CSW7112EVO is a 12" 1 ohm LF driver rated at 3000W RMS. The validated T/S data includes Fs 48Hz, Qts 0.36, Vas 15L, Xmax 22mm, sensitivity 88.5dB, plus 1124cm³ Vd and 130 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
12"
Impedance
1Ω
RMS Power
3000W
Sensitivity
88.5dB
95.0dBmanufacturer; using T/S-derived value (6.5dB delta).
EBP
130
Vented alignment
Vd
1124cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp1medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence1,325 selected pixels of 1,728
T/S Parameters
Valid
Fs48Hz
Qts0.36
Qes0.37
Qms9.2
Vas15.0L
Re1.8Ω
Le1.25mH
BL19.9Tm
Sd511cm²
Mms270g
Xmax22.0mm
SPL89dB
Power3000W
Power Nominal700W
Impedance1Ω
F Low30Hz
F High200Hz
Voice Coil75mm
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight19.2kg
Diameter315.0mm
Overall Depth220.5mm
Cutout Diameter282.0mm
Bolt Circle Diameter295.0mm
