Overview
LF DriverAL series
Visaton

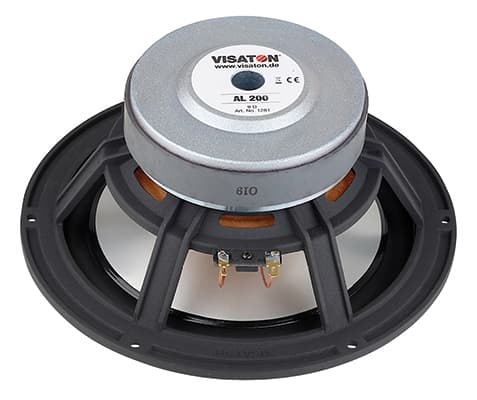

Visaton AL 200 - 8 OHM
Visaton AL 200 - 8 OHM is a 8" 8 ohm LF driver rated at 120W RMS. The validated T/S data includes Fs 32Hz, Qts 0.35, Vas 77L, Xmax 10mm, sensitivity 90.1dB, plus 216cm³ Vd and 82 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
8"
Impedance
8Ω
RMS Power
120W
Sensitivity
90.1dB
88.0dBmanufacturer; using T/S-derived value (2.1dB delta).
EBP
82
Either alignment
Vd
216cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp1medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence360 selected pixels of 623
T/S Parameters
Valid
Fs32Hz
Qts0.35
Qes0.39
Qms3.7
Vas77.0L
Re6.6Ω
Le1.20mH
BL8.8Tm
Sd216cm²
Mms21g
Xmax10.0mm
SPL90dB
Power120W
Impedance8Ω
F High9000Hz
Voice Coil38mm
Flux Density1.30T
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight2.5kg
Diameter200.0mm
Cutout Diameter190.0mm
