Overview
LF DriverGF series
Visaton

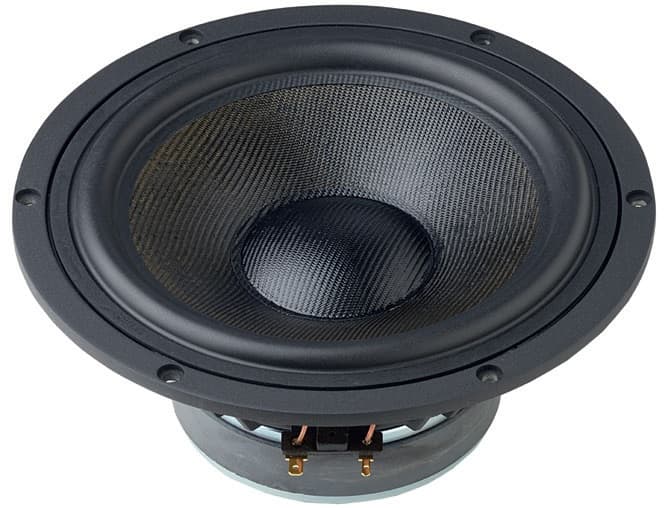

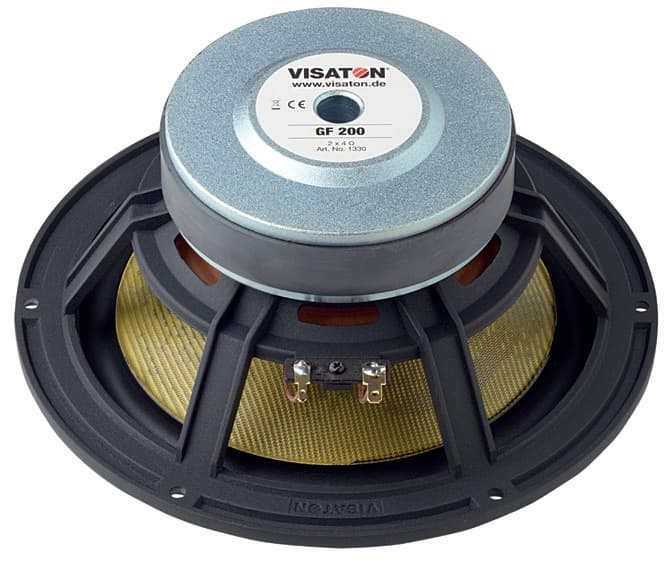

Visaton GF 200 - 2 x 4 Ohm
Visaton GF 200 - 2 x 4 Ohm is a 8" 8 ohm LF driver rated at 120W RMS. The validated T/S data includes Fs 30Hz, Qts 0.34, Vas 68L, Xmax 10mm, sensitivity 89dB, plus 214cm³ Vd and 81 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
8"
Impedance
8Ω
RMS Power
120W
Sensitivity
89.0dB
88.0dBmanufacturer; using T/S-derived value (1.0dB delta).
EBP
81
Either alignment
Vd
214cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp1medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence881 selected pixels of 1,401
T/S Parameters
Valid
Fs30Hz
Qts0.34
Qes0.37
Qms4.1
Vas68.0L
Re5.8Ω
Le1.10mH
BL9.2Tm
Sd214cm²
Mms25g
Xmax10.0mm
SPL89dB
Power120W
Impedance8Ω
F High8000Hz
Voice Coil38mm
Flux Density1.30T
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight2.5kg
Diameter200.0mm
Cutout Diameter190.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Visaton
GF 200 - 2 x 4 Ohm
8"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
100%
Similarity
£140.05
Visaton
GF 200
8"
Xmax10mm0%
Qts0.340%
BL9.2Tm0%
Vas68L0%
Qes0.370%
95%
Similarity
Visaton
W 200 S
8"
Xmax10mm0%
Qts0.33-3%
BL9Tm-2%
Vas70L+3%
Qes0.36-3%
95%
Similarity
£67.14
Visaton
W 200 S - 8 OHM
8"
Xmax10mm0%
Qts0.33-3%
BL9Tm-2%
Vas70L+3%
Qes0.36-3%
90%
Similarity
£176.73
Visaton
AL 200
8"
Xmax10mm0%
Qts0.35+3%
BL8.8Tm-4%
Vas77L+13%
Qes0.39+5%
90%
Similarity
Visaton

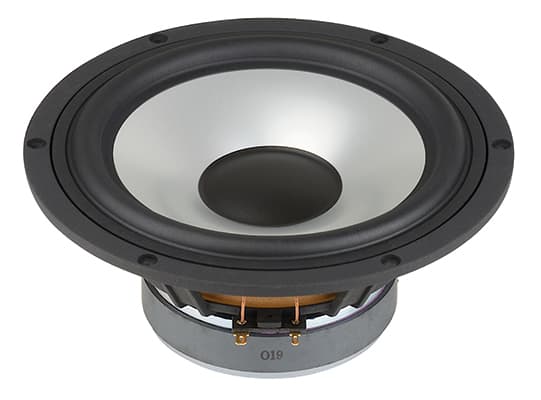

AL 200 - 8 OHM
8"
Xmax10mm0%
Qts0.35+3%
BL8.8Tm-4%
Vas77L+13%
Qes0.39+5%
88%
Similarity
£58.80
Visaton

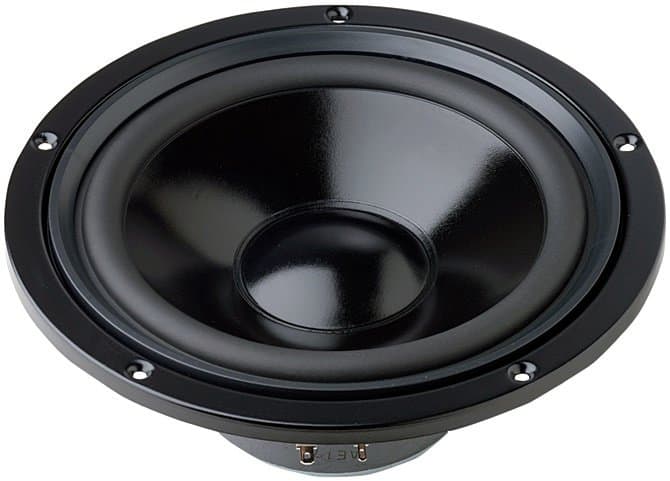

W 200 S - 4 OHM
8"
Xmax10mm0%
Qts0.35+3%
BL7.7Tm-16%
Vas65L-4%
Qes0.38+3%
84%
Similarity
Purifi
PTT8.0X04-NAB-01
8"
Xmax9.3mm-7%
Qts0.36+6%
BL8Tm-13%
Vas70.4L+4%
Qes0.38+3%
84%
Similarity
Purifi
PTT8.0X08-NAB-01
8"
Xmax9.3mm-7%
Qts0.35+3%
BL10.7Tm+16%
Vas74.5L+10%
Qes0.370%
80%
Similarity
£18,240.00
Markaudio

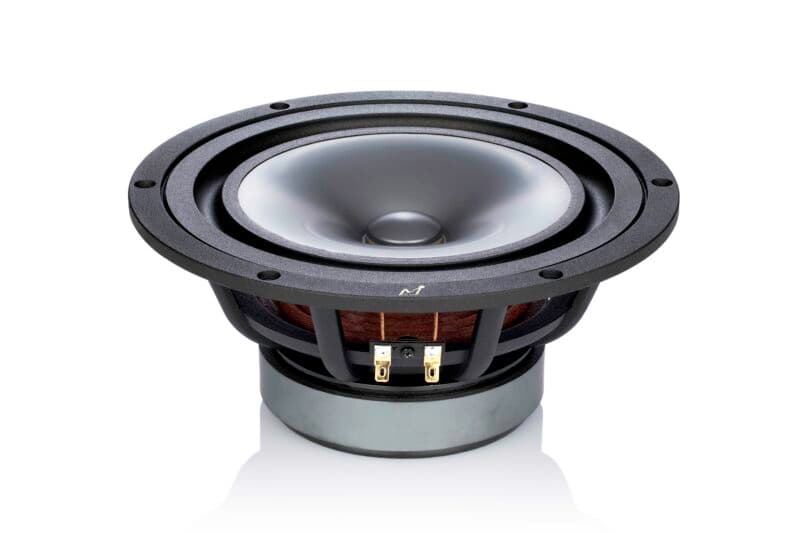

MA200-M Multi
7.75"
Xmax9mm-10%
Qts0.35+2%
BL8.5Tm-7%
Vas65.2L-4%
Qes0.41+10%
77%
Similarity
Audio Technology
8 A 77 20 06 SD
8"
Xmax8mm-20%
Qts0.3-12%
BL9.3Tm+1%
Vas67L-1%
Qes0.35-5%
77%
Similarity
Tang Band

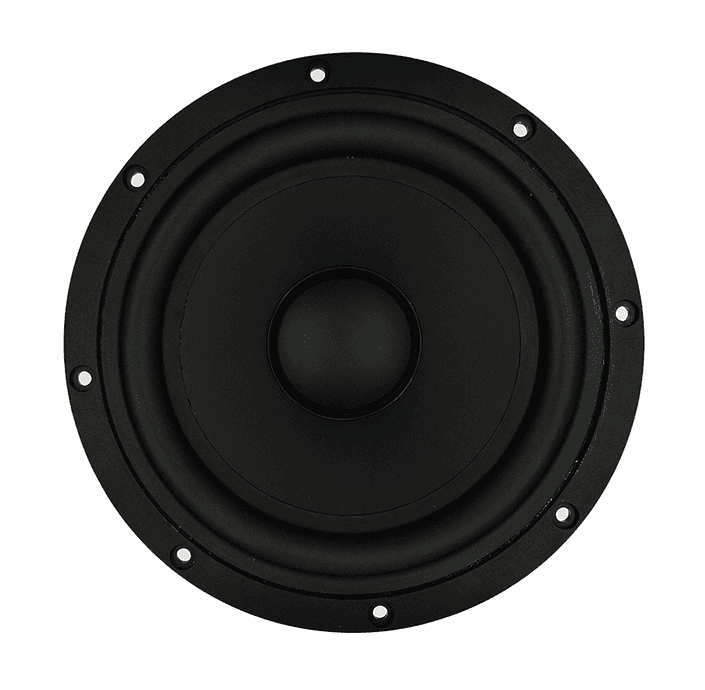

W8-2096B
8"
Xmax8.5mm-15%
Qts0.32-6%
BL8Tm-14%
Vas57.9L-15%
Qes0.370%
75%
Similarity
£31.27
SB Acoustics
SB20PFCR30-4
8"
Xmax11.5mm+15%
Qts0.33-3%
BL6.6Tm-28%
Vas66.2L-3%
Qes0.370%
