LF DriverW series
Visaton

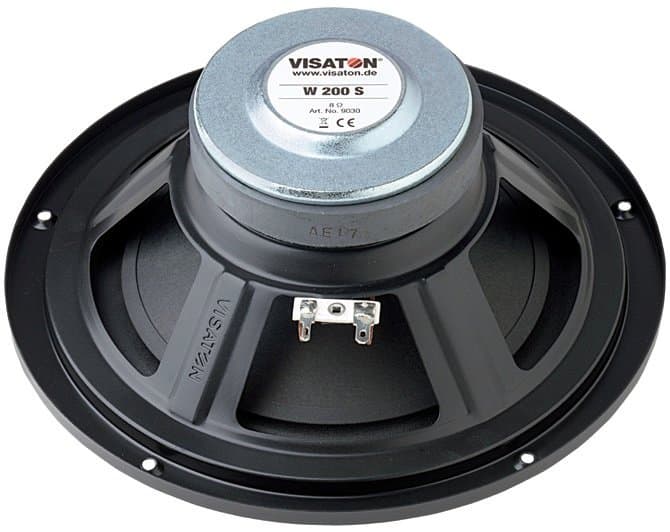

Visaton W 200 S - 4 OHM
Visaton W 200 S - 4 OHM is a 8" 4 ohm LF driver rated at 75W RMS. The validated T/S data includes Fs 29Hz, Qts 0.35, Vas 65L, Xmax 10mm, sensitivity 88.2dB, plus 214cm³ Vd and 76 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
8"
Impedance
4Ω
RMS Power
75W
Sensitivity
88.2dB
EBP
76
Either alignment
Vd
214cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response225 ptsp1medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
225 plotted pointsMedium confidence270 selected pixels of 864
T/S Parameters
Valid
Fs29Hz
Qts0.35
Qes0.38
Qms4.0
Vas65.0L
Re3.4Ω
Le1.50mH
BL7.7Tm
Sd214cm²
Mms28g
Xmax10.0mm
SPL88dB
Power75W
Impedance4Ω
F High6000Hz
Voice Coil35mm
Flux Density1.10T
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight1.5kg
Diameter200.0mm
Cutout Diameter184.0mm
