SB Audience NERO-18OBN500D
SB Audience NERO-18OBN500D is a 18" 8 ohm LF driver rated at 500W RMS. The validated T/S data includes Fs 22Hz, Qts 0.90, Vas 662L, Xmax 16mm, sensitivity 90.1dB, plus 1990cm³ Vd and 20 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
18"
Impedance
8Ω
RMS Power
500W
Sensitivity
90.1dB
EBP
20
Sealed alignment
Vd
1990cm³

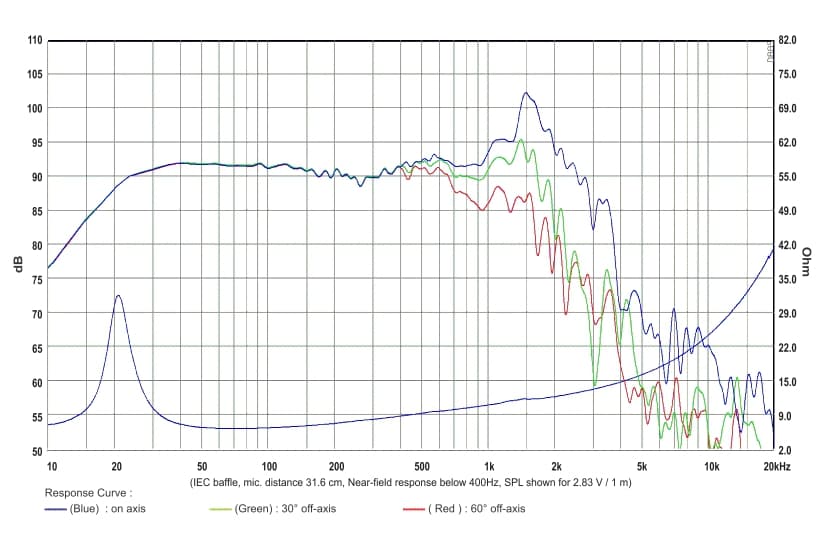

Frequency response
Manufacturer-provided response plots and related charts.

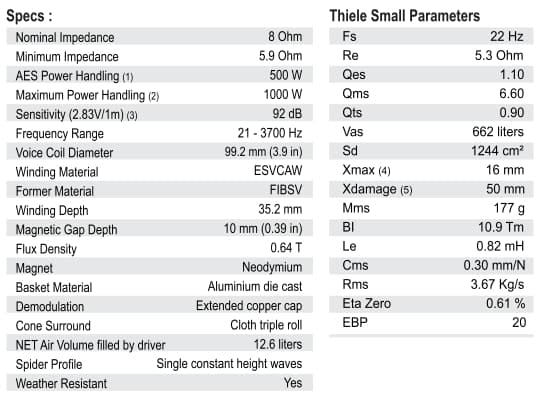

T/S Parameters
Valid
Fs22Hz
Qts0.90
Qes1.10
Qms6.6
Vas662.0L
Re5.3Ω
Le0.82mH
BL10.9Tm
Sd1244cm²
Mms177g
Xmax16.0mm
SPL90dB
Power500W
Impedance8Ω
Min Impedance5.9Ω
F Low21Hz
F High3700Hz
Voice Coil99mm
Flux Density0.64T
Pricing & availability
Price definitionsUse this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

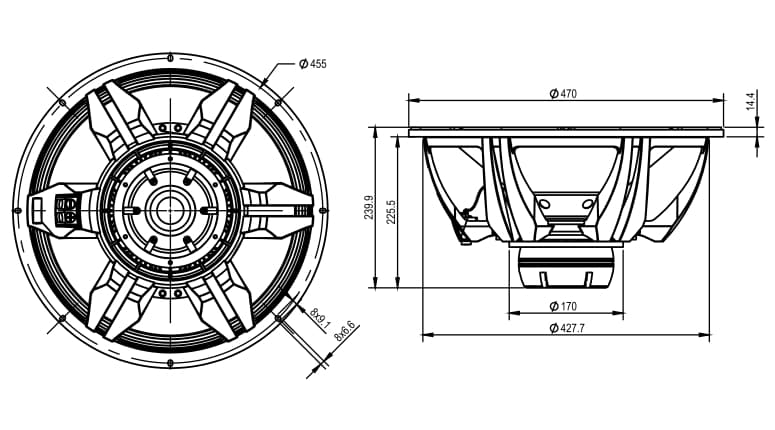

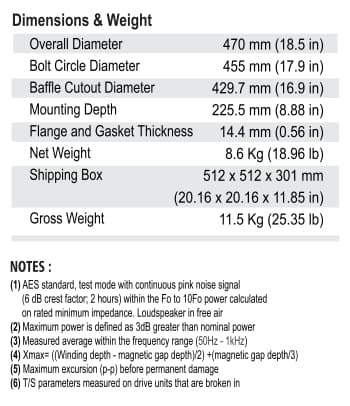

Dimensions & Physical
Weight8.6kg
Diameter470.0mm
Cutout Diameter429.7mm
Bolt Circle Diameter455.0mm
