Overview
LF Driver
Beyma
Beyma 110MI108
Beyma 110MI108 is a 10" 8 ohm LF driver rated at 350W RMS. The validated T/S data includes Fs 50Hz, Qts 0.21, Vas 54L, Xmax 4.5mm, sensitivity 96.9dB, plus 171cm³ Vd and 227 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
10"
Impedance
8Ω
RMS Power
350W
Sensitivity
96.9dB
98.0dBmanufacturer; using T/S-derived value (1.1dB delta).
EBP
227
Vented alignment
Vd
171cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp2medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence4,572 selected pixels of 4,925 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence4,104 selected pixels of 4,104
Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs50Hz
Qts0.21
Qes0.22
Qms6.6
Vas54.0L
Re6.3Ω
Le0.90mH
BL18.7Tm
Sd380cm²
Mms38g
Xmax4.5mm
SPL97dB
Power350W
Impedance8Ω
F Low70Hz
F High4000Hz
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight7.1kg
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Beyma
110MI108
10"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
82%
Similarity
£157.68
Eighteen Sound
10NTLW2000
10"
Xmax4.4mm-2%
Qts0.22+5%
BL17.9Tm-4%
Vas31L-43%
Qes0.220%
80%
Similarity
£144.83
FaitalPRO
10PR410
10"
Xmax4.5mm0%
Qts0.23+10%
BL18.5Tm-1%
Vas32L-41%
Qes0.23+5%
76%
Similarity
£123.57

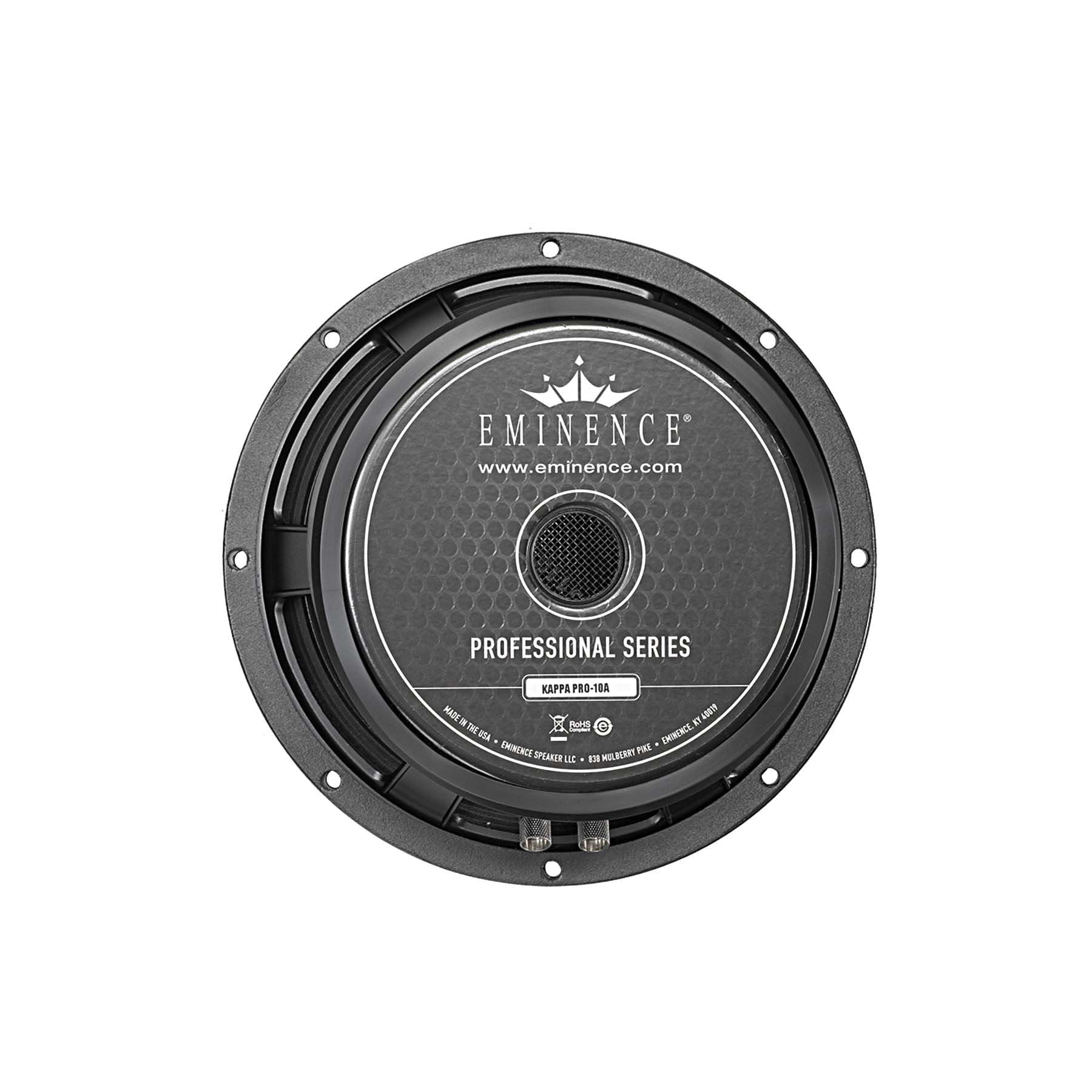

Eminence
KAPPA PRO-10A
10"
Xmax3.2mm-29%
Qts0.2-5%
BL18.8Tm+1%
Vas52.2L-3%
Qes0.2-9%
73%
Similarity
Dayton Audio
APOLLO 10N
10"
Xmax5.8mm+29%
Qts0.22+5%
BL19.2Tm+3%
Vas43.5L-19%
Qes0.23+5%
71%
Similarity
£186.20
RCF
MB10N305
10"
Xmax5mm+11%
Qts0.23+10%
BL18.5Tm-1%
Vas31L-43%
Qes0.24+9%
68%
Similarity
£186.65
Lavoce
WAN103.01
10"
Xmax5mm+11%
Qts0.22+5%
BL20.6Tm+10%
Vas22.3L-59%
Qes0.23+5%
67%
Similarity
£225.00

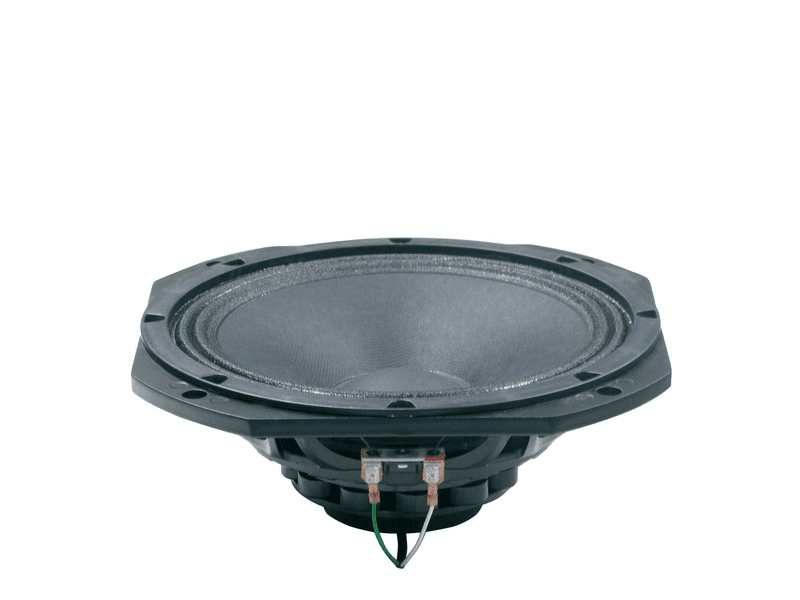

Eighteen Sound
10NMBA520
10"
Xmax4mm-11%
Qts0.23+10%
BL14.6Tm-22%
Vas42L-22%
Qes0.24+9%
65%
Similarity
Oberton
10NHCX
10"
Xmax4.3mm-6%
Qts0.24+13%
BL17.4Tm-7%
Vas24.5L-55%
Qes0.24+10%
64%
Similarity
£175.83
Eighteen Sound
10M600
10"
Xmax4mm-11%
Qts0.23+10%
BL17.6Tm-6%
Vas25.6L-53%
Qes0.25+14%
63%
Similarity
Peerless
NCP-1030R00-08
10"
Xmax3.9mm-13%
Qts0.23+10%
BL19.1Tm+2%
Vas27L-50%
Qes0.27+20%
62%
Similarity
£130.64
B&C
10FW64
10"
Xmax5mm+11%
Qts0.23+10%
BL16.4Tm-12%
Vas27L-50%
Qes0.25+14%
57%
Similarity

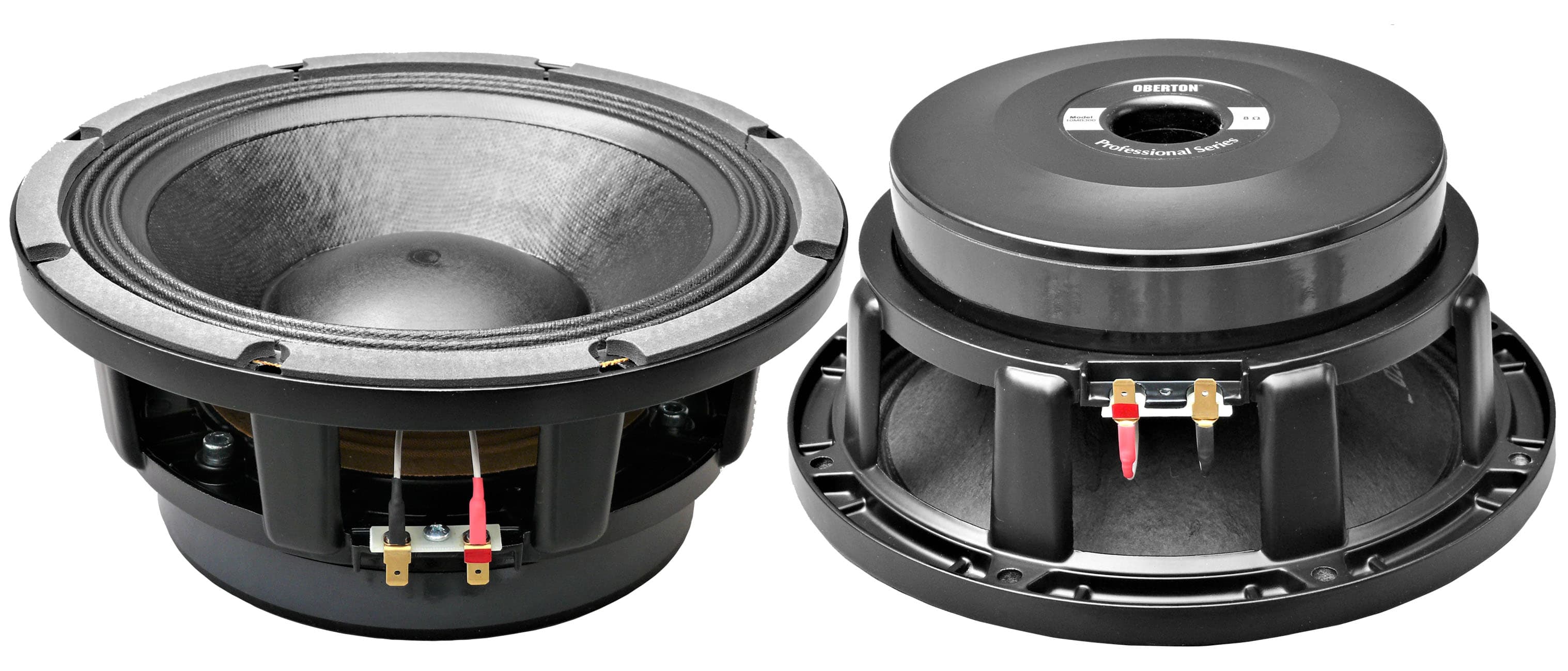

Oberton
10MB300
10"
Xmax5.3mm+17%
Qts0.24+16%
BL18.3Tm-2%
Vas22.8L-58%
Qes0.25+14%
