LF Driver8FG series
B&C

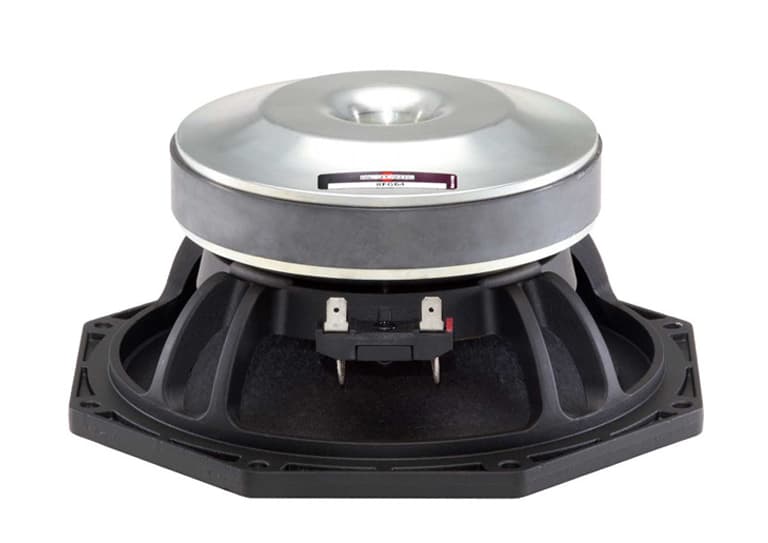

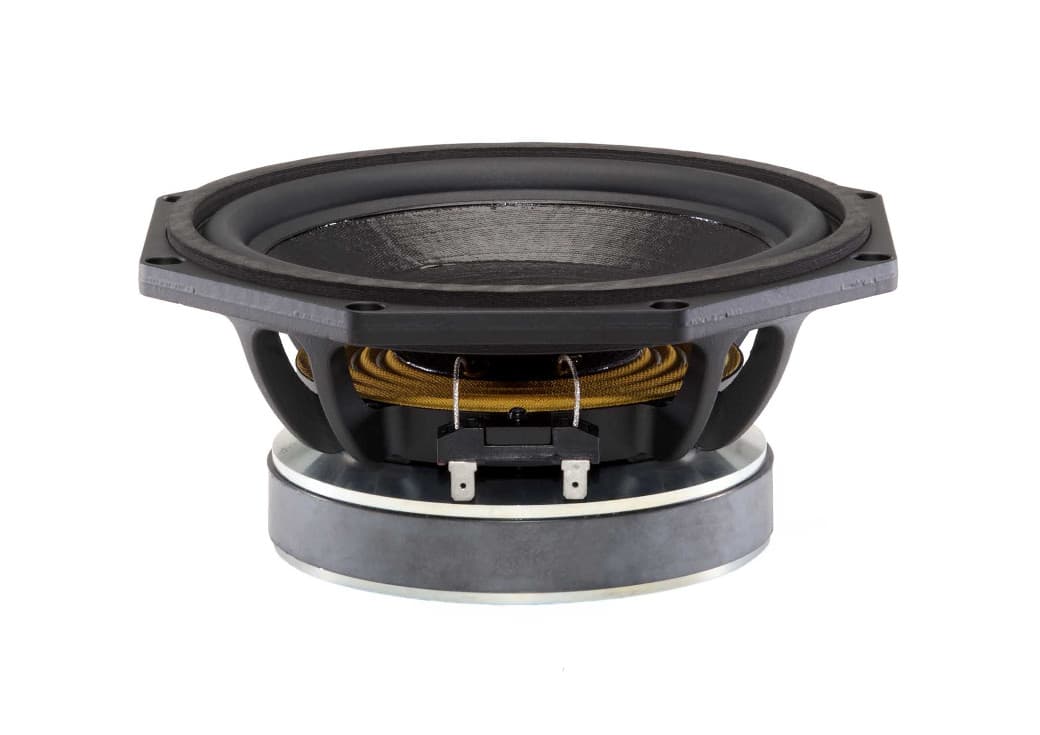

B&C 8FG64
B&C 8FG64 is a 8" 16 ohm LF driver rated at 300W RMS. The validated T/S data includes Fs 53Hz, Qts 0.35, Vas 16.9L, Xmax 7.5mm, sensitivity 90.4dB, plus 165cm³ Vd and 143 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £121.64.
Size
8"
Impedance
16Ω
RMS Power
300W
Sensitivity
90.4dB
92.0dBmanufacturer; using T/S-derived value (1.6dB delta).
EBP
143
Vented alignment
Vd
165cm³

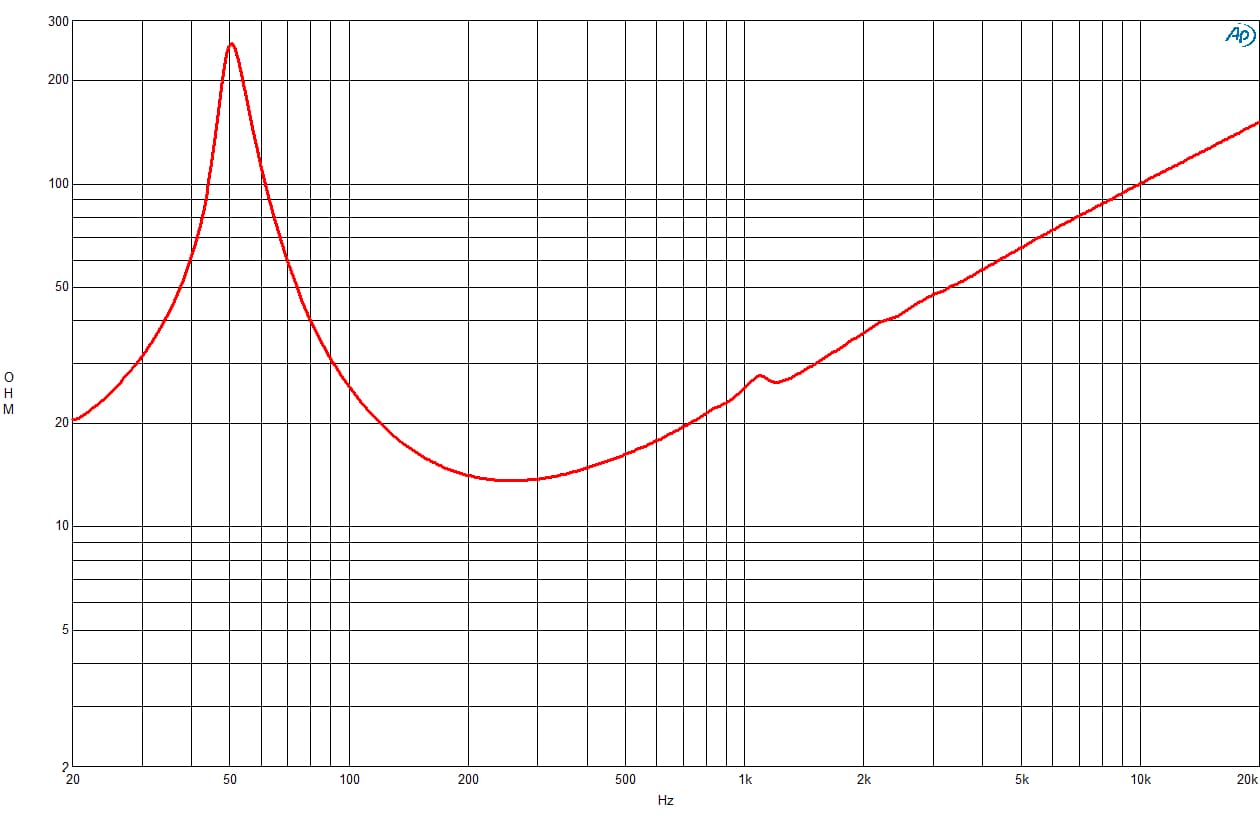

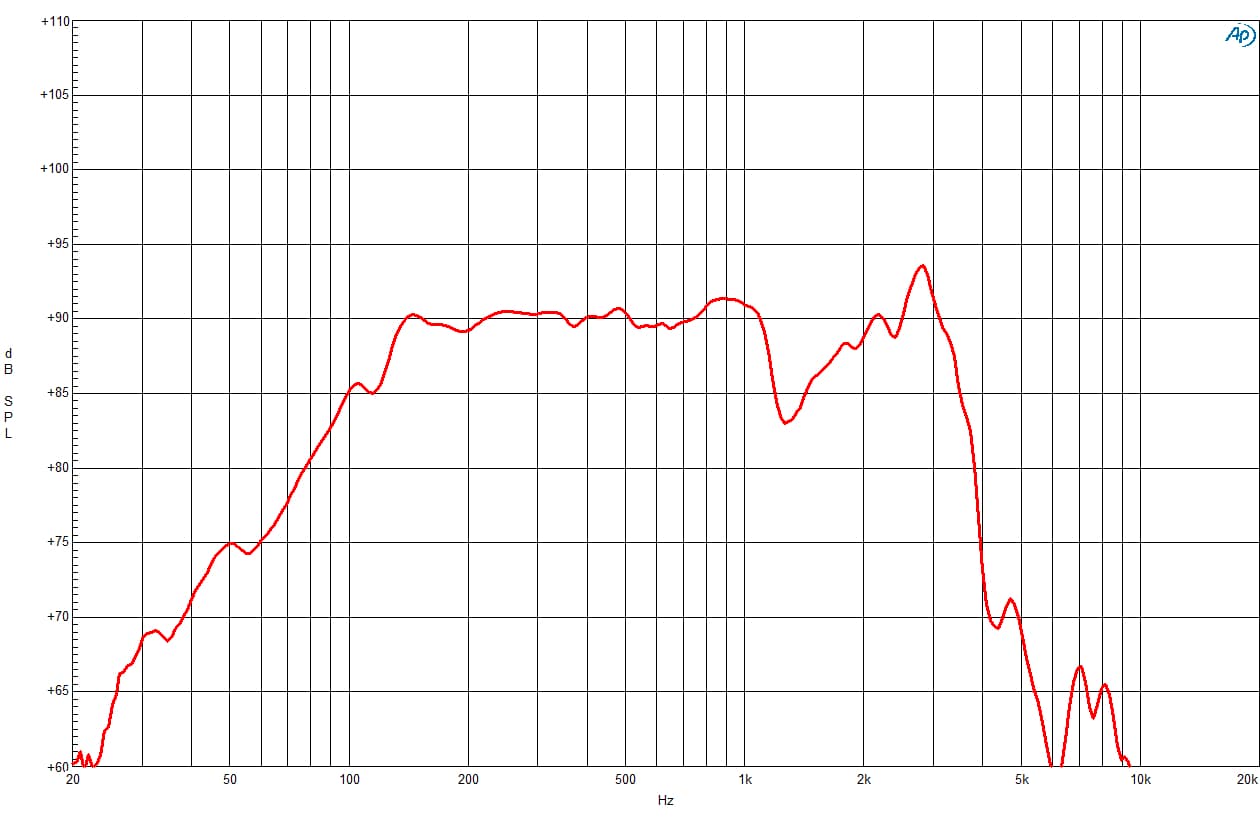

Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs53Hz
Qts0.35
Qes0.37
Qms9.3
Vas16.9L
Re11.9Ω
Le2.90mH
BL16.8Tm
Sd220cm²
Mms36g
Xmax7.5mm
SPL90dB
Power300W
Power Nominal300W
Impedance16Ω
Min Impedance13.5Ω
F Low50Hz
F High3000Hz
Voice Coil64mm
Flux Density0.90T
Pricing & availability
Price definitionsPrice movement
Best current price
£121.64
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight4.0kg
Diameter225.0mm
Overall Depth100.0mm
Cutout Diameter187.0mm
Bolt Circle Diameter210.0mm
Additional Manufacturer Specs
Bl16.8 Tm
Fs53 Hz
Le2.9 mH
Re11.9 Ω
Sd220 cm² (34.1 in²)
Ebp143 Hz
Mms36 g
Qes0.37
Qms9.33
Qts0.35
Vas16.9 dm³ (0.6 ft³)
η00.67 %
ConeRCK008FG6416
Xmax7.5 mm
Xvar9.5 mm
SpiderSingle
Cone ShapeRadial
Pole DesignT-Pole
Winding Depth20 mm (0.79 in)
Surround ShapeRoll
Former MaterialGlass Fibre
Magnet MaterialFerrite
Nominal Diameter200 mm (8 in)
Winding MaterialCopper
Magnetic Gap Depth10 mm (0.39 in)

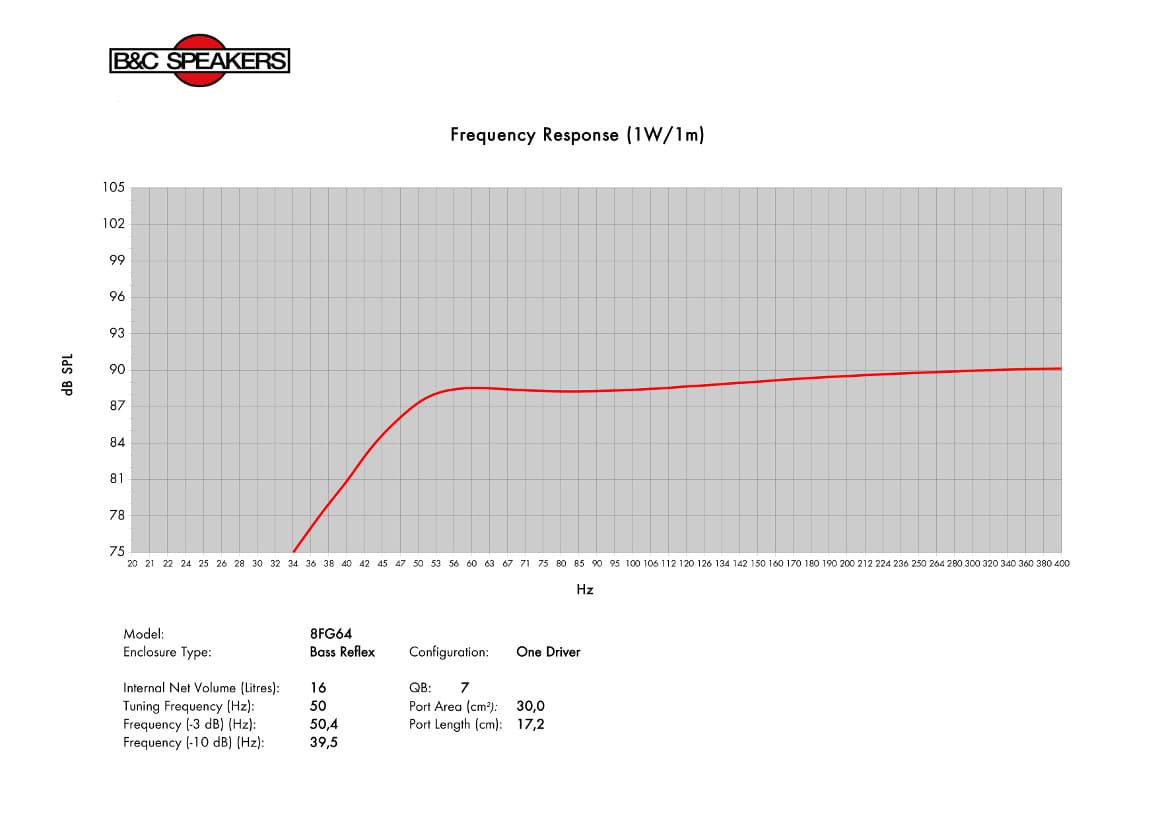

Recommended Tuning50 Hz
Bolt Circle Diameter210 mm (8.3 in)
Recommended Enclosure16 dm³ (0.57 ft³)
Woofer Cone TreatmentWP Waterproof Front Side
Baffle Cutout Diameter187 mm (7.4 in)
Flange And Gasket Thickness9 mm (0.37 in)
Air Volume Occupied By Driver1.5 dm³ (0.05 ft³)
