- Net volume
- 75L
- Tuning
- 53Hz
B&C gives the volume and tuning; the port is sized for the driver when you open it.

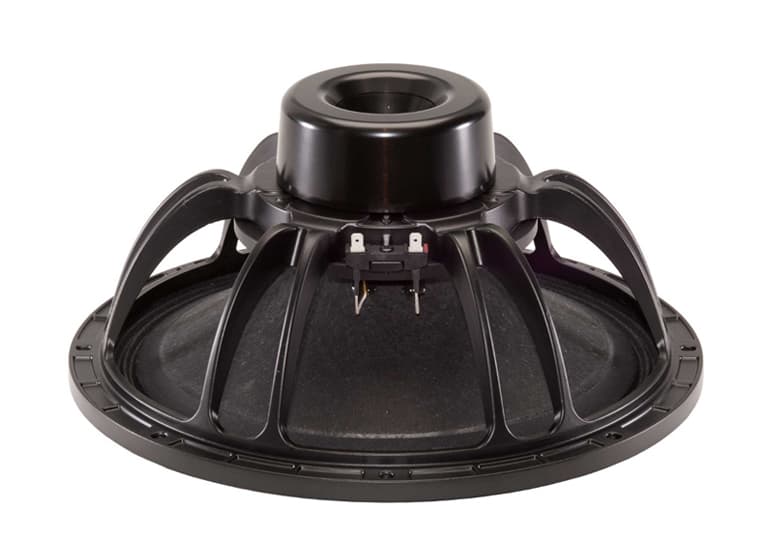

13.5-inch LF driver · 14NDL series · 88 mm voice coil · 700 W
B&C 14NDL88 16Ω
45–3500 Hz
No current price
- Fs
- 44Hz
- Xmax
- 7.5mm
- SPL
- 96dB
- Pe
- 700W
- BL
- 25T·m
- Vd
- 530cm³
- Qts
- 0.37
- Vas
- 115L

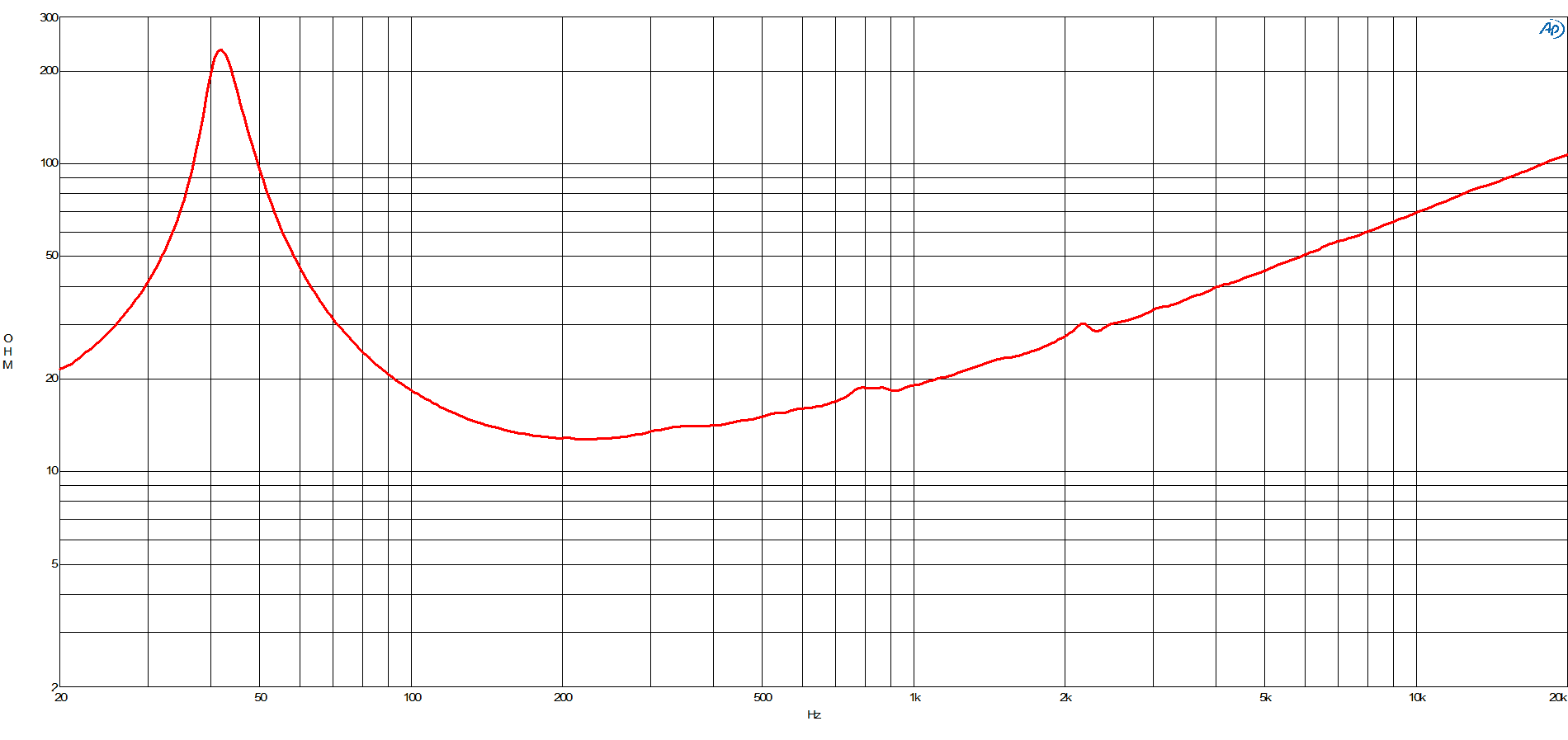

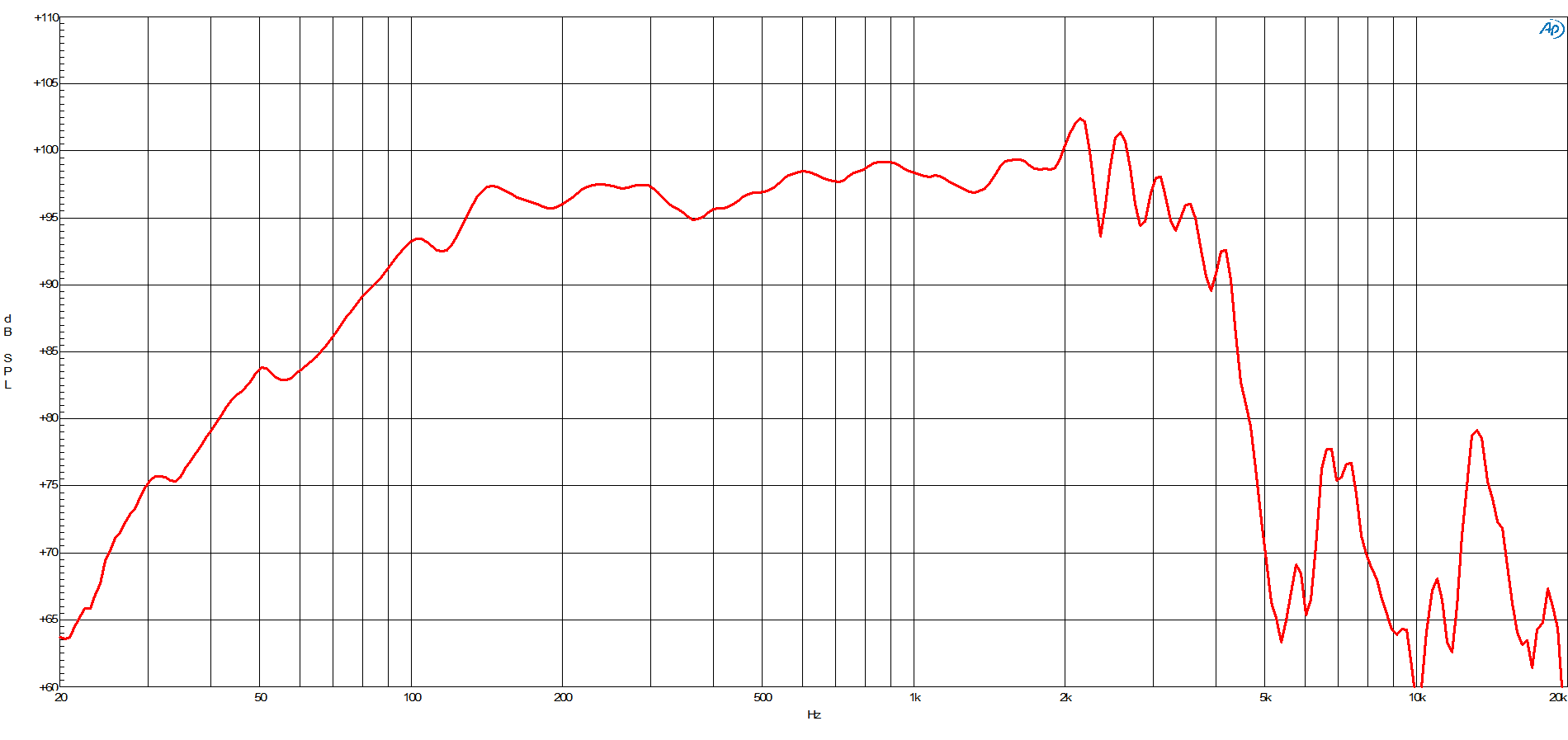

Published graphs
B&C 14NDL88 is a 13.5-inch 16 ohm LF driver rated at 700 W RMS. The validated T/S data includes Fs 44 Hz, Qts 0.37, Vas 115 L, Xmax 7.5 mm, sensitivity 96 dB, plus 530 cm³ Vd and 113 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 44Hz
- Qts
- 0.37
- Qes
- 0.39
- Qms
- 10.6
- Vas
- 115L
- Re
- 11Ω
- Le
- 2.05mH
Motor and cone
- BL
- 25T·m
- Sd
- 707cm²
- Mms
- 80g
- Xmax
- 7.5mm
- Vd †
- 530cm³
- Voice coil
- 88mm
- Flux density
- 1.05T
Power and response
- Sensitivity †
- 96dB
- Manufacturer sensitivity
- 98dB
- Power
- 700W
- Nominal power
- 700W
- Impedance
- 16Ω
- Min. impedance
- 12.5Ω
- Range
- 45–3500Hz
- EBP †
- 113 · Leans vented
Size and mounting
- Diameter
- 359mm
- Cutout
- 323mm
- Bolt circle
- 343mm
- Depth
- 167mm
- Weight
- 5.3kg
Sensitivity shows 96.0 dB, calculated from the T/S values. B&C publishes 98.0 dB, 2.0 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else B&C lists
LF
- BL
- 25T·m
- Fs
- 44Hz
- Le
- 2.05mH
- Re
- 11Ω
- Sd
- 707cm²
- Mms
- 80g
- Qes
- 0.39
- Qms
- 10.6
- Qts
- 0.37
- SPL
- 96dB
- Vas
- 115L
- Xmax
- 7.5mm
- Power
- 700W
- Impedance
- 16Ω
- Flux density
- 1.05T
- Sensitivity
- 98dB
- Low limit
- 45Hz
- Nominal power
- 700W
- Calculated sensitivity †
- 96dB
- High limit
- 3500Hz
- Manufacturer sensitivity
- 98dB
- Min. impedance
- 12.5Ω
- Voice coil
- 88mm
- Weight
- 5.3kg
- Diameter
- 359mm
- Depth
- 167mm
- Cutout
- 323mm
- Bolt circle
- 343mm
- Bl
- 25 Tm
- Fs
- 44 Hz
- Le
- 2.05 mH
- Re
- 11 Ω
- Sd
- 707 cm² (109.59 in²)
- Ebp
- 113 Hz
- Mms
- 79.5 g
- Qes
- 0.39
- Qms
- 10.6
- Qts
- 0.37
- Vas
- 115 dm³ (4.06 ft³)
- Η0
- 2.45 %
- Cone
- RCK14NDL8816
- Xmax
- 7.5 mm
- Xvar
- 9.5 mm
- Depth
- 167 mm (6.57 in)
- Spider
- Double Silicone
- Cone shape
- Exponential
- Net weight
- 5.3 kg (11.68 lb)
- Pole design
- T-Pole
- Sensitivity
- 98 dB
- Flux density
- 1.05 T
- Shipping box
- 425x425x224 mm (16.73x16.73x8.82 in)
- Winding depth
- 21 mm (0.83 in)
- Shipping units
- 1 pcs
- Surround shape
- Triple Roll
- Former material
- Glass Fibre
- Frequency range
- 45 Hz - 3500 Hz
- Magnet material
- Neodymium Inside Slug
- Shipping weight
- 6.6 kg (14.55 lb)
- Nominal diameter
- 359 mm (14 in)
- Overall diameter
- 359 mm (14.13 in)
- Winding material
- Aluminium
- Minimum impedance
- 12.5 Ω
- Nominal impedance
- 16 Ω
- Magnetic gap depth
- 10 mm (0.39 in)
- Recommended tuning
- 53 Hz
- Voice coil diameter
- 88 mm (3.5 in)
- Bolt circle diameter
- 343 mm (13.5 in)
- Recommended enclosure
- 75 dm³ (2.65 ft³)
- Woofer cone treatment
- WP Waterproof Front Side
- Baffle cutout diameter
- 323 mm (12.72 in)
- Nominal power handling
- 700 W
- Continuous power handling
- 1400 W
- Flange and gasket thickness
- 12 mm (0.47 in)
- Air volume occupied by driver
- 3.5 dm³ (0.12 ft³)
B&C’s suggested box
From B&C’s 14NDL88 page
Open this box in 00 Simulator
Modelling the box in 00 Simulator…
03
Compare
Same-size drivers, compared with the 14NDL88. Clear differences are green when better and red when worse.
This driver14NDL88
Best price
–
Fs
44 Hz
Qts
0.37
Vas
115 L
BL
25 T·m
Xmax
7.5 mm
Sensitivity
96 dB
Power
700 W
Beyma14MC700ND
£229.73Fs51 Hz +16%, worse
Qts0.28 −24%, better
Vas78 L −32%, better
BL22 T·m −12%, worse
Xmax7 mm −7%
Sensitivity97.4 dB +1.4
SB AcousticsWO34HC-4
£279.42Fs20 Hz −55%, better
Qts0.23 −38%, better
Vas233 L +103%, worse
BL15.1 T·m −40%, worse
Xmax16.6 mm +121%, better
Sensitivity90.8 dB −5.2, worse
B&C14NA100
£279.65Fs43 Hz –
Qts0.23 −38%, better
Vas99.5 L −13%, better
BL23.5 T·m −6%
Xmax8.8 mm +17%, better
Sensitivity97.2 dB +1.2
Beyma14MLEX1000ND
£300.43Fs47 Hz +7%
Qts0.22 −41%, better
Vas75 L −35%, better
BL26.5 T·m +6%
Xmax11 mm +47%, better
Sensitivity97.3 dB +1.3
B&C14NDL76
No current priceFs41 Hz −7%
Qts0.30 −19%, better
Vas123 L +7%
BL19 T·m −24%, worse
Xmax8 mm +7%
Sensitivity96.4 dB –
B&C14CXN76
No current priceFs45 Hz –
Qts0.28 −24%, better
Vas131 L +14%, worse
BL18.4 T·m −26%, worse
Xmax8 mm +7%
Sensitivity98.2 dB +2.2, better
B&C14CXN88
No current priceFs46 Hz +5%
Qts0.26 −30%, better
Vas100 L −13%, better
BL20.7 T·m −17%, worse
Xmax9 mm +20%, better
Sensitivity97.6 dB +1.6
JensenBS12N250A-8
No current priceFs47 Hz +7%
Qts0.43 +16%, worse
Vas81.3 L −29%, better
BL14.4 T·m −43%, worse
Xmax5.5 mm −27%, worse
Sensitivity94.8 dB −1.2
JensenBP12250-8
No current priceFs50 Hz +14%, worse
Qts0.32 −14%, better
Vas73.5 L −36%, better
BL16.4 T·m −34%, worse
Xmax3.1 mm −59%, worse
Sensitivity96.4 dB –
SB AcousticsWO34HC-8
No current priceFs20 Hz −54%, better
Qts0.29 −22%, better
Vas238 L +107%, worse
BL19 T·m −24%, worse
Xmax16.6 mm +121%, better
Sensitivity90.2 dB −5.8, worse
B&C14DS88
No current priceFs44 Hz –
Qts0.18 −51%, better
Vas55 L −52%, better
BL36.9 T·m +48%, better
Xmax11 mm +47%, better
Sensitivity95.9 dB –
