- Net volume
- 75L
- Tuning
- 53Hz
B&C gives the volume and tuning; the port is sized for the driver when you open it.
13.5-inch LF driver · 14NDL series · 88 mm voice coil · 700 W
B&C 14NDL88 4Ω
40–3000 Hz
No current price
- Fs
- 40Hz
- Xmax
- 8mm
- SPL
- 97dB
- Pe
- 700W
- BL
- 16.9T·m
- Vd
- 566cm³
- Qts
- 0.23
- Vas
- 128L

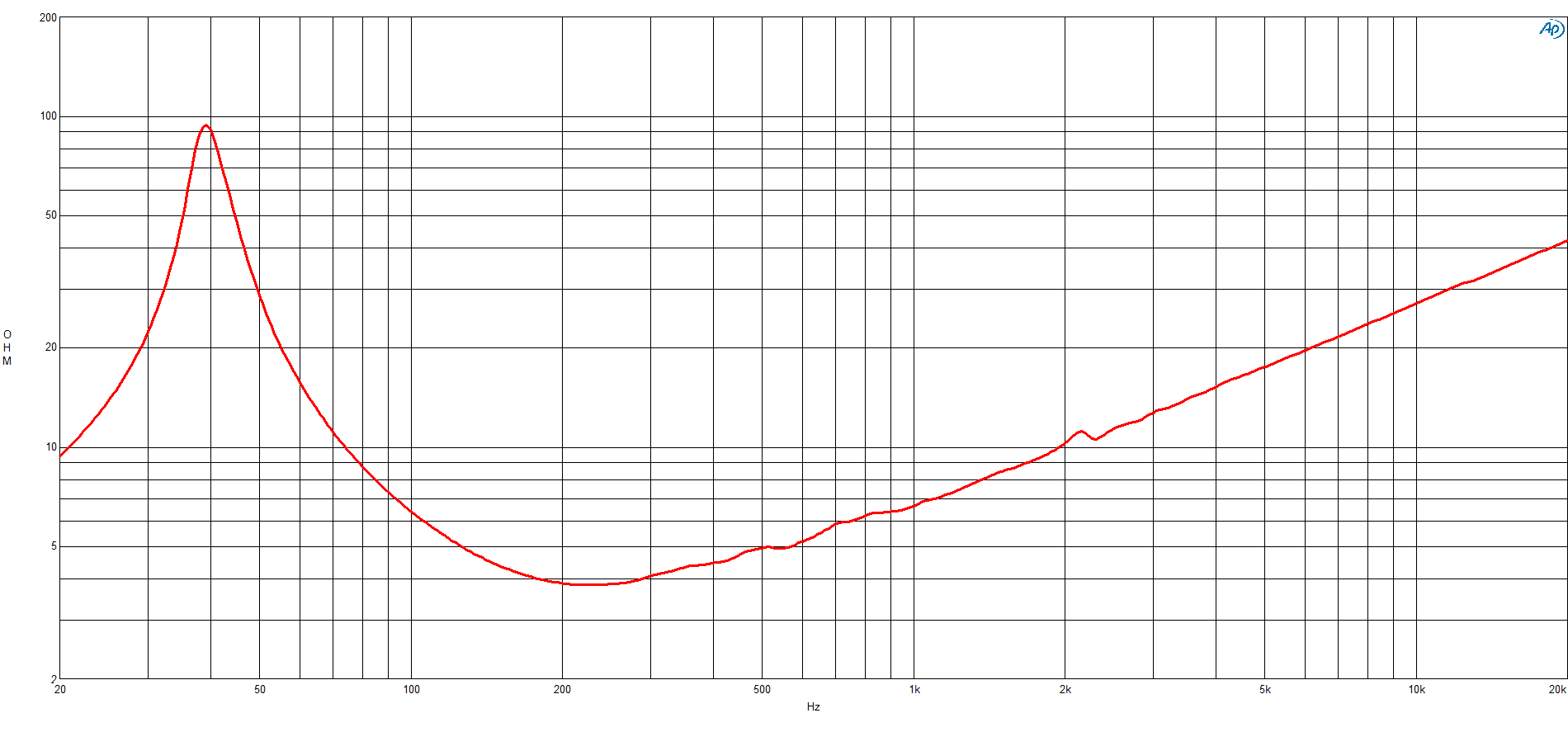

Published graphs
B&C 14NDL88 is a 13.5-inch 4 ohm LF driver rated at 700 W RMS. The validated T/S data includes Fs 40 Hz, Qts 0.23, Vas 128 L, Xmax 8 mm, sensitivity 97.4 dB, plus 566 cm³ Vd and 167 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 40Hz
- Qts
- 0.23
- Qes
- 0.24
- Qms
- 8.2
- Vas
- 128L
- Re
- 3.1Ω
- Le
- 0.85mH
Motor and cone
- BL
- 16.9T·m
- Sd
- 707cm²
- Mms
- 89g
- Xmax
- 8mm
- Vd †
- 566cm³
- Voice coil
- 88mm
- Flux density
- 1.05T
Power and response
- Sensitivity †
- 97.4dB
- Manufacturer sensitivity
- 98dB
- Power
- 700W
- Nominal power
- 700W
- Impedance
- 4Ω
- Min. impedance
- 3.8Ω
- Range
- 40–3000Hz
- EBP †
- 167 · Leans vented
Size and mounting
- Diameter
- 359mm
- Cutout
- 323mm
- Bolt circle
- 343mm
- Depth
- 167mm
- Weight
- 5.3kg
† Calculated by bits from the published values
What this validation status means
Everything else B&C lists
LF
- BL
- 16.9T·m
- Fs
- 40Hz
- Le
- 0.85mH
- Re
- 3.1Ω
- Sd
- 707cm²
- Mms
- 89g
- Qes
- 0.24
- Qms
- 8.2
- Qts
- 0.23
- SPL
- 97.4dB
- Vas
- 128L
- Xmax
- 8mm
- Power
- 700W
- Impedance
- 4Ω
- Flux density
- 1.05T
- Sensitivity
- 98dB
- Low limit
- 40Hz
- Nominal power
- 700W
- Calculated sensitivity †
- 97.4dB
- High limit
- 3000Hz
- Manufacturer sensitivity
- 98dB
- Min. impedance
- 3.8Ω
- Voice coil
- 88mm
- Weight
- 5.3kg
- Diameter
- 359mm
- Depth
- 167mm
- Cutout
- 323mm
- Bolt circle
- 343mm
- Bl
- 16.9 Tm
- Fs
- 40 Hz
- Le
- 0.85 mH
- Re
- 3.1 Ω
- Sd
- 707 cm² (109.59 in²)
- Ebp
- 167 Hz
- Mms
- 89 g
- Qes
- 0.24
- Qms
- 8.2
- Qts
- 0.23
- Vas
- 128 dm³ (4.52 ft³)
- Η0
- 3.2 %
- Cone
- RCK14NDL884
- Xmax
- 8 mm
- Xvar
- 9 mm
- Depth
- 167 mm (6.57 in)
- Spider
- Double Silicone
- Cone shape
- Exponential
- Net weight
- 5.3 kg (11.68 lb)
- Pole design
- T-Pole
- Sensitivity
- 98 dB
- Flux density
- 1.05 T
- Shipping box
- 425x425x224 mm (16.73x16.73x8.82 in)
- Winding depth
- 21.5 mm (0.85 in)
- Shipping units
- 1 pcs
- Surround shape
- Triple Roll
- Former material
- Glass Fibre
- Frequency range
- 40 Hz - 3000 Hz
- Magnet material
- Neodymium Inside Slug
- Shipping weight
- 6.6 kg (14.55 lb)
- Nominal diameter
- 359 mm (14 in)
- Overall diameter
- 359 mm (14.13 in)
- Winding material
- Aluminium
- Minimum impedance
- 3.8 Ω
- Nominal impedance
- 4 Ω
- Magnetic gap depth
- 10 mm (0.39 in)
- Recommended tuning
- 53 Hz
- Voice coil diameter
- 88 mm (3.5 in)
- Bolt circle diameter
- 343 mm (13.5 in)
- Recommended enclosure
- 75 dm³ (2.65 ft³)
- Woofer cone treatment
- WP Waterproof Front Side
- Baffle cutout diameter
- 323 mm (12.72 in)
- Nominal power handling
- 700 W
- Continuous power handling
- 1400 W
- Flange and gasket thickness
- 12 mm (0.47 in)
- Air volume occupied by driver
- 3.5 dm³ (0.12 ft³)

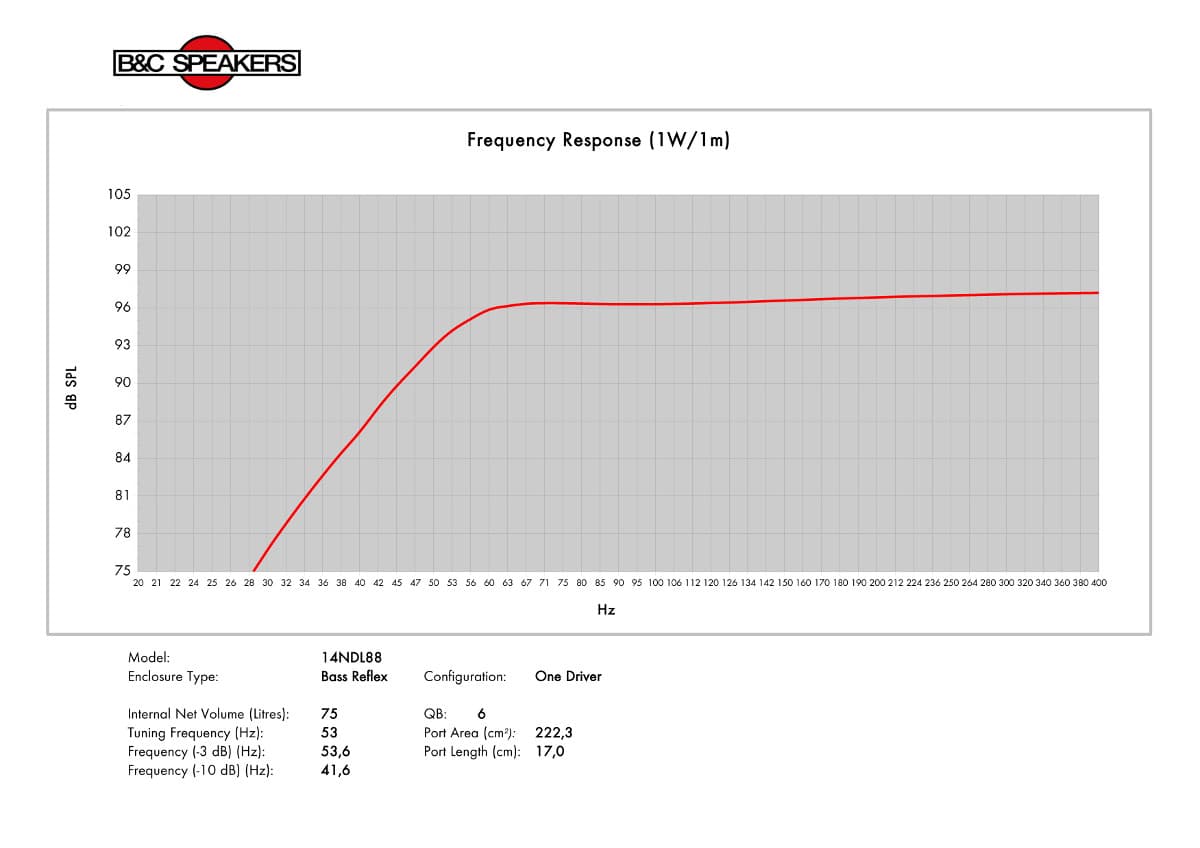

B&C’s suggested box
From B&C’s 14NDL88 page
Open this box in 00 Simulator
Modelling the box in 00 Simulator…
03
Compare
Same-size drivers, compared with the 14NDL88. Clear differences are green when better and red when worse.
This driver14NDL88
Best price
–
Fs
40 Hz
Qts
0.23
Vas
128 L
BL
16.9 T·m
Xmax
8 mm
Sensitivity
97.4 dB
Power
700 W
Beyma14MC700ND
£229.73Fs51 Hz +28%, worse
Qts0.28 +22%, worse
Vas78 L −39%, better
BL22 T·m +30%, better
Xmax7 mm −13%, worse
Sensitivity97.4 dB –
SB AcousticsWO34HC-4
£279.42Fs20 Hz −50%, better
Qts0.23 –
Vas233 L +82%, worse
BL15.1 T·m −11%, worse
Xmax16.6 mm +108%, better
Sensitivity90.8 dB −6.6, worse
B&C14NA100
£279.65Fs43 Hz +8%
Qts0.23 –
Vas99.5 L −22%, better
BL23.5 T·m +39%, better
Xmax8.8 mm +10%, better
Sensitivity97.2 dB –
Beyma14MLEX1000ND
£301.09Fs47 Hz +18%, worse
Qts0.22 −4%
Vas75 L −41%, better
BL26.5 T·m +57%, better
Xmax11 mm +38%, better
Sensitivity97.3 dB –
B&C14CXN88
No current priceFs44 Hz +10%, worse
Qts0.25 +9%
Vas116 L −9%
BL16.6 T·m –
Xmax9 mm +13%, better
Sensitivity97.8 dB –
B&C14CXN76
No current priceFs45 Hz +13%, worse
Qts0.28 +22%, worse
Vas131 L –
BL18.4 T·m +9%
Xmax8 mm –
Sensitivity98.2 dB +0.8
B&C14NDL76
No current priceFs41 Hz –
Qts0.30 +30%, worse
Vas123 L −4%
BL19 T·m +12%, better
Xmax8 mm –
Sensitivity96.4 dB −1
JensenBP12250-8
No current priceFs50 Hz +26%, worse
Qts0.32 +39%, worse
Vas73.5 L −43%, better
BL16.4 T·m –
Xmax3.1 mm −61%, worse
Sensitivity96.4 dB −1
SB AcousticsWO34HC-8
No current priceFs20 Hz −50%, better
Qts0.29 +26%, worse
Vas238 L +86%, worse
BL19 T·m +12%, better
Xmax16.6 mm +108%, better
Sensitivity90.2 dB −7.2, worse
JensenBS12N250A-8
No current priceFs47 Hz +18%, worse
Qts0.43 +87%, worse
Vas81.3 L −36%, better
BL14.4 T·m −15%, worse
Xmax5.5 mm −31%, worse
Sensitivity94.8 dB −2.6, worse
B&C14DS88
No current priceFs44 Hz +10%, worse
Qts0.18 −22%, better
Vas55 L −57%, better
BL36.9 T·m +118%, better
Xmax11 mm +38%, better
Sensitivity95.9 dB −1.5
