6.5-inch LF driver · WS series · 25 mm voice coil · 60 W
Visaton WS 17 E 4Ω
£29.94
SteadyImpact Audio · In stock · All 5 offers
- Fs
- 45Hz
- Xmax
- 3.5mm
- SPL
- 86dB
- Pe
- 60W
- BL
- 3.9T·m
- Vd
- 50cm³
- Qts
- 0.65
- Vas
- 22L

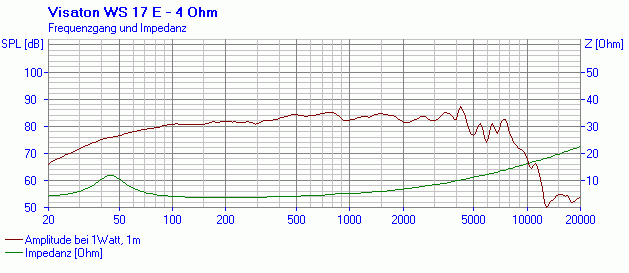

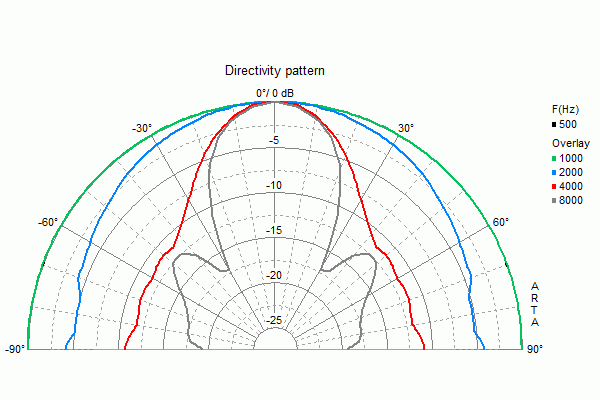

Published graphs
Visaton WS 17 E is a 6.5-inch 4 ohm LF driver rated at 60 W RMS. The validated T/S data includes Fs 45 Hz, Qts 0.65, Vas 22 L, Xmax 3.5 mm, sensitivity 85.5 dB, plus 50 cm³ Vd and 50 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £26.17.
The published T/S values agree with each other
Thiele/Small
- Fs
- 45Hz
- Qts
- 0.65
- Qes
- 0.90
- Qms
- 2.4
- Vas
- 22L
- Re
- 3.2Ω
- Le
- 0.60mH
Motor and cone
- BL
- 3.9T·m
- Sd
- 143cm²
- Mms
- 16g
- Xmax Derived
- 3.5mm
- Vd †
- 50cm³
- Voice coil
- 25mm
- Flux density
- 0.80T
Power and response
- Sensitivity †
- 85.5dB
- Manufacturer sensitivity
- 88dB
- Power
- 60W
- Impedance
- 4Ω
- High limit
- 7000Hz
- EBP †
- 50 · Sealed or vented
Size and mounting
- Diameter
- 170mm
- Cutout
- 150mm
- Weight
- 1.0kg
Other published values
- Xmech
- 6.5
- Power Peak
- 90
Sensitivity shows 85.5 dB, calculated from the T/S values. Visaton publishes 88.0 dB, 2.5 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Visaton lists
LF · Primary · 6.5″
- BL
- 3.9T·m
- Fs
- 45Hz
- Le
- 0.60mH
- Re
- 3.2Ω
- Sd
- 143cm²
- Mms
- 16g
- Qes
- 0.90
- Qms
- 2.4
- Qts
- 0.65
- SPL
- 85.5dB
- Vas
- 22L
- Xmax
- 3.5mm
- Xmech
- 6.5
- Power
- 60W
- Impedance
- 4Ω
- Power Peak
- 90
- Flux density
- 0.80T
- Sensitivity
- 88dB
- Calculated sensitivity †
- 85.5dB
- High limit
- 7000Hz
- Manufacturer sensitivity
- 88dB
- Voice coil
- 25mm
- Weight
- 1.0kg
- Diameter
- 170mm
- Cutout
- 150mm
02
Compare
Same-size drivers, compared with the WS 17 E. Clear differences are green when better and red when worse.
This driverWS 17 E
Best price
£26.17
Fs
45 Hz
Qts
0.65
Vas
22 L
BL
3.9 T·m
Xmax
3.5 mm
Sensitivity
85.5 dB
Power
60 W
VisatonW 170
£19.63 · 25% less, betterFs57 Hz +27%, worse
Qts0.69 +6%
Vas24 L +9%
BL5 T·m +28%, better
Xmax2 mm −43%, worse
Sensitivity89 dB +3.5, better
PRV Audio6MR250B-4
£26.11 · Same priceFs143 Hz +218%, worse
Qts0.82 +26%, worse
Vas4 L −82%, better
BL5.8 T·m +49%, better
Xmax3.3 mm −7%
Sensitivity93.4 dB +7.9, better
MonacorSPH-174KE
£29.31 · 12% more, worseFs42 Hz −7%
Qts0.51 −22%, better
Vas26 L +18%, worse
BL5.9 T·m +52%, better
Xmax3 mm −14%, worse
Sensitivity86.8 dB +1.3
Dayton AudioDA175-8
£29.91 · 14% more, worseFs39 Hz −13%, better
Qts0.58 −11%, better
Vas16.3 L −26%, better
BL7.2 T·m +84%, better
Xmax4.3 mm +21%, better
Sensitivity83.4 dB −2.1, worse
Dayton AudioLW150-4
£41.13 · 57% more, worseFs63 Hz +39%, worse
Qts0.64 –
Vas3.5 L −84%, better
BL6.5 T·m +67%, better
Xmax4 mm +14%, better
Sensitivity82.8 dB −2.7, worse
PeerlessHDS-P830883
£42.08 · 61% more, worseFs68 Hz +51%, worse
Qts0.67 +3%
Vas6.8 L −69%, better
BL7.8 T·m +100%, better
Xmax7.6 mm +118%, better
Sensitivity85.5 dB –
Dayton AudioRS150-4
£44.87 · 71% more, worseFs45 Hz –
Qts0.33 −49%, better
Vas16.4 L −25%, better
BL4.1 T·m +5%
Xmax4.4 mm +26%, better
Sensitivity87.8 dB +2.3, better
PRV Audio6MR400-4
£48.52 · 85% more, worseFs144 Hz +220%, worse
Qts0.60 −8%
Vas4.4 L −80%, better
BL6.4 T·m +63%, better
Xmax3.3 mm −7%
Sensitivity95.2 dB +9.7, better
WavecorWF168WA02
£60.59 · 132% more, worseFs49 Hz +9%
Qts0.52 −20%, better
Vas24.6 L +12%, worse
BL6.4 T·m +64%, better
Xmax3 mm −14%, worse
Sensitivity89.2 dB +3.7, better
VisatonW 165 A
£72.80 · 178% more, worseFs60 Hz +33%, worse
Qts0.63 −3%
Vas7.8 L −64%, better
BL5.0 T·m +28%, better
Xmax4.7 mm +33%, better
Sensitivity85.6 dB –
CIARECX171
£78.29 · 199% more, worseFs67 Hz +49%, worse
Qts0.55 −15%, better
Vas13.6 L −38%, better
BL4.6 T·m +18%, better
Xmax4.3 mm +23%, better
Sensitivity90 dB +4.5, better
LavoceCSF061.70K
£86.22 · 229% more, worseFs97 Hz +116%, worse
Qts0.69 +6%
Vas6.5 L −70%, better
BL6.9 T·m +77%, better
Xmax3.9 mm +11%, better
Sensitivity90.5 dB +5, better
WavecorWF166TU02
£96.50 · 269% more, worseFs50 Hz +11%, worse
Qts0.48 −26%, better
Vas22.3 L –
BL5 T·m +28%, better
Xmax3 mm −14%, worse
Sensitivity89.5 dB +4, better
Scanspeak18M/8631T00
£192.54 · 636% more, worseFs65 Hz +44%, worse
Qts0.71 +9%
Vas14 L −36%, better
BL6.5 T·m +67%, better
Xmax3 mm −14%, worse
Sensitivity88.7 dB +3.2, better
Scanspeak18M/4631T00
£192.54 · 636% more, worseFs65 Hz +44%, worse
Qts0.60 −8%
Vas14 L −36%, better
BL5.6 T·m +44%, better
Xmax3 mm −14%, worse
Sensitivity89.6 dB +4.1, better
Supravox165-2000 MK2
£197.35 · 654% more, worseFs77 Hz +70%, worse
Qts0.70 +8%
Vas25.8 L +17%, worse
BL3.5 T·m −9%
Xmax2.9 mm −17%, worse
Sensitivity93.7 dB +8.2, better
Lii AudioST-5
No current priceFs56 Hz +24%, worse
Qts0.66 –
Vas14.3 L −35%, better
BL5.8 T·m +49%, better
Xmax4 mm +14%, better
Sensitivity86.7 dB +1.2
PRV Audio69FR250-4
No current priceFs82 Hz +82%, worse
Qts0.70 +8%
Vas13.9 L −37%, better
BL6.1 T·m +56%, better
Xmax3.5 mm –
Sensitivity92.2 dB +6.7, better
Supravox165 LB
No current priceFs74 Hz +64%, worse
Qts0.79 +22%, worse
Vas26 L +18%, worse
BL4.2 T·m +6%
Xmax2.5 mm −29%, worse
Sensitivity92.4 dB +6.9, better
CelestionFTX0617
No current priceFs100 Hz +122%, worse
Qts0.74 +14%, worse
Vas7.4 L −66%, better
BL6.6 T·m +69%, better
Xmax3.5 mm –
Sensitivity91 dB +5.5, better
No photo
LavoceCSF061.21
No current priceFs90 Hz +100%, worse
Qts0.67 +3%
Vas8.5 L −61%, better
BL6.1 T·m +56%, better
Xmax3.2 mm −9%
Sensitivity91 dB +5.5, better
PRV Audio6MR400CF-4
No current priceFs131 Hz +191%, worse
Qts0.76 +17%, worse
Vas4.1 L −81%, better
BL6.3 T·m +62%, better
Xmax3.5 mm –
Sensitivity92.8 dB +7.3, better
PeerlessSDS-160F25PR01-08
No current priceFs48 Hz +7%
Qts0.58 −11%, better
Vas21.8 L –
BL6.6 T·m +70%, better
Xmax8.1 mm +130%, better
Sensitivity87.5 dB +2, better
WavecorWF166TU01
No current priceFs50 Hz +11%, worse
Qts0.45 −31%, better
Vas23.2 L +5%
BL5.2 T·m +33%, better
Xmax3.5 mm –
Sensitivity89.9 dB +4.4, better
REDCATT61XR
No current priceFs64 Hz +42%, worse
Qts0.72 +11%, worse
Vas8.6 L −61%, better
BL4.8 T·m +22%, better
Xmax8.1 mm +131%, better
Sensitivity85.7 dB –
Lii AudioFAST 6
No current priceFs63 Hz +40%, worse
Qts0.46 −30%, better
Vas22.9 L +4%
BL4.3 T·m +9%
Xmax6 mm +71%, better
Sensitivity92.5 dB +7, better
WavecorWF146OM01
No current priceFs49 Hz +9%
Qts0.42 −35%, better
Vas13.6 L −38%, better
BL4.6 T·m +18%, better
Xmax3.3 mm −6%
Sensitivity87.5 dB +2, better
PRV Audio6MR400-NDY-4
No current priceFs178 Hz +296%, worse
Qts0.87 +34%, worse
Vas2.4 L −89%, better
BL6.0 T·m +55%, better
Xmax3.3 mm −7%
Sensitivity93.7 dB +8.2, better
KartesianLOM165_VPA-H
No current priceFs52 Hz +16%, worse
Qts0.26 −60%, better
Vas17.4 L −21%, better
BL9.8 T·m +151%, better
Xmax3.5 mm –
Sensitivity92 dB +6.5, better
Tune the match
Choose the published values that matter to your design. Size stays matched to this driver.
Qts
Qes
VasL
Xmaxmm
BLTm
| Shop | Price | Against the lowest | Stock | Link |
|---|---|---|---|---|
Impact Audio | £29.94, the lowest price | In stock | Visit shop at Impact Audio | |
Parts Express Import VAT and duty may apply | £26.17 | 3 in stock | Visit shop at Parts Express | |
RumoH Import VAT and duty may apply | £26.25 | Stock not listed | Visit shop at RumoH |
Best price over time
Tracked since 5 Aug
