Overview
LF DriverPAW series
Visaton

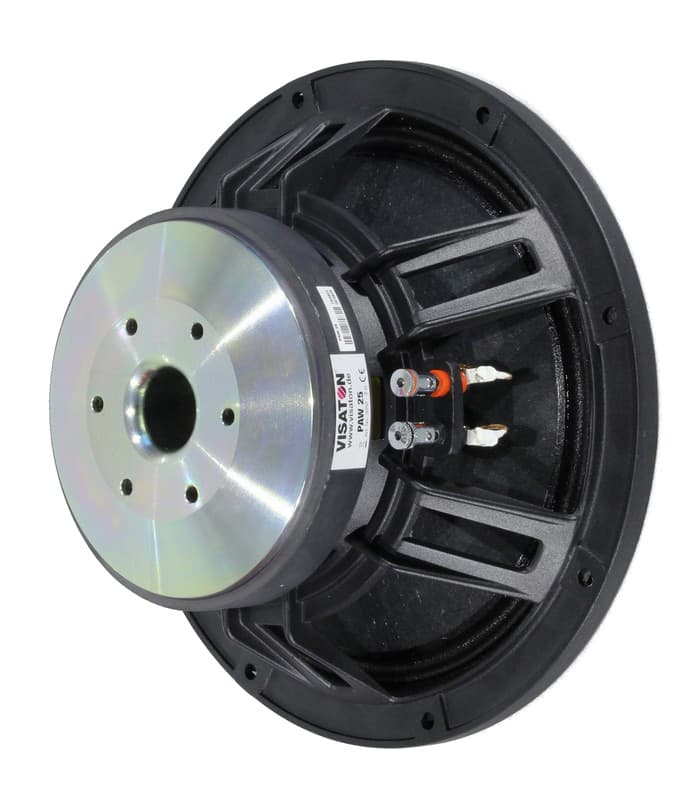

Visaton PAW 25 - 8 OHM
Visaton PAW 25 - 8 OHM is a 10" 8 ohm LF driver rated at 300W RMS. The validated T/S data includes Fs 52Hz, Qts 0.33, Vas 44L, Xmax 8mm, sensitivity 94.6dB, plus 282cm³ Vd and 153 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
10"
Impedance
8Ω
RMS Power
300W
Sensitivity
94.6dB
92.0dBmanufacturer; using T/S-derived value (2.6dB delta).
EBP
153
Vented alignment
Vd
282cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
impedance180 ptsp1medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
impedance
Impedance response
180 plotted pointsMedium confidence248 selected pixels of 391
T/S Parameters
Valid
Fs52Hz
Qts0.33
Qes0.34
Qms9.6
Vas44.0L
Re6.5Ω
Le0.90mH
BL15.6Tm
Sd353cm²
Mms38g
Xmax8.0mm
SPL95dB
Power300W
Impedance8Ω
F High4200Hz
Voice Coil65mm
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight3.6kg
Diameter250.0mm
Cutout Diameter230.0mm
