LF Driver
Beyma
Beyma 10MCS
Beyma 10MCS is a 10" 8 ohm LF driver rated at 500W RMS. The validated T/S data includes Fs 65Hz, Qts 0.31, Vas 24L, Xmax 8mm, sensitivity 95dB, plus 280cm³ Vd and 197 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
10"
Impedance
8Ω
RMS Power
500W
Sensitivity
95.0dB
96.5dBmanufacturer; using T/S-derived value (1.5dB delta).
EBP
197
Vented alignment
Vd
280cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp2medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence4,204 selected pixels of 4,204 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence3,629 selected pixels of 3,629
Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs65Hz
Qts0.31
Qes0.33
Qms10.1
Vas24.0L
Re5.6Ω
Le1.10mH
BL17.6Tm
Sd350cm²
Mms44g
Xmax8.0mm
SPL95dB
Power500W
Impedance8Ω
F Low70Hz
F High5000Hz
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight5.7kg
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Beyma
10MCS
10"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
90%
Similarity
£143.66
Beyma
10MC500
10"
Xmax8mm0%
Qts0.29-6%
BL18.3Tm+4%
Vas24L0%
Qes0.3-9%
88%
Similarity
£186.32
Eighteen Sound
10NTLW2500
10"
Xmax7.6mm-5%
Qts0.33+6%
BL17.4Tm-1%
Vas21L-12%
Qes0.34+3%
88%
Similarity

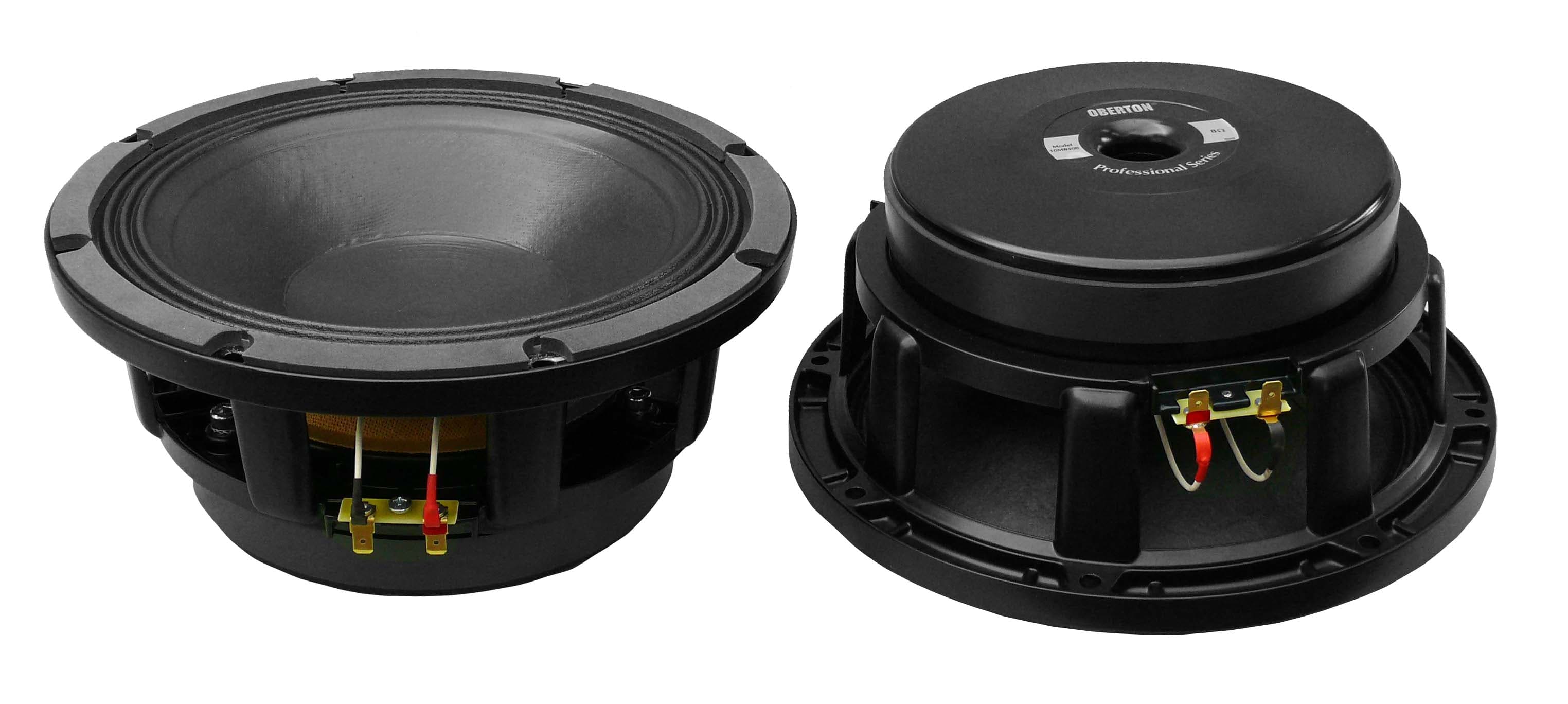

Oberton
10MB500
10"
Xmax8.3mm+3%
Qts0.31-1%
BL15.4Tm-12%
Vas22.1L-8%
Qes0.32-4%
85%
Similarity
£165.49
FaitalPRO
10FH520
10"
Xmax7.3mm-9%
Qts0.29-6%
BL18Tm+2%
Vas23.5L-2%
Qes0.3-9%
80%
Similarity
£211.47
Eighteen Sound
10NW750
10"
Xmax7.5mm-6%
Qts0.310%
BL16.4Tm-7%
Vas34L+42%
Qes0.32-3%
79%
Similarity

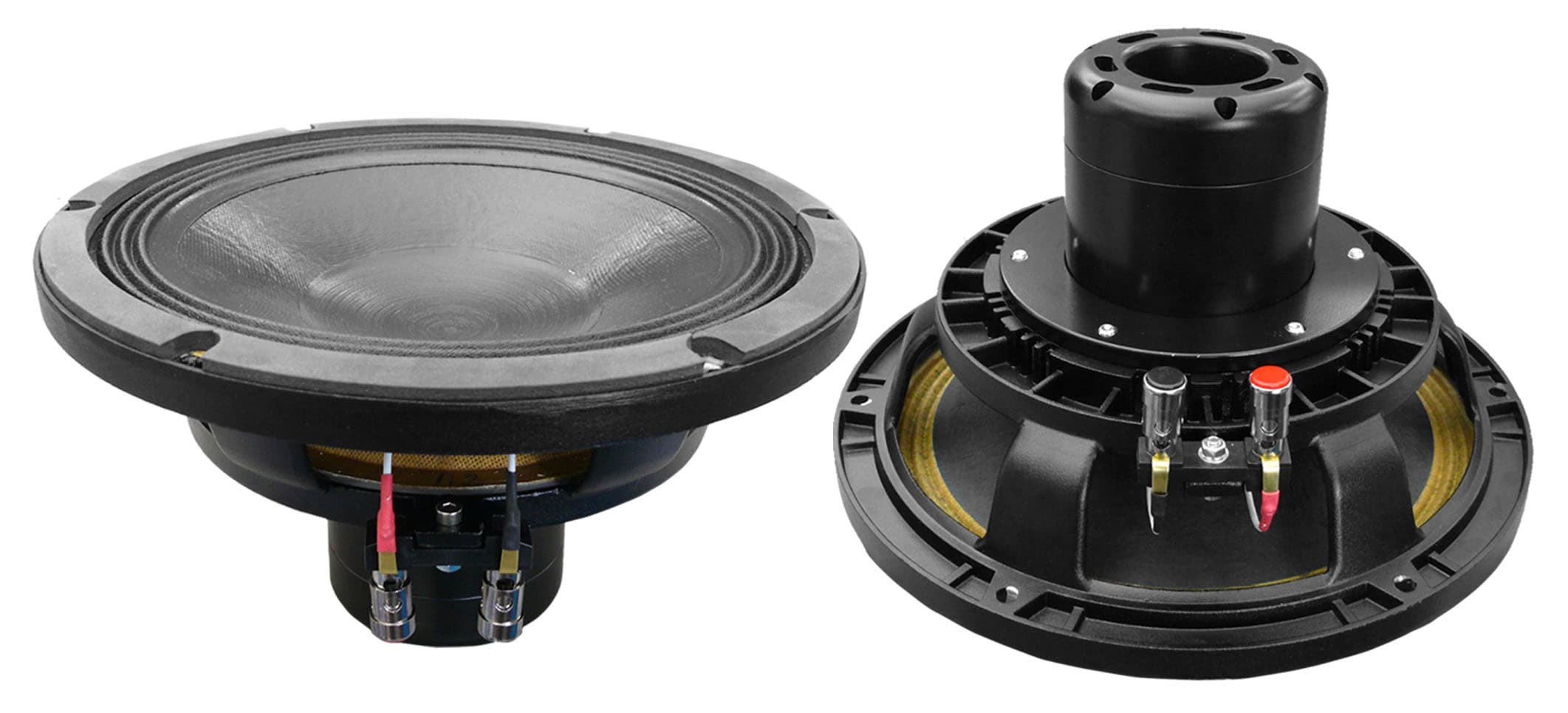

Oberton
10NDG500
10"
Xmax9.5mm+19%
Qts0.34+8%
BL17.4Tm-1%
Vas21.5L-11%
Qes0.35+5%
77%
Similarity
£152.56
SB Audience
NERO-10MWN600D
10"
Xmax7.3mm-9%
Qts0.34+10%
BL18.2Tm+3%
Vas18.8L-22%
Qes0.36+9%
77%
Similarity
£114.82
RCF
MB10G251
10"
Xmax7mm-12%
Qts0.34+10%
BL14.9Tm-15%
Vas24L0%
Qes0.35+6%
77%
Similarity
RCF
MB10G253
10"
Xmax7mm-12%
Qts0.34+10%
BL14.9Tm-15%
Vas24L0%
Qes0.35+6%
77%
Similarity
£159.53
FaitalPRO
10FH500
10"
Xmax7.5mm-6%
Qts0.26-16%
BL17.9Tm+2%
Vas25.8L+8%
Qes0.28-15%
74%
Similarity
£260.72

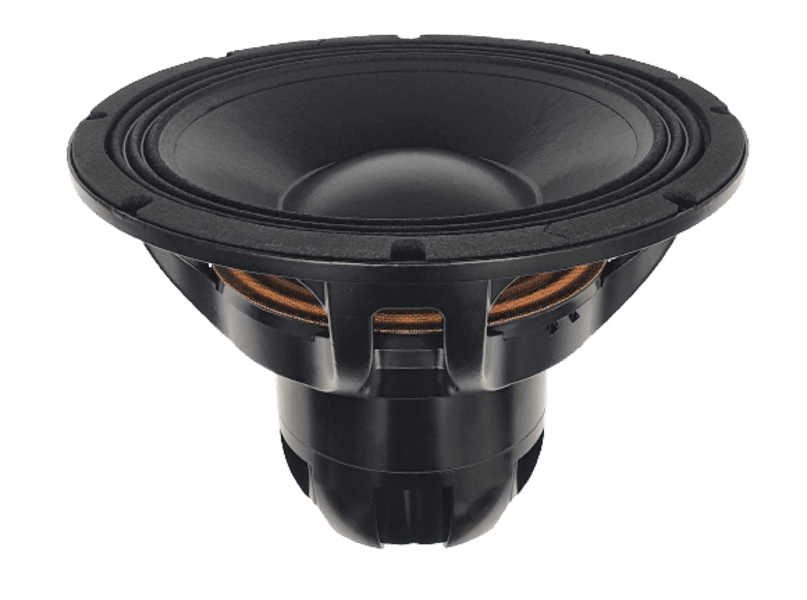

Eighteen Sound
