Beyma 110G48
Beyma 110G48 is a 10" 8 ohm LF driver rated at 400W RMS. The validated T/S data includes Fs 45Hz, Qts 0.30, Vas 49L, Xmax 7mm, sensitivity 93.5dB, plus 266cm³ Vd and 141 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
10"
Impedance
8Ω
RMS Power
400W
Sensitivity
93.5dB
95.0dBmanufacturer; using T/S-derived value (1.5dB delta).
EBP
141
Vented alignment
Vd
266cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp2medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence4,474 selected pixels of 4,490 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence3,367 selected pixels of 3,367
Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs45Hz
Qts0.30
Qes0.32
Qms7.1
Vas49.0L
Re6.2Ω
Le0.60mH
BL17.0Tm
Sd380cm²
Mms52g
Xmax7.0mm
SPL94dB
Power400W
Impedance8Ω
F Low45Hz
F High4000Hz
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight5.7kg
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Beyma
110G48
10"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
84%
Similarity
£211.47
Eighteen Sound
10NW750
10"
Xmax7.5mm+7%
Qts0.31+3%
BL16.4Tm-4%
Vas34L-31%
Qes0.320%
83%
Similarity
£163.27
Eighteen Sound
10NW650
10"
Xmax7mm0%
Qts0.28-7%
BL14Tm-18%
Vas48L-2%
Qes0.29-9%
83%
Similarity
RCF
MB10G350
10"
Xmax7mm0%
Qts0.31+3%
BL14.7Tm-14%
Vas34L-31%
Qes0.320%
82%
Similarity
£135.67
FaitalPRO
10PR320
10"
Xmax7.4mm+5%
Qts0.29-3%
BL13.5Tm-21%
Vas52.7L+8%
Qes0.31-3%
82%
Similarity

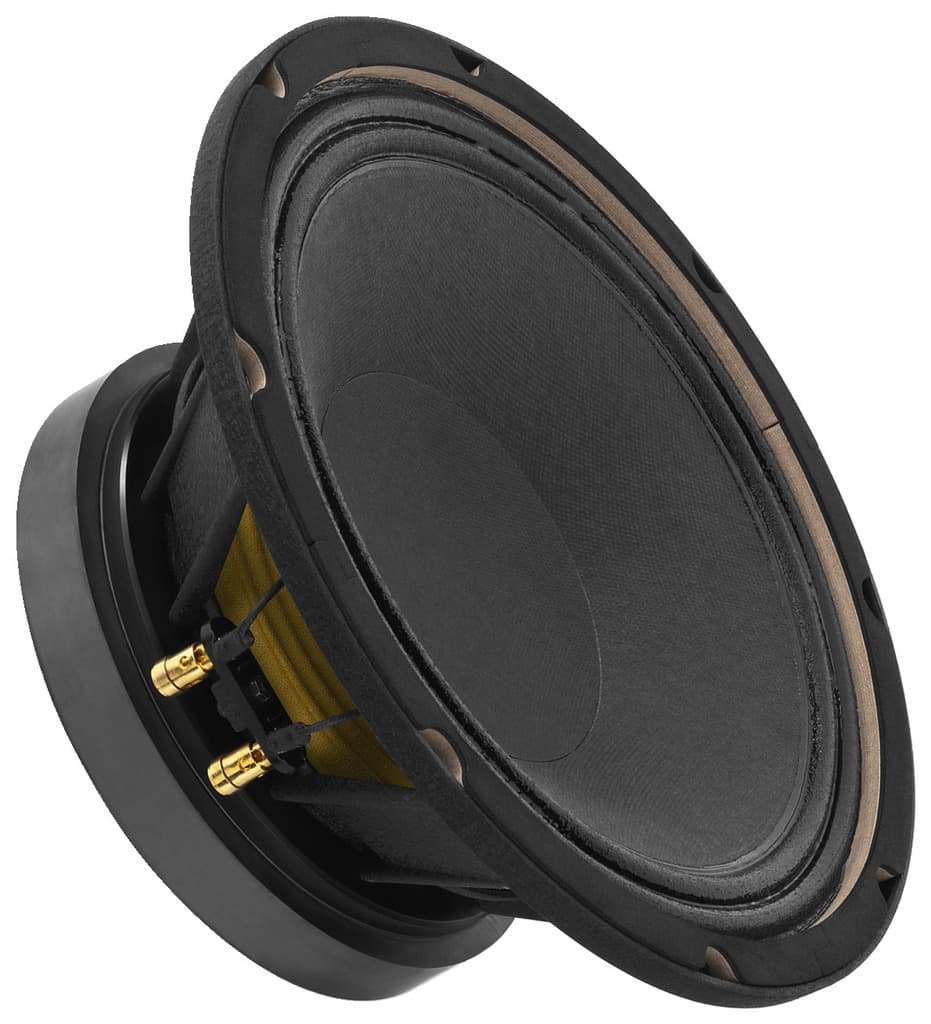

Monacor
SP-10/250PRO
10"
Xmax7mm0%
Qts0.33+10%
BL18.3Tm+8%
Vas40.7L-17%
Qes0.35+9%
81%
Similarity

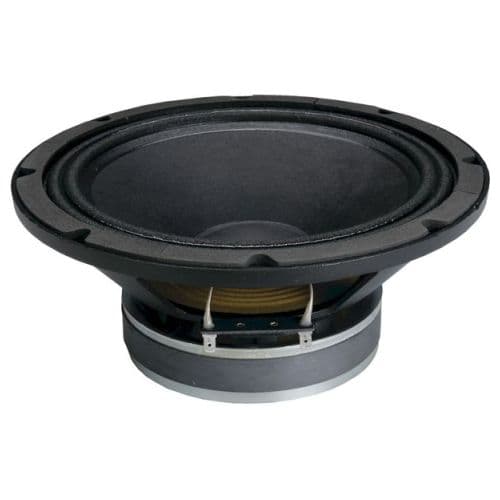

CIARE
PW252
10"
Xmax7mm0%
Qts0.26-13%
BL15.2Tm-10%
Vas43.4L-11%
Qes0.3-6%
81%
Similarity
£125.45
Eminence
KAPPALITE KL3010LF-8
10"
Xmax8.5mm+22%
Qts0.31+3%
BL18Tm+6%
Vas47.3L-3%
Qes0.33+3%
79%
Similarity
Sica
10 PN 3
10"
Xmax7mm0%
Qts0.26-13%
BL16.1Tm-6%
Vas40.1L-18%
Qes0.28-12%
77%
Similarity
PRV Audio
MT10W1200-NDY-4
10"
Xmax6.5mm-7%
Qts0.30%
BL12.3Tm-28%
Vas41.2L-16%
Qes0.31-3%
76%
Similarity
£62.49
Visaton
PAW 25
10"
Xmax8mm+14%
Qts0.33+10%
BL15.6Tm-8%
Vas44L-10%
Qes0.34+6%
76%
Similarity

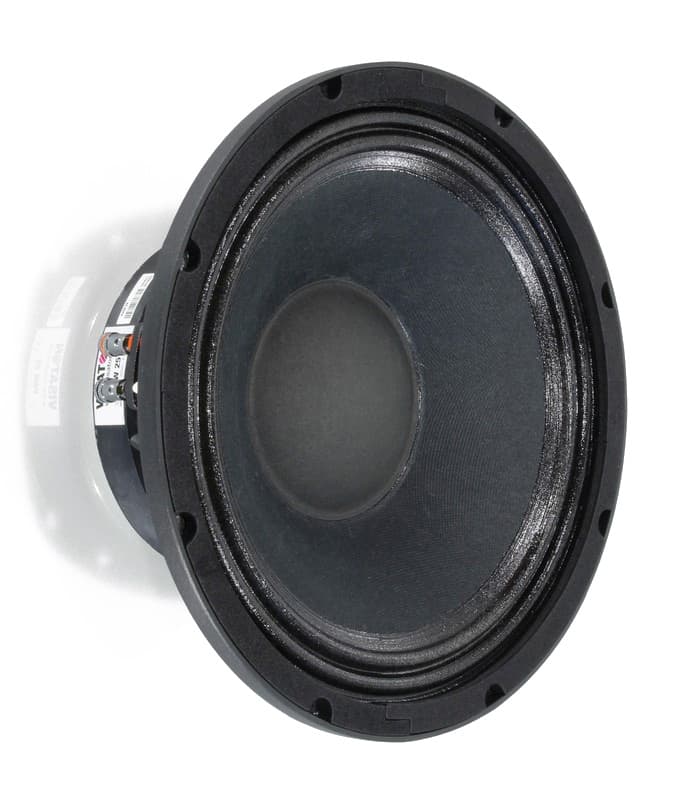

Visaton
