- Net volume
- 40L
- Tuning
- 65Hz
Eighteen Sound gives the volume and tuning; the port is sized for the driver when you open it.
12-inch LF driver · 450 W
Eighteen Sound 12ND610 16Ω
80–5000 Hz
£266.78
SteadyLean Business · All 4 offers
- Fs
- 50Hz
- Xmax
- 3.5mm
- SPL
- 99dB
- Pe
- 450W
- BL
- 27.9T·m
- Vd
- 186cm³
- Qts
- 0.21
- Vas
- 85L
Published graphs

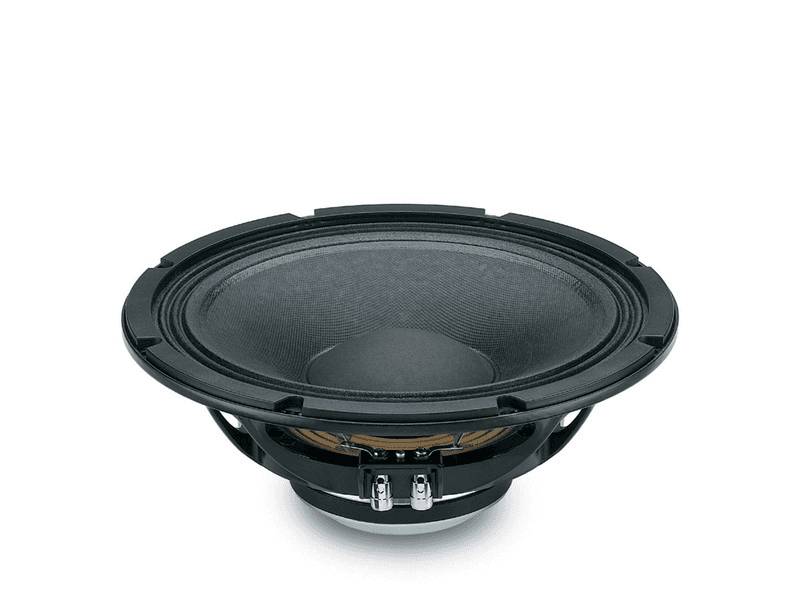

Eighteen Sound 12ND610 is a 12-inch 16 ohm LF driver rated at 450 W RMS. The validated T/S data includes Fs 50 Hz, Qts 0.21, Vas 85 L, Xmax 3.5 mm, sensitivity 98.9 dB, plus 186 cm³ Vd and 227 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £266.78.
The published T/S values agree with each other
Thiele/Small
- Fs
- 50Hz
- Qts
- 0.21
- Qes
- 0.22
- Qms
- 4.6
- Vas
- 85L
- Re
- 11.9Ω
- Le
- 0.76mH
Motor and cone
- BL
- 27.9T·m
- Sd
- 530cm²
- Mms
- 45g
- Xmax
- 3.5mm
- Vd †
- 186cm³
Power and response
- Sensitivity †
- 98.9dB
- Manufacturer sensitivity
- 101dB
- Power
- 450W
- Nominal power
- 450W
- Impedance
- 16Ω
- Range
- 80–5000Hz
- EBP †
- 227 · Leans vented
Size and mounting
- Diameter
- 315mm
- Cutout
- 282mm
- Bolt circle
- 296mm
- Depth
- 141mm
- Weight
- 4.7kg
Other published values
- Power Program
- 700
Sensitivity shows 98.9 dB, calculated from the T/S values. Eighteen Sound publishes 101.0 dB, 2.1 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Eighteen Sound lists
LF · Primary · 12″
- BL
- 27.9T·m
- Fs
- 50Hz
- Le
- 0.76mH
- Re
- 11.9Ω
- Sd
- 530cm²
- Mms
- 45g
- Qes
- 0.22
- Qms
- 4.6
- Qts
- 0.21
- SPL
- 98.9dB
- Vas
- 85L
- Xmax
- 3.5mm
- Power
- 450W
- Impedance
- 16Ω
- Sensitivity
- 101dB
- Low limit
- 80Hz
- Nominal power
- 450W
- Power Program
- 700
- Calculated sensitivity †
- 98.9dB
- High limit
- 5000Hz
- Manufacturer sensitivity
- 101dB
- Weight
- 4.7kg
- Diameter
- 315mm
- Depth
- 141mm
- Cutout
- 282mm
- Bolt circle
- 296mm
02
Designs
What Eighteen Sound suggests for the 12ND610. No published designs name it yet.
How we find designsEighteen Sound’s suggested box
From Eighteen Sound’s 12ND610 page
Open this box in 00 Simulator
Modelling the box in 00 Simulator…
03
Compare
Same-size drivers, compared with the 12ND610. Clear differences are green when better and red when worse.
This driver12ND610
Best price
£266.78
Fs
50 Hz
Qts
0.21
Vas
85 L
BL
27.9 T·m
Xmax
3.5 mm
Sensitivity
98.9 dB
Power
450 W
RCFLF12G301
£109.61 · 59% less, betterFs43 Hz −14%, better
Qts0.22 +5%
Vas97 L +14%, worse
BL19 T·m −32%, worse
Xmax7 mm +100%, better
Sensitivity97.3 dB −1.6
B&C12CL76
£135.00 · 49% less, betterFs48 Hz −4%
Qts0.21 –
Vas59 L −31%, better
BL22.4 T·m −20%, worse
Xmax6 mm +71%, better
Sensitivity96.8 dB −2.1, worse
PRV Audio12MR1200X
£148.98 · 44% less, betterFs53 Hz +5%
Qts0.21 –
Vas71.8 L −16%, better
BL22 T·m −21%, worse
Xmax4.5 mm +29%, better
Sensitivity99 dB –
Beyma12MI100
£153.16 · 43% less, betterFs58 Hz +16%, worse
Qts0.22 +5%
Vas64 L −25%, better
BL21.6 T·m −23%, worse
Xmax3 mm −14%, worse
Sensitivity99.4 dB +0.5
Precision DevicesPD.121/2
£166.00 · 38% less, betterFs53 Hz +7%
Qts0.23 +10%
Vas66.6 L −22%, better
BL21.5 T·m −23%, worse
Xmax2.7 mm −23%, worse
Sensitivity98.4 dB −0.5
Beyma12P80FE
£175.00 · 34% less, betterFs48 Hz −4%
Qts0.21 –
Vas61 L −28%, better
BL23 T·m −18%, worse
Xmax7.5 mm +114%, better
Sensitivity96.9 dB −2, worse
BMS12S320
£204.98 · 23% less, betterFs45 Hz −9%
Qts0.20 −5%
Vas69.5 L −18%, better
BL23.3 T·m −16%, worse
Xmax4.5 mm +29%, better
Sensitivity96.9 dB −2, worse
BMS12S330
£204.98 · 23% less, betterFs29 Hz −43%, better
Qts0.24 +14%, worse
Vas85.5 L –
BL23 T·m −18%, worse
Xmax8 mm +129%, better
Sensitivity91.1 dB −7.8, worse
Sica12 F 4 CP
£216.46 · 19% less, betterFs46 Hz −8%
Qts0.20 −5%
Vas52 L −39%, better
BL26.0 T·m −7%
Xmax6 mm +71%, better
Sensitivity95.8 dB −3.1, worse
RCFMB12N351
£225.00 · 16% less, betterFs55 Hz +10%, worse
Qts0.20 −5%
Vas61 L −28%, better
BL22.5 T·m −19%, worse
Xmax6 mm +71%, better
Sensitivity98.9 dB –
B&C12NBX100
£241.54 · 9% less, betterFs41 Hz −18%, better
Qts0.22 +5%
Vas51 L −40%, better
BL25.6 T·m −8%
Xmax10 mm +186%, better
Sensitivity93.7 dB −5.2, worse
Eighteen Sound12ND930
£248.59 · 7% less, betterFs50 Hz –
Qts0.21 –
Vas70 L −18%, better
BL21.2 T·m −24%, worse
Xmax6.5 mm +86%, better
Sensitivity98 dB −0.9
Eighteen Sound12NMB1000
£252.00 · 6% less, betterFs54 Hz +8%
Qts0.19 −10%
Vas58 L −32%, better
BL24.4 T·m −13%, worse
Xmax3.5 mm –
Sensitivity98.8 dB –
B&C12NW100
£255.00 · 4% lessFs42 Hz −16%, better
Qts0.20 −5%
Vas44 L −48%, better
BL28 T·m –
Xmax9 mm +157%, better
Sensitivity93.9 dB −5, worse
BMS12C362
£287.08 · 8% more, worseFs46 Hz −8%
Qts0.20 −5%
Vas60.6 L −29%, better
BL23.2 T·m −17%, worse
Xmax4.5 mm +29%, better
Sensitivity96.7 dB −2.2, worse
Beyma12P80ND
£374.18 · 40% more, worseFs47 Hz −6%
Qts0.19 −10%
Vas65 L −24%, better
BL23.7 T·m −15%, worse
Xmax7.5 mm +114%, better
Sensitivity97.3 dB −1.6
LavoceCAN123.00T
£400.33 · 50% more, worseFs46 Hz −8%
Qts0.22 +5%
Vas91 L +7%
BL18.5 T·m −34%, worse
Xmax6 mm +71%, better
Sensitivity97.9 dB −1
No photo
PHL Audio4330NDU
No current priceFs36 Hz −28%, better
Qts0.22 +5%
Vas82.6 L –
BL22 T·m −21%, worse
Xmax8 mm +129%, better
Sensitivity94.3 dB −4.6, worse
Supravox285-2000 MK2
No current priceFs47 Hz −6%
Qts0.21 –
Vas159 L +87%, worse
BL13.3 T·m −52%, worse
Xmax3.5 mm –
Sensitivity100.8 dB +1.9
No photo
PHL Audio4051
No current priceFs49 Hz –
Qts0.20 −5%
Vas85.2 L –
BL20.9 T·m −25%, worse
Xmax5 mm +43%, better
Sensitivity98.8 dB –
Oberton12NXL400
No current priceFs49 Hz –
Qts0.20 −3%
Vas79.2 L −7%
BL20.6 T·m −26%, worse
Xmax5.3 mm +50%, better
Sensitivity98.5 dB –
Precision DevicesPD.124NR1-LR
No current priceFs45 Hz −10%, better
Qts0.23 +7%
Vas78 L −8%
BL22 T·m −21%, worse
Xmax8.5 mm +143%, better
Sensitivity96.9 dB −2, worse
Eighteen Sound12MB710
No current priceFs46 Hz −8%
Qts0.20 −5%
Vas81 L −5%
BL20.5 T·m −27%, worse
Xmax5 mm +43%, better
Sensitivity98 dB −0.9
Eighteen Sound12MB720
No current priceFs46 Hz −8%
Qts0.20 −5%
Vas81 L −5%
BL20.5 T·m −27%, worse
Xmax5 mm +43%, better
Sensitivity98 dB −0.9
Eighteen Sound12MB810
No current priceFs46 Hz −8%
Qts0.20 −5%
Vas81 L −5%
BL20.5 T·m −27%, worse
Xmax5 mm +43%, better
Sensitivity98 dB −0.9
Oberton12NB450
No current priceFs46 Hz −7%
Qts0.20 –
Vas72.6 L −15%, better
BL20.3 T·m −27%, worse
Xmax7.8 mm +121%, better
Sensitivity97.5 dB −1.4
RCFCX12N351
No current priceFs58 Hz +16%, worse
Qts0.20 −5%
Vas47 L −45%, better
BL25 T·m −10%, worse
Xmax6 mm +71%, better
Sensitivity98.4 dB −0.5
RCFMB12N405
No current priceFs52 Hz +4%
Qts0.20 −5%
Vas53 L −38%, better
BL23.5 T·m −16%, worse
Xmax7 mm +100%, better
Sensitivity97.5 dB −1.4
LavoceCAN123.00TH
No current priceFs46 Hz −8%
Qts0.22 +5%
Vas91 L +7%
BL18.5 T·m −34%, worse
Xmax6 mm +71%, better
Sensitivity97.9 dB −1
Eighteen Sound12ND940
No current priceFs49 Hz –
Qts0.20 −5%
Vas64.8 L −24%, better
BL22.2 T·m −20%, worse
Xmax7.6 mm +117%, better
Sensitivity97.8 dB −1.1
Tune the match
Choose the published values that matter to your design. Size stays matched to this driver.
Qts
Qes
VasL
Xmaxmm
BLTm
| Shop | Price | Against the lowest | Stock | Link |
|---|---|---|---|---|
Lean Business | £266.78, the lowest price | Stock not listed | Visit shop at Lean Business | |
Lean Audio | £266.75 | Back order | Visit shop at Lean Audio |
Best price over time
Tracked since 1 Apr
