Overview
LF Driver
Beyma
Beyma 115P80FEN8
Beyma 115P80FEN8 is a 15" 8 ohm LF driver rated at 800W RMS. The validated T/S data includes Fs 32Hz, Qts 0.18, Vas 305L, Xmax 7.5mm, sensitivity 99.2dB, plus 660cm³ Vd and 168 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
15"
Impedance
8Ω
RMS Power
800W
Sensitivity
99.2dB
101.0dBmanufacturer; using T/S-derived value (1.8dB delta).
EBP
168
Vented alignment
Vd
660cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp2medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence4,966 selected pixels of 4,966 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence2,941 selected pixels of 2,941
Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs32Hz
Qts0.18
Qes0.19
Qms5.5
Vas305.0L
Re5.3Ω
Le1.20mH
BL22.1Tm
Sd880cm²
Mms88g
Xmax7.5mm
SPL99dB
Power800W
Impedance8Ω
F Low30Hz
F High4000Hz
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight12.5kg
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Beyma
115P80FEN8
15"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
9 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
69%
Similarity
£193.05
Eighteen Sound
15W930
15"
Xmax7.5mm0%
Qts0.22+22%
BL22.1Tm0%
Vas240L-21%
Qes0.23+21%
67%
Similarity
Beyma
115P80ND8
15"
Xmax7.5mm0%
Qts0.21+17%
BL23.8Tm+8%
Vas184L-40%
Qes0.22+16%
62%
Similarity
£266.78
Eighteen Sound
15ND930
15"
Xmax7.5mm0%
Qts0.22+22%
BL23.8Tm+8%
Vas206L-32%
Qes0.23+21%
62%
Similarity
£233.82

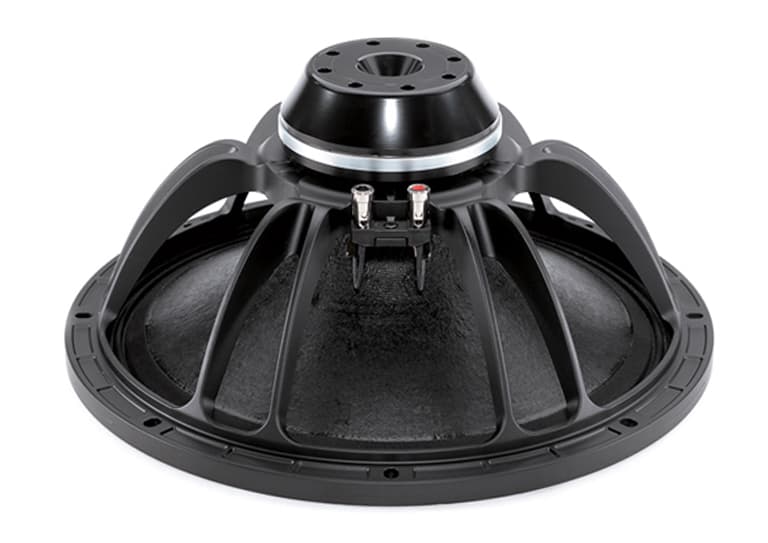

B&C
15NW76
15"
Xmax8mm+7%
Qts0.21+17%
BL20.6Tm-7%
Vas143L-53%
Qes0.21+11%
59%
Similarity

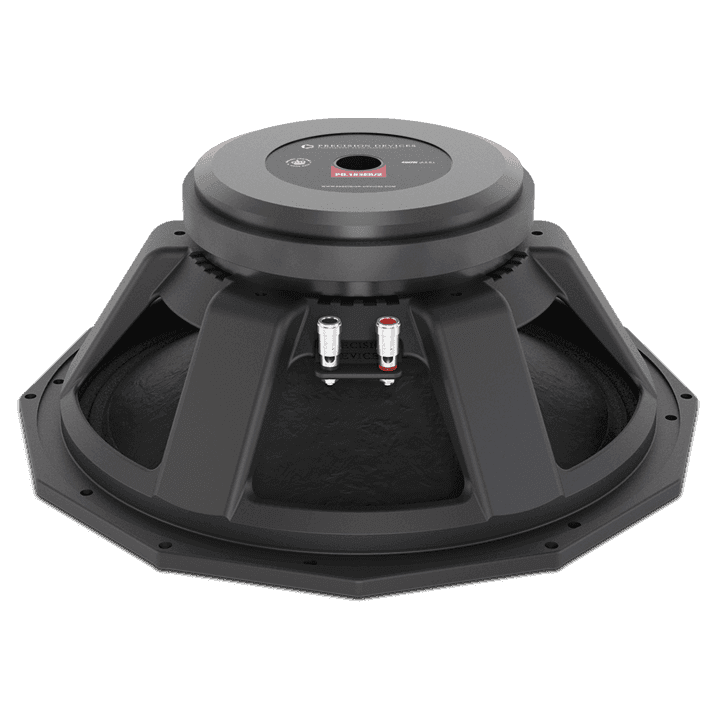

Precision Devices
PD.153ER/2
15"
Xmax5.7mm-24%
Qts0.21+17%
BL22.4Tm+2%
Vas218.8L-28%
Qes0.22+16%
58%
Similarity
£184.99
B&C
15NDL76
15"
Xmax7mm-7%
Qts0.22+22%
BL22.5Tm+2%
Vas195L-36%
Qes0.24+26%
57%
Similarity

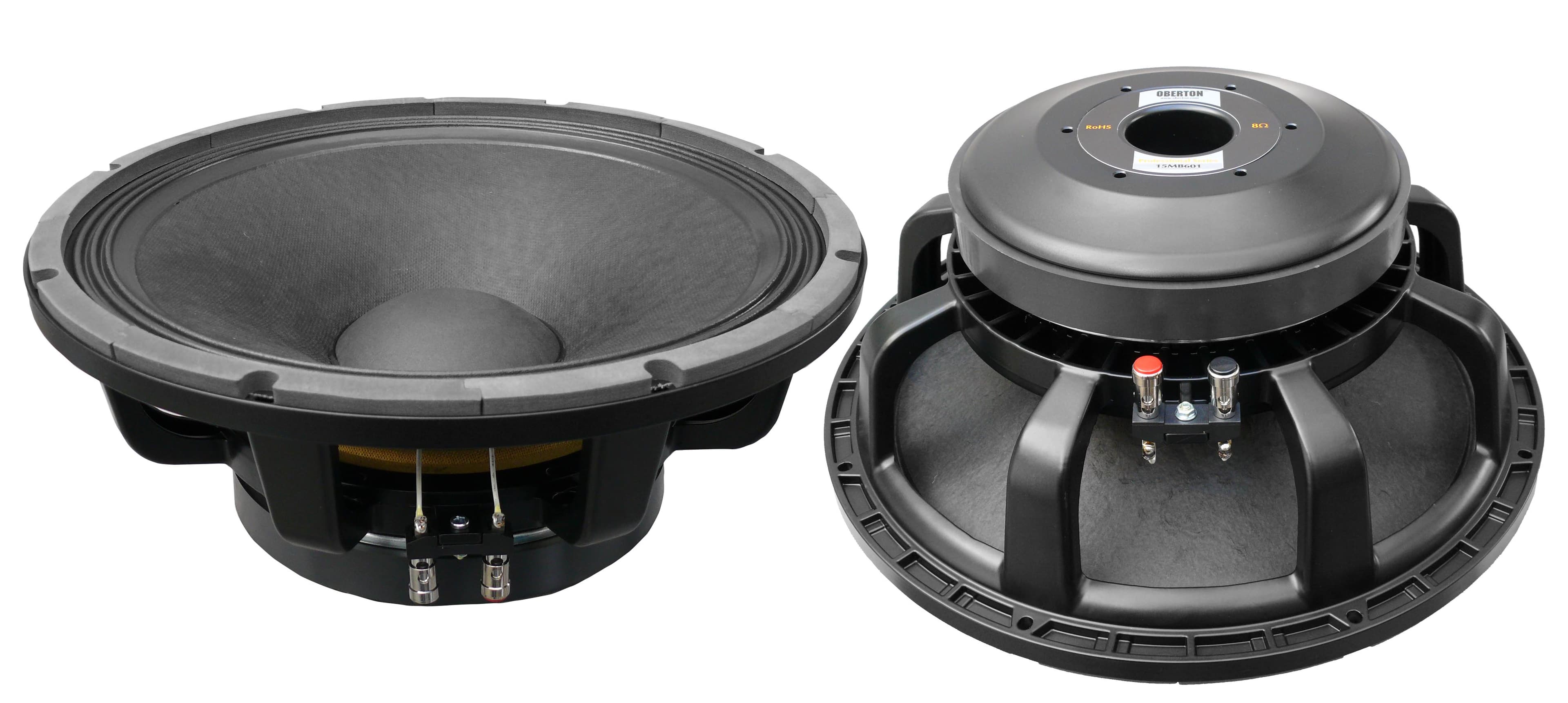

Oberton
15MB601
15"
Xmax5.5mm-27%
Qts0.18+3%
BL27.1Tm+23%
Vas139L-54%
Qes0.190%
53%
Similarity
£181.02

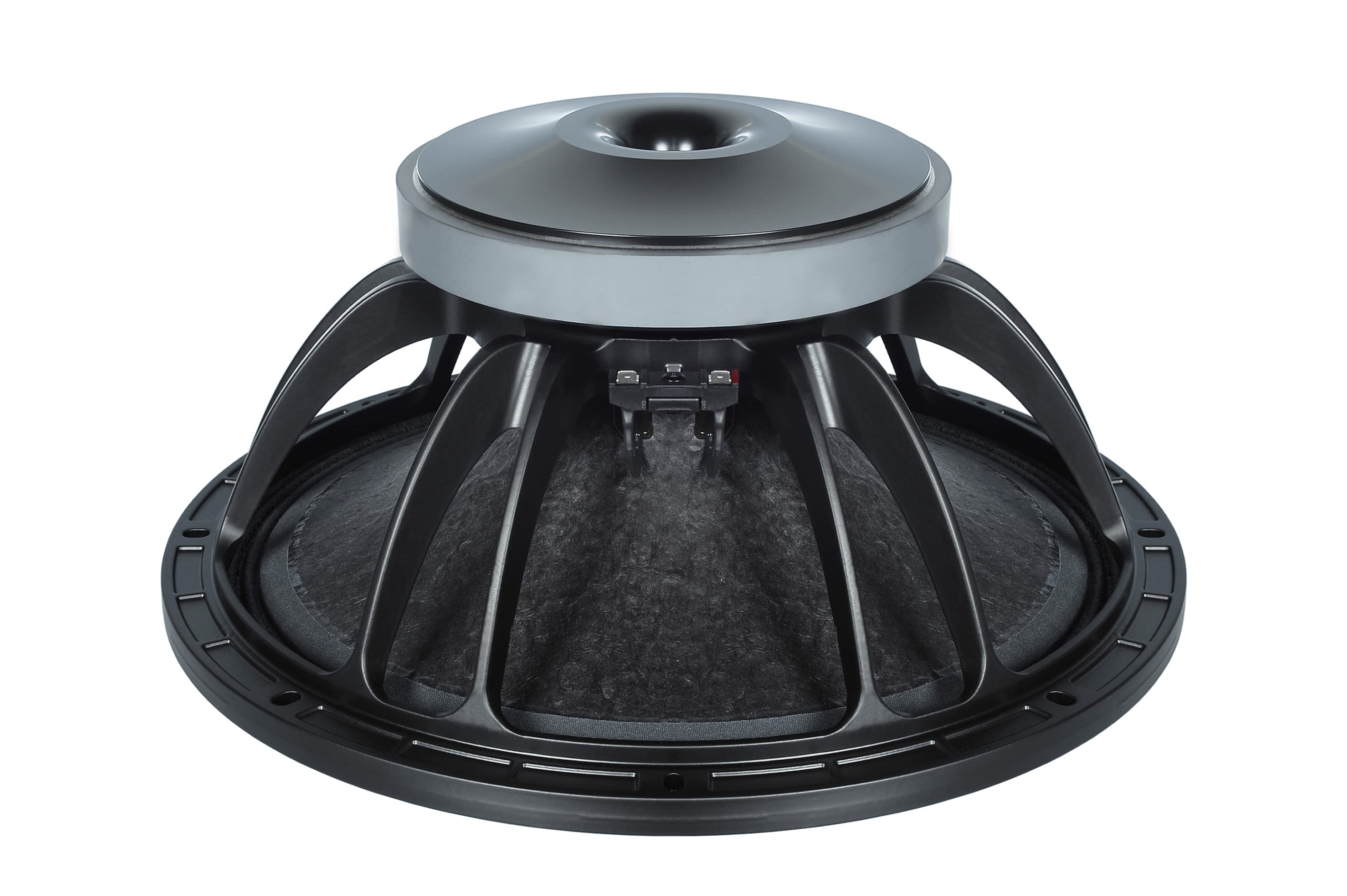

B&C
15FW76
15"
Xmax7mm-7%
Qts0.21+17%
BL26.2Tm+19%
Vas138L-55%
Qes0.22+16%
50%
Similarity
£261.07
RCF
MB15N351
15"
Xmax6mm-20%
Qts0.22+22%
BL22.5Tm+2%
Vas191L-37%
Qes0.24+26%
