Overview
LF Driver
Beyma
Beyma 115P80ND8
Beyma 115P80ND8 is a 15" 8 ohm LF driver rated at 800W RMS. The validated T/S data includes Fs 39Hz, Qts 0.21, Vas 184L, Xmax 7.5mm, sensitivity 99dB, plus 660cm³ Vd and 177 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
15"
Impedance
8Ω
RMS Power
800W
Sensitivity
99.0dB
101.0dBmanufacturer; using T/S-derived value (2.0dB delta).
EBP
177
Vented alignment
Vd
660cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp2medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence5,402 selected pixels of 6,993 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence3,509 selected pixels of 3,509
Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs39Hz
Qts0.21
Qes0.22
Qms5.1
Vas184.0L
Re5.1Ω
Le0.80mH
BL23.8Tm
Sd880cm²
Mms98g
Xmax7.5mm
SPL99dB
Power800W
Impedance8Ω
F Low40Hz
F High4000Hz
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight6.0kg
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Beyma
115P80ND8
15"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
10 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
91%
Similarity
£266.78
Eighteen Sound
15ND930
15"
Xmax7.5mm0%
Qts0.22+5%
BL23.8Tm0%
Vas206L+12%
Qes0.23+5%
90%
Similarity
Precision Devices
PD.153C001
15"
Xmax7.7mm+3%
Qts0.22+6%
BL24.2Tm+2%
Vas196L+7%
Qes0.23+5%
85%
Similarity
£184.99
B&C
15NDL76
15"
Xmax7mm-7%
Qts0.22+5%
BL22.5Tm-5%
Vas195L+6%
Qes0.24+9%
84%
Similarity
£181.02
B&C
15FW76
15"
Xmax7mm-7%
Qts0.210%
BL26.2Tm+10%
Vas138L-25%
Qes0.220%
83%
Similarity
£193.05
Eighteen Sound
15W930
15"
Xmax7.5mm0%
Qts0.22+5%
BL22.1Tm-7%
Vas240L+30%
Qes0.23+5%
82%
Similarity
£233.82

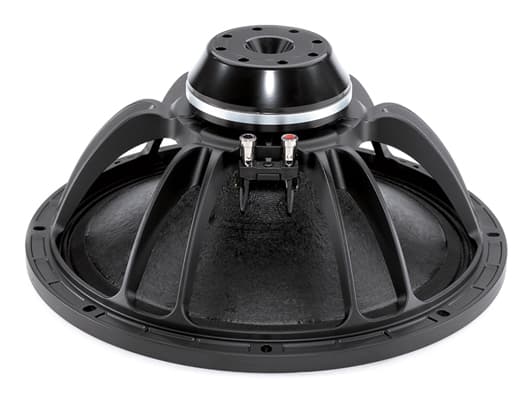

B&C
