Hornresp
.txt · Hornresp driver database
Driver file ready to place in Hornresp’s Drivers folder.
Download for HornrespBeyma 115P10FEV28 8Ω
LF DriverMedia
Overview
LF Driver
Beyma
Beyma 115P10FEV28
Beyma 115P10FEV28 is a 15" 8 ohm LF driver rated at 1000W RMS. The validated T/S data includes Fs 45Hz, Qts 0.30, Vas 80.7L, Xmax 8mm, sensitivity 95.8dB, plus 684cm³ Vd and 145 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
15"
Impedance
8Ω
RMS Power
1000W
Sensitivity
95.8dB
98.0dBmanufacturer; using T/S-derived value (2.2dB delta).
EBP
145
Vented alignment
Vd
684cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp2medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence3,975 selected pixels of 4,467 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence3,601 selected pixels of 3,601
Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs45Hz
Qts0.30
Qes0.31
Qms5.9
Vas80.7L
Re5.2Ω
Le1.50mH
BL27.4Tm
Sd855cm²
Mms157g
Xmax8.0mm
SPL96dB
Power1000W
Impedance8Ω
F Low45Hz
F High2000Hz
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight13.1kg
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Beyma
115P10FEV28
15"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
91%
Similarity
£799.87

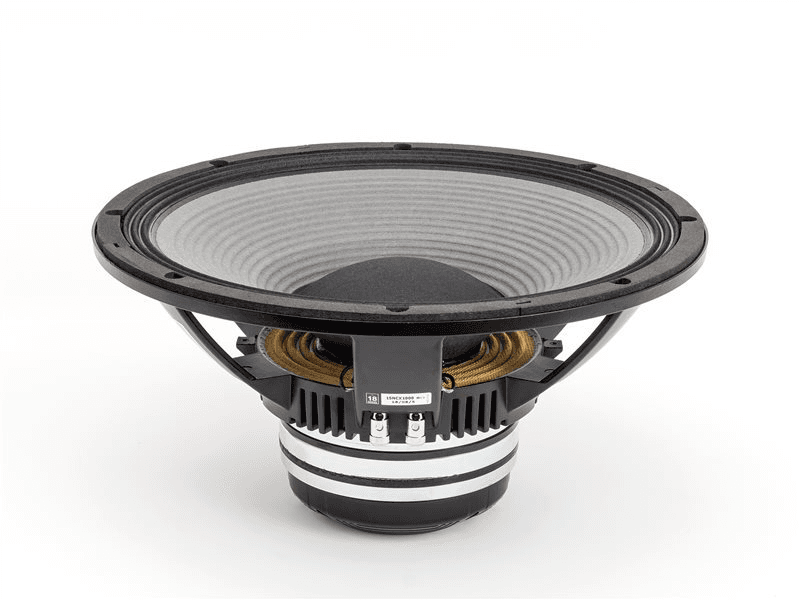

Eighteen Sound
15NCX1000
15"
Xmax7.5mm-6%
Qts0.31+3%
BL27.5Tm0%
Vas75L-7%
Qes0.32+3%
87%
Similarity
Sica
15 K 4 PL
15"
Xmax8mm0%
Qts0.30%
BL23.9Tm-13%
Vas102.3L+27%
Qes0.310%
84%
Similarity
£199.99

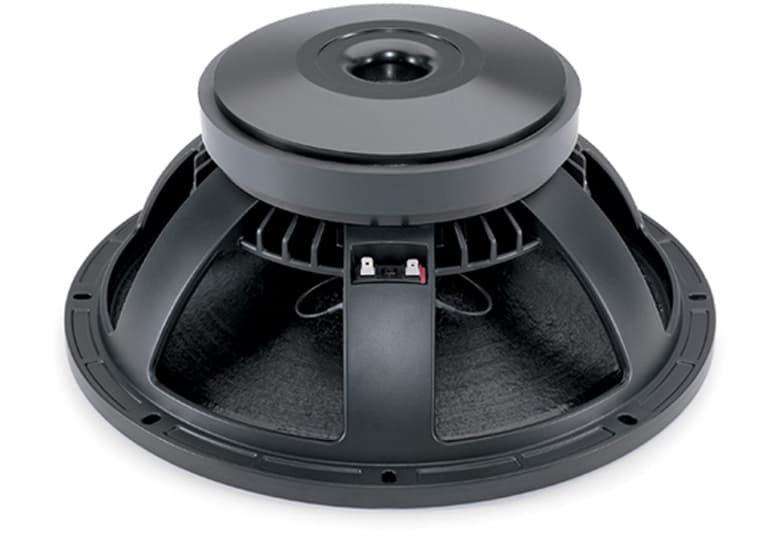

B&C
15PZB100
15"
Xmax8mm0%
Qts0.29-3%
BL25.8Tm-6%
Vas110L+36%
Qes0.3-3%
84%
Similarity
Peerless
NCP-1540R01-08
15"
Xmax8.2mm+2%
Qts0.32+7%
BL23.9Tm-13%
Vas86.5L+7%
Qes0.33+6%
82%
Similarity
P.Audio
15NT-115XB
15"
Xmax8.5mm+6%
Qts0.27-10%
BL29.4Tm+7%
Vas82.4L+2%
Qes0.28-10%
82%
Similarity
£778.27

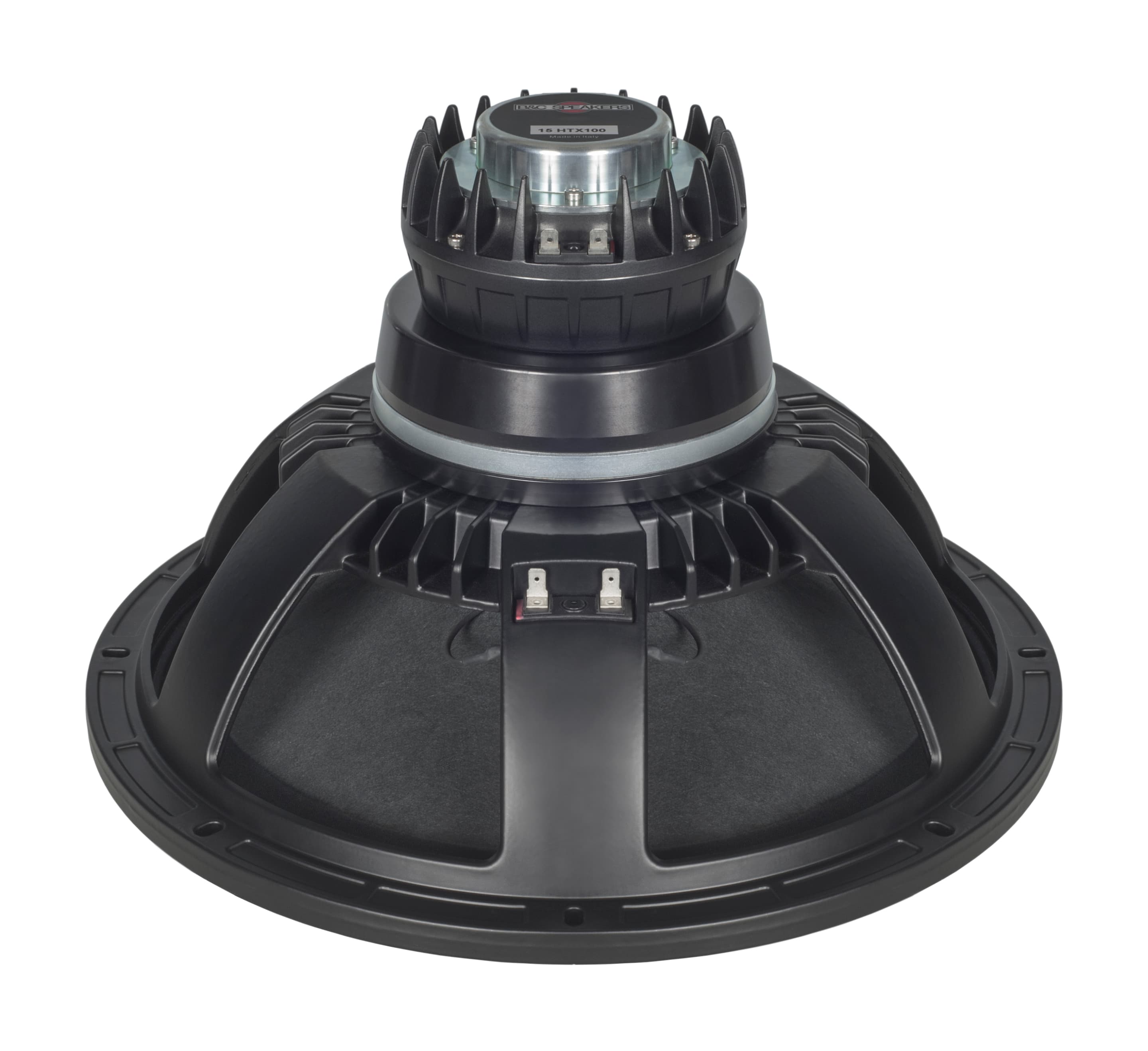

B&C
15HTX100
15"
Xmax10mm+25%
Qts0.29-3%
BL27Tm-1%
Vas78L-3%
Qes0.3-2%
78%
Similarity

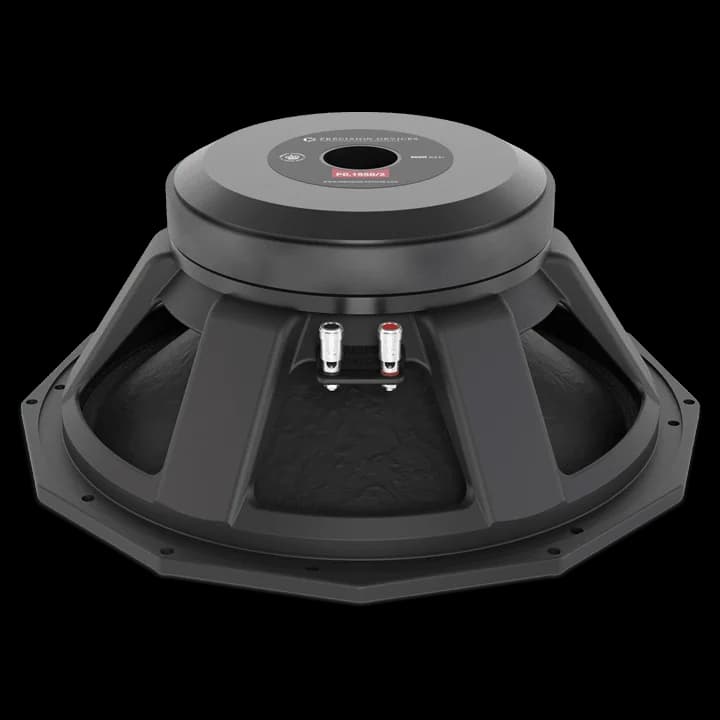

Precision Devices
PD.1550/2
15"
Xmax8.2mm+2%
Qts0.29-3%
BL26.6Tm-3%
Vas126.4L+57%
Qes0.3-3%
76%
Similarity

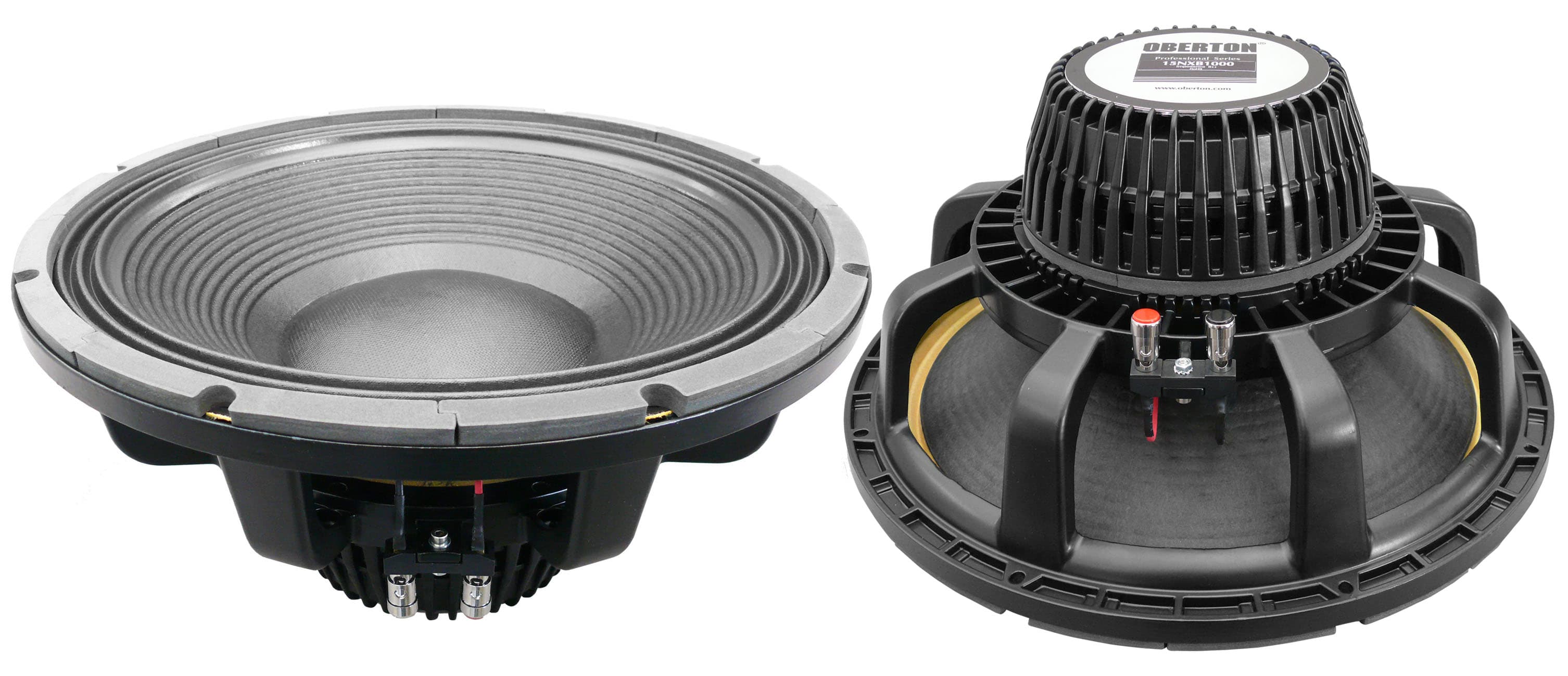

Oberton
15NXB1000
15"
Xmax9mm+13%
Qts0.28-6%
BL26Tm-5%
Vas105.5L+31%
Qes0.29-5%
76%
Similarity

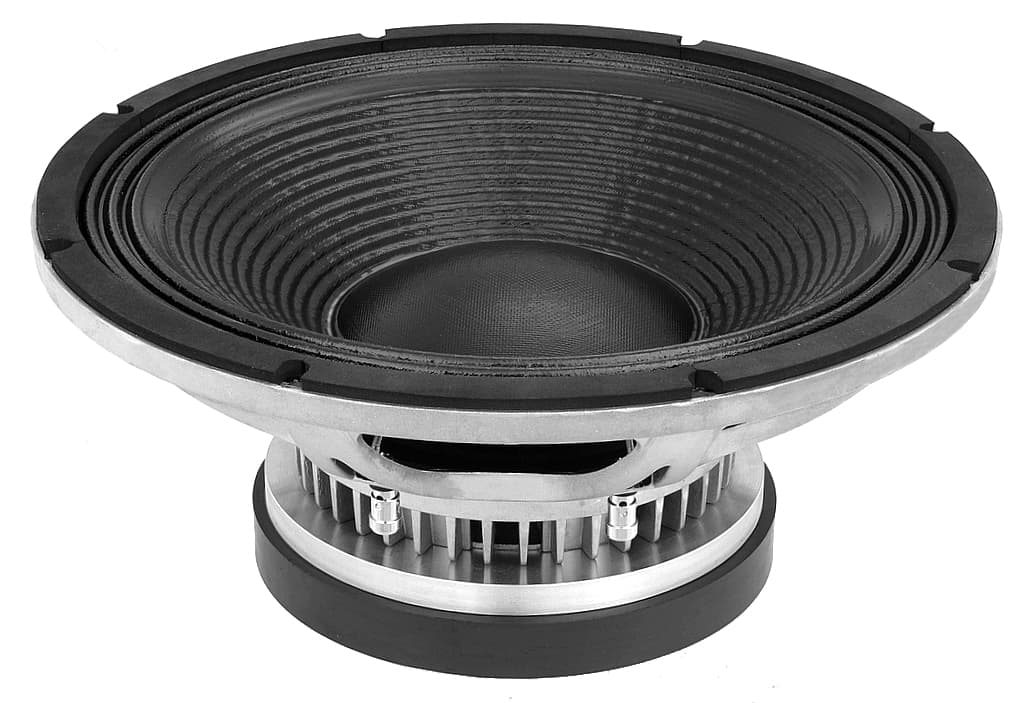

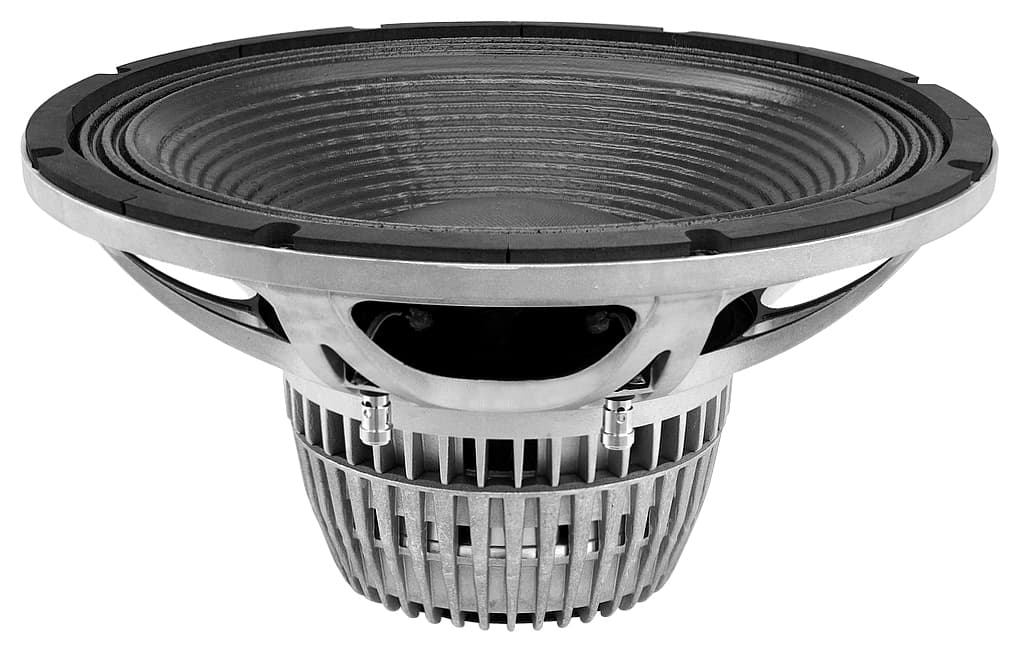

Oberton
15NXB700
15"
Xmax9mm+13%
Qts0.28-6%
BL26Tm-5%
Vas105.5L+31%
Qes0.29-5%
75%
Similarity
£304.46

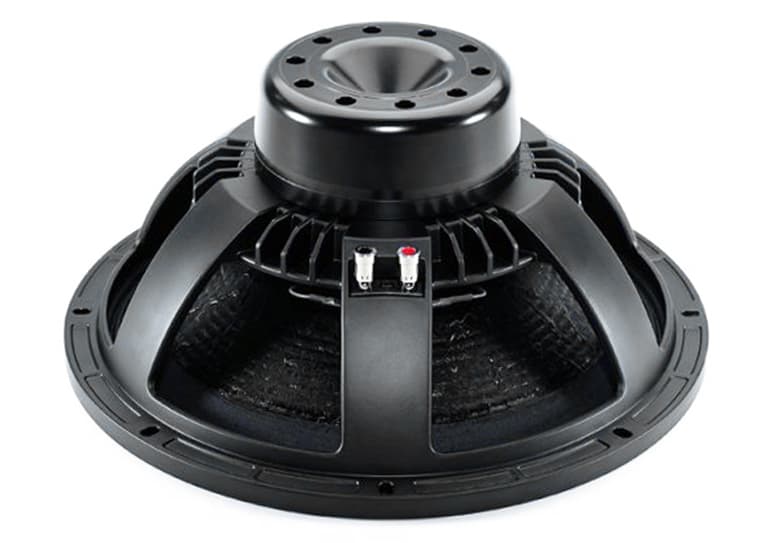

B&C
15NA100
15"
Xmax10mm+25%
Qts0.28-7%
BL26.3Tm-4%
Vas88L+9%
Qes0.29-6%
75%
Similarity
Sica
15 F 4 CP
15"
Xmax7mm-12%
Qts0.27-10%
BL26Tm-5%
Vas97L+20%
Qes0.28-10%
74%
Similarity
£250.00

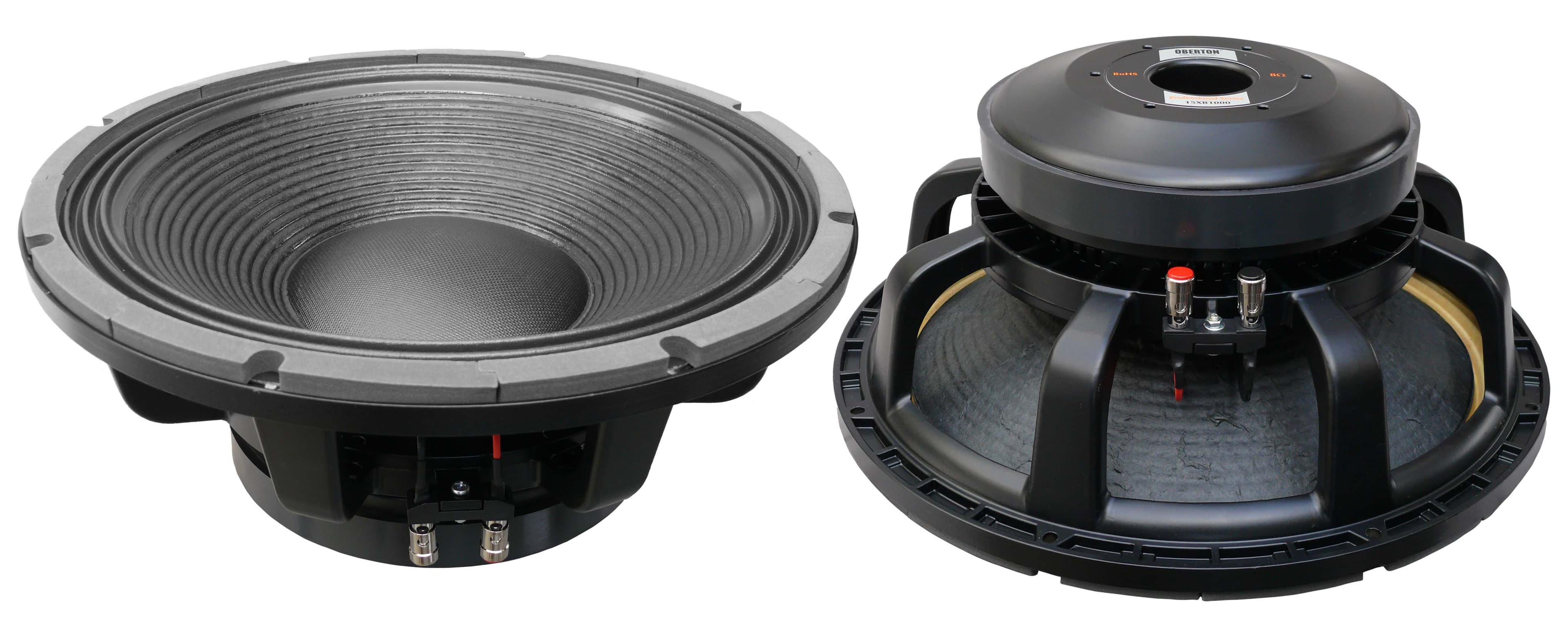

Oberton
