Overview
LF Driver
Beyma
Beyma 108MC30ND8
Beyma 108MC30ND8 is a 8" 8 ohm LF driver rated at 300W RMS. The validated T/S data includes Fs 62Hz, Qts 0.22, Vas 18L, Xmax 6mm, sensitivity 94.6dB, plus 132cm³ Vd and 258 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
8"
Impedance
8Ω
RMS Power
300W
Sensitivity
94.6dB
96.0dBmanufacturer; using T/S-derived value (1.4dB delta).
EBP
258
Vented alignment
Vd
132cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp2medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence4,667 selected pixels of 5,903 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence3,510 selected pixels of 3,510
Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs62Hz
Qts0.22
Qes0.24
Qms3.8
Vas18.0L
Re6.1Ω
Le0.60mH
BL16.0Tm
Sd220cm²
Mms25g
Xmax6.0mm
SPL95dB
Power300W
Impedance8Ω
F Low80Hz
F High4000Hz
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight1.9kg
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Beyma
108MC30ND8
8"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
83%
Similarity
£136.46

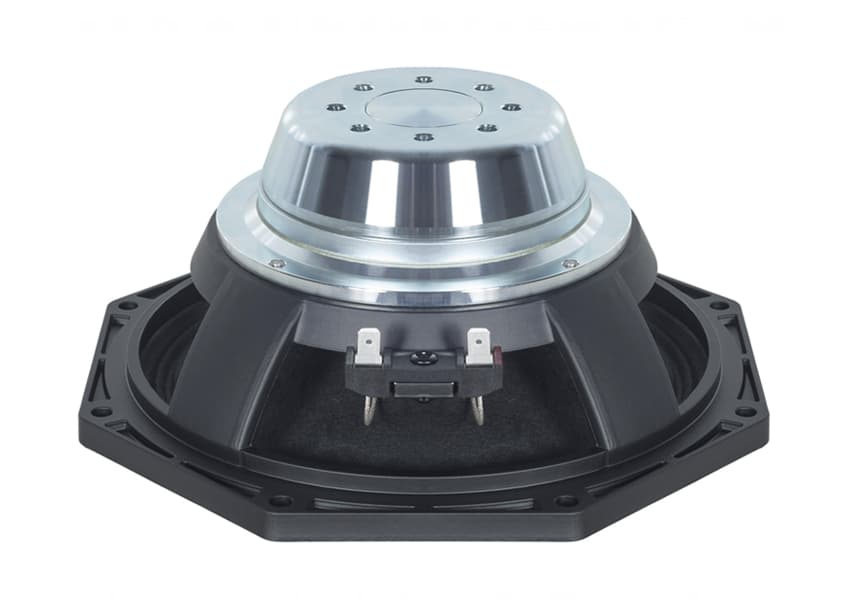

B&C
8MDN51
8"
Xmax6mm0%
Qts0.2-9%
BL15.3Tm-4%
Vas16L-11%
Qes0.21-12%
79%
Similarity
£138.53
Eighteen Sound
8NW650
8"
Xmax5.5mm-8%
Qts0.25+14%
BL15.2Tm-5%
Vas17.8L-1%
Qes0.27+13%
77%
Similarity
£116.87

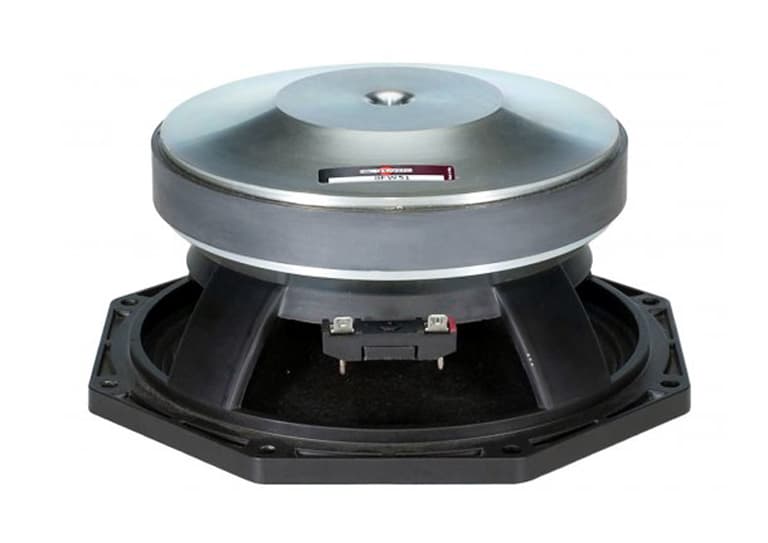

B&C
8FW51
8"
Xmax6mm0%
Qts0.21-5%
BL17.7Tm+11%
Vas12L-33%
Qes0.21-12%
77%
Similarity

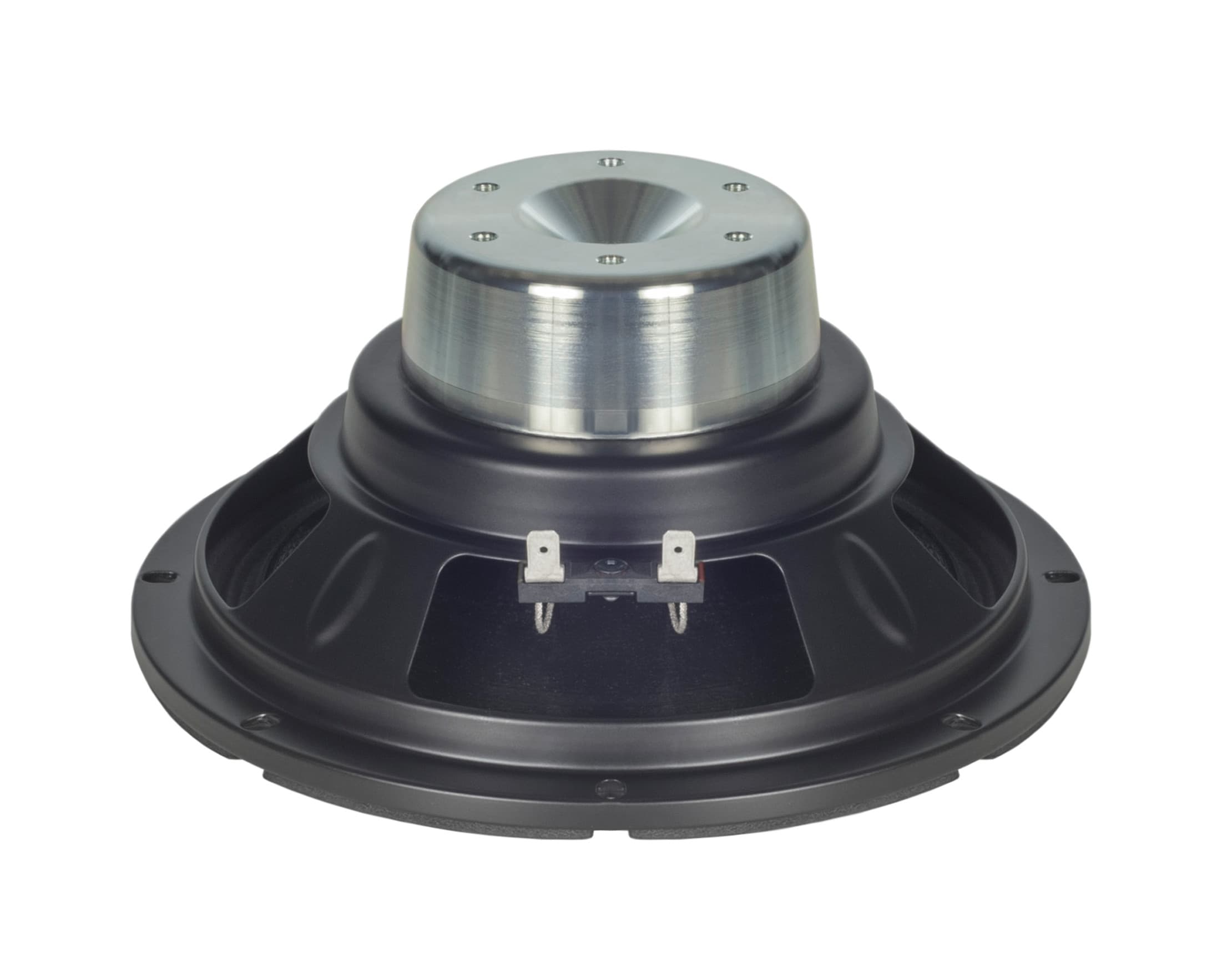

B&C
8CLA64
8"
Xmax5.3mm-12%
Qts0.24+9%
BL16.4Tm+2%
Vas12.5L-31%
Qes0.25+4%
76%
Similarity

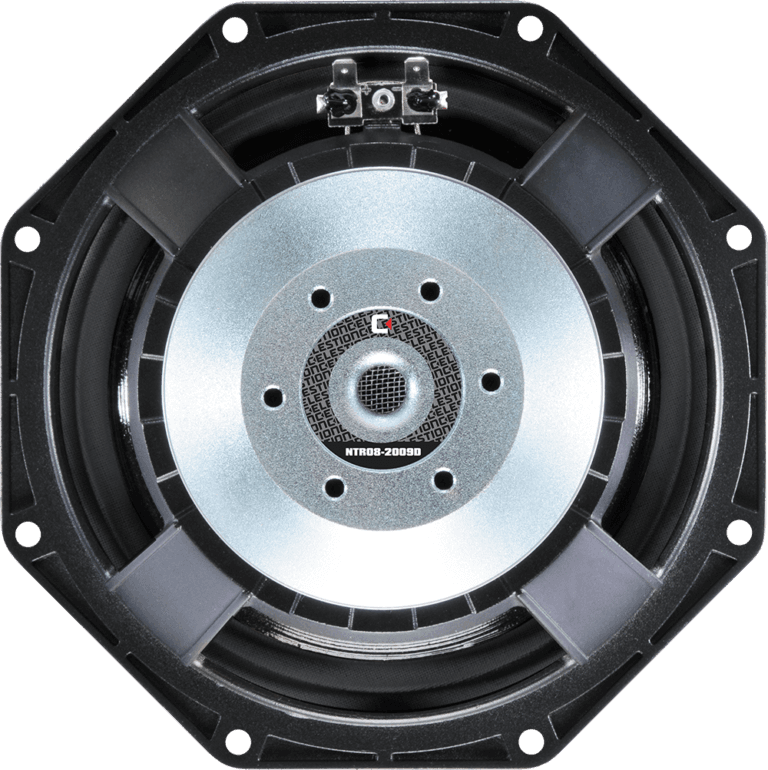

Celestion
NTR08-2009D
8"
Xmax6.5mm+8%
Qts0.21-4%
BL18Tm+13%
Vas11.7L-35%
Qes0.24-2%
75%
Similarity

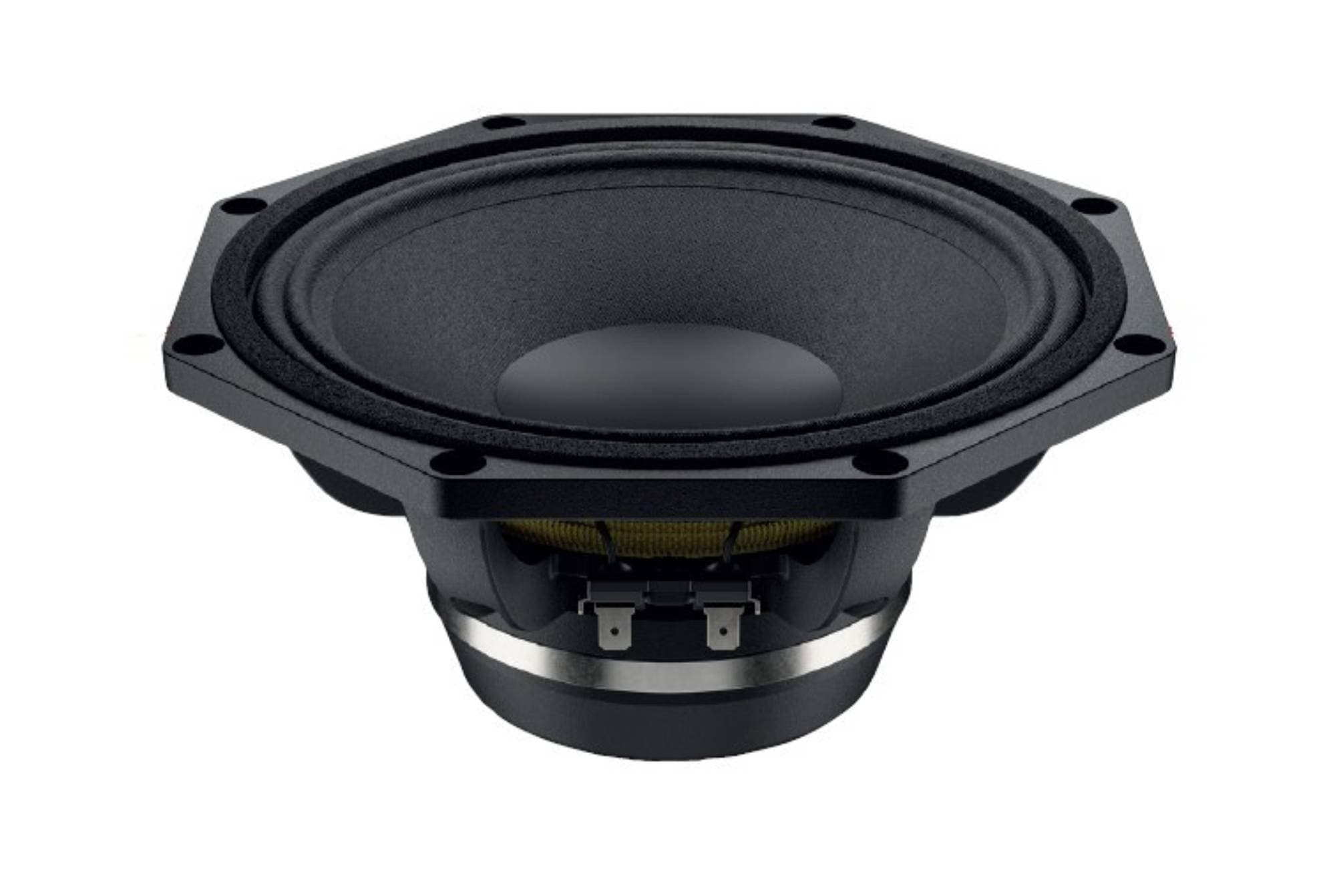

Lavoce
WAN082.02
8"
Xmax5.8mm-3%
Qts0.23+5%
BL17.8Tm+11%
Vas9L-50%
Qes0.25+4%
74%
Similarity

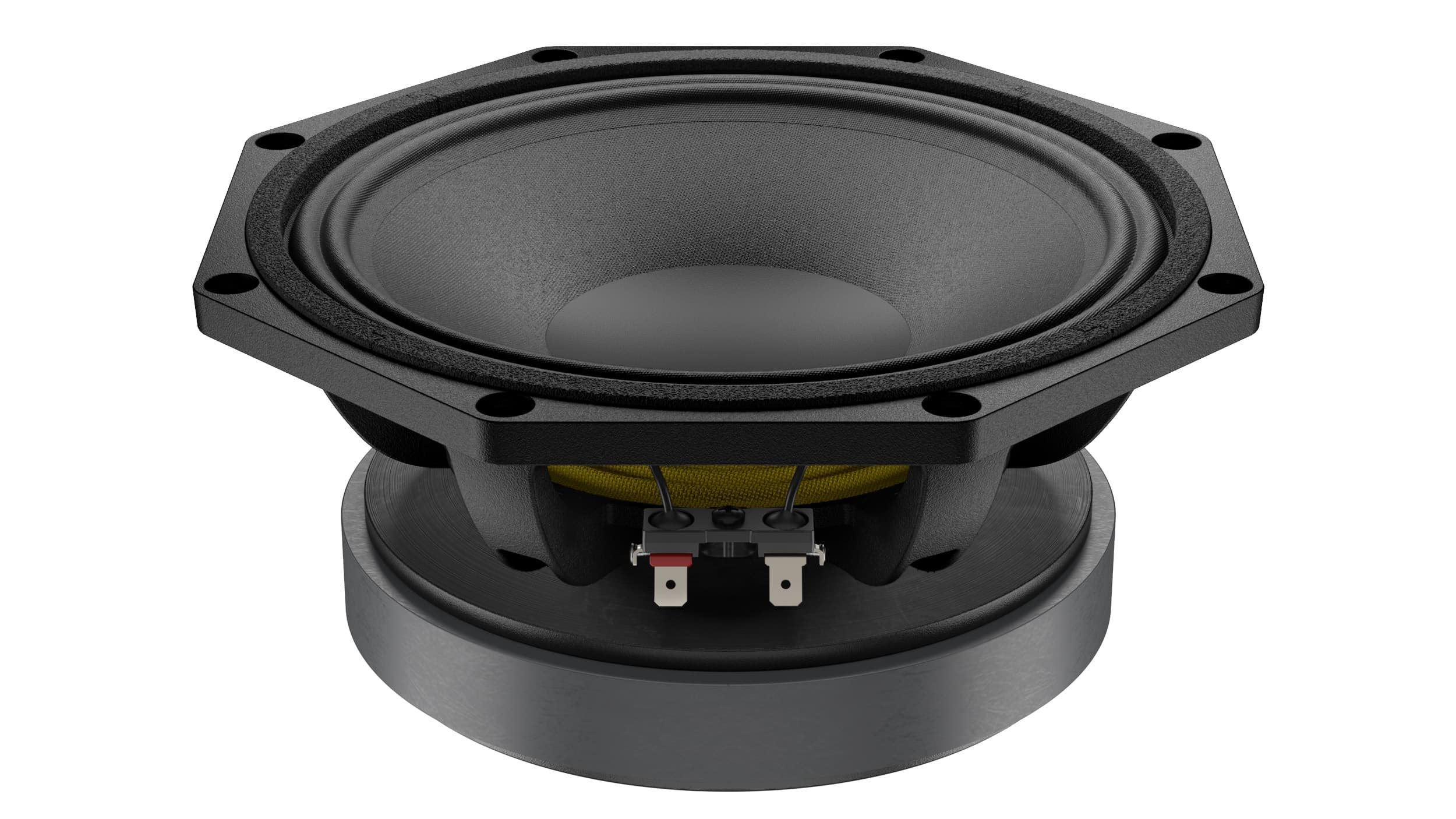

Lavoce
