Overview
LF Driver
Beyma
Beyma 106CX2FE8
Beyma 106CX2FE8 is a 6.5" 8 ohm LF driver rated at 200W RMS. The validated T/S data includes Fs 65Hz, Qts 0.32, Vas 10.5L, Xmax 5mm, sensitivity 91.3dB, plus 68cm³ Vd and 191 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
6.5"
Impedance
8Ω
RMS Power
200W
Sensitivity
91.3dB
94.0dBmanufacturer; using T/S-derived value (2.7dB delta).
EBP
191
Vented alignment
Vd
68cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp2medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence1,919 selected pixels of 8,206
Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs65Hz
Qts0.32
Qes0.34
Qms5.1
Vas10.5L
Re4.9Ω
Le0.30mH
BL9.2Tm
Sd135cm²
Mms14g
Xmax5.0mm
SPL91dB
Power200W
Impedance8Ω
F Low60Hz
F High20000Hz
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight3.6kg
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Beyma
106CX2FE8
6.5"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
83%
Similarity
BMS
6CN160
6.5"
Xmax5mm0%
Qts0.34+6%
BL10Tm+9%
Vas8.9L-16%
Qes0.38+12%
81%
Similarity
Celestion
NTR06-17X
6.5"
Xmax4.5mm-10%
Qts0.320%
BL10.4Tm+13%
Vas13.2L+25%
Qes0.34-1%
77%
Similarity
CIARE
FXI6
6.5"
Xmax5.3mm+6%
Qts0.33+3%
BL10.6Tm+15%
Vas8L-24%
Qes0.37+9%
75%
Similarity
Beyma
106P200ND8
6.5"
Xmax5.5mm+10%
Qts0.29-9%
BL10.5Tm+14%
Vas11.9L+13%
Qes0.32-6%
74%
Similarity
£86.62

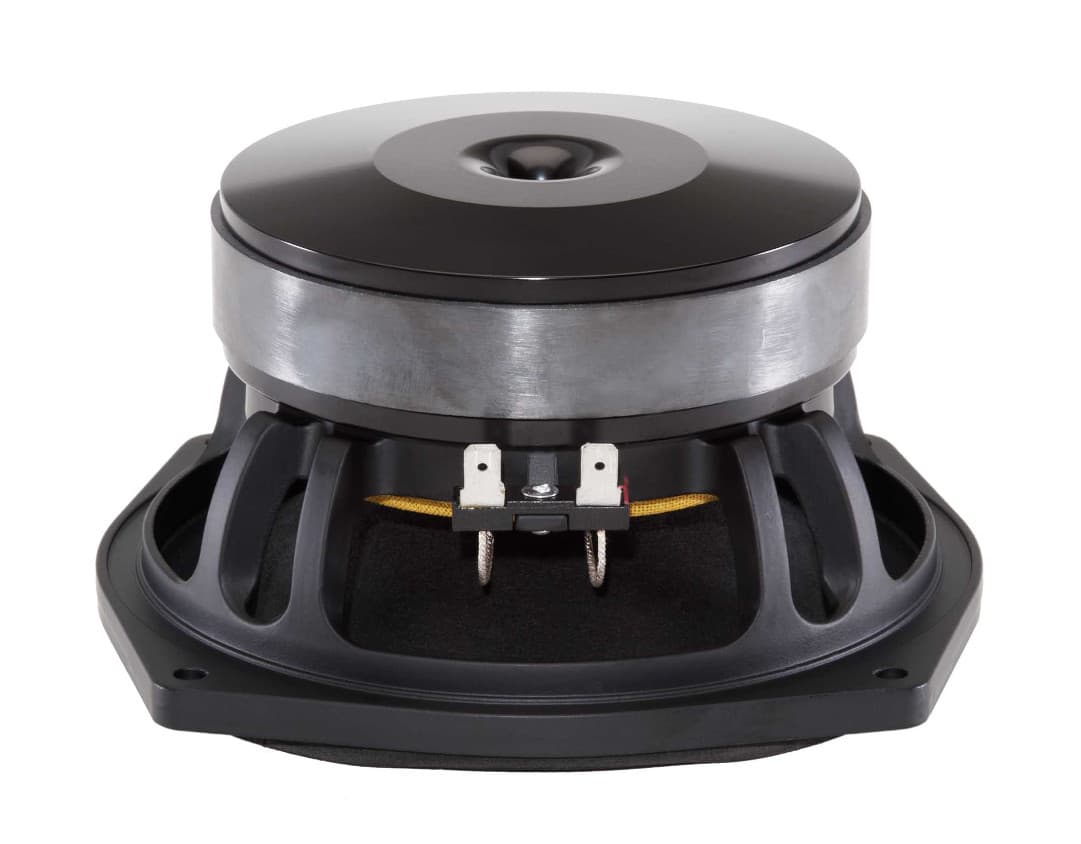

B&C
6PS44
6.5"
Xmax4.5mm-10%
Qts0.33+3%
BL11Tm+20%
Vas7L-34%
Qes0.340%
73%
Similarity
£110.59
Eighteen Sound
6ND430
6.5"
Xmax5mm0%
Qts0.27-16%
BL10Tm+9%
Vas12.6L+20%
Qes0.28-18%
72%
Similarity

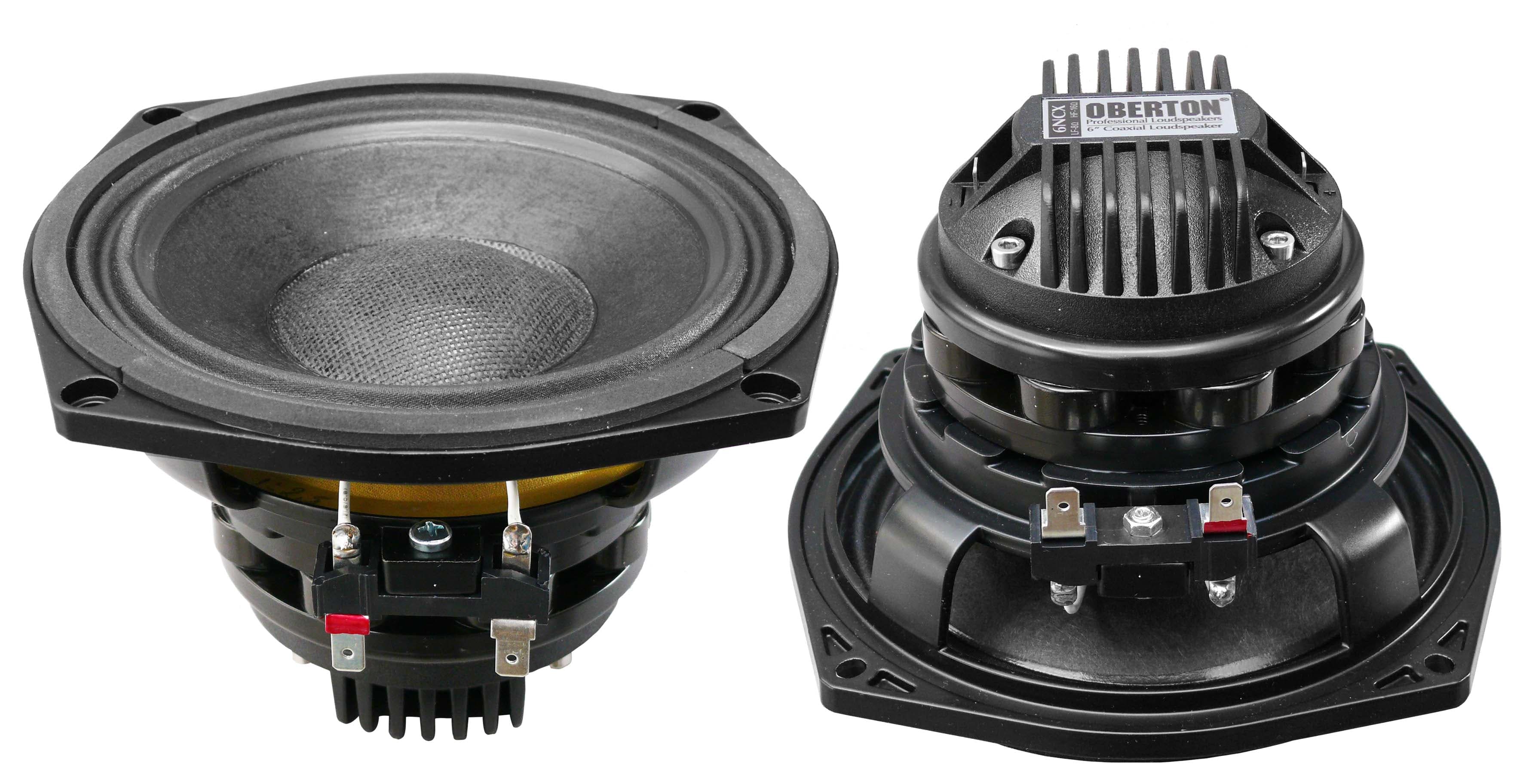

Oberton
6NCX
6.5"
Xmax4.8mm-5%
Qts0.36+14%
BL9Tm-2%
Vas7L-33%
Qes0.39+14%
72%
Similarity
Sica
6 NR 2 PL
6"
Xmax4mm-20%
Qts0.33+3%
BL9.9Tm+7%
Vas9.4L-11%
Qes0.340%
71%
Similarity
£83.14
Lavoce
WAN061.80
6.5"
Xmax5.2mm+4%
Qts0.27-16%
BL10.9Tm+18%
Vas11.2L+6%
Qes0.29-15%
71%
Similarity
£87.71
Beyma
6P200FE
6.5"
Xmax5mm0%
Qts0.26-19%
BL10.5Tm+14%
Vas11.1L+5%
Qes0.27-21%
71%
Similarity
£67.15
SB Audience
ROSSO-6MW150D
6"
Xmax5.2mm+5%
Qts0.320%
BL11.6Tm+26%
Vas8.8L-17%
Qes0.33-3%
71%
Similarity

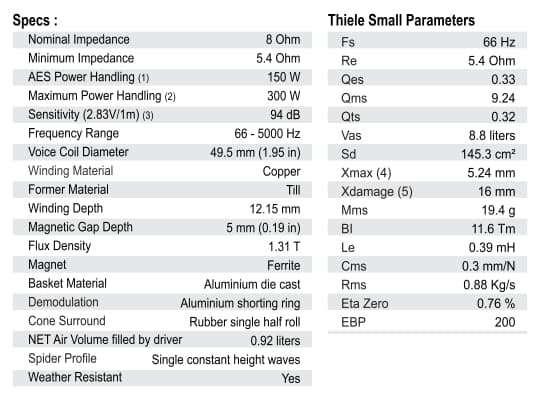

SB Audience
