Overview
LF Driver
Beyma
Beyma 106P200ND8
Beyma 106P200ND8 is a 6.5" 8 ohm LF driver rated at 200W RMS. The validated T/S data includes Fs 56Hz, Qts 0.29, Vas 11.9L, Xmax 5.5mm, sensitivity 90.2dB, plus 74cm³ Vd and 175 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
6.5"
Impedance
8Ω
RMS Power
200W
Sensitivity
90.2dB
92.0dBmanufacturer; using T/S-derived value (1.8dB delta).
EBP
175
Vented alignment
Vd
74cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp2medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence3,569 selected pixels of 3,569 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence3,641 selected pixels of 3,641
Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs56Hz
Qts0.29
Qes0.32
Qms3.7
Vas11.9L
Re5.3Ω
Le0.60mH
BL10.5Tm
Sd135cm²
Mms17g
Xmax5.5mm
SPL90dB
Power200W
Impedance8Ω
F Low60Hz
F High9000Hz
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight1.9kg
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Beyma
106P200ND8
6.5"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
90%
Similarity

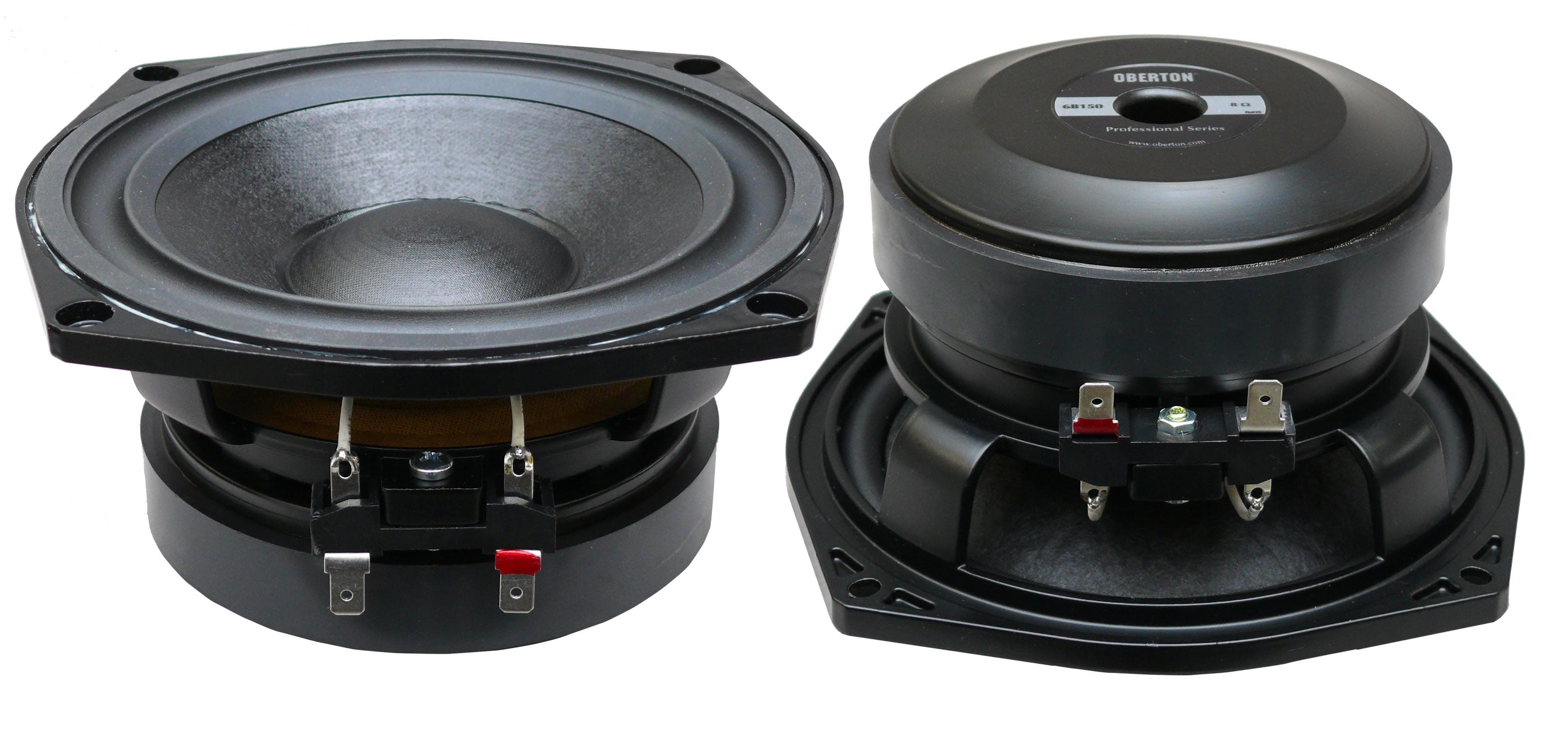

Oberton
6B150
6.5"
Xmax5.5mm0%
Qts0.29+1%
BL10.1Tm-4%
Vas14.6L+23%
Qes0.31-3%
87%
Similarity

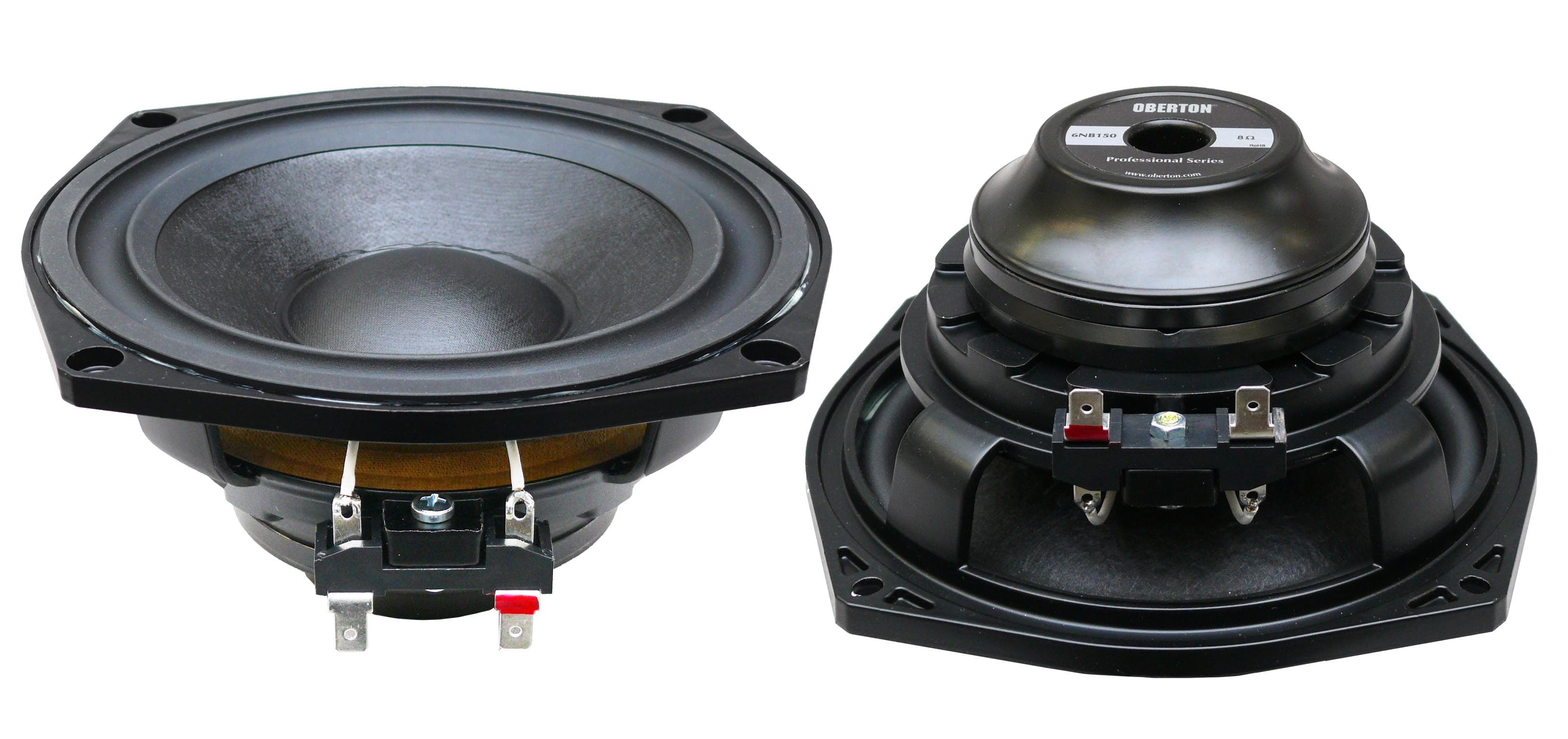

Oberton
6NB150
6.5"
Xmax5.5mm0%
Qts0.28-3%
BL10.8Tm+3%
Vas9.3L-22%
Qes0.3-8%
85%
Similarity
Beyma
106CX2NDN8
6.5"
Xmax5.5mm0%
Qts0.27-7%
BL10.5Tm0%
Vas9.4L-21%
Qes0.29-9%
85%
Similarity
£83.14
Lavoce
WAN061.80
6.5"
Xmax5.2mm-5%
Qts0.27-7%
BL10.9Tm+4%
Vas11.2L-6%
Qes0.29-9%
85%
Similarity
CIARE
HSG160
6.5"
Xmax5.5mm0%
Qts0.290%
BL9.8Tm-7%
Vas16.5L+39%
Qes0.31-3%
81%
Similarity
£110.59
Eighteen Sound
6ND430
6.5"
Xmax5mm-9%
Qts0.27-7%
BL10Tm-5%
Vas12.6L+6%
Qes0.28-12%
81%
Similarity
£86.00

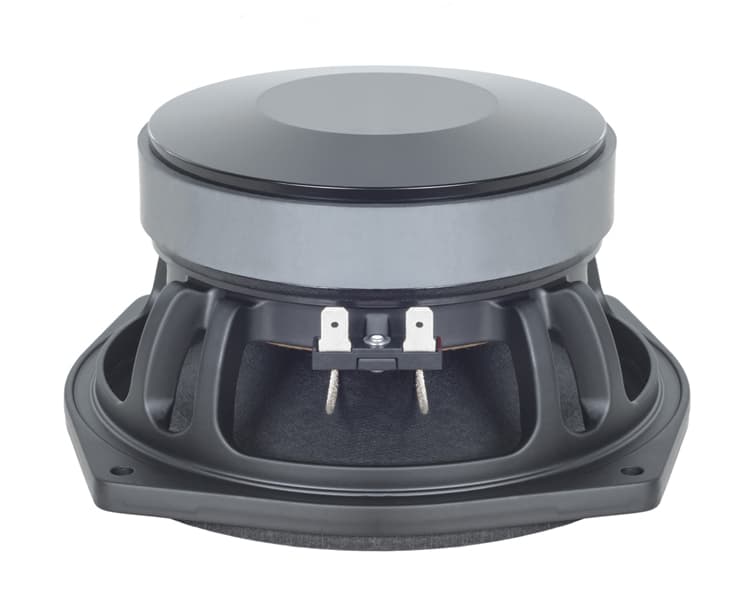

B&C
6PS38
6.5"
Xmax6mm+9%
Qts0.3+3%
BL10.8Tm+3%
Vas8L-33%
Qes0.31-3%
80%
Similarity
£88.81
Beyma
6P200FE
6.5"
Xmax5mm-9%
Qts0.26-10%
BL10.5Tm0%
Vas11.1L-7%
Qes0.27-16%
77%
Similarity

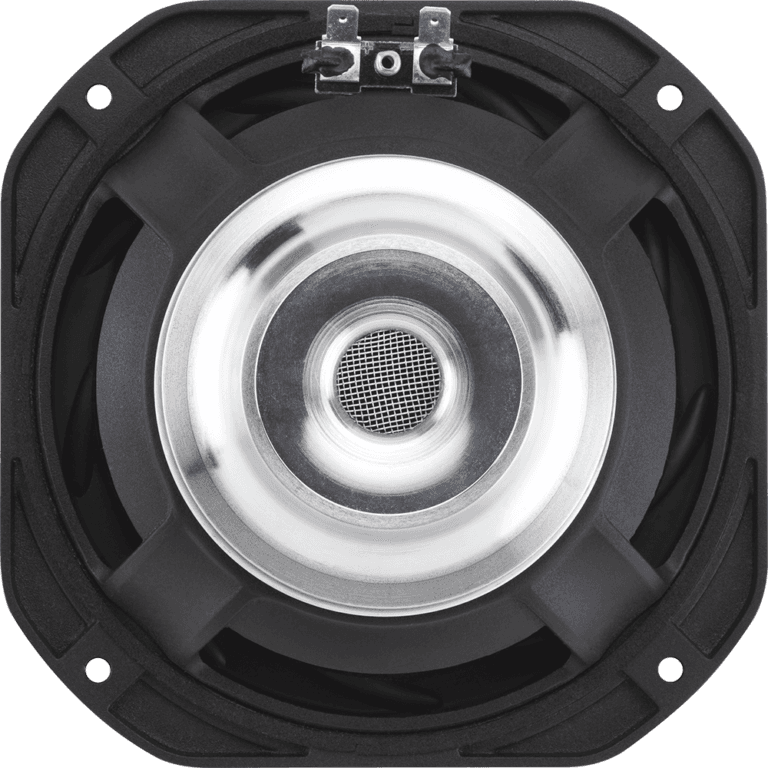

Celestion
NTR06-17X
6.5"
Xmax4.5mm-18%
Qts0.32+11%
BL10.4Tm-1%
Vas13.2L+11%
Qes0.34+5%
76%
Similarity
Beyma
106CX2FE8
6.5"
Xmax5mm-9%
Qts0.32+10%
BL9.2Tm-12%
Vas10.5L-11%
Qes0.34+6%
72%
Similarity

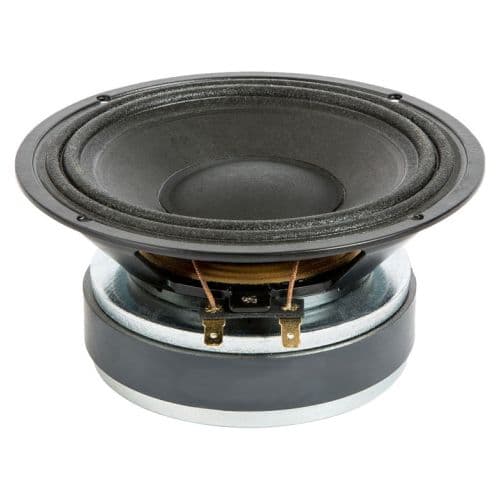

CIARE
