Overview
LF DriverROSSO series
SB Audience
SB Audience ROSSO-6MW151D
SB Audience ROSSO-6MW151D is a 6" 150 ohm LF driver rated at 94W RMS. The validated T/S data includes Fs 66Hz, Qts 0.32, Vas 8.8L, Xmax 5.2mm, sensitivity 90.9dB, plus 76cm³ Vd and 200 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
6"
Impedance
150Ω
RMS Power
94W
Sensitivity
90.9dB
EBP
200
Vented alignment
Vd
76cm³

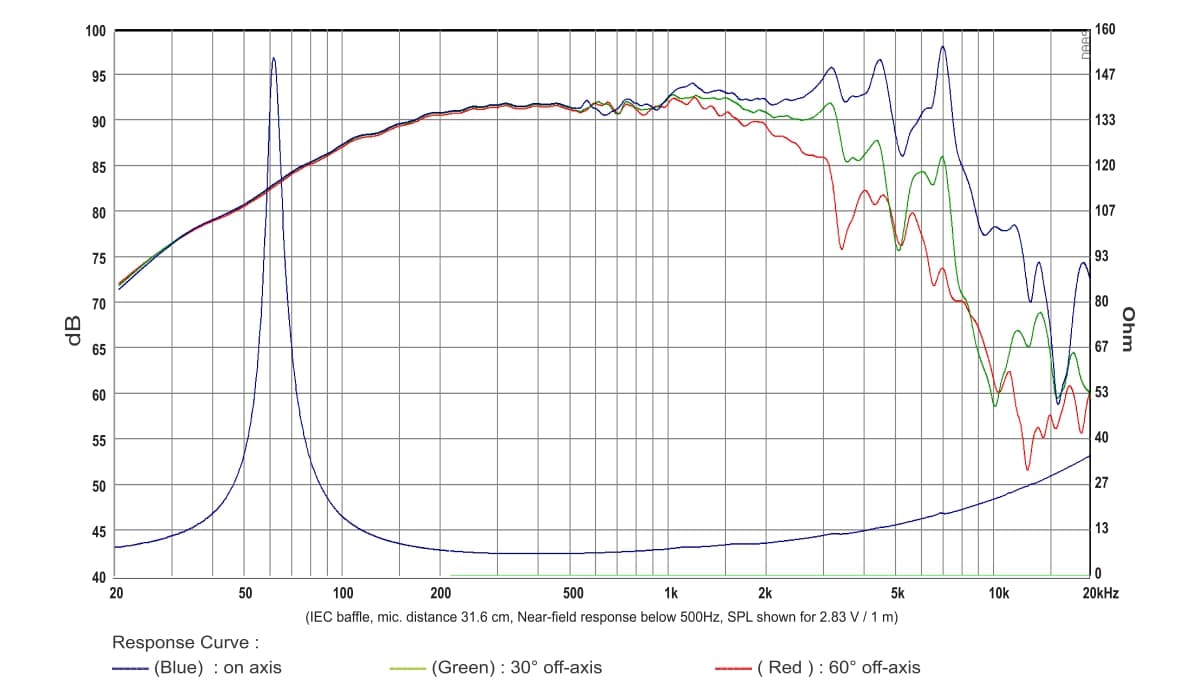

Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs66Hz
Qts0.32
Qes0.33
Qms9.2
Vas8.8L
Re5.4Ω
Le0.39mH
BL11.6Tm
Sd145cm²
Mms19g
Xmax5.2mm
SPL91dB
Power94W
Impedance150Ω
Min Impedance300.0Ω
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

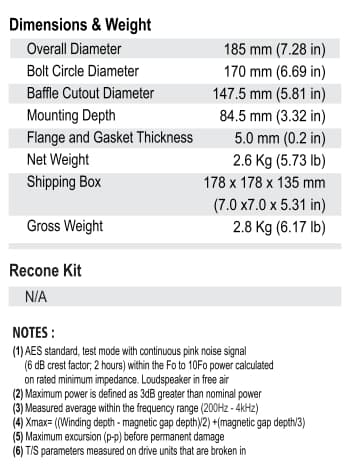

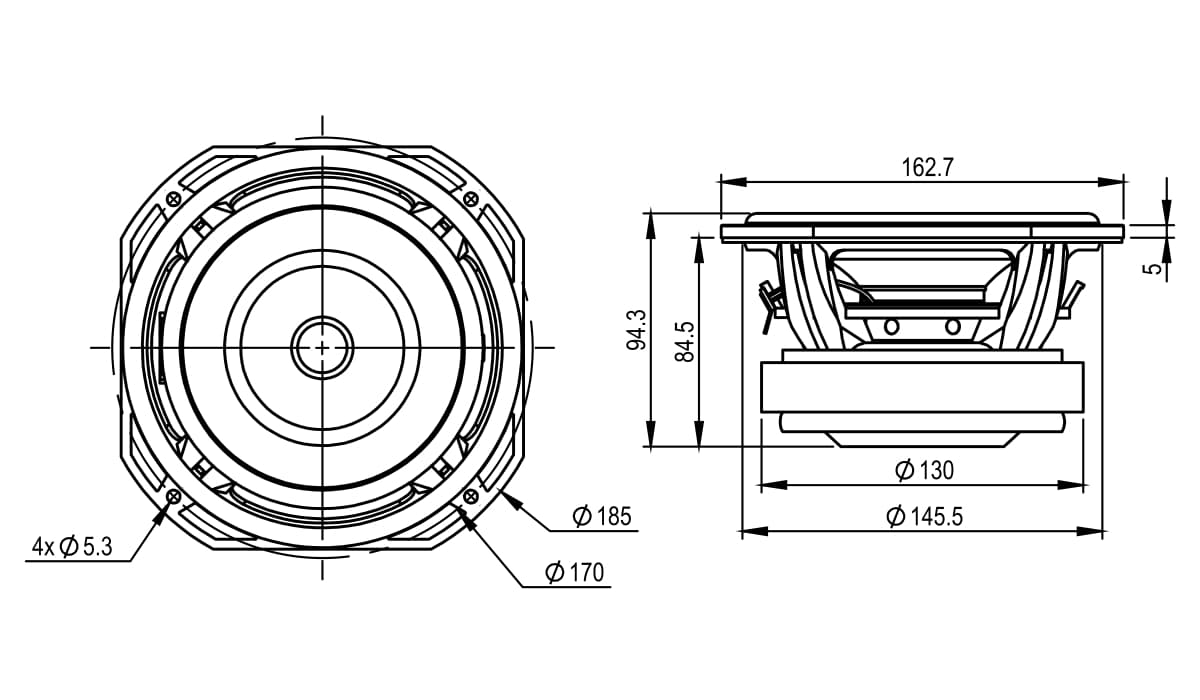

Dimensions & Physical
Diameter185.0mm
Cutout Diameter185.0mm
