LF DriverROSSO series
SB Audience
SB Audience ROSSO-6C200D
SB Audience ROSSO-6C200D is a 6" 8 ohm LF driver rated at 200W RMS. The validated T/S data includes Fs 61Hz, Qts 0.34, Vas 8.8L, Xmax 5.2mm, sensitivity 89.6dB, plus 76cm³ Vd and 174 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
6"
Impedance
8Ω
RMS Power
200W
Sensitivity
89.6dB
EBP
174
Vented alignment
Vd
76cm³

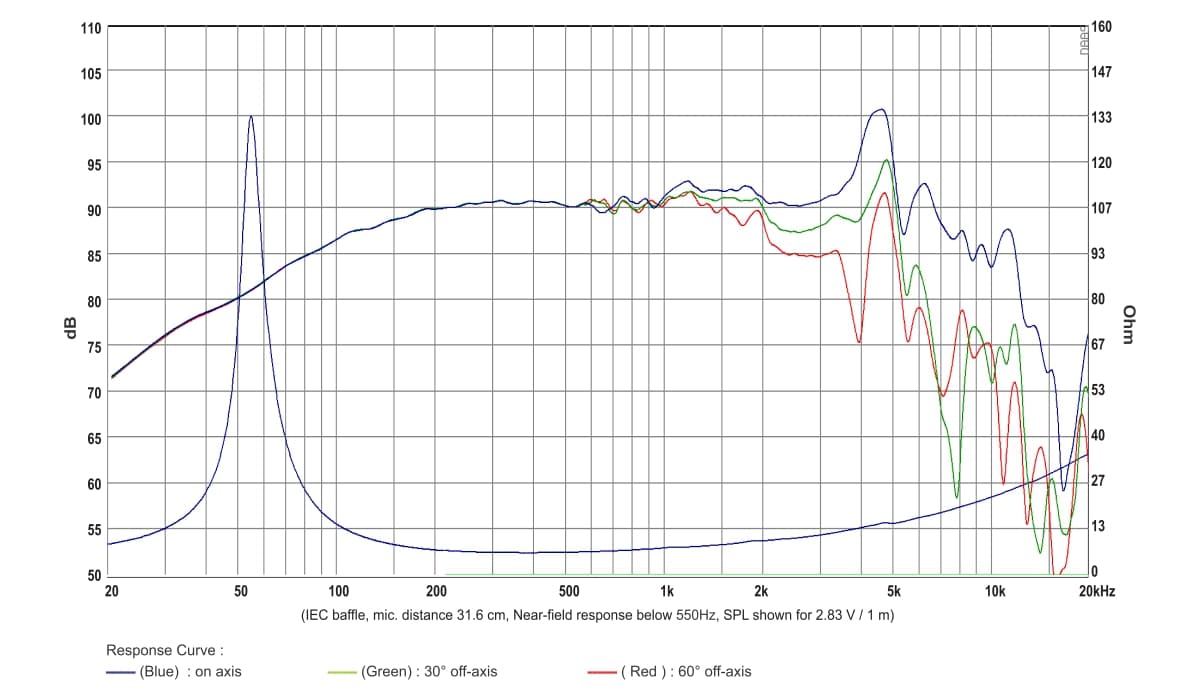

Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs61Hz
Qts0.34
Qes0.35
Qms12.0
Vas8.8L
Re5.4Ω
Le0.42mH
BL11.7Tm
Sd145cm²
Mms23g
Xmax5.2mm
SPL90dB
Power200W
Impedance8Ω
Min Impedance6.4Ω
F Low58Hz
F High5000Hz
Voice Coil50mm
Flux Density1.31T
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

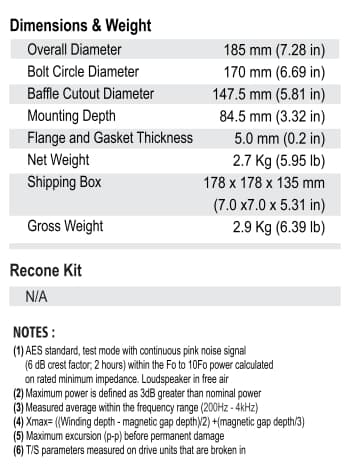

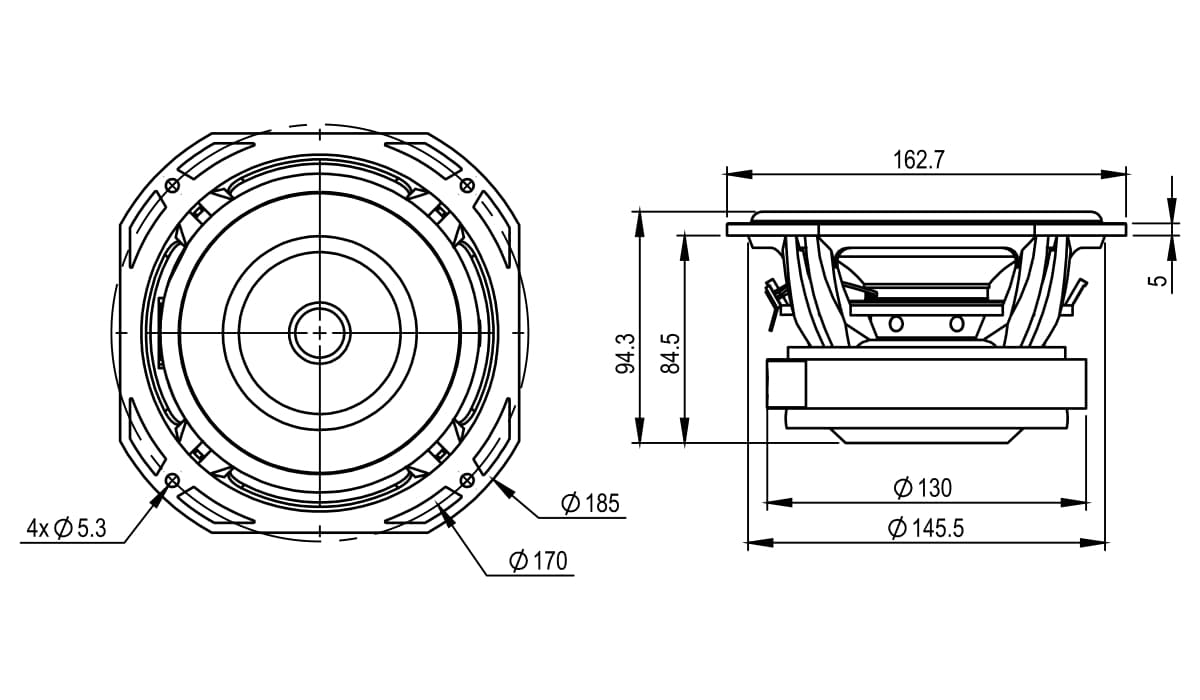

Dimensions & Physical
Diameter185.0mm
Cutout Diameter185.0mm
