LF Driver21SW series
B&C
B&C 21SW115
B&C 21SW115 is a 21" 8 ohm LF driver rated at 1700W RMS. The validated T/S data includes Fs 30Hz, Qts 0.37, Vas 318L, Xmax 14mm, sensitivity 95.5dB, plus 2352cm³ Vd and 77 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £481.99.
Size
21"
Impedance
8Ω
RMS Power
1700W
Sensitivity
95.5dB
97.0dBmanufacturer; using T/S-derived value (1.5dB delta).
EBP
77
Either alignment
Vd
2352cm³

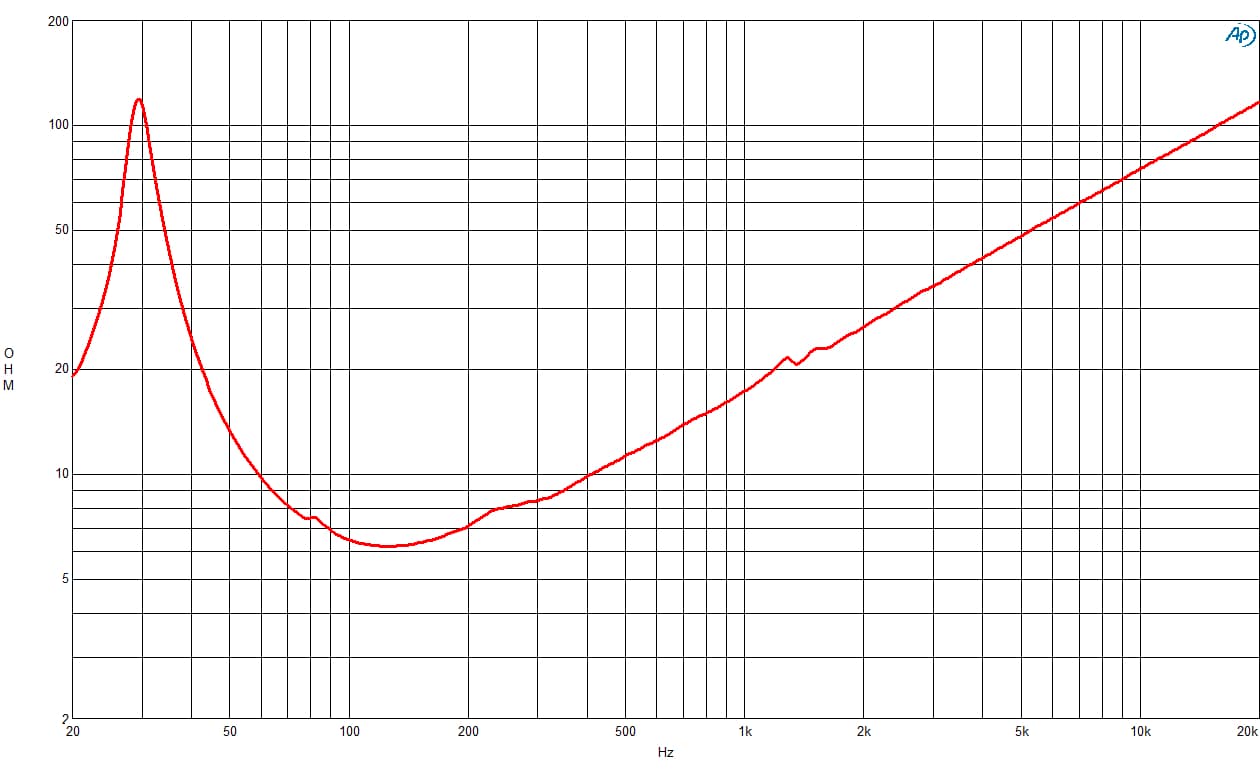

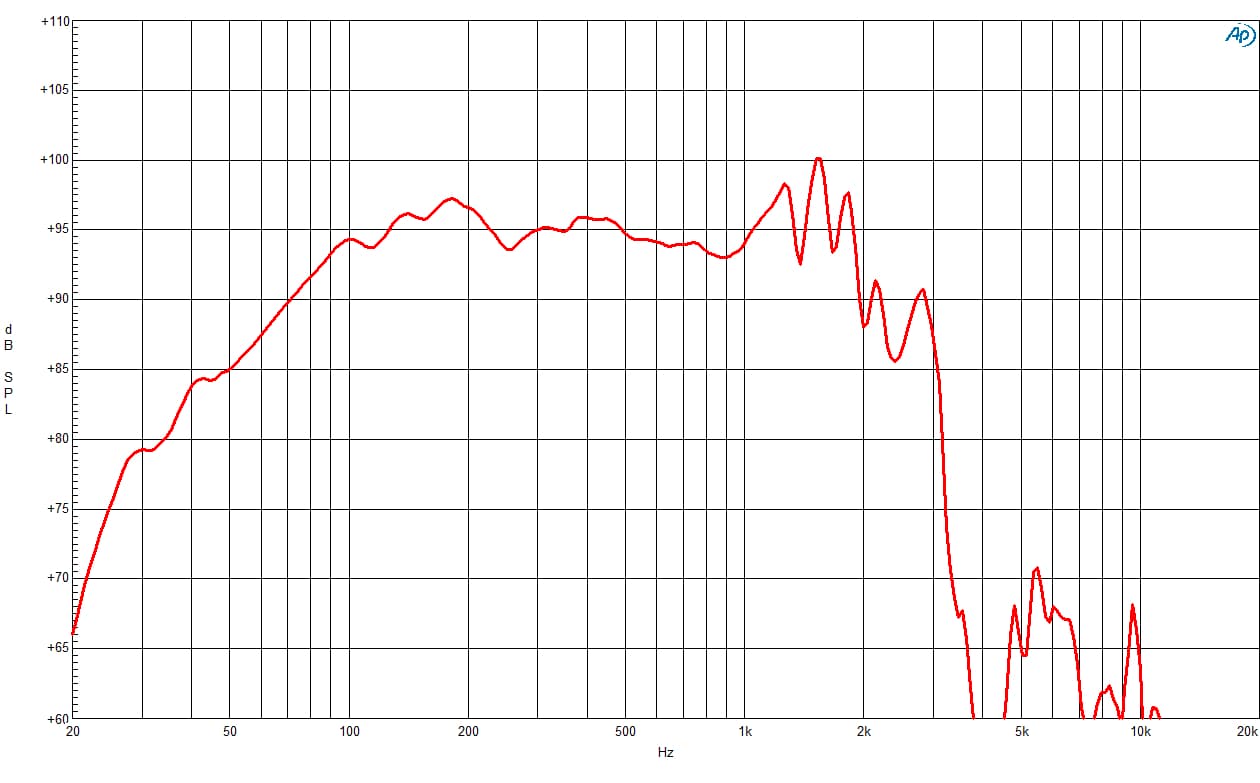

Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs30Hz
Qts0.37
Qes0.39
Qms10.9
Vas318.0L
Re5.4Ω
Le2.10mH
BL30.1Tm
Sd1680cm²
Mms342g
Xmax14.0mm
SPL96dB
Power1700W
Power Nominal1700W
Impedance8Ω
Min Impedance6.2Ω
F Low30Hz
F High1000Hz
Voice Coil116mm
Flux Density1.15T
Pricing & availability
Price definitionsPrice movement
Best current price
£481.99
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight14.0kg
Diameter547.0mm
Overall Depth249.0mm
Cutout Diameter503.0mm
Bolt Circle Diameter527.0mm
Additional Manufacturer Specs
Bl30.1 Tm
Fs30 Hz
Le2.1 mH
Re5.4 Ω
Sd1680 cm² (260.4 in²)
Ebp77 Hz
Mms342 g
Qes0.39
Qms10.9
Qts0.37
Vas318 dm³ (11.23 ft³)
η02.2 %
ConeRCK21SW1158
Xmax14 mm
Xvar16 mm
SpiderDouble Silicone
Cone ShapeRadial
Pole DesignT-Pole
Winding Depth34 mm (1.34 in)
Surround ShapeTriple Roll
Former MaterialGlass Fibre
Magnet MaterialNeodymium Inside Slug
Nominal Diameter530 mm (21 in)
Winding MaterialCopper
Magnetic Gap Depth14 mm (0.55 in)
Recommended Tuning32 Hz
Bolt Circle Diameter527 mm (20.7 in)
Recommended Enclosure250 dm³ (8.83 ft³)
Woofer Cone TreatmentTWP Waterproof Both Sides
Baffle Cutout Diameter503 mm (19.8 in)
Flange And Gasket Thickness14 mm (0.53 in)
Air Volume Occupied By Driver15 dm³ (0.53 ft³)
