Overview
LF Driver
Fane

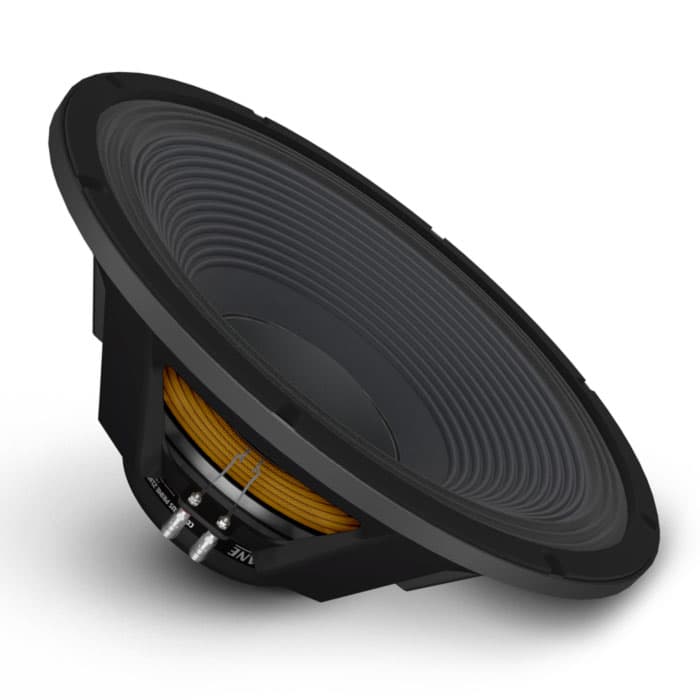

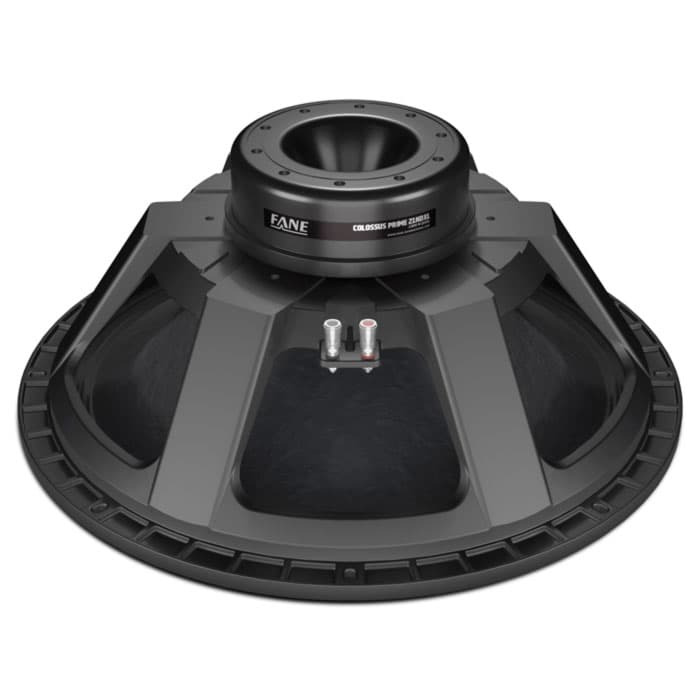

Fane COLOSSUS PRIME 21NDXL
Fane COLOSSUS PRIME 21NDXL is a 21" 8 ohm LF driver rated at 1500W RMS. The validated T/S data includes Fs 33Hz, Qts 0.36, Vas 241L, Xmax 14mm, sensitivity 95.7dB, plus 2128cm³ Vd and 88 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
21"
Impedance
8Ω
RMS Power
1500W
Sensitivity
95.7dB
98.0dBmanufacturer; using T/S-derived value (2.3dB delta).
EBP
88
Either alignment
Vd
2128cm³
T/S Parameters
Valid
Fs33Hz
Qts0.36
Qes0.37
Qms9.8
Vas241.0L
Re5.1Ω
Le2.40mH
BL30.0Tm
Sd1520cm²
Mms320g
Xmax14.0mm
SPL96dB
Power1500W
Impedance8Ω
F Low30Hz
F High300Hz
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight12.5kg
Diameter545.0mm
Overall Depth224.8mm
