Eighteen Sound design
1x21” band-pass subwoofer
- Drivers
- 21LW1400or 21NLW4100or 21LW2600

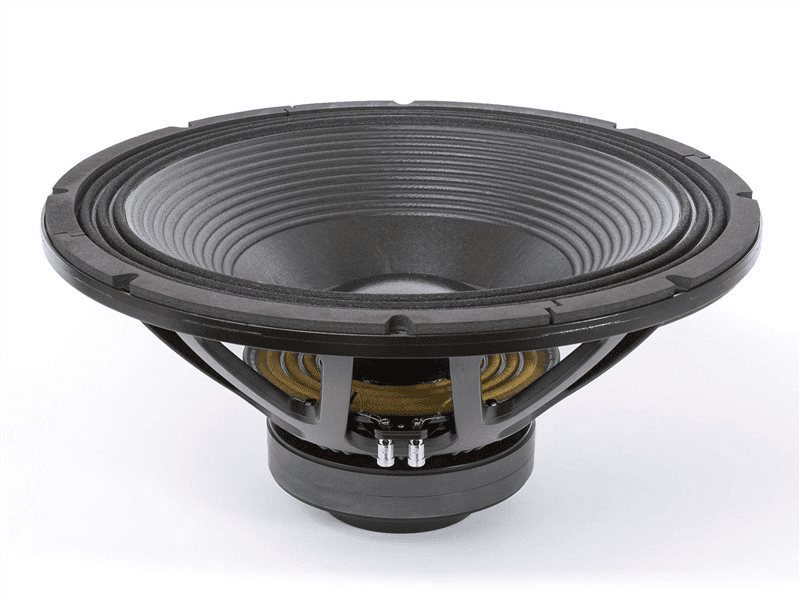

21-inch LF driver · 1,600 W
Eighteen Sound 21LW2600 8Ω
35–1400 Hz
No price for delivery to the UK
- Fs
- 27Hz
- Xmax
- 14.6mm
- SPL
- 95dB
- Pe
- 1600W
- BL
- 32.5T·m
- Vd
- 2424cm³
- Qts
- 0.33
- Vas
- 333L
Manufacturer response and impedance data, with source and trace details below. The left and right arrow keys read every shown curve at a frequency, a twelfth of an octave at a time, or an octave with Shift. Escape clears the reading.
Curve provenanceInspect 2 traces
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1

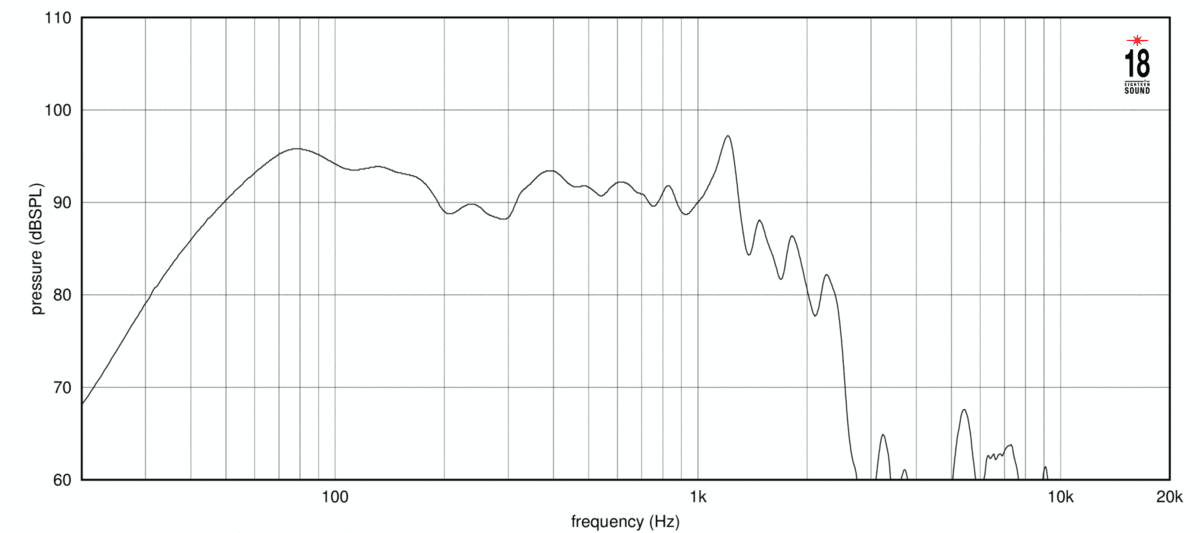

frequency response
Frequency response
119 plotted pointsMedium confidence407 selected pixels of 737 - Trace datasheet-response-trace-poc/v1

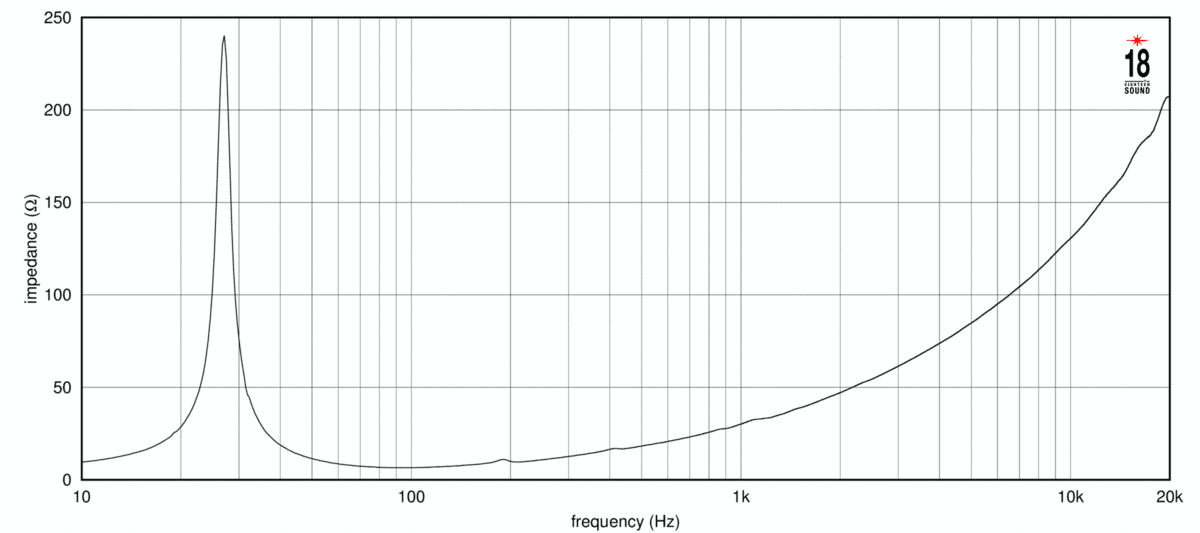

impedance
Impedance response
240 plotted pointsMedium confidence561 selected pixels of 805
Published graphs
Eighteen Sound 21LW2600 is a 21-inch 8 ohm LF driver rated at 1600 W RMS. The validated T/S data includes Fs 27 Hz, Qts 0.33, Vas 333 L, Xmax 14.6 mm, sensitivity 94.9 dB, plus 2424 cm³ Vd and 79 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £425.60.
The published T/S values agree with each other
Thiele/Small
- Fs
- 27Hz
- Qts
- 0.33
- Qes
- 0.34
- Qms
- 23.1
- Vas
- 333L
- Re
- 5.2Ω
- Le
- 2.67mH
Motor and cone
- BL
- 32.5T·m
- Sd
- 1660cm²
- Mms
- 398g
- Xmax
- 14.6mm
- Vd †
- 2424cm³
Power and response
- Sensitivity †
- 94.9dB
- Manufacturer sensitivity
- 97dB
- Power
- 1600W
- Nominal power
- 1600W
- Impedance
- 8Ω
- Range
- 35–1400Hz
- EBP †
- 79 · Sealed or vented
Size and mounting
- Diameter
- 545mm
- Cutout
- 492mm
- Bolt circle
- 520mm
- Depth
- 245mm
- Weight
- 17.1kg
Other published values
- Power Program
- 3200
Sensitivity shows 94.9 dB, calculated from the T/S values. Eighteen Sound publishes 97.0 dB, 2.1 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Eighteen Sound lists
LF · Primary · 21″
- BL
- 32.5T·m
- Fs
- 27Hz
- Le
- 2.67mH
- Re
- 5.2Ω
- Sd
- 1660cm²
- Mms
- 398g
- Qes
- 0.34
- Qms
- 23.1
- Qts
- 0.33
- SPL
- 94.9dB
- Vas
- 333L
- Xmax
- 14.6mm
- Power
- 1600W
- Impedance
- 8Ω
- Sensitivity
- 97dB
- Low limit
- 35Hz
- Nominal power
- 1600W
- Power Program
- 3200
- Calculated sensitivity †
- 94.9dB
- High limit
- 1400Hz
- Manufacturer sensitivity
- 97dB
- Weight
- 17.1kg
- Diameter
- 545mm
- Depth
- 245mm
- Cutout
- 492mm
- Bolt circle
- 520mm
02
Designs
Cabinets for the 21LW2600: a design and a suggested box from Eighteen Sound.
All 21LW2600 designsHow we find designsEighteen Sound’s design
From the maker, with plans to download
Eighteen Sound’s suggested box
From Eighteen Sound’s 21LW2600 page
- Net volume
- 300L
- Tuning
- 33Hz
Eighteen Sound gives the volume and tuning; the port is sized for the driver when you open it.
