- Net volume
- 190L
- Tuning
- 33Hz
B&C gives the volume and tuning; the port is sized for the driver when you open it.
21-inch LF driver · 21SW series · 150 mm voice coil · 1,500 W

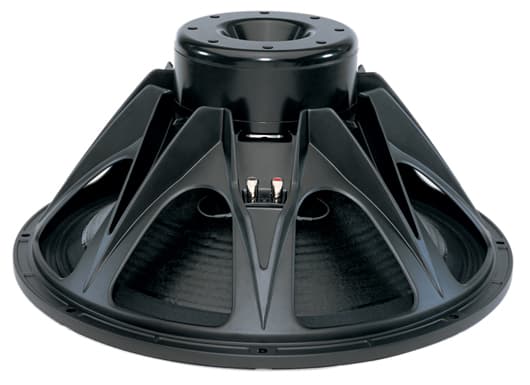

B&C 21SW150 4Ω
4 Ω · 30–1000 Hz
No current price
- Fs
- 29Hz
- Xmax
- 15mm
- SPL
- 96dB
- Pe
- 1500W
- BL
- 32.6T·m
- Vd
- 2520cm³
- Qts
- 0.26
- Vas
- 254L

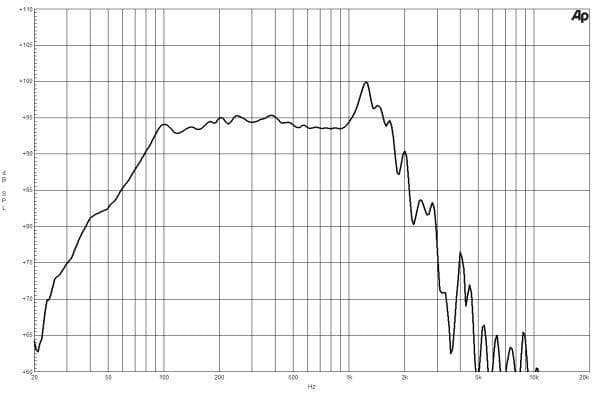

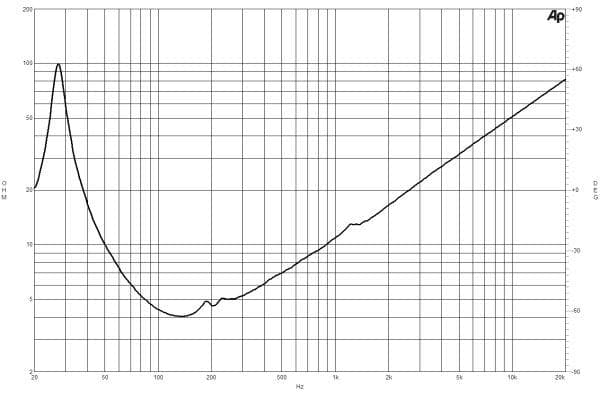

Published graphs
B&C 21SW150 is a 21-inch 4 ohm LF driver rated at 1500 W RMS. The validated T/S data includes Fs 29 Hz, Qts 0.26, Vas 254 L, Xmax 15 mm, sensitivity 95.6 dB, plus 2520 cm³ Vd and 107 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 29Hz
- Qts
- 0.26
- Qes
- 0.27
- Qms
- 8.1
- Vas
- 254L
- Re
- 3Ω
- Le
- 1.30mH
Motor and cone
- BL
- 32.6T·m
- Sd
- 1680cm²
- Mms
- 494g
- Xmax
- 15mm
- Vd †
- 2520cm³
- Voice coil
- 150mm
- Flux density
- 1.20T
Power and response
- Sensitivity †
- 95.6dB
- Manufacturer sensitivity
- 95dB
- Power
- 1500W
- Nominal power
- 1500W
- Impedance
- 4Ω
- Min. impedance
- 4Ω
- Range
- 30–1000Hz
- EBP †
- 107 · Leans vented
Size and mounting
- Diameter
- 547mm
- Cutout
- 508mm
- Bolt circle
- 527mm
- Depth
- 250mm
- Weight
- 18kg
† Calculated by bits from the published values
What this validation status means
Everything else B&C lists
LF
- BL
- 32.6T·m
- Fs
- 29Hz
- Le
- 1.30mH
- Re
- 3Ω
- Sd
- 1680cm²
- Mms
- 494g
- Qes
- 0.27
- Qms
- 8.1
- Qts
- 0.26
- SPL
- 95.6dB
- Vas
- 254L
- Xmax
- 15mm
- Power
- 1500W
- Impedance
- 4Ω
- Flux density
- 1.20T
- Sensitivity
- 95dB
- Low limit
- 30Hz
- Nominal power
- 1500W
- Calculated sensitivity †
- 95.6dB
- High limit
- 1000Hz
- Manufacturer sensitivity
- 95dB
- Min. impedance
- 4Ω
- Voice coil
- 150mm
- Weight
- 18kg
- Diameter
- 547mm
- Depth
- 250mm
- Cutout
- 508mm
- Bolt circle
- 527mm
- Bl
- 32.6 Tm
- Fs
- 29 Hz
- Le
- 1.3 mH
- Re
- 3 Ω
- Sd
- 1680 cm² (260.4 in²)
- Ebp
- 107 Hz
- Mms
- 494 g
- Qes
- 0.27
- Qms
- 8.1
- Qts
- 0.26
- Vas
- 254 dm³ (8.9 ft³)
- Η0
- 2 %
- Cone
- RCK21SW1504
- Xmax
- 15 mm
- Xvar
- 16 mm
- Depth
- 250 mm (8.2 in)
- Spider
- Double Silicone
- Cone shape
- Radial
- Net weight
- 18 kg (40 lb)
- Pole design
- T-Pole
- Sensitivity
- 95 dB
- Flux density
- 1.2 T
- Shipping box
- 570x570x320 mm (22.44x22.44x12.60 in)
- Winding depth
- 30 mm (1.18 in)
- Shipping units
- 1 pcs
- Surround shape
- Triple Roll
- Former material
- Glass Fibre
- Frequency range
- 30 Hz - 1000 Hz
- Magnet material
- Neodymium Ring
- Shipping weight
- 20.3 kg (44.75 lb)
- Nominal diameter
- 530 mm (21 in)
- Overall diameter
- 547 mm (21.5 in)
- Winding material
- Copper
- Minimum impedance
- 4 Ω
- Nominal impedance
- 4 Ω
- Magnetic gap depth
- 12 mm (0.5 in)
- Recommended tuning
- 33 Hz
- Voice coil diameter
- 150 mm (6 in)
- Bolt circle diameter
- 527 mm (20.7 in)
- Recommended enclosure
- 190 dm³ (6.71 ft³)
- Woofer cone treatment
- TWP Waterproof Both Sides
- Baffle cutout diameter
- 508 mm (20 in)
- Nominal power handling
- 1500 W
- Continuous power handling
- 3000 W
- Flange and gasket thickness
- 16 mm (0.62 in)
B&C’s suggested box
From B&C’s 21SW150 page
Open this box in 00 Simulator
Modelling the box in 00 Simulator…
03
Compare
Same-size drivers, compared with the 21SW150. Clear differences are green when better and red when worse.
