Eighteen Sound design
Manifolded 2x21" band-pass IPAL™ powered subwoofer
- Drivers
- 2 × 21ID
21-inch LF driver · 1,800 W
Eighteen Sound 21ID 2Ω
2 Ω · 29–1600 Hz
No current price
- Fs
- 38Hz
- Xmax
- 14mm
- SPL
- 97dB
- Pe
- 1800W
- BL
- 25.2T·m
- Vd
- 2324cm³
- Qts
- 0.23
- Vas
- 143L
Manufacturer response and impedance data, with source and trace details below. The left and right arrow keys read every shown curve at a frequency, a twelfth of an octave at a time, or an octave with Shift. Escape clears the reading.
Curve provenanceInspect 2 traces
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1

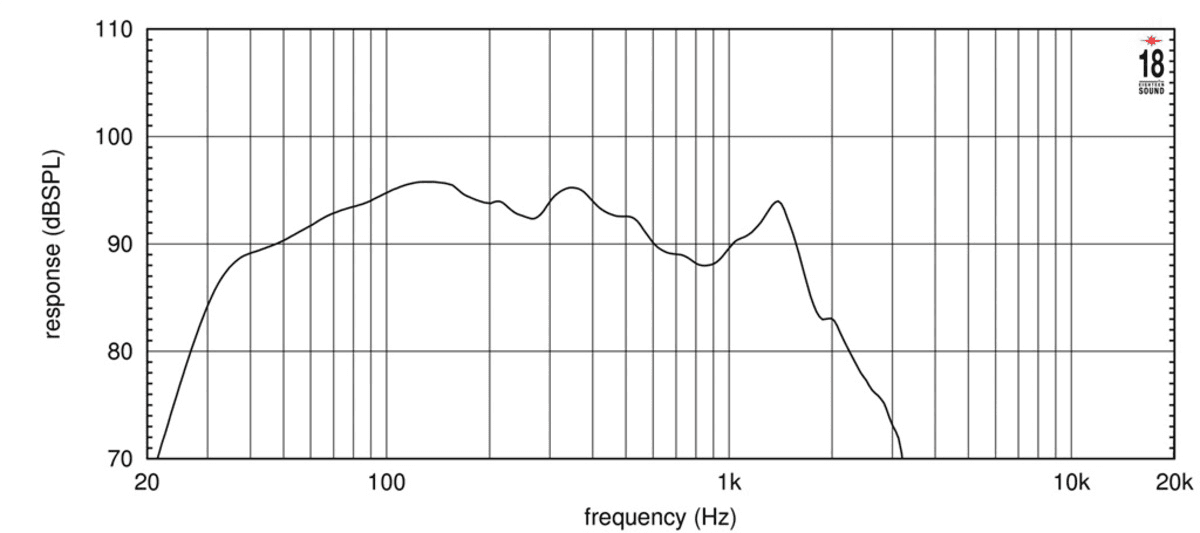

frequency response
Frequency response
99 plotted pointsMedium confidence670 selected pixels of 1,218 - Trace datasheet-response-trace-poc/v1

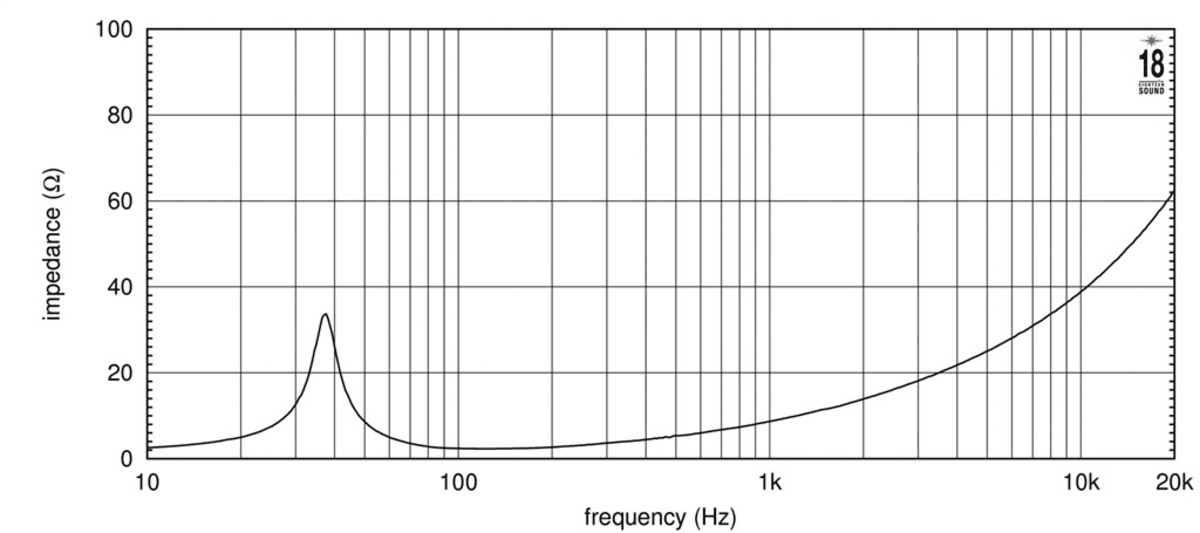

impedance
Impedance response
239 plotted pointsMedium confidence846 selected pixels of 1,310
Published graphs
Eighteen Sound 21ID is a 21-inch 2 ohm LF driver rated at 1800 W RMS. The validated T/S data includes Fs 38 Hz, Qts 0.23, Vas 143 L, Xmax 14 mm, sensitivity 97.2 dB, plus 2324 cm³ Vd and 158 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 38Hz
- Qts
- 0.23
- Qes
- 0.24
- Qms
- 5.6
- Vas
- 143L
- Re
- 1.3Ω
- Le
- 1.08mH
Motor and cone
- BL
- 25.2T·m
- Sd
- 1660cm²
- Mms
- 489g
- Xmax
- 14mm
- Vd †
- 2324cm³
Power and response
- Sensitivity †
- 97.2dB
- Manufacturer sensitivity
- 94.2dB
- Power
- 1800W
- Nominal power
- 1800W
- Impedance
- 2Ω
- Range
- 29–1600Hz
- EBP †
- 158 · Leans vented
Size and mounting
- Diameter
- 545mm
- Cutout
- 492mm
- Bolt circle
- 520mm
- Depth
- 250mm
- Weight
- 13.6kg
Other published values
- Power Program
- 3600
Sensitivity shows 97.2 dB, calculated from the T/S values. Eighteen Sound publishes 94.2 dB, 3.0 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Eighteen Sound lists
LF · Primary · 21″
- BL
- 25.2T·m
- Fs
- 38Hz
- Le
- 1.08mH
- Re
- 1.3Ω
- Sd
- 1660cm²
- Mms
- 489g
- Qes
- 0.24
- Qms
- 5.6
- Qts
- 0.23
- SPL
- 97.2dB
- Vas
- 143L
- Xmax
- 14mm
- Power
- 1800W
- Impedance
- 2Ω
- Sensitivity
- 94.2dB
- Low limit
- 29Hz
- Nominal power
- 1800W
- Power Program
- 3600
- Calculated sensitivity †
- 97.2dB
- High limit
- 1600Hz
- Manufacturer sensitivity
- 94.2dB
- Weight
- 13.6kg
- Diameter
- 545mm
- Depth
- 250mm
- Cutout
- 492mm
- Bolt circle
- 520mm
02
Designs
Cabinets for the 21ID: a design and a suggested box from Eighteen Sound, and plans builders have published.
All 21ID designsHow we find designsEighteen Sound’s design
From the maker, with plans to download
Eighteen Sound’s suggested box
From Eighteen Sound’s 21ID page
- Net volume
- 220L
- Tuning
- 40Hz
Eighteen Sound gives the volume and tuning; the port is sized for the driver when you open it.
