Eighteen Sound design
1x21” band-pass subwoofer
- Drivers
- 21LW1400or 21NLW4100or 21LW2600
21-inch LF driver · 1,500 W

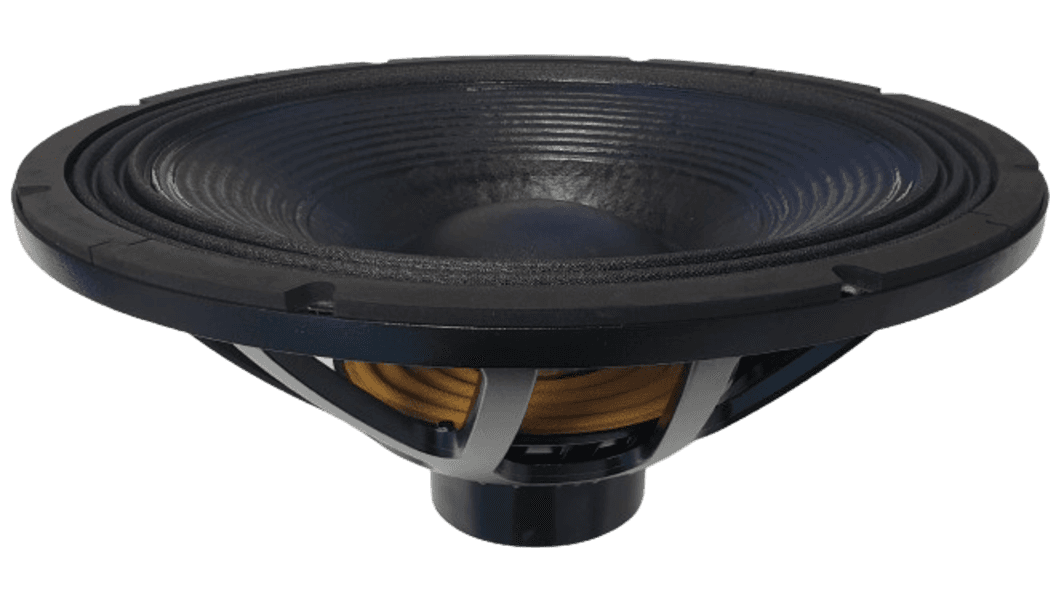

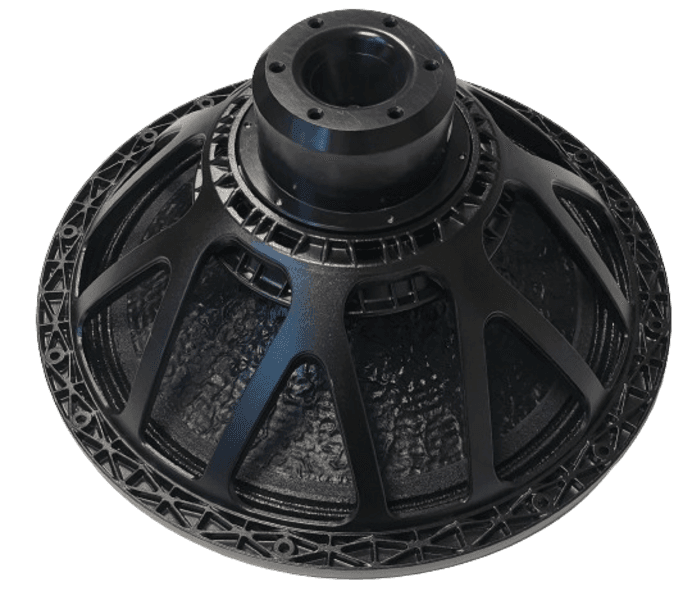

Eighteen Sound 21NLW4100 4Ω
32–300 Hz
No price for delivery to the UK
- Fs
- 34Hz
- Xmax
- 15.2mm
- SPL
- 95dB
- Pe
- 1500W
- BL
- 22.8T·m
- Vd
- 2525cm³
- Qts
- 0.40
- Vas
- 219L
Published graphs
Eighteen Sound 21NLW4100 is a 21-inch 4 ohm LF driver rated at 1500 W RMS. The validated T/S data includes Fs 34 Hz, Qts 0.40, Vas 219 L, Xmax 15.2 mm, sensitivity 95.1 dB, plus 2525 cm³ Vd and 81 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £505.48.
The published T/S values agree with each other
Thiele/Small
- Fs
- 34Hz
- Qts
- 0.40
- Qes
- 0.42
- Qms
- 7.8
- Vas
- 219L
- Re
- 2.6Ω
- Le
- 1.50mH
Motor and cone
- BL
- 22.8T·m
- Sd
- 1661cm²
- Mms
- 400g
- Xmax
- 15.2mm
- Vd †
- 2525cm³
Power and response
- Sensitivity †
- 95.1dB
- Manufacturer sensitivity
- 97dB
- Power
- 1500W
- Nominal power
- 1500W
- Impedance
- 4Ω
- Range
- 32–300Hz
- EBP †
- 81 · Sealed or vented
Size and mounting
- Diameter
- 545mm
- Cutout
- 492mm
- Bolt circle
- 520mm
- Depth
- 245mm
- Weight
- 10.5kg
Other published values
- Power Program
- 3000
Sensitivity shows 95.1 dB, calculated from the T/S values. Eighteen Sound publishes 97.0 dB, 1.9 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Eighteen Sound lists
LF · Primary · 21″
- BL
- 22.8T·m
- Fs
- 34Hz
- Le
- 1.50mH
- Re
- 2.6Ω
- Sd
- 1661cm²
- Mms
- 400g
- Qes
- 0.42
- Qms
- 7.8
- Qts
- 0.40
- SPL
- 95.1dB
- Vas
- 219L
- Xmax
- 15.2mm
- Power
- 1500W
- Impedance
- 4Ω
- Sensitivity
- 97dB
- Low limit
- 32Hz
- Nominal power
- 1500W
- Power Program
- 3000
- Calculated sensitivity †
- 95.1dB
- High limit
- 300Hz
- Manufacturer sensitivity
- 97dB
- Weight
- 10.5kg
- Diameter
- 545mm
- Depth
- 245mm
- Cutout
- 492mm
- Bolt circle
- 520mm
02
Designs
Cabinets for the 21NLW4100: a design and a suggested box from Eighteen Sound.
All 21NLW4100 designsHow we find designsEighteen Sound’s design
From the maker, with plans to download
Eighteen Sound’s suggested box
From Eighteen Sound’s 21NLW4100 page
- Net volume
- 250L
- Tuning
- 33Hz
Eighteen Sound gives the volume and tuning; the port is sized for the driver when you open it.
Modelling the box in 00 Simulator…
03
Compare
Same-size drivers, compared with the 21NLW4100. Clear differences are green when better and red when worse.
This driver21NLW4100
Best price
£505.48
Fs
34 Hz
Qts
0.40
Vas
219 L
BL
22.8 T·m
Xmax
15.2 mm
Sensitivity
95.1 dB
Power
1500 W
SB AudienceNERO-21SW1100D
£343.60 · 32% less, betterFs32 Hz −6%
Qts0.34 −15%, better
Vas312.6 L +43%, worse
BL30 T·m +32%, better
Xmax12.2 mm −20%, worse
Sensitivity96.7 dB +1.6
SB AudienceROSSO-21SW800
£417.84 · 17% less, betterFs38 Hz +12%, worse
Qts0.76 +90%, worse
Vas224.4 L –
BL24.1 T·m +6%
Xmax11.4 mm −25%, worse
Sensitivity93.9 dB −1.2
Beyma21QLEX1600FE
£425.00 · 16% less, betterFs30 Hz −12%, better
Qts0.28 −30%, better
Vas309 L +41%, worse
BL36.4 T·m +60%, better
Xmax13 mm −14%, worse
Sensitivity96.5 dB +1.4
CelestionTSQ2145
£445.00 · 12% less, betterFs30 Hz −12%, better
Qts0.34 −14%, better
Vas253.8 L +16%, worse
BL33.8 T·m +48%, better
Xmax15 mm –
Sensitivity94.8 dB –
RCFLF21X451
£448.61 · 11% less, betterFs28 Hz −18%, better
Qts0.37 −8%
Vas385 L +76%, worse
BL30.5 T·m +34%, better
Xmax14 mm −8%
Sensitivity95.4 dB –
Beyma21LEX1600ND
£475.00 · 6% less, betterFs30 Hz −12%, better
Qts0.29 −28%, better
Vas305 L +39%, worse
BL36.6 T·m +61%, better
Xmax14 mm −8%
Sensitivity96.4 dB +1.3
B&C21SW115
£475.55 · 6% less, betterFs33 Hz –
Qts0.36 −10%, better
Vas278 L +27%, worse
BL24.8 T·m +9%
Xmax14 mm −8%
Sensitivity96.3 dB +1.2
B&C21DS115
£483.91 · 4% lessFs32 Hz −6%
Qts0.21 −48%, better
Vas219 L –
BL28.6 T·m +25%, better
Xmax15 mm –
Sensitivity97.2 dB +2.1, better
No photo
Precision DevicesPD.2155-1N
£555.00 · 10% more, worseFs33 Hz –
Qts0.36 −10%, better
Vas241 L +10%, worse
BL30 T·m +32%, better
Xmax14 mm −8%
Sensitivity95.7 dB +0.6
B&C21SW152
£585.00 · 16% more, worseFs32 Hz −6%
Qts0.30 −25%, better
Vas200 L −9%
BL32.5 T·m +43%, better
Xmax15 mm –
Sensitivity95.3 dB –

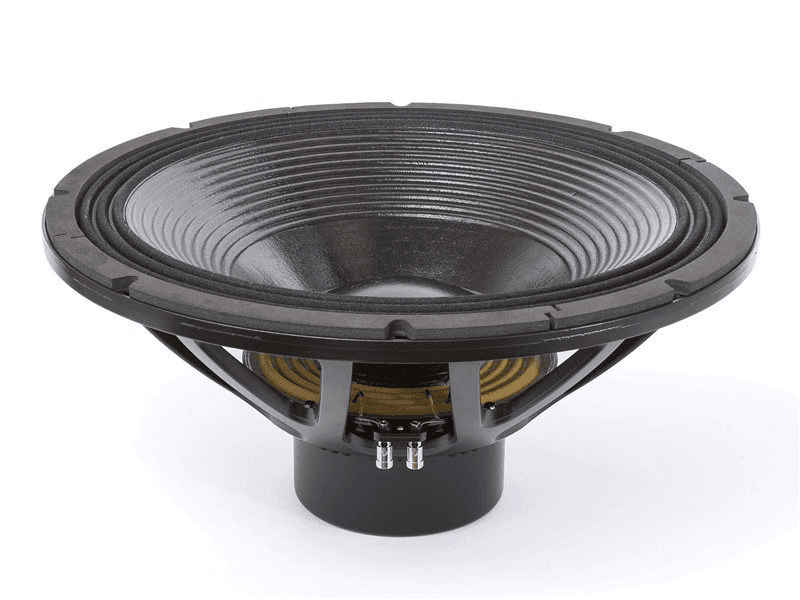

Eighteen Sound21NLW9001
£586.79 · 16% more, worseFs31 Hz −9%
Qts0.34 −15%, better
Vas272 L +24%, worse
BL23.8 T·m +4%
Xmax14 mm −8%
Sensitivity95.4 dB –
Eighteen Sound21NLW9601
£592.80 · 17% more, worseFs41 Hz +21%, worse
Qts0.32 −20%, better
Vas123 L −44%, better
BL32.7 T·m +43%, better
Xmax14 mm −8%
Sensitivity96.1 dB +1

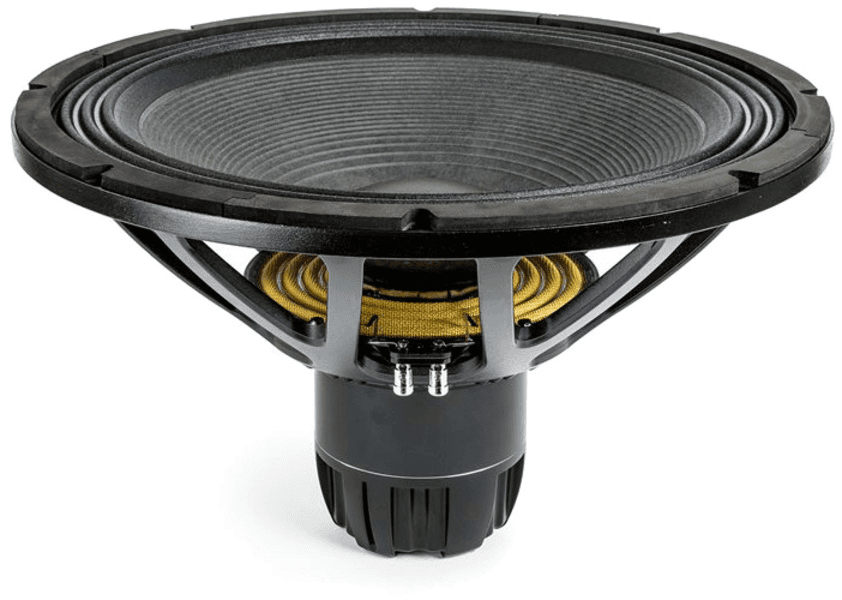

Eighteen Sound21NTLW5000
£595.00 · 18% more, worseFs30 Hz −12%, better
Qts0.32 −20%, better
Vas300 L +37%, worse
BL25 T·m +10%
Xmax17.5 mm +15%, better
Sensitivity95.9 dB +0.8
Eighteen Sound21NLW4000
£607.21 · 20% more, worseFs27 Hz −21%, better
Qts0.38 −5%
Vas380 L +74%, worse
BL20 T·m −12%, worse
Xmax15 mm –
Sensitivity94.9 dB –
No photo
Precision DevicesPD.2160-1N
£799.00 · 58% more, worseFs35 Hz –
Qts0.30 −25%, better
Vas177 L −19%, better
BL43 T·m +89%, better
Xmax16 mm +5%
Sensitivity95.9 dB +0.8
FaitalPRO21XL3000
£799.00 · 58% more, worseFs32 Hz −6%
Qts0.22 −45%, better
Vas223.5 L –
BL35.5 T·m +56%, better
Xmax17.7 mm +16%, better
Sensitivity97.3 dB +2.2, better
EminenceNSW6021-124
£912.88 · 81% more, worseFs31 Hz −10%
Qts0.32 −20%, better
Vas224.6 L –
BL30.5 T·m +34%, better
Xmax21 mm +38%, better
Sensitivity95 dB –
No current price
Fs33 Hz –
Qts0.36 −10%, better
Vas241 L +10%, worse
BL30 T·m +32%, better
Xmax14 mm −8%
Sensitivity95.7 dB +0.6
Eighteen Sound21LW2500
No current priceFs29 Hz −15%, better
Qts0.37 −8%
Vas305 L +39%, worse
BL30 T·m +32%, better
Xmax14 mm −8%
Sensitivity94.9 dB –
No current price
Fs35 Hz –
Qts0.34 −15%, better
Vas266 L +21%, worse
BL31.3 T·m +37%, better
Xmax14 mm −8%
Sensitivity97.1 dB +2, better
No photo
Precision DevicesPD.2155-1F
No current priceFs35 Hz –
Qts0.34 −15%, better
Vas266 L +21%, worse
BL31.3 T·m +37%, better
Xmax14 mm −8%
Sensitivity97.1 dB +2, better
Eighteen Sound21LW2600
No current priceFs27 Hz −21%, better
Qts0.29 −28%, better
Vas332 L +52%, worse
BL24.9 T·m +9%
Xmax14.6 mm −4%
Sensitivity95.6 dB +0.5
P.AudioSD21-125XB
No current priceFs35 Hz –
Qts0.38 −5%
Vas345.6 L +58%, worse
BL30.4 T·m +33%, better
Xmax11.3 mm −26%, worse
Sensitivity97.7 dB +2.6, better
Eighteen Sound21NLW5300
No current priceFs31 Hz −9%
Qts0.32 −20%, better
Vas325 L +48%, worse
BL31 T·m +36%, better
Xmax15.3 mm –
Sensitivity96.6 dB +1.5
Eighteen Sound21ID
No current priceFs38 Hz +12%, worse
Qts0.23 −43%, better
Vas143 L −35%, better
BL25.2 T·m +11%, better
Xmax14 mm −8%
Sensitivity97.2 dB +2.1, better
B&C21SW150
No current priceFs29 Hz −15%, better
Qts0.26 −35%, better
Vas254 L +16%, worse
BL32.6 T·m +43%, better
Xmax15 mm –
Sensitivity95.6 dB +0.5
Eighteen Sound21NLW9601C
No current priceFs38 Hz +12%, worse
Qts0.29 −28%, better
Vas140 L −36%, better
BL33.2 T·m +46%, better
Xmax14 mm −8%
Sensitivity96 dB +0.9
CelestionNTR21-5010JD
No current priceFs32 Hz −5%
Qts0.32 −20%, better
Vas276.7 L +26%, worse
BL33.9 T·m +48%, better
Xmax9 mm −41%, worse
Sensitivity96.4 dB +1.3
Dayton AudioPSS545HE-4
No current priceFs29 Hz −15%, better
Qts0.27 −33%, better
Vas212.2 L −3%
BL35.5 T·m +56%, better
Xmax21 mm +38%, better
Sensitivity94.6 dB −0.5
Sica21 S 4 PL
No current priceFs35 Hz –
Qts0.30 −25%, better
Vas255 L +16%, worse
BL36.1 T·m +58%, better
Xmax5.2 mm −66%, worse
Sensitivity97.4 dB +2.3, better
