- Net volume
- 200L
- Tuning
- 30Hz
Eighteen Sound gives the volume and tuning; the port is sized for the driver when you open it.
21-inch LF driver · 1,600 W
Eighteen Sound 21NLW4000 4Ω
30–1800 Hz
No price for delivery to the UK
- Fs
- 27Hz
- Xmax
- 15mm
- SPL
- 95dB
- Pe
- 1600W
- BL
- 20T·m
- Vd
- 2490cm³
- Qts
- 0.38
- Vas
- 380L
Published graphs

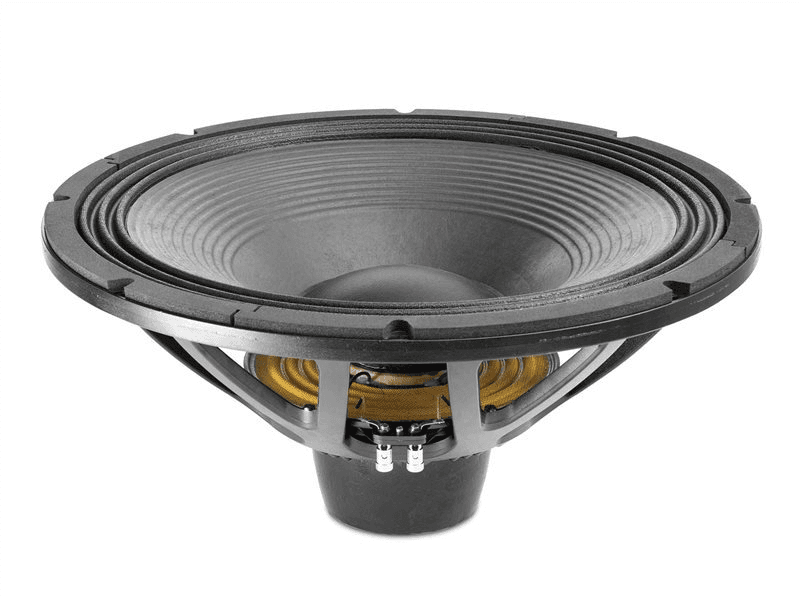

Eighteen Sound 21NLW4000 is a 21-inch 4 ohm LF driver rated at 1600 W RMS. The validated T/S data includes Fs 27 Hz, Qts 0.38, Vas 380 L, Xmax 15 mm, sensitivity 94.9 dB, plus 2490 cm³ Vd and 69 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £613.78.
The published T/S values agree with each other
Thiele/Small
- Fs
- 27Hz
- Qts
- 0.38
- Qes
- 0.39
- Qms
- 16.3
- Vas
- 380L
- Re
- 2.6Ω
- Le
- 1.30mH
Motor and cone
- BL
- 20T·m
- Sd
- 1660cm²
- Mms
- 355g
- Xmax
- 15mm
- Vd †
- 2490cm³
Power and response
- Sensitivity †
- 94.9dB
- Manufacturer sensitivity
- 94dB
- Power
- 1600W
- Nominal power
- 1600W
- Impedance
- 4Ω
- Range
- 30–1800Hz
- EBP †
- 69 · Sealed or vented
Size and mounting
- Diameter
- 545mm
- Cutout
- 492mm
- Bolt circle
- 520mm
- Depth
- 245mm
- Weight
- 11.6kg
Other published values
- Power Program
- 3200
† Calculated by bits from the published values
What this validation status means
Everything else Eighteen Sound lists
LF · Primary · 21″
- BL
- 20T·m
- Fs
- 27Hz
- Le
- 1.30mH
- Re
- 2.6Ω
- Sd
- 1660cm²
- Mms
- 355g
- Qes
- 0.39
- Qms
- 16.3
- Qts
- 0.38
- SPL
- 94.9dB
- Vas
- 380L
- Xmax
- 15mm
- Power
- 1600W
- Impedance
- 4Ω
- Sensitivity
- 94dB
- Low limit
- 30Hz
- Nominal power
- 1600W
- Power Program
- 3200
- Calculated sensitivity †
- 94.9dB
- High limit
- 1800Hz
- Manufacturer sensitivity
- 94dB
- Weight
- 11.6kg
- Diameter
- 545mm
- Depth
- 245mm
- Cutout
- 492mm
- Bolt circle
- 520mm
02
Designs
What Eighteen Sound suggests for the 21NLW4000. No published designs name it yet.
How we find designsEighteen Sound’s suggested box
From Eighteen Sound’s 21NLW4000 page
Open this box in 00 Simulator
Modelling the box in 00 Simulator…
03
Compare
Same-size drivers, compared with the 21NLW4000. Clear differences are green when better and red when worse.
This driver21NLW4000
Best price
£613.78
Fs
27 Hz
Qts
0.38
Vas
380 L
BL
20 T·m
Xmax
15 mm
Sensitivity
94.9 dB
Power
1600 W
Dayton AudioPSS555-8
£196.43 · 68% less, betterFs28 Hz –
Qts0.33 −13%, better
Vas444 L +17%, worse
BL29.7 T·m +49%, better
Xmax11 mm −27%, worse
Sensitivity96.4 dB +1.5
SB AudienceNERO-21SW1100D
£343.60 · 44% less, betterFs32 Hz +19%, worse
Qts0.34 −11%, better
Vas312.6 L −18%, better
BL30 T·m +50%, better
Xmax12.2 mm −19%, worse
Sensitivity96.7 dB +1.8
Beyma21QLEX1600FE
£425.00 · 31% less, betterFs30 Hz +11%, worse
Qts0.28 −26%, better
Vas309 L −19%, better
BL36.4 T·m +82%, better
Xmax13 mm −13%, worse
Sensitivity96.5 dB +1.6
CelestionTSQ2145
£445.00 · 27% less, betterFs30 Hz +11%, worse
Qts0.34 −9%
Vas253.8 L −33%, better
BL33.8 T·m +69%, better
Xmax15 mm –
Sensitivity94.8 dB –
RCFLF21X451
£448.61 · 27% less, betterFs28 Hz +4%
Qts0.37 –
Vas385 L –
BL30.5 T·m +53%, better
Xmax14 mm −7%
Sensitivity95.4 dB +0.5
Beyma21LEX1600ND
£475.00 · 23% less, betterFs30 Hz +11%, worse
Qts0.29 −24%, better
Vas305 L −20%, better
BL36.6 T·m +83%, better
Xmax14 mm −7%
Sensitivity96.4 dB +1.5
RCFLF21N451
£475.00 · 23% less, betterFs30 Hz +11%, worse
Qts0.26 −32%, better
Vas375 L –
BL34.5 T·m +73%, better
Xmax13 mm −13%, worse
Sensitivity97.8 dB +2.9, better
B&C21SW115
£480.70 · 22% less, betterFs33 Hz +22%, worse
Qts0.36 −5%
Vas278 L −27%, better
BL24.8 T·m +24%, better
Xmax14 mm −7%
Sensitivity96.3 dB +1.4
LavoceSAN214.50
£480.70 · 22% less, betterFs33 Hz +22%, worse
Qts0.28 −26%, better
Vas218.3 L −43%, better
BL39.6 T·m +98%, better
Xmax15.4 mm –
Sensitivity96.4 dB +1.5
B&C21DS115
£489.14 · 20% less, betterFs32 Hz +19%, worse
Qts0.21 −45%, better
Vas219 L −42%, better
BL28.6 T·m +43%, better
Xmax15 mm –
Sensitivity97.2 dB +2.3, better
Eighteen Sound21NLW4100
£510.95 · 17% less, betterFs34 Hz +26%, worse
Qts0.40 +5%
Vas219 L −42%, better
BL22.8 T·m +14%, better
Xmax15.2 mm –
Sensitivity95.1 dB –
B&C21SW152
£585.00 · 5% lessFs32 Hz +19%, worse
Qts0.30 −21%, better
Vas200 L −47%, better
BL32.5 T·m +63%, better
Xmax15 mm –
Sensitivity95.3 dB –
Eighteen Sound21NLW9001
£593.14 · 3% lessFs31 Hz +15%, worse
Qts0.34 −11%, better
Vas272 L −28%, better
BL23.8 T·m +19%, better
Xmax14 mm −7%
Sensitivity95.4 dB +0.5
Eighteen Sound21NTLW5000
£595.00 · 3% lessFs30 Hz +11%, worse
Qts0.32 −16%, better
Vas300 L −21%, better
BL25 T·m +25%, better
Xmax17.5 mm +17%, better
Sensitivity95.9 dB +1
Eighteen Sound21NLW9601
£599.21 · 2% lessFs41 Hz +52%, worse
Qts0.32 −16%, better
Vas123 L −68%, better
BL32.7 T·m +64%, better
Xmax14 mm −7%
Sensitivity96.1 dB +1.2
No photo
Precision DevicesPD.2160-1N
£811.00 · 32% more, worseFs35 Hz +30%, worse
Qts0.30 −21%, better
Vas177 L −53%, better
BL43 T·m +115%, better
Xmax16 mm +7%
Sensitivity95.9 dB +1
EminenceNSW6021-124
£925.57 · 51% more, worseFs31 Hz +14%, worse
Qts0.32 −16%, better
Vas224.6 L −41%, better
BL30.5 T·m +53%, better
Xmax21 mm +40%, better
Sensitivity95 dB –
Eighteen Sound21LW2500
No current priceFs29 Hz +7%
Qts0.37 –
Vas305 L −20%, better
BL30 T·m +50%, better
Xmax14 mm −7%
Sensitivity94.9 dB –
P.AudioSD21-125XB
No current priceFs35 Hz +30%, worse
Qts0.38 –
Vas345.6 L −9%
BL30.4 T·m +52%, better
Xmax11.3 mm −25%, worse
Sensitivity97.7 dB +2.8, better
No current price
Fs33 Hz +22%, worse
Qts0.36 −5%
Vas241 L −37%, better
BL30 T·m +50%, better
Xmax14 mm −7%
Sensitivity95.7 dB +0.8
No photo
Precision DevicesPD.2155-1N
No current priceFs33 Hz +22%, worse
Qts0.36 −5%
Vas241 L −37%, better
BL30 T·m +50%, better
Xmax14 mm −7%
Sensitivity95.7 dB +0.8
Eighteen Sound21NLW5300
No current priceFs31 Hz +15%, worse
Qts0.32 −16%, better
Vas325 L −14%, better
BL31 T·m +55%, better
Xmax15.3 mm –
Sensitivity96.6 dB +1.7
No current price
Fs35 Hz +30%, worse
Qts0.34 −11%, better
Vas266 L −30%, better
BL31.3 T·m +57%, better
Xmax14 mm −7%
Sensitivity97.1 dB +2.2, better
No photo
Precision DevicesPD.2155-1F
No current priceFs35 Hz +30%, worse
Qts0.34 −11%, better
Vas266 L −30%, better
BL31.3 T·m +57%, better
Xmax14 mm −7%
Sensitivity97.1 dB +2.2, better
BishopSoundBWN21/4
No current priceFs29 Hz +7%
Qts0.42 +10%
Vas244.2 L −36%, better
BL32.6 T·m +63%, better
Xmax15 mm –
Sensitivity93.2 dB −1.7
BishopSoundBWN21/8
No current priceFs29 Hz +7%
Qts0.42 +10%
Vas244.2 L −36%, better
BL32.6 T·m +63%, better
Xmax15 mm –
Sensitivity93.2 dB −1.7
Eighteen Sound21LW2600
No current priceFs27 Hz –
Qts0.29 −24%, better
Vas332 L −13%, better
BL24.9 T·m +24%, better
Xmax14.6 mm –
Sensitivity95.6 dB +0.7
B&C21SW150
No current priceFs29 Hz +7%
Qts0.26 −32%, better
Vas254 L −33%, better
BL32.6 T·m +63%, better
Xmax15 mm –
Sensitivity95.6 dB +0.7
CelestionNTR21-5010JD
No current priceFs32 Hz +19%, worse
Qts0.32 −16%, better
Vas276.7 L −27%, better
BL33.9 T·m +69%, better
Xmax9 mm −40%, worse
Sensitivity96.4 dB +1.5
Eighteen Sound21NLW9601C
No current priceFs38 Hz +41%, worse
Qts0.29 −24%, better
Vas140 L −63%, better
BL33.2 T·m +66%, better
Xmax14 mm −7%
Sensitivity96 dB +1.1
