Overview
LF DriverSAN214 series
Lavoce
Lavoce SAN214.50
Lavoce SAN214.50 is a 21" 8 ohm LF driver rated at 1700W RMS. The validated T/S data includes Fs 33Hz, Qts 0.28, Vas 218.3L, Xmax 15.4mm, sensitivity 96.4dB, plus 2603cm³ Vd and 114 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £399.00.
Size
21"
Impedance
8Ω
RMS Power
1700W
Sensitivity
96.4dB
98.0dBmanufacturer; using T/S-derived value (1.6dB delta).
EBP
114
Vented alignment
Vd
2603cm³
T/S Parameters
Valid
Fs33Hz
Qts0.28
Qes0.29
Qms6.1
Vas218.3L
Re5.2Ω
Le4.65mH
BL39.6Tm
Sd1690cm²
Mms427g
Xmax15.4mm
SPL96dB
Power1700W
Impedance8Ω
Min Impedance6.8Ω
F Low30Hz
F High1000Hz
Voice Coil115mm
Pricing & availability
Price definitionsPrice movement
Best current price
£399.00
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

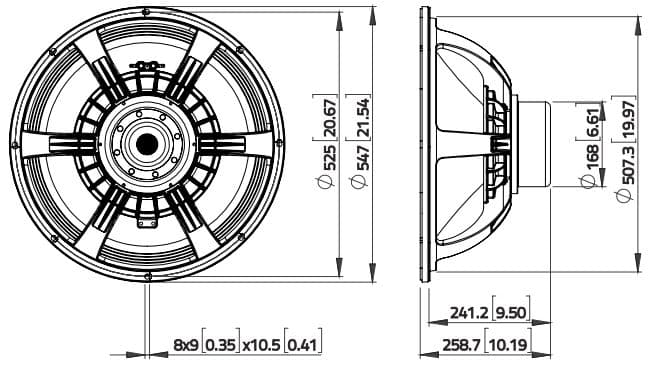

Dimensions & Physical
Weight15.2kg
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Lavoce
SAN214.50
21"
Best current price
£399.00
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
74%
Similarity
7% more£425.00
Beyma
21QLEX1600FE
21"
Higher price
Xmax13mm-16%
Qts0.280%
BL36.4Tm-8%
Vas309L+42%
Qes0.3+3%
62%
Similarity
12% more£445.00
Celestion
TSQ2145
21"
Higher price
Xmax15mm-3%
Qts0.34+23%
BL33.8Tm-15%
Vas253.8L+16%
Qes0.36+24%
55%
Similarity
23% more£492.21
Eighteen Sound
21LW2600
21"
Higher price
Xmax14.6mm-5%
Qts0.33+18%
BL32.5Tm-18%
Vas333L+53%
Qes0.34+17%
90%
Similarity
25% more£497.00
B&C
21DS115
21"
Higher price
Xmax16.5mm+7%
Qts0.27-4%
BL39.3Tm-1%
Vas204L-7%
Qes0.28-3%
74%
Similarity
44% more£576.21
Eighteen Sound
21NLW9001
21"
Higher price
Xmax14mm-9%
Qts0.31+11%
BL37Tm-7%
Vas244L+12%
Qes0.34+17%
80%
Similarity
47% more£585.00
B&C
21SW152
21"
Higher price
Xmax15mm-3%
Qts0.3+7%
BL32.5Tm-18%
Vas200L-8%
Qes0.31+7%
80%
Similarity
75% more£699.33
Eighteen Sound
21NLW9601
21"
Higher price
Xmax14mm-9%
Qts0.29+4%
BL43Tm+9%
Vas175L-20%
Qes0.31+7%
72%
Similarity
75% more£699.33
Eighteen Sound
21NLW9601C
21"
Higher price
Xmax14mm-9%
Qts0.29+4%
BL33.2Tm-16%
Vas140L-36%
Qes0.31+7%
Image unavailable
81%
Similarity
95% more£777.00
Precision Devices
PD.2160-1N
21"
Higher price
Xmax16mm+4%
Qts0.3+7%
BL43Tm+9%
Vas177L-19%
Qes0.31+7%
67%
Similarity
125% more£899.00
FaitalPRO
21XL3000
21"
Higher price
Xmax17.7mm+15%
Qts0.25-11%
BL43Tm+9%
Vas284.6L+30%
Qes0.25-14%
76%
Similarity
Beyma
121LEX16ND8
21"
Xmax14mm-9%
Qts0.29+4%
BL36.6Tm-8%
Vas305L+40%
Qes0.3+3%
72%
Similarity
Celestion
TSQ2160
21"
Xmax18.8mm+22%
Qts0.26-8%
BL43.1Tm+9%
Vas234.8L+8%
Qes0.26-9%
