LF Driver21DS series
B&C

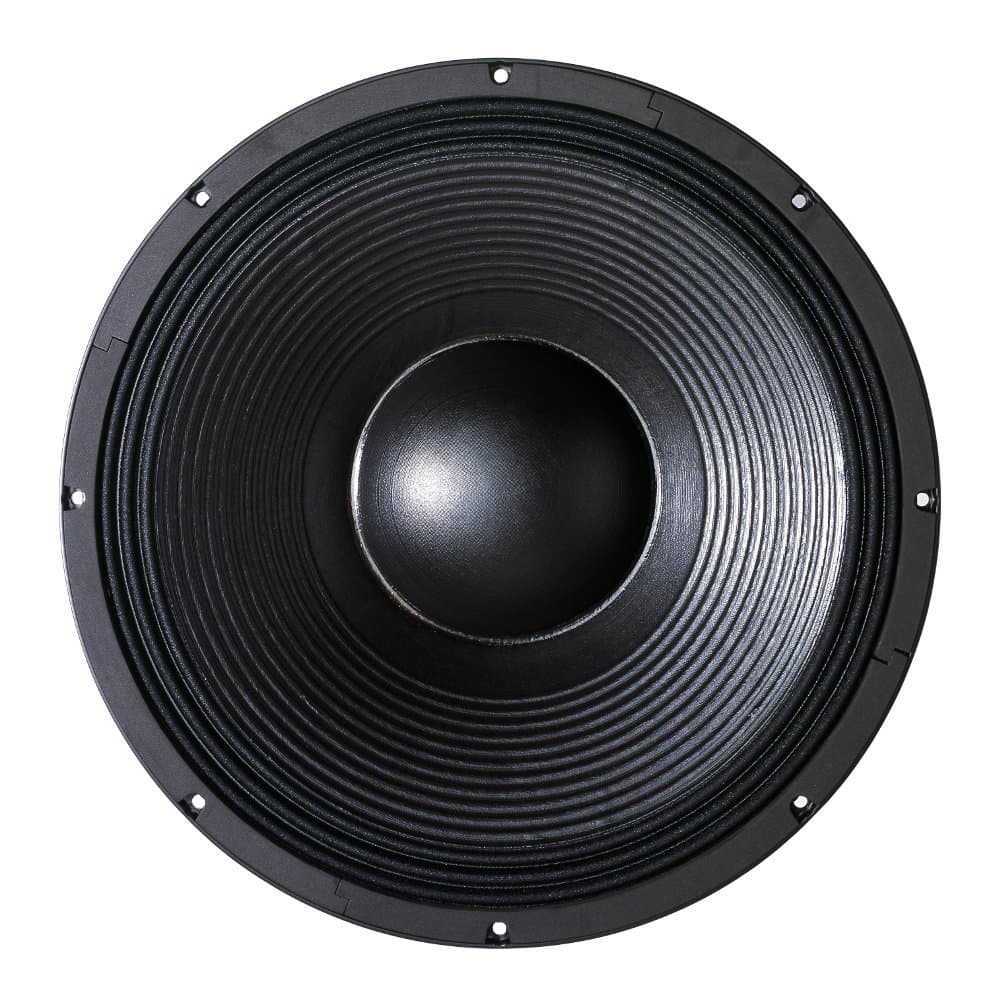

B&C 21DS115
B&C 21DS115 is a 21" 8 ohm LF driver rated at 1700W RMS. The validated T/S data includes Fs 34Hz, Qts 0.27, Vas 204L, Xmax 16.5mm, sensitivity 96.6dB, plus 2673cm³ Vd and 121 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £497.00.
Size
21"
Impedance
8Ω
RMS Power
1700W
Sensitivity
96.6dB
99.0dBmanufacturer; using T/S-derived value (2.4dB delta).
EBP
121
Vented alignment
Vd
2673cm³

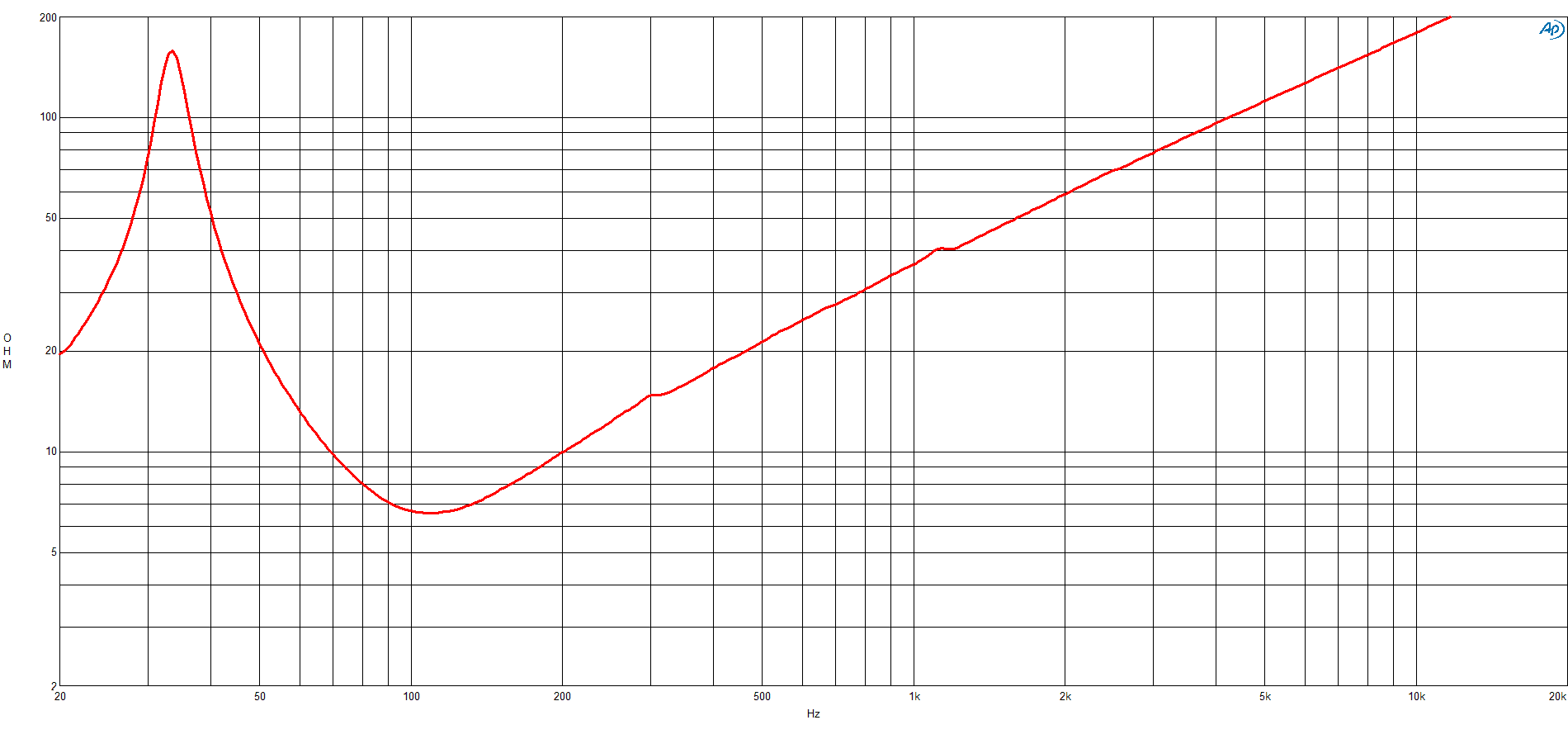

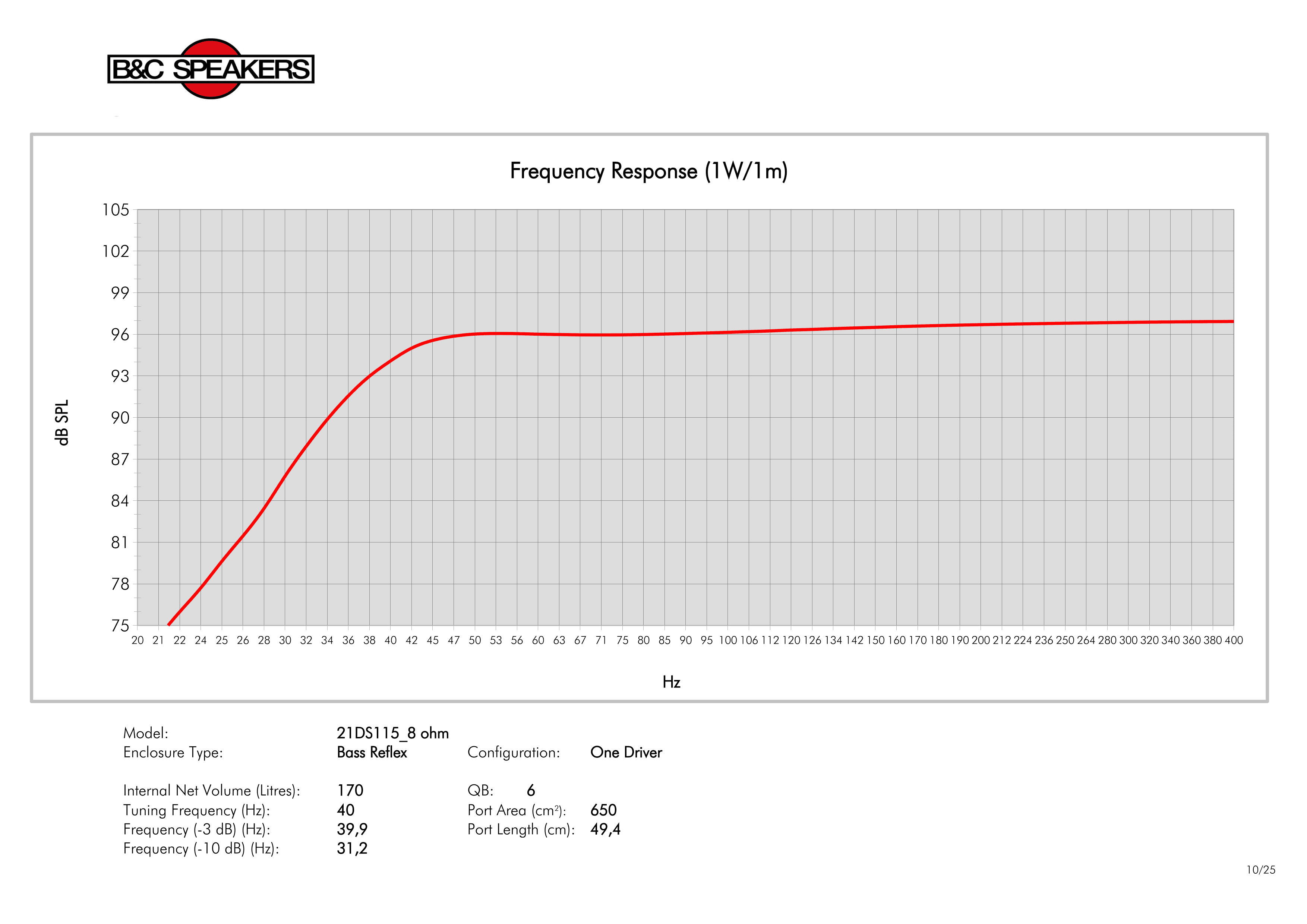

Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs34Hz
Qts0.27
Qes0.28
Qms10.2
Vas204.0L
Re5.1Ω
Le4.90mH
BL39.3Tm
Sd1620cm²
Mms404g
Xmax16.5mm
SPL97dB
Power1700W
Power Nominal1700W
Impedance8Ω
Min Impedance6.6Ω
F Low35Hz
F High500Hz
Voice Coil116mm
Flux Density0.80T
Pricing & availability
Price definitionsPrice movement
Best current price
£497.00
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight14.7kg
Diameter547.0mm
Overall Depth255.0mm
Cutout Diameter508.0mm
Bolt Circle Diameter527.0mm
Additional Manufacturer Specs
Bl39.3 Tm
Fs34 Hz
Le4.9 mH
Re5.1 Ω
Sd1620 cm² (251.1 in²)
Ebp121 Hz
Mms404 g
Qes0.28
Qms10.2
Qts0.27
Vas204 dm³ (7.2 ft³)
η02.7 %
ConeRCK21DS1158
Xmax16.5 mm
Xvar13.5 mm
SpiderDouble Silicone
Cone ShapeRadial
Pole DesignT-Pole
Winding Depth40 mm (1.57 in)
Surround ShapeTriple Roll
Former MaterialGlass Fibre
Magnet MaterialNeodymium Inside Slug
Nominal Diameter530 mm (21 in)
Winding MaterialAluminium
Magnetic Gap Depth14 mm (0.55 in)
Recommended Tuning40 Hz
Bolt Circle Diameter527 mm (20.7 in)
Recommended Enclosure170 dm³ (6 ft³)
Woofer Cone TreatmentTWP Waterproof Both Sides
Baffle Cutout Diameter508 mm (20 in)
Flange And Gasket Thickness13 mm (0.51 in)
Air Volume Occupied By Driver15 dm³ (0.53 ft³)
