- Net volume
- 250L
- Tuning
- 33Hz
Eighteen Sound gives the volume and tuning; the port is sized for the driver when you open it.
21-inch LF driver · 1,800 W
Eighteen Sound 21NLW5300 8Ω
8 Ω · 30–500 Hz
No current price
- Fs
- 31Hz
- Xmax
- 15.3mm
- SPL
- 97dB
- Pe
- 1800W
- BL
- 31T·m
- Vd
- 2543cm³
- Qts
- 0.32
- Vas
- 325L

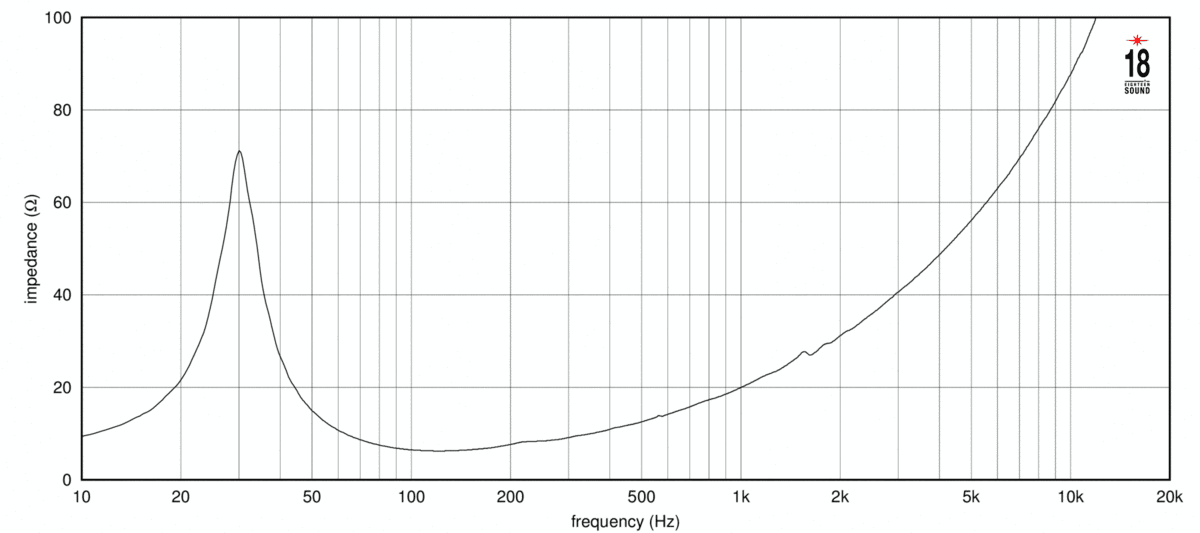

Manufacturer response and impedance data, with source and trace details below. The left and right arrow keys read every shown curve at a frequency, a twelfth of an octave at a time, or an octave with Shift. Escape clears the reading.
Curve provenanceInspect 1 trace
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1

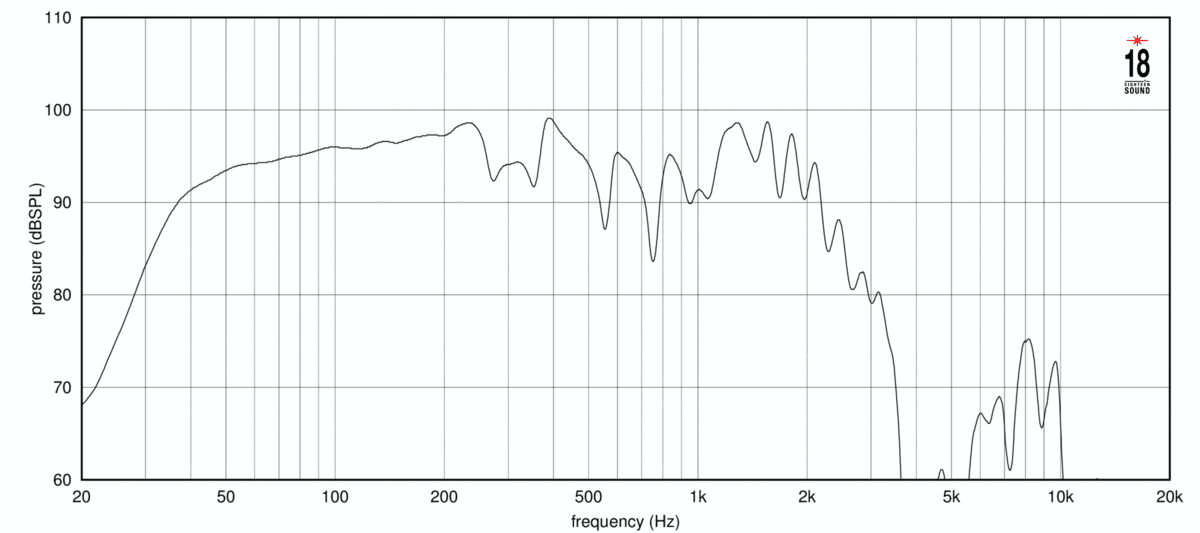

frequency response
Frequency response
240 plotted pointsMedium confidence744 selected pixels of 1,046
Published graphs
Eighteen Sound 21NLW5300 is a 21-inch 8 ohm LF driver rated at 1800 W RMS. The validated T/S data includes Fs 31 Hz, Qts 0.32, Vas 325 L, Xmax 15.3 mm, sensitivity 96.6 dB, plus 2543 cm³ Vd and 91 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 31Hz
- Qts
- 0.32
- Qes
- 0.34
- Qms
- 4.7
- Vas
- 325L
- Re
- 5.2Ω
- Le
- 2.60mH
Motor and cone
- BL
- 31T·m
- Sd
- 1662cm²
- Mms
- 327g
- Xmax
- 15.3mm
- Vd †
- 2543cm³
Power and response
- Sensitivity †
- 96.6dB
- Manufacturer sensitivity
- 98.5dB
- Power
- 1800W
- Nominal power
- 1800W
- Impedance
- 8Ω
- Range
- 30–500Hz
- EBP †
- 91 · Sealed or vented
Size and mounting
- Diameter
- 545mm
- Cutout
- 492mm
- Bolt circle
- 520mm
- Depth
- 251mm
- Weight
- 14kg
Other published values
- Power Program
- 3600
Sensitivity shows 96.6 dB, calculated from the T/S values. Eighteen Sound publishes 98.5 dB, 1.9 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Eighteen Sound lists
LF · Primary · 21″
- BL
- 31T·m
- Fs
- 31Hz
- Le
- 2.60mH
- Re
- 5.2Ω
- Sd
- 1662cm²
- Mms
- 327g
- Qes
- 0.34
- Qms
- 4.7
- Qts
- 0.32
- SPL
- 96.6dB
- Vas
- 325L
- Xmax
- 15.3mm
- Power
- 1800W
- Impedance
- 8Ω
- Sensitivity
- 98.5dB
- Low limit
- 30Hz
- Nominal power
- 1800W
- Power Program
- 3600
- Calculated sensitivity †
- 96.6dB
- High limit
- 500Hz
- Manufacturer sensitivity
- 98.5dB
- Weight
- 14kg
- Diameter
- 545mm
- Depth
- 251mm
- Cutout
- 492mm
- Bolt circle
- 520mm
