LF Driver21SW series
B&C
B&C 21SW152
B&C 21SW152 is a 21" 8 ohm LF driver rated at 2000W RMS. The validated T/S data includes Fs 32Hz, Qts 0.36, Vas 200L, Xmax 15mm, sensitivity 94.4dB, plus 2520cm³ Vd and 84 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £585.00.
Size
21"
Impedance
8Ω
RMS Power
2000W
Sensitivity
94.4dB
96.0dBmanufacturer; using T/S-derived value (1.6dB delta).
EBP
84
Either alignment
Vd
2520cm³

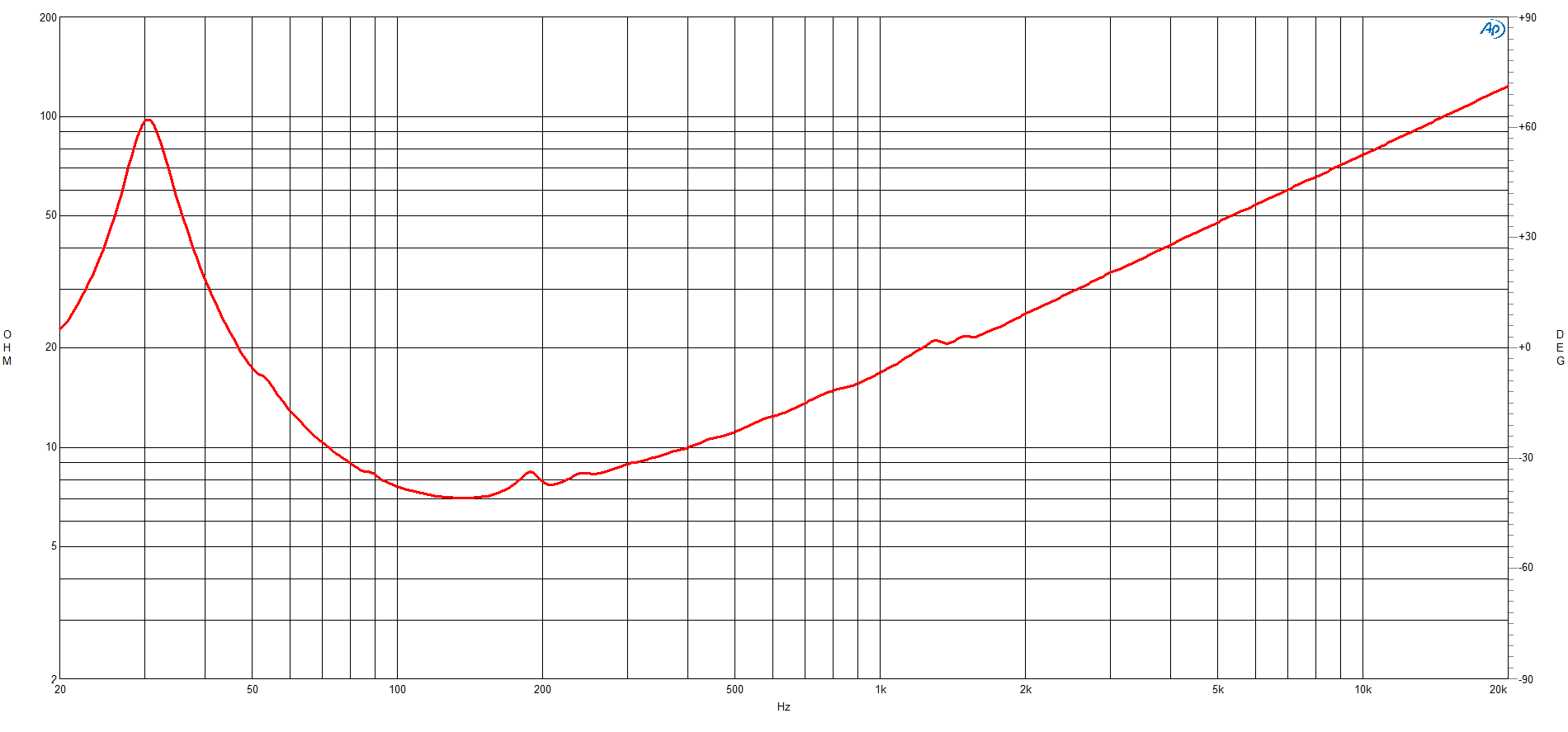

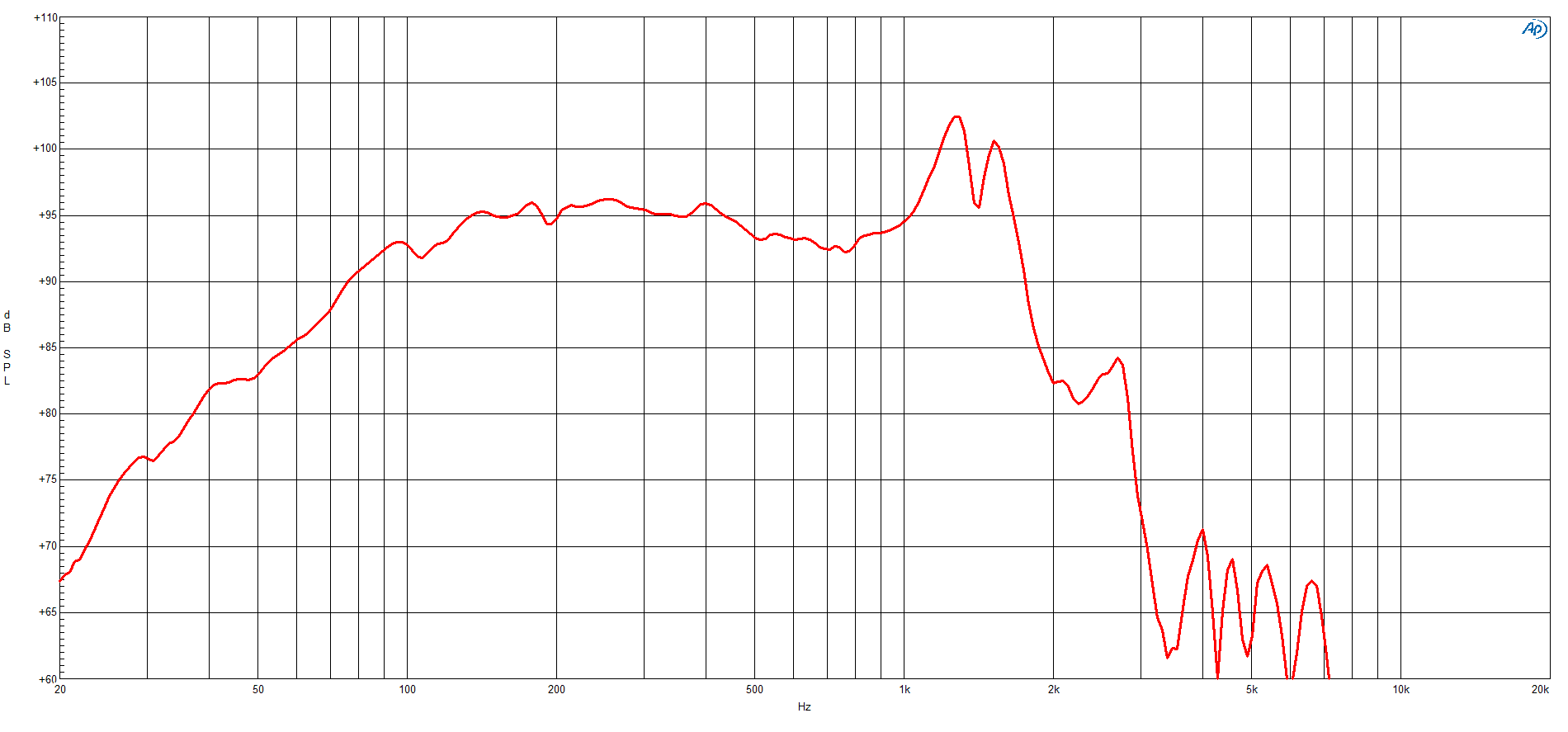

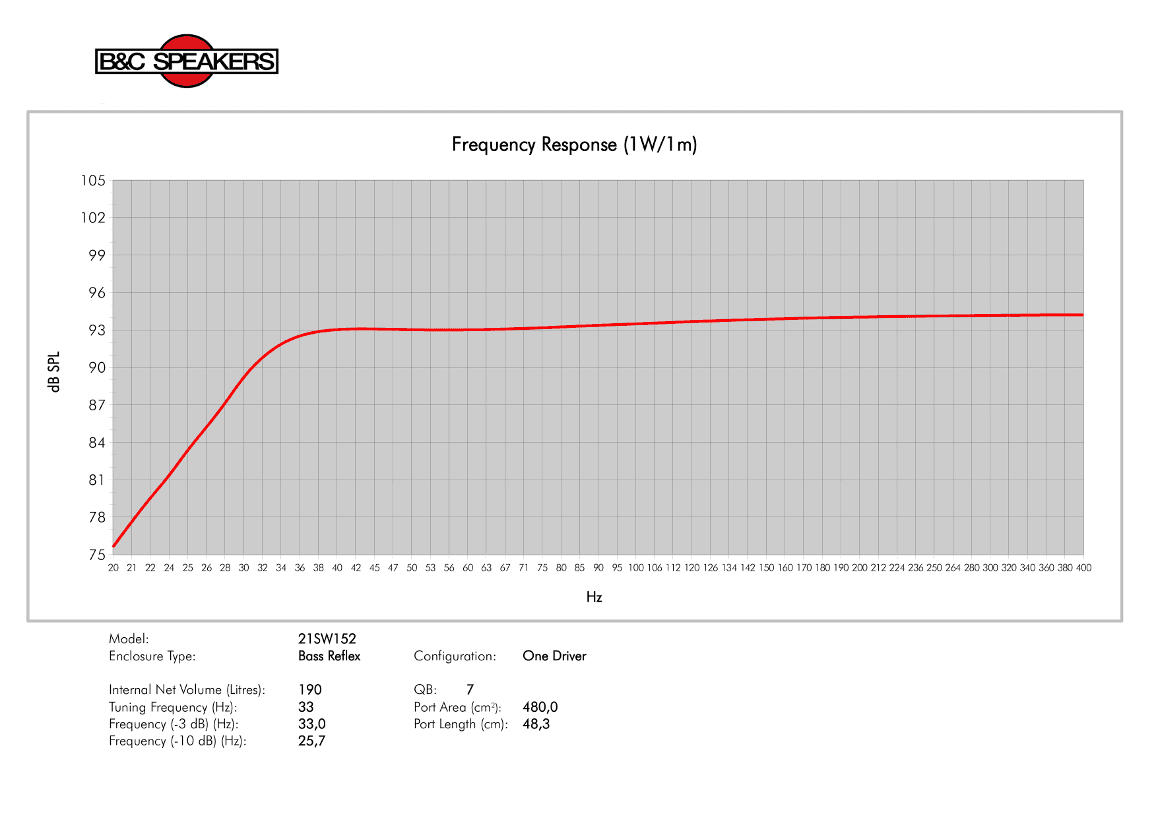

Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs32Hz
Qts0.36
Qes0.38
Qms6.4
Vas200.0L
Re6.0Ω
Le2.20mH
BL39.0Tm
Sd1680cm²
Mms450g
Xmax15.0mm
SPL94dB
Power2000W
Power Nominal2000W
Impedance8Ω
Min Impedance7.0Ω
F Low30Hz
F High1000Hz
Voice Coil153mm
Flux Density1.20T
Pricing & availability
Price definitionsPrice movement
Best current price
£585.00
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight18.5kg
Diameter547.0mm
Overall Depth261.0mm
Cutout Diameter508.0mm
Bolt Circle Diameter527.0mm
Additional Manufacturer Specs
Bl39 Tm
Fs32 Hz
Le2.2 mH
Re6 Ω
Sd1680 cm² (260.4 in²)
Ebp84 Hz
Mms450 g
Qes0.38
Qms6.4
Qts0.36
Vas200 dm³ (7.06 ft³)
η01.9 %
ConeRCK21SW1528
Xmax15 mm
Xvar16 mm
SpiderDouble Silicone
Cone ShapeRadial
Pole DesignT-Pole
Winding Depth32 mm (1.26 in)
Surround ShapeTriple Roll
Former MaterialGlass Fibre
Magnet MaterialNeodymium Inside Slug
Nominal Diameter530 mm (21 in)
Winding MaterialCopper
Magnetic Gap Depth12 mm (0.5 in)
Recommended Tuning33 Hz
Bolt Circle Diameter527 mm (20.75 in)
Recommended Enclosure190 dm³ (6.71 ft³)
Woofer Cone TreatmentTWP Waterproof Both Sides
Baffle Cutout Diameter508 mm (20 in)
Flange And Gasket Thickness16 mm (0.63 in)
Air Volume Occupied By Driver16 dm³ (0.57 ft³)
