Overview
LF Driver
Eighteen Sound

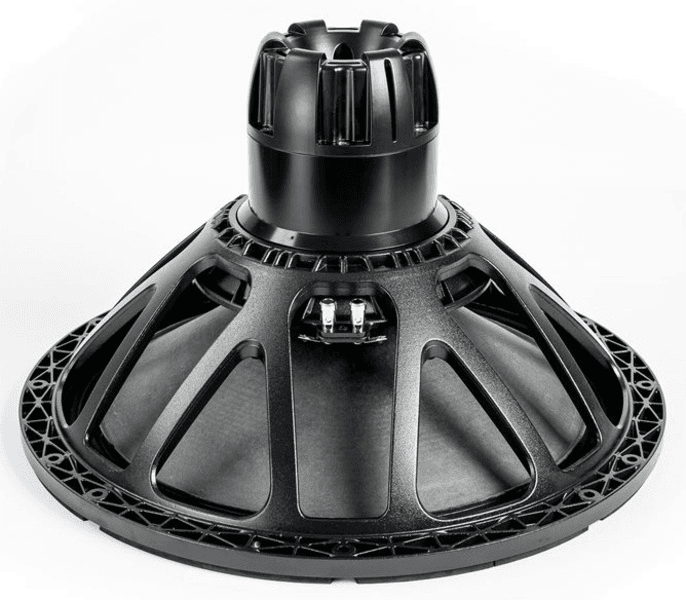

Eighteen Sound 21NTLW5000
Eighteen Sound 21NTLW5000 is a 21" 8 ohm LF driver rated at 1800W RMS. The validated T/S data includes Fs 31Hz, Qts 0.36, Vas 270L, Xmax 17.5mm, sensitivity 95.3dB, plus 2909cm³ Vd and 82 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £595.00.
Size
21"
Impedance
8Ω
RMS Power
1800W
Sensitivity
95.3dB
97.0dBmanufacturer; using T/S-derived value (1.7dB delta).
EBP
82
Either alignment
Vd
2909cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp2medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1

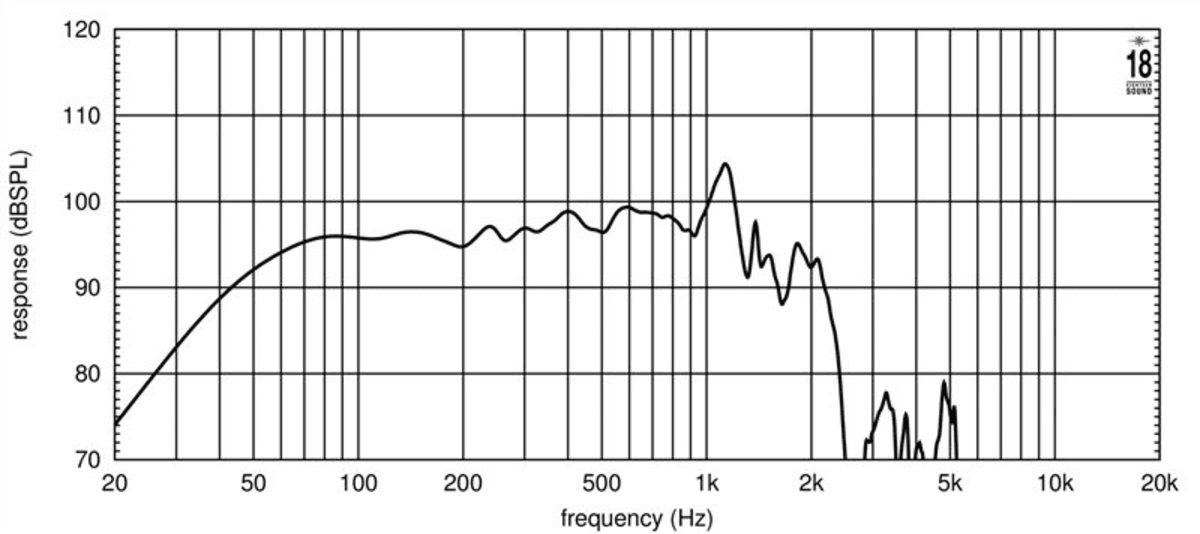

frequency response
Frequency response
240 plotted pointsMedium confidence6,876 selected pixels of 10,690 - Trace datasheet-response-trace-poc/v1

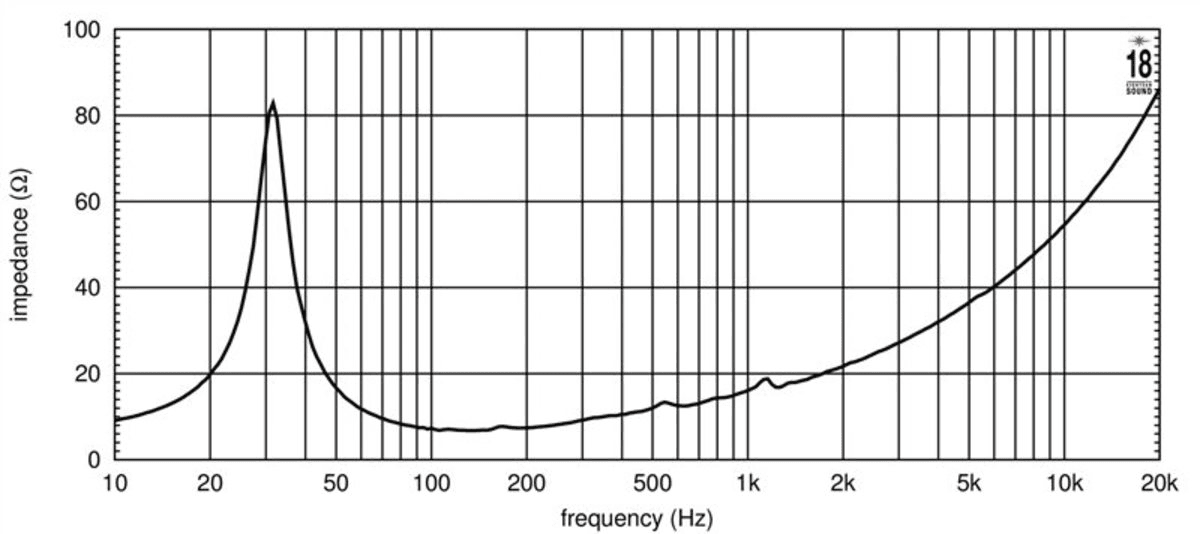

impedance
Impedance response
230 plotted pointsMedium confidence1,210 selected pixels of 1,464
T/S Parameters
Valid
Fs31Hz
Qts0.36
Qes0.38
Qms5.2
Vas270.0L
Re5.3Ω
Le1.60mH
BL32.0Tm
Sd1662cm²
Mms372g
Xmax17.5mm
SPL95dB
Power1800W
Power Nominal1800W
Impedance8Ω
F Low30Hz
F High1800Hz
Pricing & availability
Price definitionsPrice movement
Best current price
£595.00
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight12.5kg
Diameter545.0mm
Overall Depth320.0mm
Cutout Diameter492.0mm
Bolt Circle Diameter520.0mm
