Eighteen Sound design
Manifolded 2x21” band-pass subwoofer
- Drivers
- 21NLW9000or 21LW1400or 21NLW9600
The plans name the earlier 21NLW9000.
21-inch LF driver · 1,800 W
Eighteen Sound 21NLW9001 4Ω
25–1500 Hz
No price for delivery to the UK
- Fs
- 31Hz
- Xmax
- 14mm
- SPL
- 95dB
- Pe
- 1800W
- BL
- 23.8T·m
- Vd
- 2327cm³
- Qts
- 0.34
- Vas
- 272L
Manufacturer response and impedance data, with source and trace details below. The left and right arrow keys read every shown curve at a frequency, a twelfth of an octave at a time, or an octave with Shift. Escape clears the reading.
Curve provenanceInspect 2 traces
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v2
frequency response
Frequency response
240 plotted pointsSource file SHA-256 01fe24105abd…Medium confidence1,981 selected pixels of 2,591 - Trace datasheet-response-trace-poc/v2
impedance
Impedance response
240 plotted pointsSource file SHA-256 01fe24105abd…Medium confidence646 selected pixels of 903
Published graphs

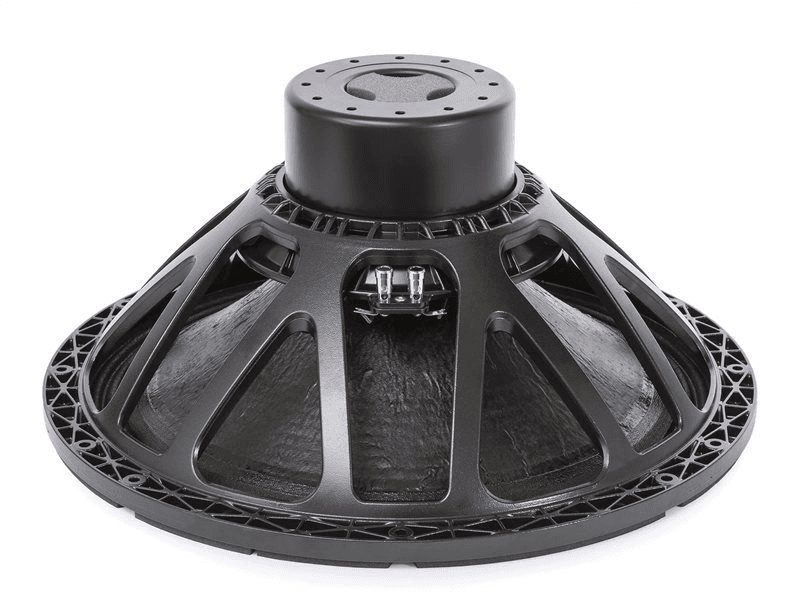

Eighteen Sound 21NLW9001 is a 21-inch 4 ohm LF driver rated at 1800 W RMS. The validated T/S data includes Fs 31 Hz, Qts 0.34, Vas 272 L, Xmax 14 mm, sensitivity 95.4 dB, plus 2327 cm³ Vd and 84 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £586.79.
The published T/S values agree with each other
Thiele/Small
- Fs
- 31Hz
- Qts
- 0.34
- Qes
- 0.37
- Qms
- 4.5
- Vas
- 272L
- Re
- 2.9Ω
- Le
- 2.20mH
Motor and cone
- BL
- 23.8T·m
- Sd
- 1662cm²
- Mms
- 375g
- Xmax
- 14mm
- Vd †
- 2327cm³
Power and response
- Sensitivity †
- 95.4dB
- Manufacturer sensitivity
- 95dB
- Power
- 1800W
- Nominal power
- 1800W
- Impedance
- 4Ω
- Range
- 25–1500Hz
- EBP †
- 84 · Sealed or vented
Size and mounting
- Diameter
- 545mm
- Cutout
- 492mm
- Bolt circle
- 520mm
- Depth
- 250mm
- Weight
- 13.4kg
Other published values
- Power Program
- 3600
† Calculated by bits from the published values
What this validation status means
Everything else Eighteen Sound lists
LF · Primary · 21″
- BL
- 23.8T·m
- Fs
- 31Hz
- Le
- 2.20mH
- Re
- 2.9Ω
- Sd
- 1662cm²
- Mms
- 375g
- Qes
- 0.37
- Qms
- 4.5
- Qts
- 0.34
- SPL
- 95.4dB
- Vas
- 272L
- Xmax
- 14mm
- Power
- 1800W
- Impedance
- 4Ω
- Sensitivity
- 95dB
- Low limit
- 25Hz
- Nominal power
- 1800W
- Power Program
- 3600
- Calculated sensitivity †
- 95.4dB
- High limit
- 1500Hz
- Manufacturer sensitivity
- 95dB
- Weight
- 13.4kg
- Diameter
- 545mm
- Depth
- 250mm
- Cutout
- 492mm
- Bolt circle
- 520mm
02
Designs
Cabinets for the 21NLW9001: a design and a suggested box from Eighteen Sound, and flatpack kits of the Manifolded 2x21” band-pass subwoofer.
All 21NLW9001 designsHow we find designsEighteen Sound’s design
From the maker, with plans to download
Cut in the UKEighteen Sound’s suggested box
From Eighteen Sound’s 21NLW9001 page
- Net volume
- 300L
- Tuning
- 33Hz
Eighteen Sound gives the volume and tuning; the port is sized for the driver when you open it.
Modelling the box in 00 Simulator…
03
Compare
Same-size drivers, compared with the 21NLW9001. Clear differences are green when better and red when worse.
This driver21NLW9001
Best price
£586.79
Fs
31 Hz
Qts
0.34
Vas
272 L
BL
23.8 T·m
Xmax
14 mm
Sensitivity
95.4 dB
Power
1800 W
Dayton AudioPSS555-8
£193.74 · 67% less, betterFs28 Hz −11%, better
Qts0.33 –
Vas444 L +63%, worse
BL29.7 T·m +25%, better
Xmax11 mm −21%, worse
Sensitivity96.4 dB +1
SB AudienceNERO-21SW1100D
£343.60 · 41% less, betterFs32 Hz +3%
Qts0.34 –
Vas312.6 L +15%, worse
BL30 T·m +26%, better
Xmax12.2 mm −13%, worse
Sensitivity96.7 dB +1.3
SB AudienceROSSO-21SW800
£417.84 · 29% less, betterFs38 Hz +23%, worse
Qts0.76 +124%, worse
Vas224.4 L −18%, better
BL24.1 T·m –
Xmax11.4 mm −18%, worse
Sensitivity93.9 dB −1.5
Beyma21QLEX1600FE
£425.00 · 28% less, betterFs30 Hz −3%
Qts0.28 −18%, better
Vas309 L +14%, worse
BL36.4 T·m +53%, better
Xmax13 mm −7%
Sensitivity96.5 dB +1.1
CelestionTSQ2145
£445.00 · 24% less, betterFs30 Hz −3%
Qts0.34 –
Vas253.8 L −7%
BL33.8 T·m +42%, better
Xmax15 mm +7%
Sensitivity94.8 dB −0.6
RCFLF21X451
£448.61 · 24% less, betterFs28 Hz −10%
Qts0.37 +9%
Vas385 L +42%, worse
BL30.5 T·m +28%, better
Xmax14 mm –
Sensitivity95.4 dB –
Beyma21LEX1600ND
£475.00 · 19% less, betterFs30 Hz −3%
Qts0.29 −15%, better
Vas305 L +12%, worse
BL36.6 T·m +54%, better
Xmax14 mm –
Sensitivity96.4 dB +1
RCFLF21N451
£475.00 · 19% less, betterFs30 Hz −3%
Qts0.26 −24%, better
Vas375 L +38%, worse
BL34.5 T·m +45%, better
Xmax13 mm −7%
Sensitivity97.8 dB +2.4, better
B&C21SW115
£475.55 · 19% less, betterFs33 Hz +6%
Qts0.36 +6%
Vas278 L –
BL24.8 T·m +4%
Xmax14 mm –
Sensitivity96.3 dB +0.9
B&C21DS115
£483.91 · 18% less, betterFs32 Hz +3%
Qts0.21 −38%, better
Vas219 L −19%, better
BL28.6 T·m +20%, better
Xmax15 mm +7%
Sensitivity97.2 dB +1.8
Eighteen Sound21NLW4100
£505.48 · 14% less, betterFs34 Hz +10%
Qts0.40 +18%, worse
Vas219 L −19%, better
BL22.8 T·m −4%
Xmax15.2 mm +9%
Sensitivity95.1 dB –
No photo
Precision DevicesPD.2155-1N
£555.00 · 5% less, betterFs33 Hz +6%
Qts0.36 +6%
Vas241 L −11%, better
BL30 T·m +26%, better
Xmax14 mm –
Sensitivity95.7 dB –
B&C21SW152
£585.00 · Same priceFs32 Hz +3%
Qts0.30 −12%, better
Vas200 L −26%, better
BL32.5 T·m +37%, better
Xmax15 mm +7%
Sensitivity95.3 dB –
Eighteen Sound21NLW9601
£592.80 · 1% moreFs41 Hz +32%, worse
Qts0.32 −6%
Vas123 L −55%, better
BL32.7 T·m +37%, better
Xmax14 mm –
Sensitivity96.1 dB +0.7
Eighteen Sound21NTLW5000
£595.00 · 1% moreFs30 Hz −3%
Qts0.32 −6%
Vas300 L +10%, worse
BL25 T·m +5%
Xmax17.5 mm +25%, better
Sensitivity95.9 dB +0.5
Eighteen Sound21NLW4000
£607.21 · 3% moreFs27 Hz −13%, better
Qts0.38 +12%, worse
Vas380 L +40%, worse
BL20 T·m −16%, worse
Xmax15 mm +7%
Sensitivity94.9 dB −0.5
No photo
Precision DevicesPD.2160-1N
£799.00 · 36% more, worseFs35 Hz +13%, worse
Qts0.30 −12%, better
Vas177 L −35%, better
BL43 T·m +81%, better
Xmax16 mm +14%, better
Sensitivity95.9 dB +0.5
EminenceNSW6021-124
£912.88 · 56% more, worseFs31 Hz –
Qts0.32 −6%
Vas224.6 L −17%, better
BL30.5 T·m +28%, better
Xmax21 mm +50%, better
Sensitivity95 dB –
No current price
Fs35 Hz +13%, worse
Qts0.34 –
Vas266 L –
BL31.3 T·m +32%, better
Xmax14 mm –
Sensitivity97.1 dB +1.7
No photo
Precision DevicesPD.2155-1F
No current priceFs35 Hz +13%, worse
Qts0.34 –
Vas266 L –
BL31.3 T·m +32%, better
Xmax14 mm –
Sensitivity97.1 dB +1.7
No current price
Fs33 Hz +6%
Qts0.36 +6%
Vas241 L −11%, better
BL30 T·m +26%, better
Xmax14 mm –
Sensitivity95.7 dB –
Eighteen Sound21LW2500
No current priceFs29 Hz −6%
Qts0.37 +9%
Vas305 L +12%, worse
BL30 T·m +26%, better
Xmax14 mm –
Sensitivity94.9 dB −0.5
Eighteen Sound21LW2600
No current priceFs27 Hz −13%, better
Qts0.29 −15%, better
Vas332 L +22%, worse
BL24.9 T·m +5%
Xmax14.6 mm +4%
Sensitivity95.6 dB –
Eighteen Sound21NLW5300
No current priceFs31 Hz –
Qts0.32 −6%
Vas325 L +19%, worse
BL31 T·m +30%, better
Xmax15.3 mm +9%
Sensitivity96.6 dB +1.2
CelestionNTR21-5010JD
No current priceFs32 Hz +4%
Qts0.32 −6%
Vas276.7 L –
BL33.9 T·m +42%, better
Xmax9 mm −36%, worse
Sensitivity96.4 dB +1
P.AudioSD21-125XB
No current priceFs35 Hz +13%, worse
Qts0.38 +12%, worse
Vas345.6 L +27%, worse
BL30.4 T·m +28%, better
Xmax11.3 mm −20%, worse
Sensitivity97.7 dB +2.3, better
Eighteen Sound21NLW9601C
No current priceFs38 Hz +23%, worse
Qts0.29 −15%, better
Vas140 L −49%, better
BL33.2 T·m +39%, better
Xmax14 mm –
Sensitivity96 dB +0.6
Eighteen Sound21ID
No current priceFs38 Hz +23%, worse
Qts0.23 −32%, better
Vas143 L −47%, better
BL25.2 T·m +6%
Xmax14 mm –
Sensitivity97.2 dB +1.8
B&C21SW150
No current priceFs29 Hz −6%
Qts0.26 −24%, better
Vas254 L −7%
BL32.6 T·m +37%, better
Xmax15 mm +7%
Sensitivity95.6 dB –
Sica21 S 4 PL
No current priceFs35 Hz +12%, worse
Qts0.30 −12%, better
Vas255 L −6%
BL36.1 T·m +52%, better
Xmax5.2 mm −63%, worse
Sensitivity97.4 dB +2, better
