Hornresp
.txt · Hornresp driver database
Driver file ready to place in Hornresp’s Drivers folder.
Download for HornrespSB Audience ROSSO-21SW800 8Ω
LF DriverMedia
Auto-advancing
Overview
LF DriverROSSO series
SB Audience
SB Audience ROSSO-21SW800
SB Audience ROSSO-21SW800 is a 21" 8 ohm LF driver rated at 800W RMS. The validated T/S data includes Fs 38Hz, Qts 0.76, Vas 224.4L, Xmax 11.4mm, sensitivity 93.9dB, plus 1898cm³ Vd and 48 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
21"
Impedance
8Ω
RMS Power
800W
Sensitivity
93.9dB
EBP
48
Sealed alignment
Vd
1898cm³

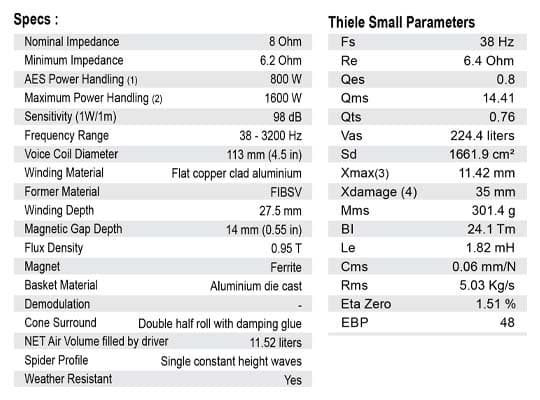

T/S Parameters
Valid
Fs38Hz
Qts0.76
Qes0.80
Qms14.4
Vas224.4L
Re6.4Ω
Le1.82mH
BL24.1Tm
Sd1662cm²
Mms301g
Xmax11.4mm
SPL94dB
Power800W
Impedance8Ω
Min Impedance6.2Ω
F Low38Hz
F High3200Hz
Voice Coil113mm
Flux Density0.95T
Pricing & availability
Price definitionsUse this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

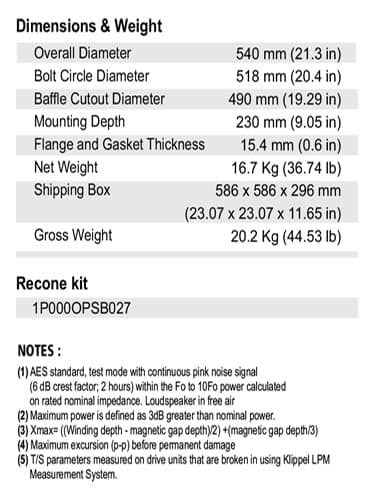

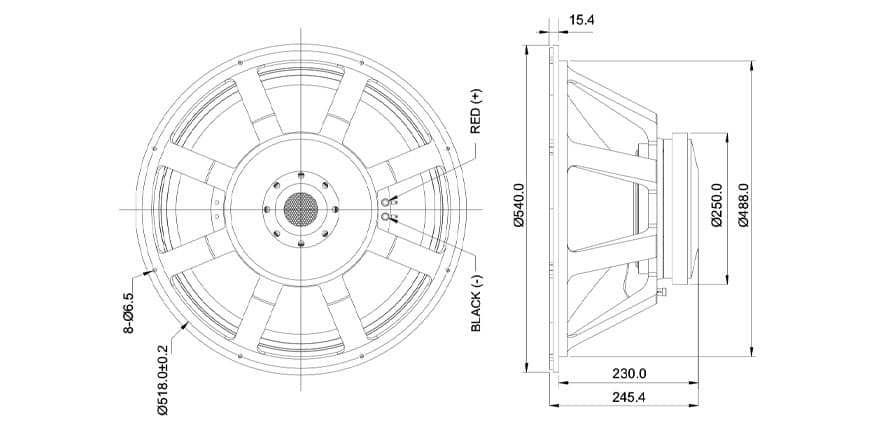

Dimensions & Physical
Weight16.7kg
Diameter540.0mm
Cutout Diameter490.0mm
Bolt Circle Diameter518.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
SB Audience
ROSSO-21SW800
21"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
Loading matches
