Hornresp
.txt · Hornresp driver database
Driver file ready to place in Hornresp’s Drivers folder.
Download for HornrespCelestion TSQ2160 8Ω
LF DriverMedia
Auto-advancing
Overview
LF DriverTSQ2160 series
Celestion

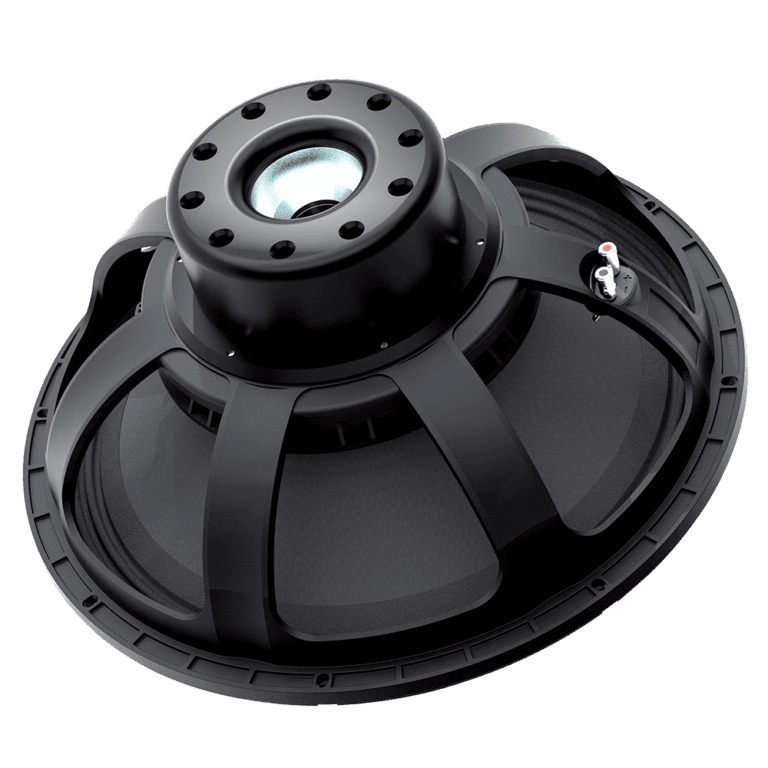

Celestion TSQ2160
Celestion TSQ2160 is a 21" 8 ohm LF driver rated at 2500W RMS. The validated T/S data includes Fs 30Hz, Qts 0.26, Vas 234.8L, Xmax 18.8mm, sensitivity 95.8dB, plus 3158cm³ Vd and 114 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
21"
Impedance
8Ω
RMS Power
2500W
Sensitivity
95.8dB
97.5dBmanufacturer; using T/S-derived value (1.7dB delta).
EBP
114
Vented alignment
Vd
3158cm³

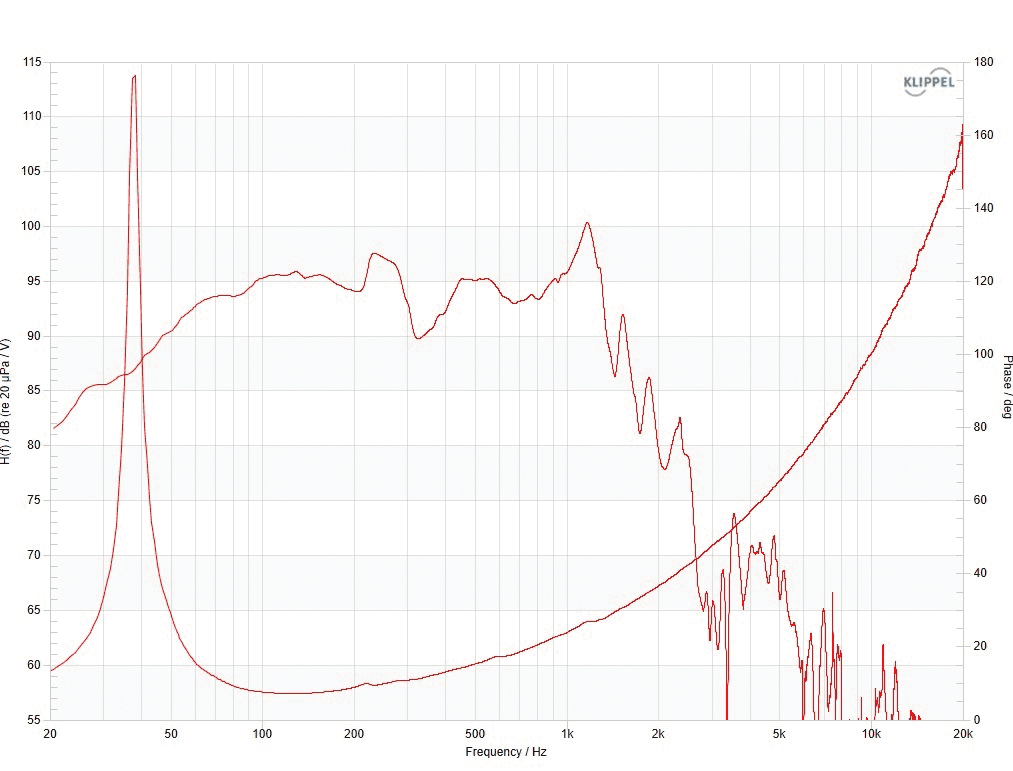

Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
LF frequency response85 ptsp1medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
LF frequency response
Frequency response
85 plotted pointsMedium confidence110 selected pixels of 110
T/S Parameters
Valid
Fs30Hz
Qts0.26
Qes0.26
Qms10.3
Vas234.8L
Re5.4Ω
Le2.50mH
BL43.1Tm
Sd1684cm²
Mms483g
Xmax18.8mm
SPL96dB
Power2500W
Impedance8Ω
Voice Coil152mm
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight21.0kg
Diameter547.0mm
Overall Depth253.1mm
Cutout Diameter505.0mm
Bolt Circle Diameter528.5mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Celestion
TSQ2160
21"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
87%
Similarity
£899.00
FaitalPRO
21XL3000
21"
Xmax17.7mm-6%
Qts0.25-3%
BL43Tm0%
Vas284.6L+21%
Qes0.25-5%
80%
Similarity
£497.00

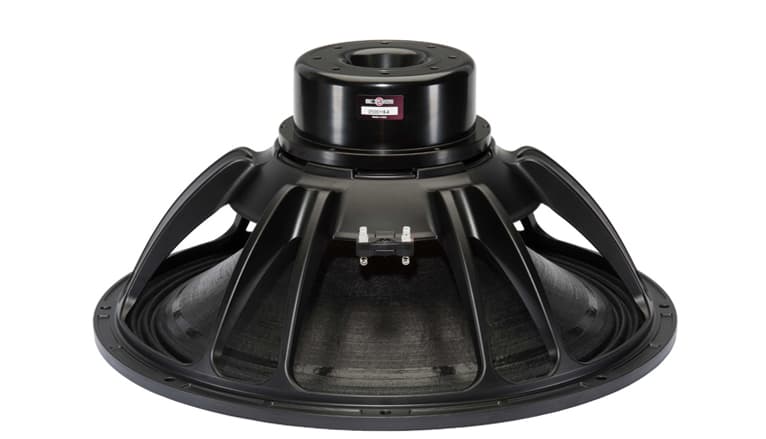

B&C
21DS115
21"
Xmax16.5mm-12%
Qts0.27+5%
BL39.3Tm-9%
Vas204L-13%
Qes0.28+6%
76%
Similarity
Dayton Audio
PSS545HE-4
21"
Xmax21mm+12%
Qts0.27+5%
BL35.5Tm-18%
Vas212.2L-10%
Qes0.28+6%
74%
Similarity
£399.00
Lavoce
SAN214.50
21"
Xmax15.4mm-18%
Qts0.28+9%
BL39.6Tm-8%
Vas218.3L-7%
Qes0.29+10%
71%
Similarity
£443.77
Dayton Audio
HTS545HE-4
21"
Xmax21mm+12%
Qts0.28+9%
BL38.2Tm-11%
Vas179L-24%
Qes0.29+10%
Image unavailable
66%
Similarity
£777.00
Precision Devices
PD.2160-1N
21"
Xmax16mm-15%
Qts0.3+17%
BL43Tm0%
Vas177L-25%
Qes0.31+17%
63%
Similarity
£699.33
Eighteen Sound
21NLW9601
21"
Xmax14mm-25%
Qts0.29+13%
BL43Tm0%
Vas175L-25%
Qes0.31+17%
61%
Similarity
£800.00

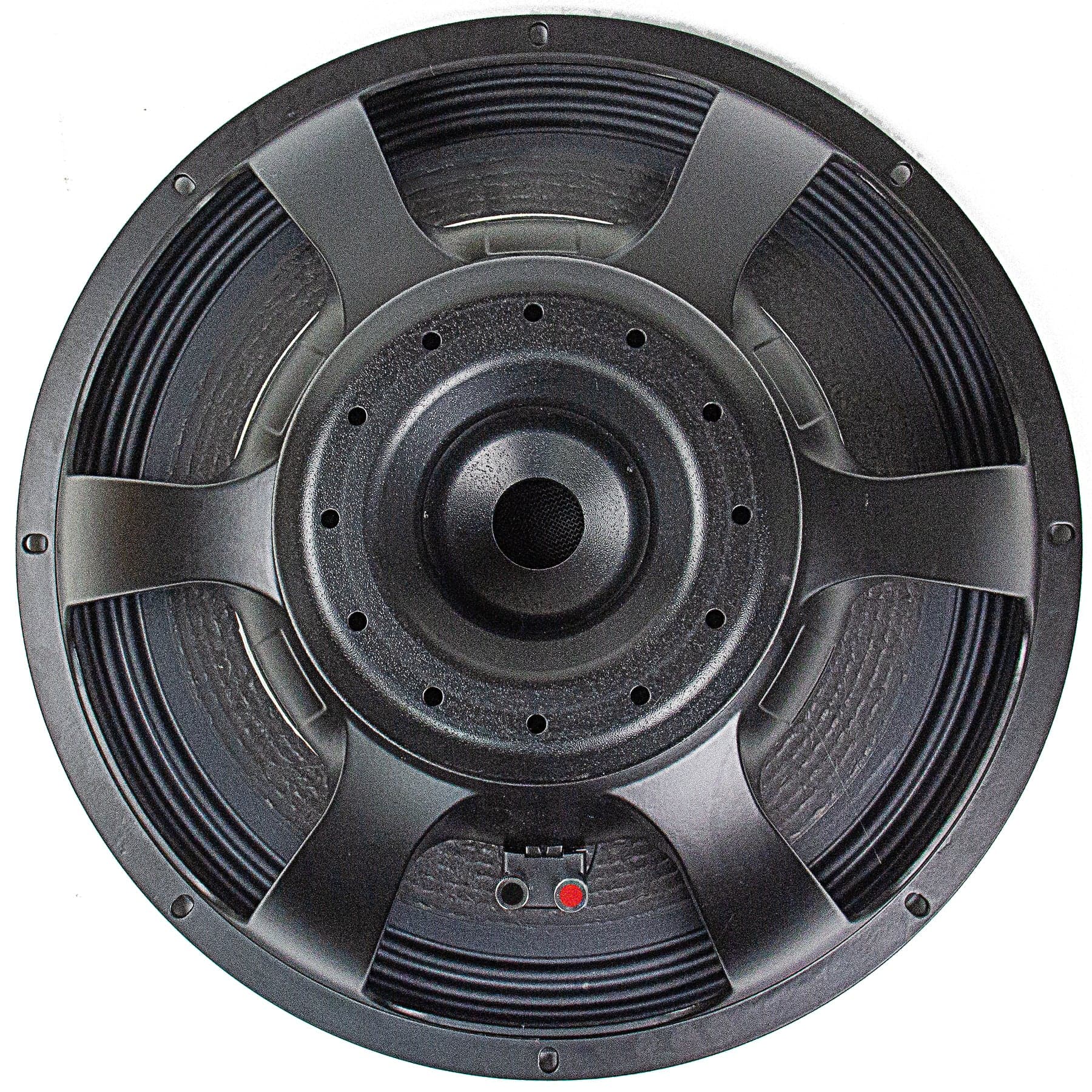

Eminence
NSW6021-6
21"
Xmax21mm+12%
Qts0.31+21%
BL33.8Tm-22%
Vas224.6L-4%
Qes0.31+17%
56%
Similarity
Beyma
121LEX16ND8
21"
Xmax14mm-25%
Qts0.29+13%
BL36.6Tm-15%
Vas305L+30%
Qes0.3+14%
54%
Similarity
£585.00
B&C
21SW152
21"
Xmax15mm-20%
Qts0.3+17%
BL32.5Tm-25%
Vas200L-15%
Qes0.31+17%
52%
Similarity
£497.00
B&C
21DS115
21"
Xmax15mm-20%
Qts0.21-18%
BL28.6Tm-34%
Vas219L-7%
Qes0.22-17%
52%
Similarity
£576.21
Eighteen Sound
21NLW9001
21"
Xmax14mm-25%
Qts0.31+21%
BL37Tm-14%
Vas244L+4%
Qes0.34+29%
