Overview
LF DriverTIW series
Visaton

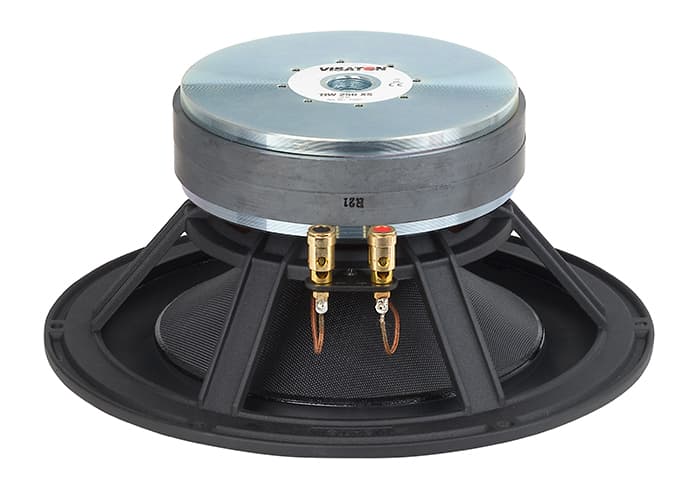

Visaton TIW 250 XS - 8 OHM
Visaton TIW 250 XS - 8 OHM is a 10" 8 ohm LF driver rated at 200W RMS. The validated T/S data includes Fs 33Hz, Qts 0.33, Vas 66L, Xmax 14mm, sensitivity 90.3dB, plus 440cm³ Vd and 94 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
10"
Impedance
8Ω
RMS Power
200W
Sensitivity
90.3dB
89.0dBmanufacturer; using T/S-derived value (1.3dB delta).
EBP
94
Either alignment
Vd
440cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp1medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence737 selected pixels of 1,493
T/S Parameters
Valid
Fs33Hz
Qts0.33
Qes0.35
Qms5.2
Vas66.0L
Re5.6Ω
Le1.70mH
BL13.0Tm
Sd314cm²
Mms49g
Xmax14.0mm
SPL90dB
Power200W
Impedance8Ω
F High3000Hz
Voice Coil50mm
Flux Density1.30T
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight5.3kg
Diameter250.0mm
Cutout Diameter235.0mm
