Overview
LF DriverOMEGA PRO series
Eminence

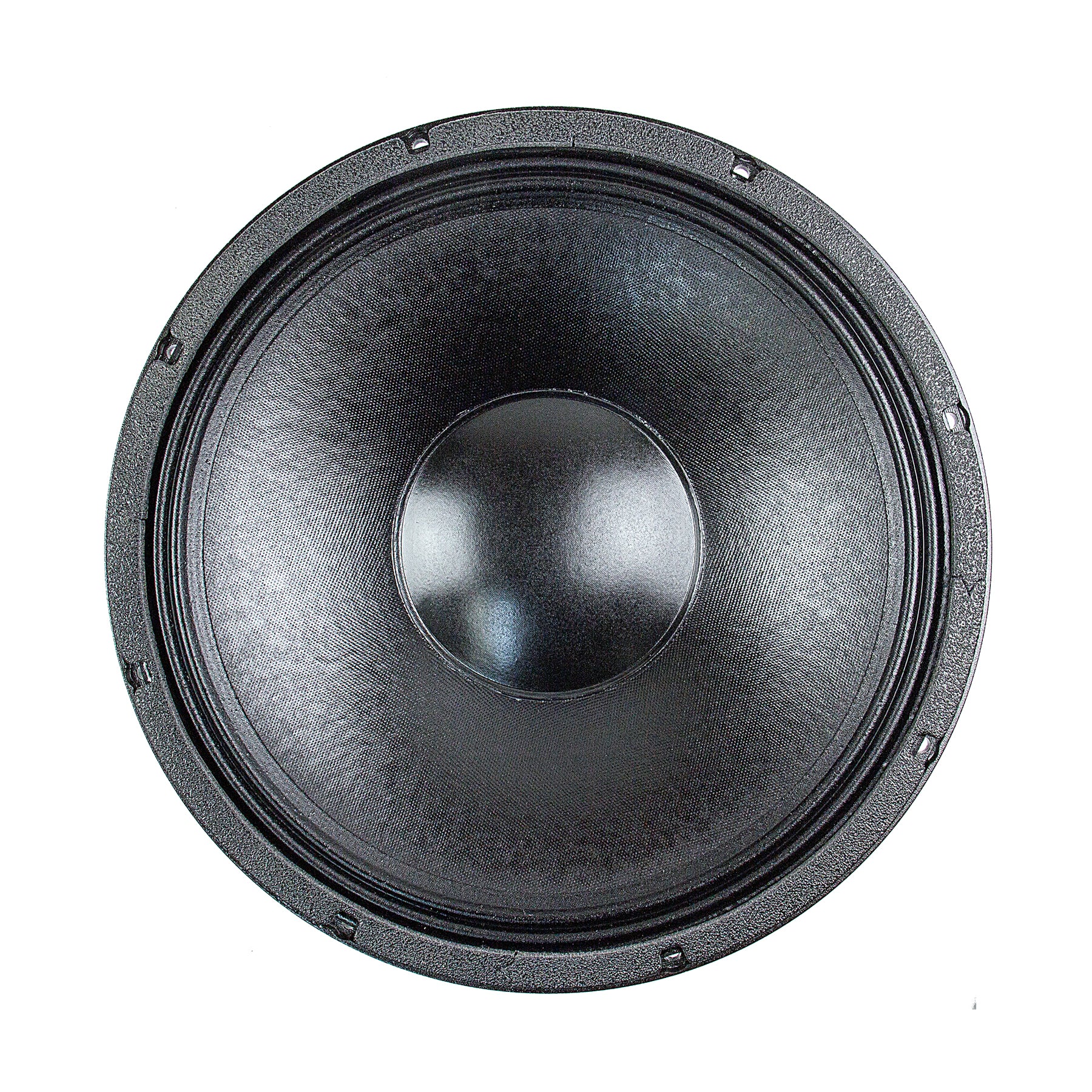

Eminence OMEGA PRO-15-2KW-8
Eminence OMEGA PRO-15-2KW-8 is a 15" 8 ohm LF driver rated at 1000W RMS. The validated T/S data includes Fs 40Hz, Qts 0.44, Vas 142.5L, Xmax 7.4mm, sensitivity 94.9dB, plus 634cm³ Vd and 86 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £202.21.
Size
15"
Impedance
8Ω
RMS Power
1000W
Sensitivity
94.9dB
EBP
86
Either alignment
Vd
634cm³
T/S Parameters
Valid
Fs40Hz
Qts0.44
Qes0.46
Qms13.9
Vas142.5L
Re6.0Ω
Le1.13mH
BL19.1Tm
Sd856cm²
Mms112g
Xmax7.4mm
SPL95dB
Power1000W
Impedance8Ω
F Low39Hz
F High1000Hz
Pricing & availability
Price definitionsPrice movement
Best current price
£202.21
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight10.0kg
Diameter387.1mm
Overall Depth163.1mm
Cutout Diameter355.6mm
Bolt Circle Diameter369.8mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Eminence
OMEGA PRO-15-2KW-8
15"
Best current price
£202.21
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
57%
Similarity
54% cheaper£93.10
SB Audience
BIANCO-15W200
15"
Lower price
Xmax8.5mm+15%
Qts0.54+23%
BL17Tm-11%
Vas123.5L-13%
Qes0.57+24%
83%
Similarity
53% cheaper£94.10
SB Audience
BIANCO-15MW350
15"
Lower price
Xmax7.4mm0%
Qts0.48+9%
BL16.9Tm-11%
Vas157.5L+11%
Qes0.49+7%
69%
Similarity
51% cheaper£99.00
Celestion
TF1525E
15"
Lower price
Xmax5.3mm-29%
Qts0.47+7%
BL17.8Tm-7%
Vas141.8L-1%
Qes0.53+15%
70%
Similarity
37% cheaper£126.45
SB Audience
BIANCO-15SW400
15"
Lower price
Xmax9.2mm+24%
Qts0.48+9%
BL19.8Tm+4%
Vas111.5L-22%
Qes0.49+7%
69%
Similarity
33% cheaper£134.74
PRV Audio
15W1600
15"
Lower price
Xmax7mm-5%
Qts0.42-5%
BL24.1Tm+27%
Vas91.2L-36%
Qes0.44-4%
63%
Similarity
31% cheaper£138.54
B&C
15CL76
15"
Lower price
Xmax7mm-5%
Qts0.33-25%
BL21Tm+10%
Vas135L-5%
Qes0.34-26%
73%
Similarity
29% cheaper£143.24
RCF
L15P530
15"
Lower price
Xmax7mm-5%
Qts0.48+9%
BL15.3Tm-20%
Vas160L+12%
Qes0.51+11%
80%
Similarity
26% cheaper£149.39
Beyma
15MCS500
15"
Lower price
Xmax8mm+8%
Qts0.48+9%
BL17.6Tm-8%
Vas134L-6%
Qes0.5+9%
71%
Similarity
25% cheaper£152.08
RCF
L15P540
15"
Lower price
Xmax7mm-5%
Qts0.39-11%
BL21.4Tm+12%
Vas100L-30%
Qes0.41-11%
81%
Similarity
23% cheaper£155.00
Celestion
FTR15-3070E
15"
Lower price
Xmax7.8mm+5%
Qts0.38-14%
BL17.9Tm-6%
Vas145.8L+2%
Qes0.43-7%
67%
Similarity
20% cheaper£162.00
Eminence
KAPPA-15LFA
15"
Lower price
Xmax5.5mm-26%
Qts0.38-14%
BL18.6Tm-2%
Vas159L+12%
Qes0.41-11%
61%
Similarity
16% cheaper£169.00
Celestion
FTR15-3070C
15"
Lower price
Xmax5.5mm-26%
Qts0.38-13%
BL17.3Tm-9%
Vas187.6L+32%
Qes0.43-7%
