LF Driver
BMS
BMS 15S430V
BMS 15S430V is a 15" 8 ohm LF driver rated at 1200W RMS. The validated T/S data includes Fs 40Hz, Qts 0.28, Vas 135L, Xmax 8mm, sensitivity 96.7dB, plus 704cm³ Vd and 137 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
15"
Impedance
8Ω
RMS Power
1200W
Sensitivity
96.7dB
EBP
137
Vented alignment
Vd
704cm³
T/S Parameters
Valid
Fs40Hz
Qts0.28
Qes0.29
Qms6.4
Vas135.0L
Re4.8Ω
Le0.73mH
BL23.5Tm
Sd880cm²
Mms130g
Xmax8.0mm
SPL97dB
Power1200W
Impedance8Ω
F Low35Hz
F High2500Hz
Voice Coil102mm
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

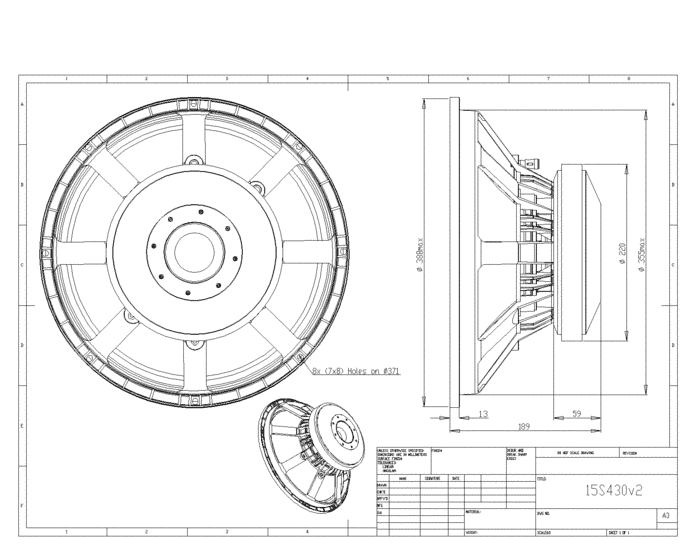

Dimensions & Physical
Weight10.7kg
Diameter388.0mm
Overall Depth189.0mm
Cutout Diameter358.0mm
Bolt Circle Diameter371.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
BMS
15S430V
15"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
97%
Similarity
BMS
15S435
15"
Xmax8mm0%
Qts0.280%
BL24.4Tm+4%
Vas129L-4%
Qes0.290%
91%
Similarity
£254.65
Eighteen Sound
15LW1410
15"
Xmax8.5mm+6%
Qts0.27-4%
BL24.1Tm+3%
Vas131L-3%
Qes0.28-3%
90%
Similarity
Oberton
15XL701
15"
Xmax8.8mm+9%
Qts0.280%
BL23.1Tm-2%
Vas117L-13%
Qes0.29-1%
88%
Similarity
Oberton
15NMB500
15"
Xmax7.8mm-3%
Qts0.29+4%
BL21.3Tm-9%
Vas128L-5%
Qes0.3+3%
88%
Similarity
Celestion
FTR15-4080FD
15"
Xmax8.5mm+6%
Qts0.28-1%
BL23.1Tm-2%
Vas164.3L+22%
Qes0.3+3%
87%
Similarity
£254.65
Eighteen Sound
15LW1401
15"
Xmax9mm+13%
Qts0.27-4%
BL24.2Tm+3%
Vas131L-3%
Qes0.28-3%
87%
Similarity
£219.28
RCF
MB15N405
15"
Xmax7mm-12%
Qts0.27-4%
BL23.5Tm0%
Vas124L-8%
Qes0.28-3%
87%
Similarity
Precision Devices
PD.1550/2
15"
Xmax8.2mm+2%
Qts0.29+4%
BL26.6Tm+13%
Vas126.4L-6%
Qes0.3+3%
86%
Similarity
£199.99
B&C
15PZB100
15"
Xmax8mm0%
Qts0.29+4%
BL25.8Tm+10%
Vas110L-19%
Qes0.3+3%
86%
Similarity
Oberton
15B500
15"
Xmax7.3mm-9%
Qts0.27-4%
BL22.9Tm-3%
Vas145.8L+8%
Qes0.27-6%
86%
Similarity
Eighteen Sound
15NTLW2500
15"
Xmax8mm0%
Qts0.3+7%
BL21.2Tm-10%
Vas143L+6%
Qes0.31+7%
86%
Similarity
£259.33
FaitalPRO
15HP1020
15"
Xmax9mm+13%
Qts0.27-4%
BL24.2Tm+3%
Vas126.6L-6%
Qes0.28-3%
