Overview
LF Driver
BMS
BMS 15S420
BMS 15S420 is a 15" 8 ohm LF driver rated at 900W RMS. The validated T/S data includes Fs 40Hz, Qts 0.25, Vas 152L, Xmax 5mm, sensitivity 97.7dB, plus 440cm³ Vd and 153 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
15"
Impedance
8Ω
RMS Power
900W
Sensitivity
97.7dB
EBP
153
Vented alignment
Vd
440cm³
T/S Parameters
Valid
Fs40Hz
Qts0.25
Qes0.26
Qms5.0
Vas152.0L
Re5.9Ω
Le1.54mH
BL25.5Tm
Sd880cm²
Mms114g
Xmax5.0mm
SPL98dB
Power900W
Impedance8Ω
F Low40Hz
F High2500Hz
Voice Coil102mm
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

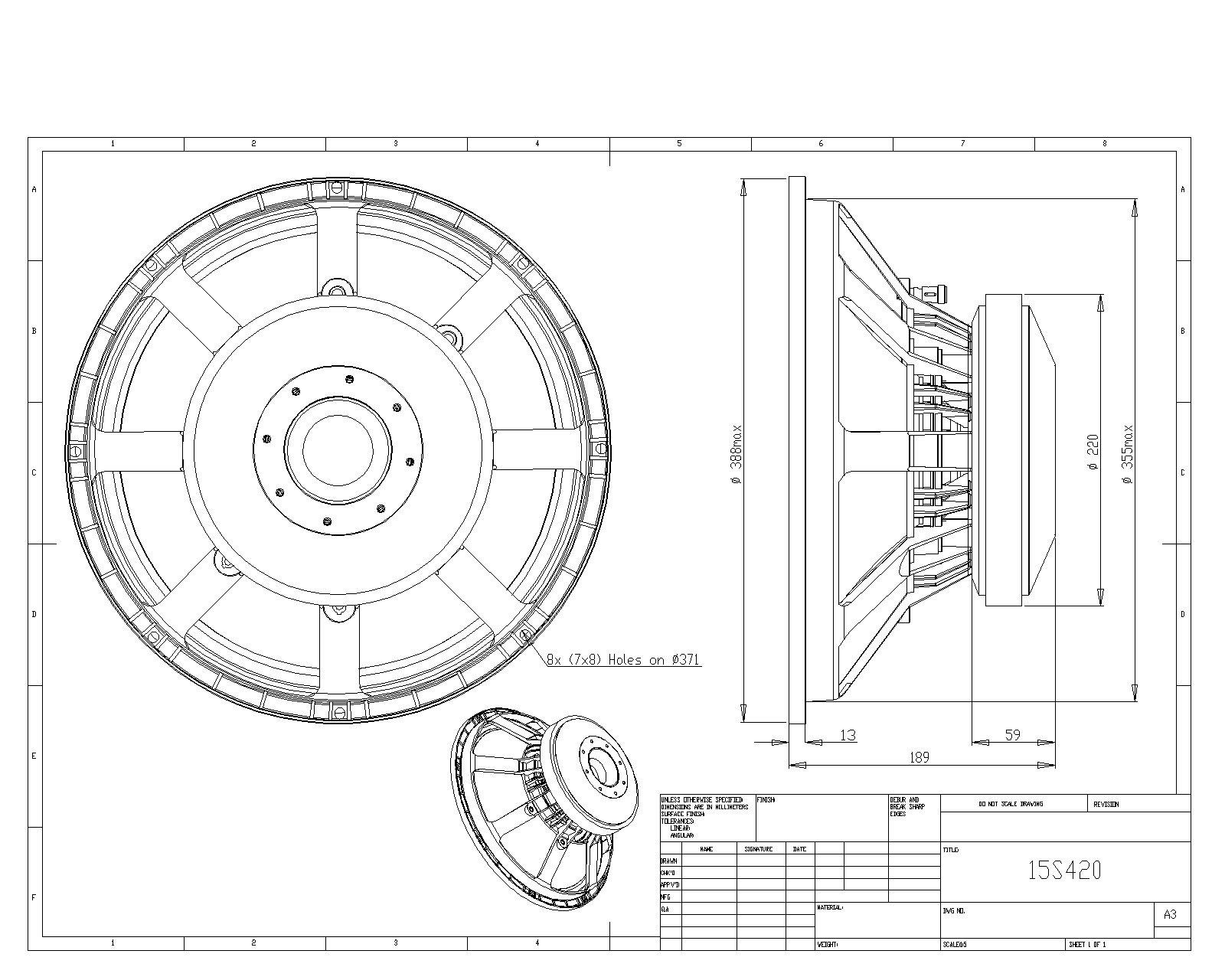

Dimensions & Physical
Weight10.7kg
Diameter388.0mm
Overall Depth182.0mm
Cutout Diameter358.0mm
Bolt Circle Diameter371.0mm
