Hornresp
.txt · Hornresp driver database
Driver file ready to place in Hornresp’s Drivers folder.
Download for HornrespBeyma 118P10FEV2S8 8Ω
LF DriverMedia
Overview
LF Driver
Beyma
Beyma 118P10FEV2S8
Beyma 118P10FEV2S8 is a 18" 8 ohm LF driver rated at 1200W RMS. The validated T/S data includes Fs 33Hz, Qts 0.32, Vas 230L, Xmax 8mm, sensitivity 96dB, plus 1000cm³ Vd and 100 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
18"
Impedance
8Ω
RMS Power
1200W
Sensitivity
96.0dB
98.0dBmanufacturer; using T/S-derived value (2.0dB delta).
EBP
100
Either alignment
Vd
1000cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
impedance240 ptsp2medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence2,859 selected pixels of 2,859
Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs33Hz
Qts0.32
Qes0.33
Qms10.5
Vas230.0L
Re5.2Ω
Le1.75mH
BL26.8Tm
Sd1250cm²
Mms221g
Xmax8.0mm
SPL96dB
Power1200W
Impedance8Ω
F Low30Hz
F High2000Hz
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight13.5kg
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Beyma
118P10FEV2S8
18"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
90%
Similarity
£225.00
RCF
L18P300
18"
Xmax8mm0%
Qts0.33+3%
BL23.5Tm-12%
Vas226L-2%
Qes0.34+3%
87%
Similarity

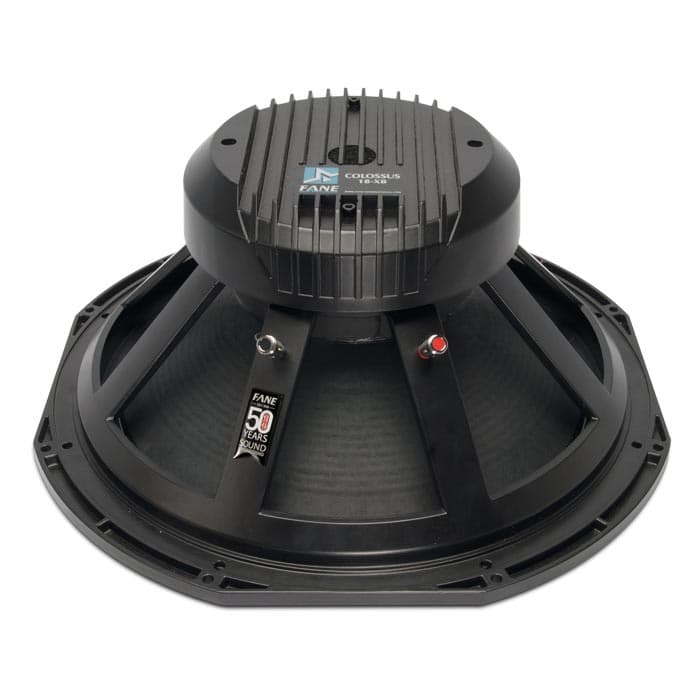

Fane
COLOSSUS 18XB
18"
Xmax7.5mm-6%
Qts0.34+5%
BL25.9Tm-3%
Vas236L+3%
Qes0.36+8%
84%
Similarity
£272.63
Eighteen Sound
18LW2400
18"
Xmax9.5mm+19%
Qts0.31-3%
BL25.6Tm-4%
Vas230L0%
Qes0.32-3%
83%
Similarity
Dayton Audio
APOLLO 18N
18"
Xmax9.1mm+14%
Qts0.33+3%
BL27.6Tm+3%
Vas253.6L+10%
Qes0.35+6%
82%
Similarity
£316.72
BMS
18S430V2
18"
Xmax8mm0%
Qts0.34+6%
BL23.5Tm-12%
Vas262L+14%
Qes0.36+9%
81%
Similarity

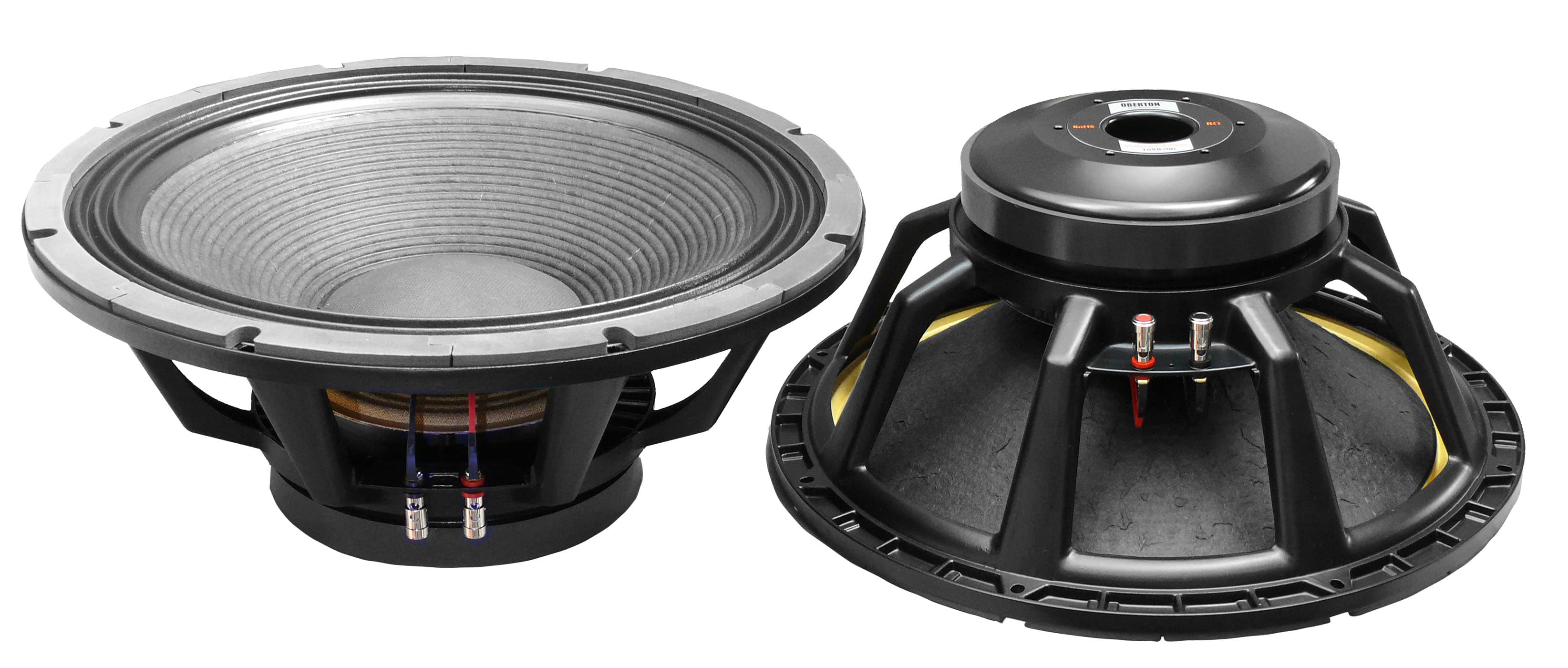

Oberton
18XB700
18"
Xmax9mm+13%
Qts0.3-5%
BL26.1Tm-3%
Vas183.2L-20%
Qes0.31-5%
80%
Similarity

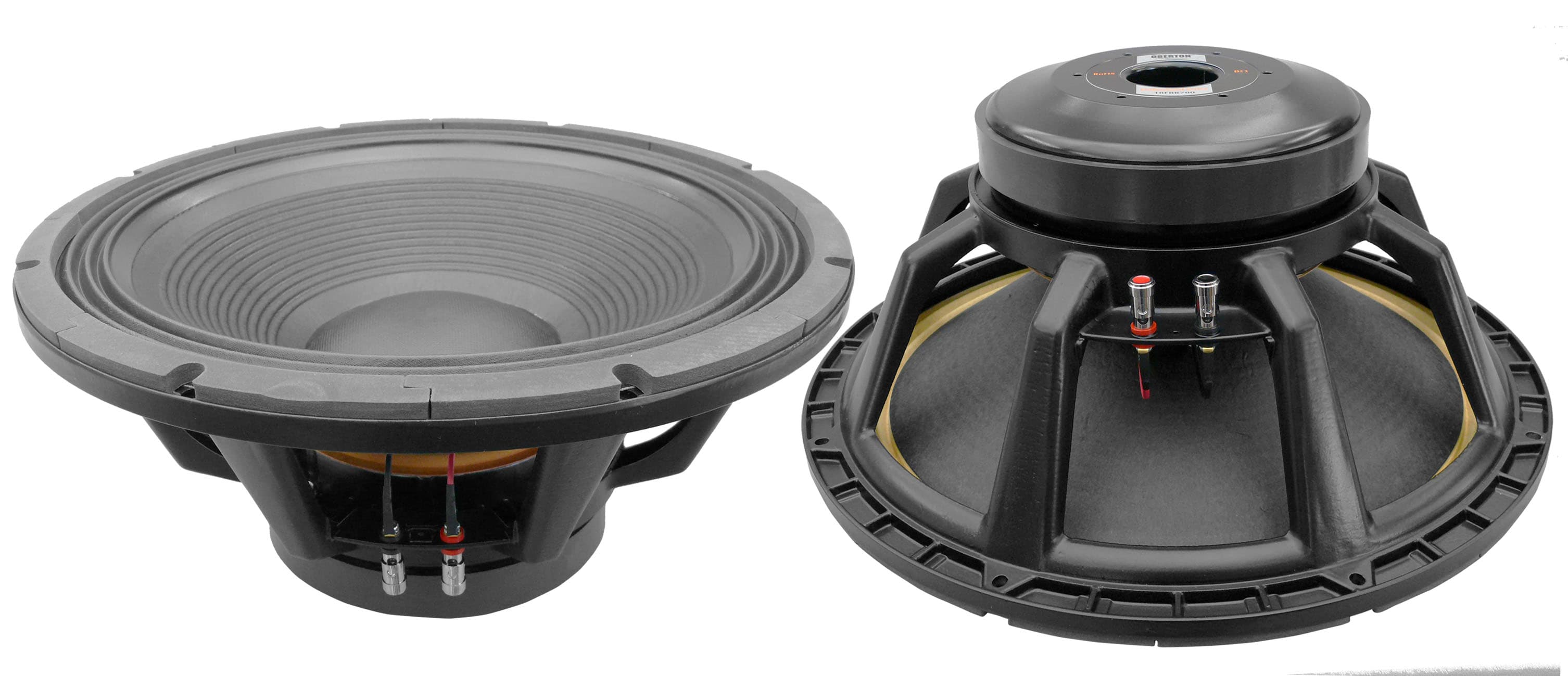

Oberton
18FBR700
18"
Xmax8mm0%
Qts0.27-15%
BL25.2Tm-6%
Vas231.3L+1%
Qes0.28-16%
80%
Similarity

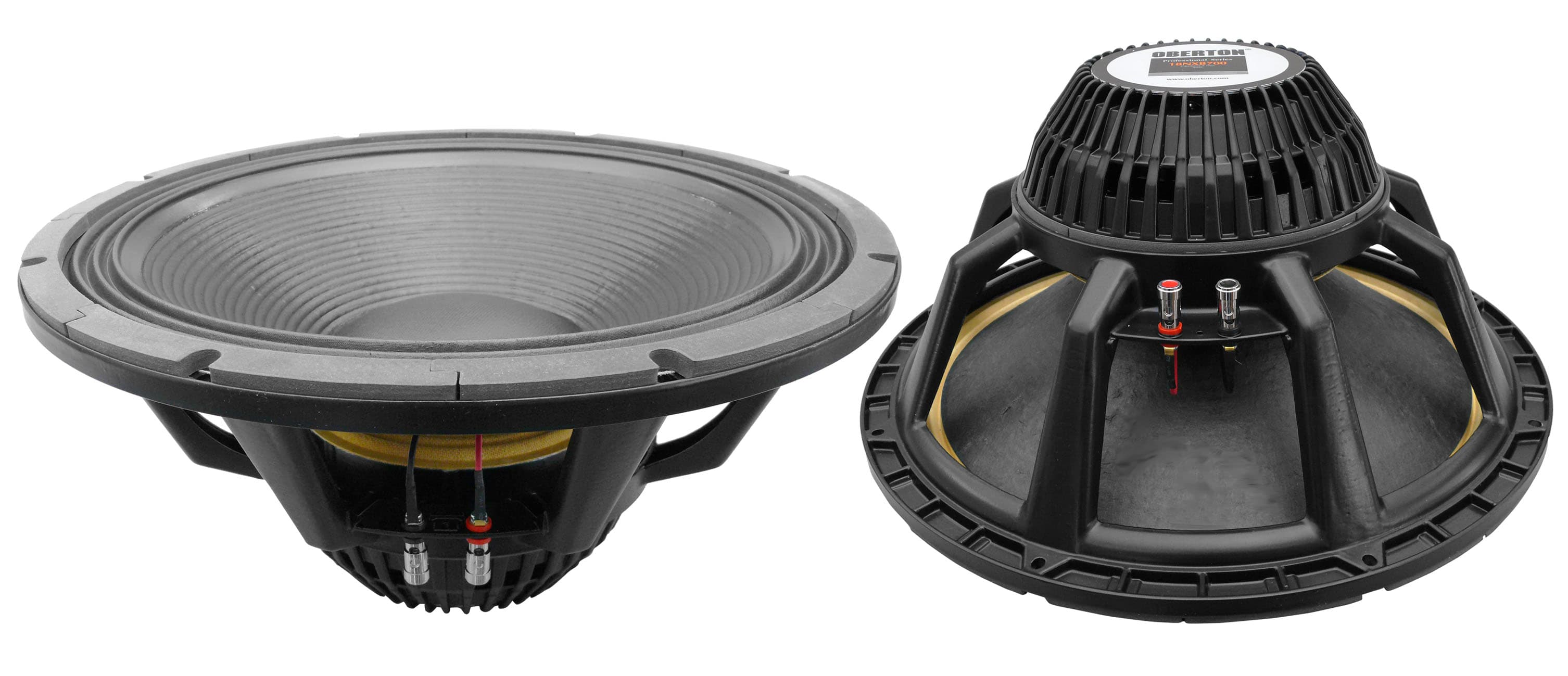

Oberton
18NXB700
18"
Xmax9mm+13%
Qts0.31-3%
BL27.8Tm+4%
Vas155.5L-32%
Qes0.33-2%
80%
Similarity
£287.00

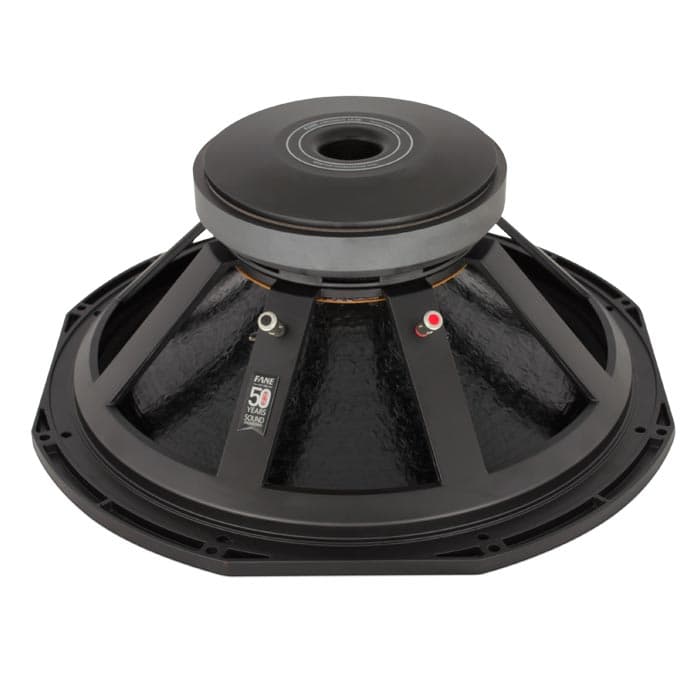

Fane
COLOSSUS 18SB
18"
Xmax8.3mm+3%
Qts0.35+8%
BL24Tm-10%
Vas199L-13%
Qes0.37+11%
79%
Similarity
£238.99

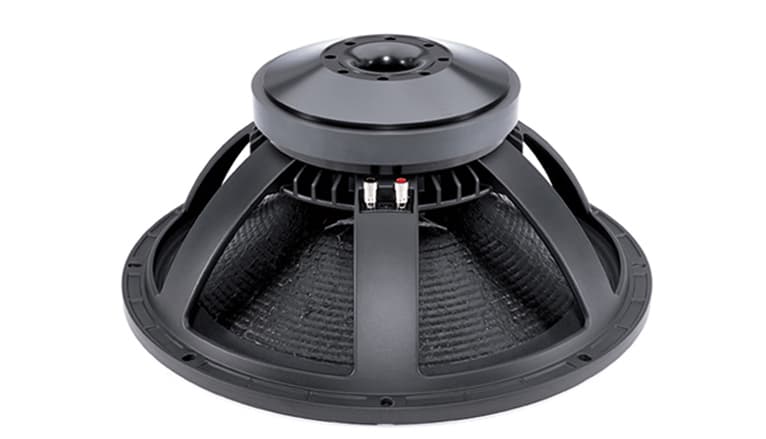

B&C
18TBX100
18"
Xmax9mm+13%
Qts0.31-3%
BL22Tm-18%
Vas256L+11%
Qes0.330%
78%
Similarity
£294.38
FaitalPRO
18HP1022
18"
Xmax9.5mm+19%
Qts0.3-6%
BL28Tm+4%
Vas204.9L-11%
Qes0.31-6%
78%
Similarity
£229.99

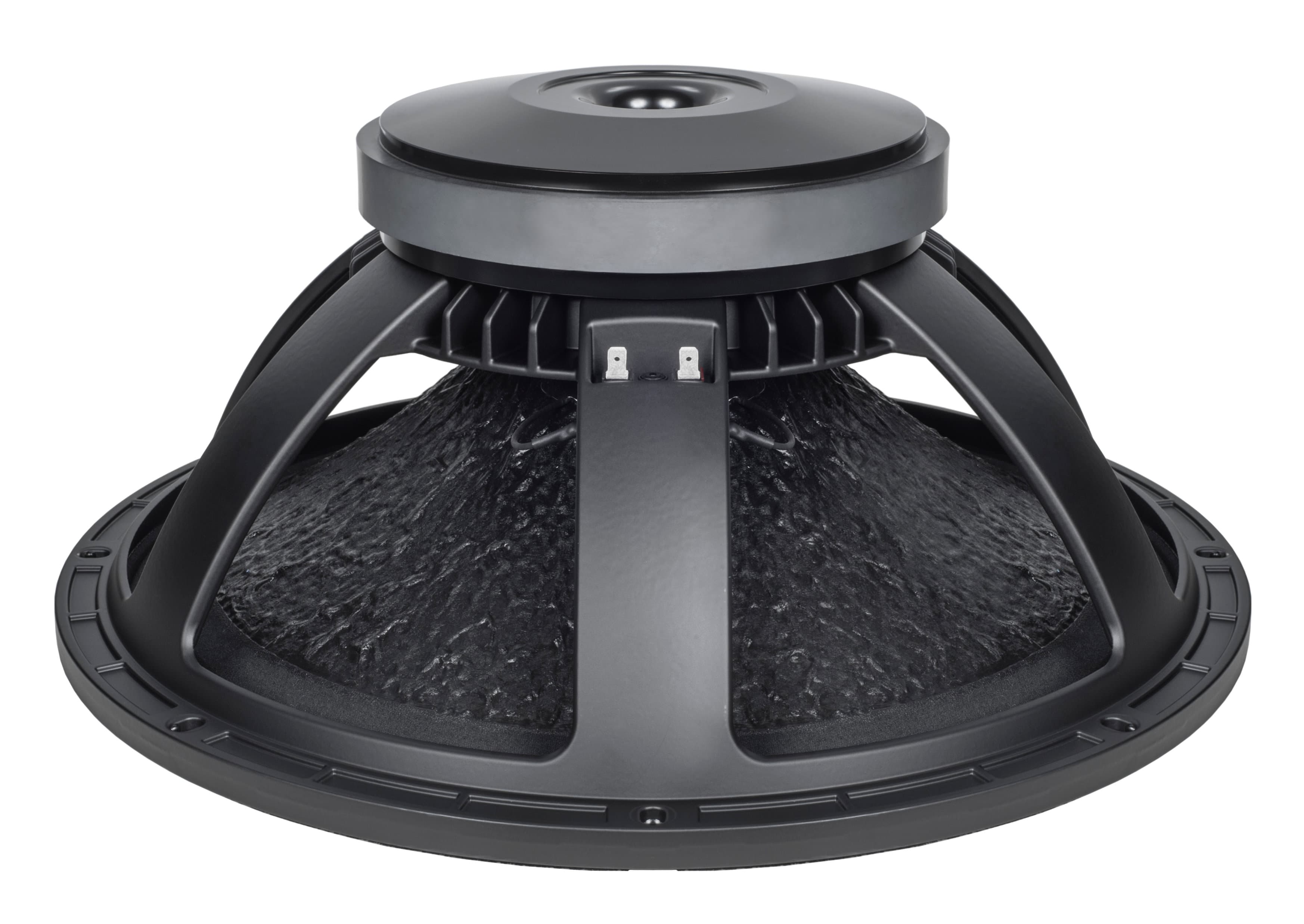

B&C
18PZW100
18"
Xmax8mm0%
Qts0.36+12%
BL25.5Tm-5%
Vas186L-19%
Qes0.38+15%
