Hornresp
.txt · Hornresp driver database
Driver file ready to place in Hornresp’s Drivers folder.
Download for HornrespBeyma 115XA38ND8 8Ω
LF DriverMedia
Overview
LF Driver
Beyma
Beyma 115XA38ND8
Beyma 115XA38ND8 is a 15" 8 ohm LF driver rated at 350W RMS. The validated T/S data includes Fs 38Hz, Qts 0.30, Vas 238L, Xmax 6mm, sensitivity 98.3dB, plus 528cm³ Vd and 123 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
15"
Impedance
8Ω
RMS Power
350W
Sensitivity
98.3dB
EBP
123
Vented alignment
Vd
528cm³
Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs38Hz
Qts0.30
Qes0.31
Qms6.4
Vas238.0L
Re6.7Ω
Le1.00mH
BL20.4Tm
Sd880cm²
Mms82g
Xmax6.0mm
SPL98dB
Power350W
Impedance8Ω
F Low40Hz
F High20000Hz
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight6.8kg
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Beyma
115XA38ND8
15"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
94%
Similarity
Beyma
115WR408
15"
Xmax6.3mm+5%
Qts0.30%
BL19.2Tm-6%
Vas236L-1%
Qes0.310%
87%
Similarity
£396.97
B&C
15CXN76
15"
Xmax6mm0%
Qts0.28-7%
BL17.8Tm-13%
Vas246L+3%
Qes0.3-3%
87%
Similarity
£399.49
B&C
15HCX76
15"
Xmax6mm0%
Qts0.28-7%
BL17.8Tm-13%
Vas246L+3%
Qes0.3-3%
87%
Similarity
Eighteen Sound
15NMB420
15"
Xmax6.5mm+8%
Qts0.29-3%
BL19Tm-7%
Vas225L-5%
Qes0.3-3%
87%
Similarity
£170.21
B&C
15CLA76
15"
Xmax5.5mm-8%
Qts0.30%
BL19.8Tm-3%
Vas176L-26%
Qes0.310%
85%
Similarity
£181.89
Eighteen Sound
15W700
15"
Xmax6.5mm+8%
Qts0.30%
BL18.4Tm-10%
Vas217L-9%
Qes0.33+6%
85%
Similarity

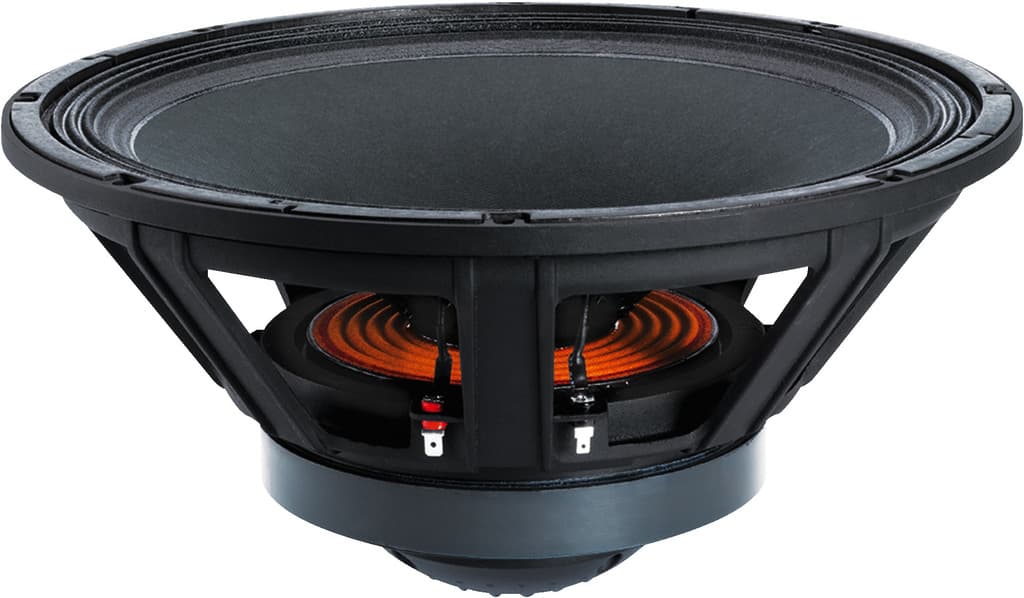

Monacor
FTX1530/8
15"
Xmax6mm0%
Qts0.28-8%
BL20.2Tm-1%
Vas172.1L-28%
Qes0.3-4%
85%
Similarity

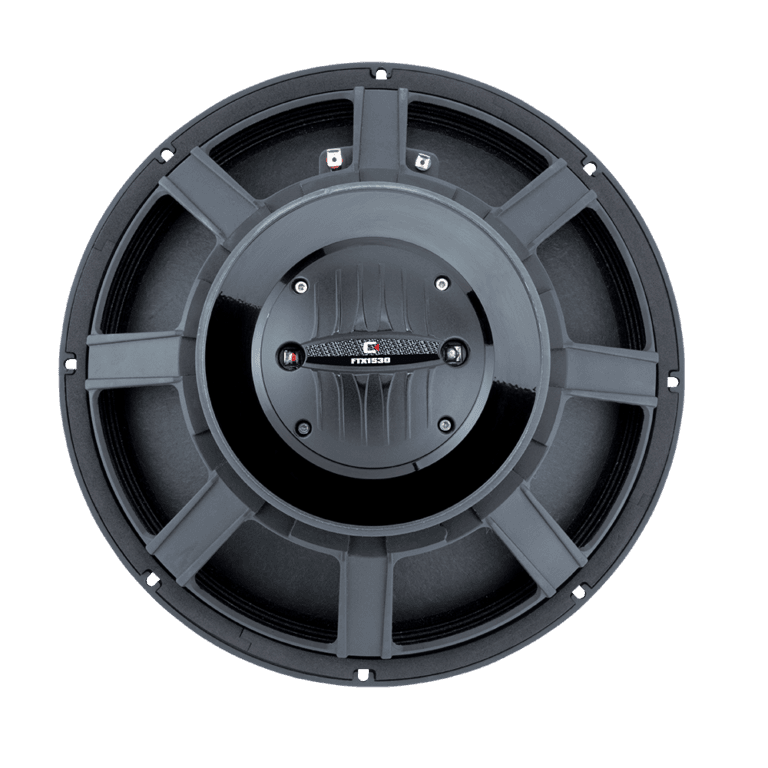

Celestion
FTX1530
15"
Xmax6mm0%
Qts0.28-8%
BL20.2Tm-1%
Vas172.1L-28%
Qes0.3-4%
85%
Similarity
£153.86
Eminence
KAPPA PRO-15LF
15"
Xmax6.7mm+12%
Qts0.30%
BL21.6Tm+6%
Vas198.8L-16%
Qes0.32+3%
84%
Similarity
Monacor
SP-15A/402PA
15"
Xmax5mm-17%
Qts0.31+3%
BL19.9Tm-2%
Vas235L-1%
Qes0.33+6%
83%
Similarity
£259.50

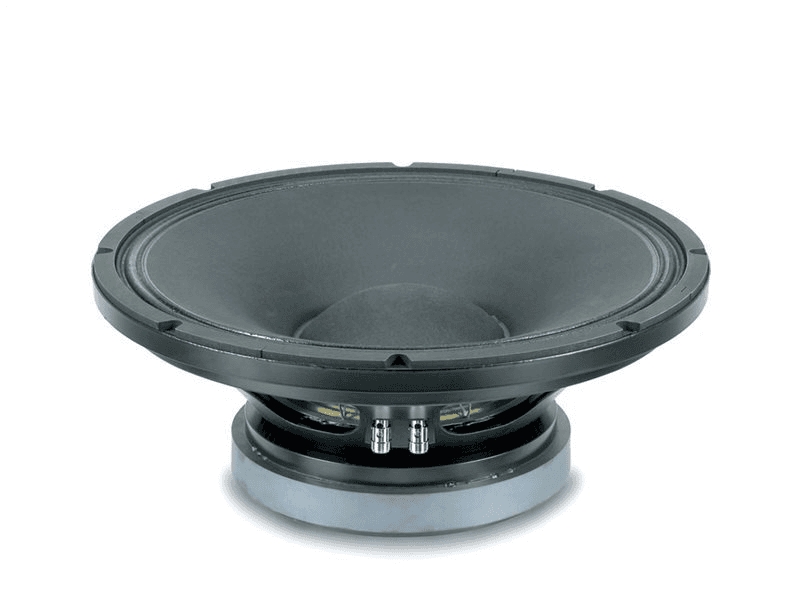

Eighteen Sound
15MB1000
15"
Xmax6mm0%
Qts0.31+3%
BL21Tm+3%
Vas132.5L-44%
Qes0.32+3%
83%
Similarity
£173.41
Eighteen Sound
15MB700
15"
Xmax5.5mm-8%
Qts0.29-3%
BL17.6Tm-14%
Vas202L-15%
Qes0.310%
