Overview
LF Driver
Beyma
Beyma 115WR408
Beyma 115WR408 is a 15" 8 ohm LF driver rated at 400W RMS. The validated T/S data includes Fs 36Hz, Qts 0.30, Vas 236L, Xmax 6.3mm, sensitivity 97.5dB, plus 554cm³ Vd and 116 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
15"
Impedance
8Ω
RMS Power
400W
Sensitivity
97.5dB
99.0dBmanufacturer; using T/S-derived value (1.5dB delta).
EBP
116
Vented alignment
Vd
554cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp2medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence4,911 selected pixels of 4,954 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence3,085 selected pixels of 3,085
Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs36Hz
Qts0.30
Qes0.31
Qms8.2
Vas236.0L
Re5.6Ω
Le1.00mH
BL19.2Tm
Sd880cm²
Mms91g
Xmax6.3mm
SPL98dB
Power400W
Impedance8Ω
F Low40Hz
F High4000Hz
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight6.1kg
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Beyma
115WR408
15"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
94%
Similarity
Beyma
115XA38ND8
15"
Xmax6mm-5%
Qts0.30%
BL20.4Tm+6%
Vas238L+1%
Qes0.310%
93%
Similarity
Eighteen Sound
15NMB420
15"
Xmax6.5mm+3%
Qts0.29-3%
BL19Tm-1%
Vas225L-5%
Qes0.3-3%
91%
Similarity
£181.89
Eighteen Sound
15W700
15"
Xmax6.5mm+3%
Qts0.30%
BL18.4Tm-4%
Vas217L-8%
Qes0.33+6%
87%
Similarity
£396.97

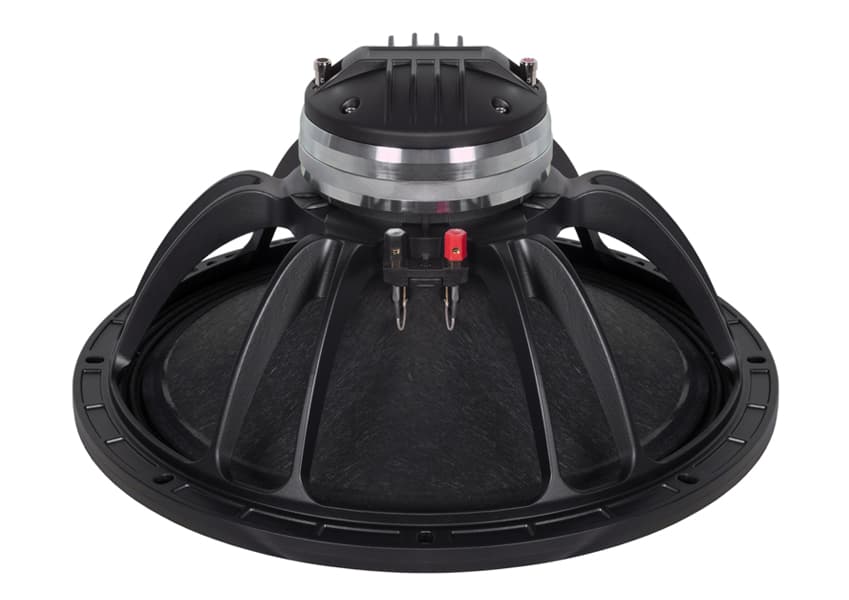

B&C
15CXN76
15"
Xmax6mm-5%
Qts0.28-7%
BL17.8Tm-7%
Vas246L+4%
Qes0.3-3%
87%
Similarity
£399.49

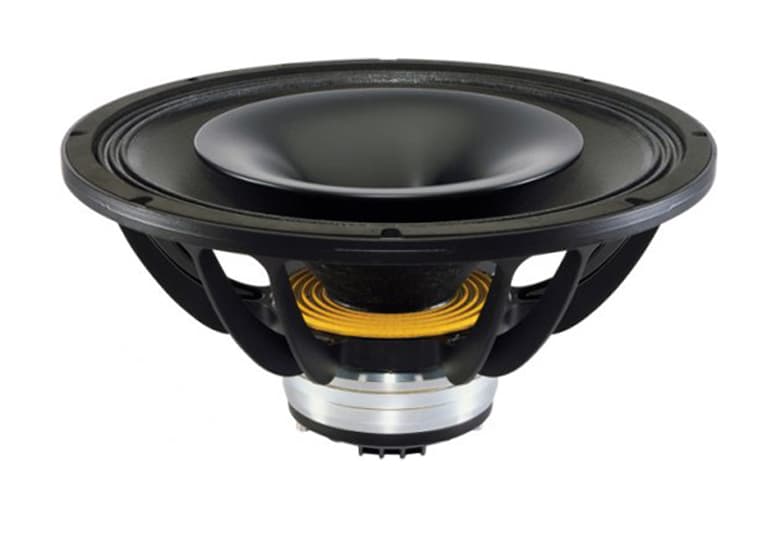

B&C
15HCX76
15"
Xmax6mm-5%
Qts0.28-7%
BL17.8Tm-7%
Vas246L+4%
Qes0.3-3%
86%
Similarity
Beyma
115WRS408
15"
Xmax6.3mm0%
Qts0.33+10%
BL18.2Tm-5%
Vas236L0%
Qes0.35+13%
85%
Similarity
£153.86

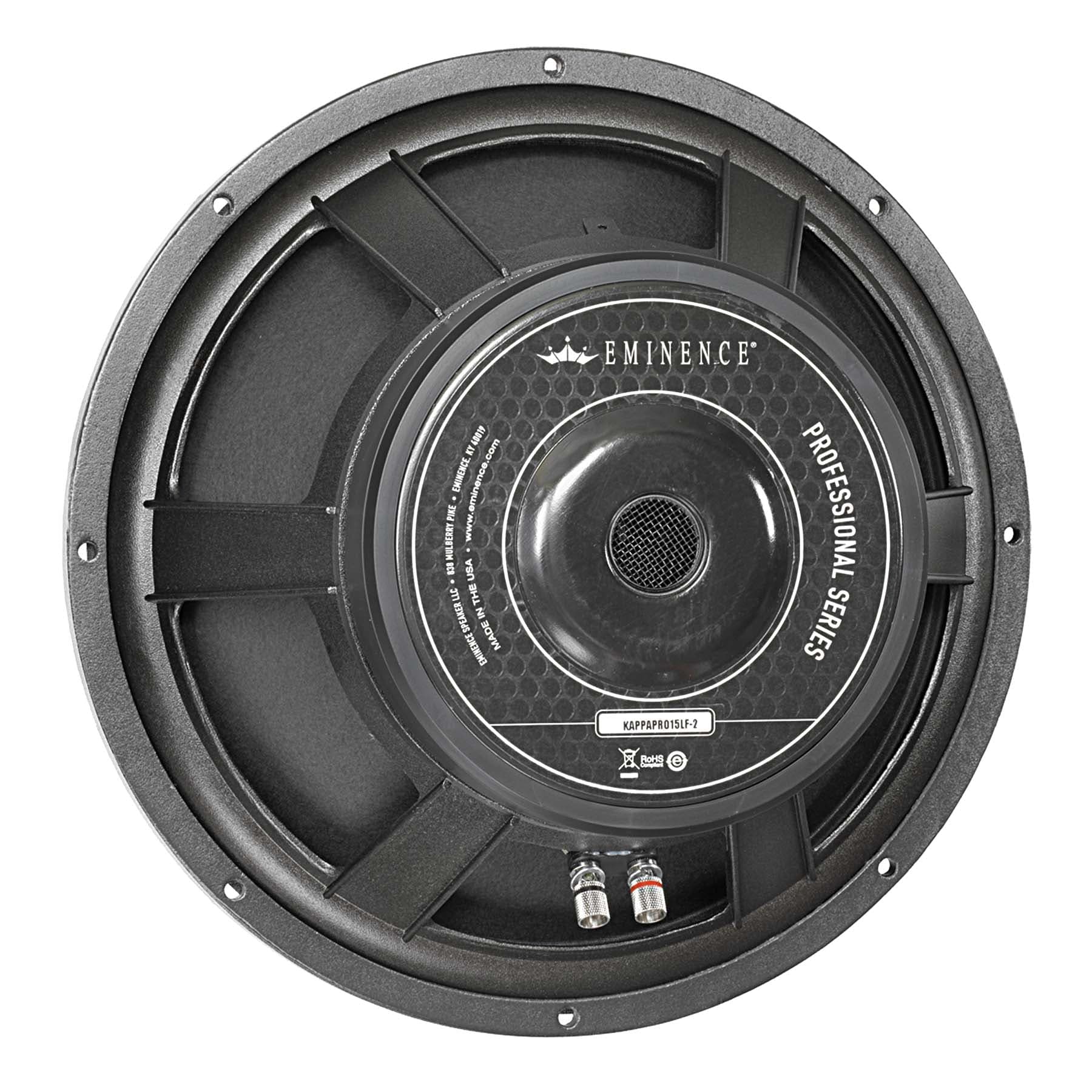

Eminence
KAPPA PRO-15LF
15"
Xmax6.7mm+6%
Qts0.30%
BL21.6Tm+13%
Vas198.8L-16%
Qes0.32+3%
84%
Similarity
£170.21

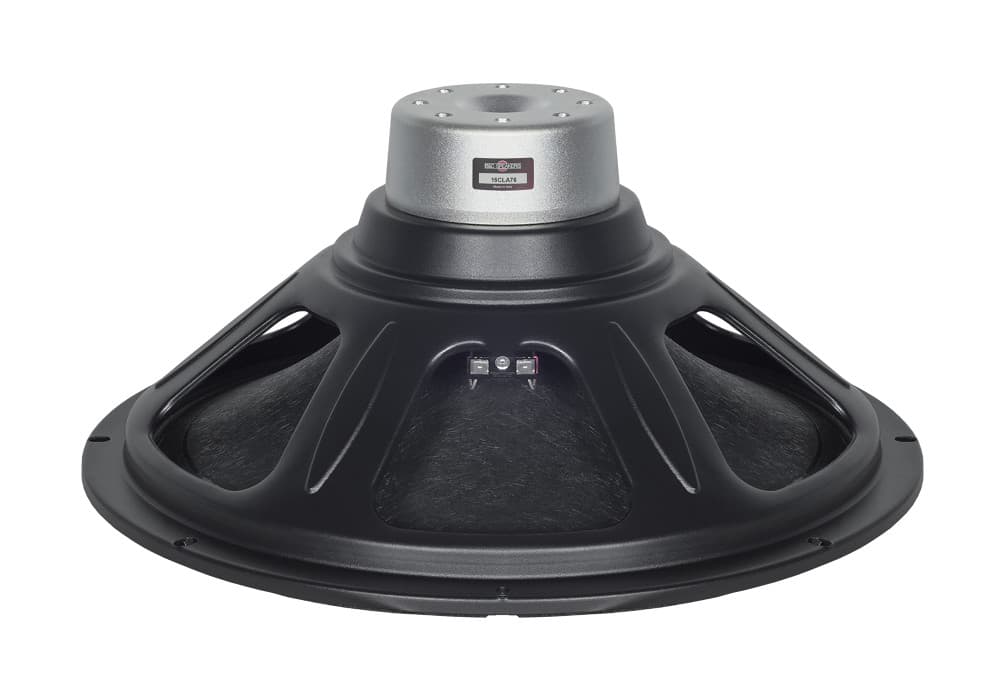

B&C
15CLA76
15"
Xmax5.5mm-13%
Qts0.30%
BL19.8Tm+3%
Vas176L-25%
Qes0.310%
83%
Similarity
£173.41

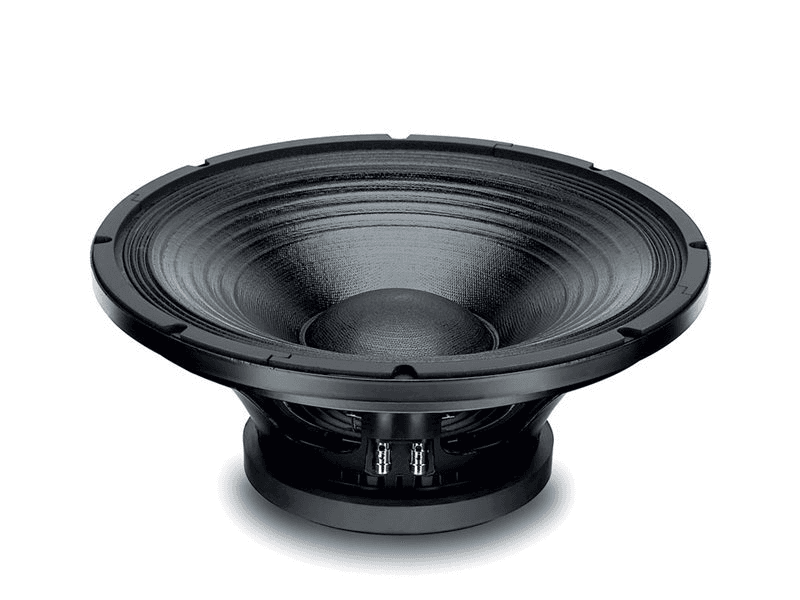

Eighteen Sound
15MB700
15"
Xmax5.5mm-13%
Qts0.29-3%
BL17.6Tm-8%
Vas202L-14%
Qes0.310%
83%
Similarity
£239.90
Eighteen Sound
15ND830
15"
Xmax6.5mm+3%
Qts0.32+7%
BL18Tm-6%
Vas213L-10%
Qes0.35+13%
82%
Similarity

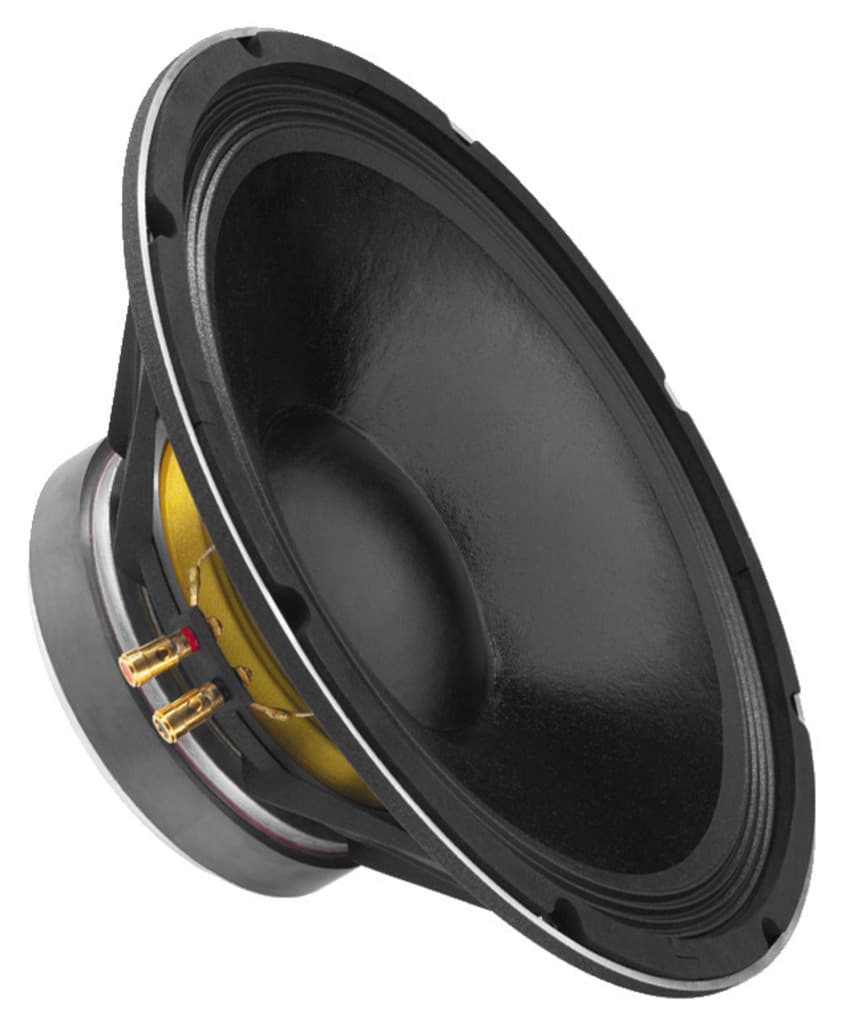

Monacor
SP-15A/402PA
15"
Xmax5mm-21%
Qts0.31+3%
BL19.9Tm+4%
Vas235L0%
Qes0.33+6%
81%
Similarity

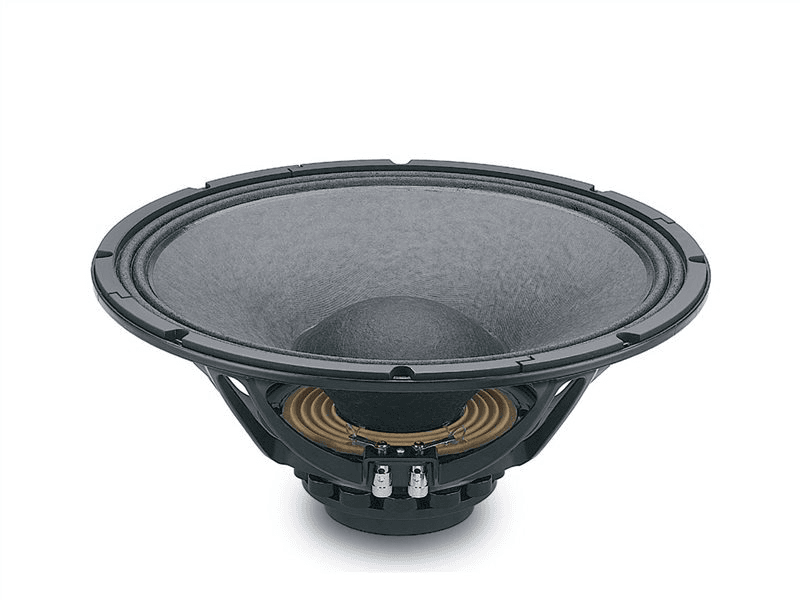

Eighteen Sound
