Overview
LF Driver
Beyma
Beyma 115WRS408
Beyma 115WRS408 is a 15" 8 ohm LF driver rated at 400W RMS. The validated T/S data includes Fs 36Hz, Qts 0.33, Vas 236L, Xmax 6.3mm, sensitivity 97dB, plus 554cm³ Vd and 103 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
15"
Impedance
8Ω
RMS Power
400W
Sensitivity
97.0dB
98.5dBmanufacturer; using T/S-derived value (1.5dB delta).
EBP
103
Vented alignment
Vd
554cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp2medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence4,522 selected pixels of 4,522 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence3,679 selected pixels of 3,679
Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs36Hz
Qts0.33
Qes0.35
Qms9.1
Vas236.0L
Re5.6Ω
Le1.10mH
BL18.2Tm
Sd880cm²
Mms91g
Xmax6.3mm
SPL97dB
Power400W
Impedance8Ω
F Low40Hz
F High4000Hz
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight6.3kg
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Beyma
115WRS408
15"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
93%
Similarity
£239.90

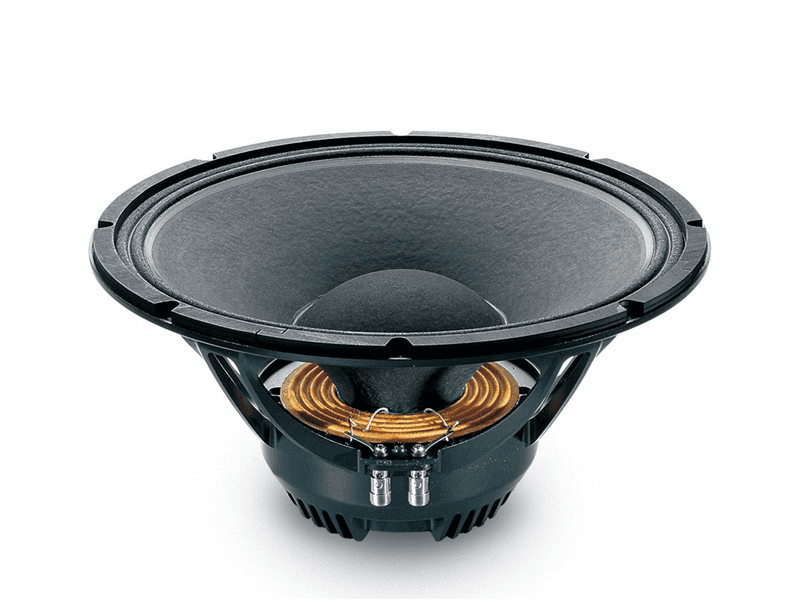

Eighteen Sound
15ND830
15"
Xmax6.5mm+3%
Qts0.32-3%
BL18Tm-1%
Vas213L-10%
Qes0.350%
87%
Similarity
£310.24

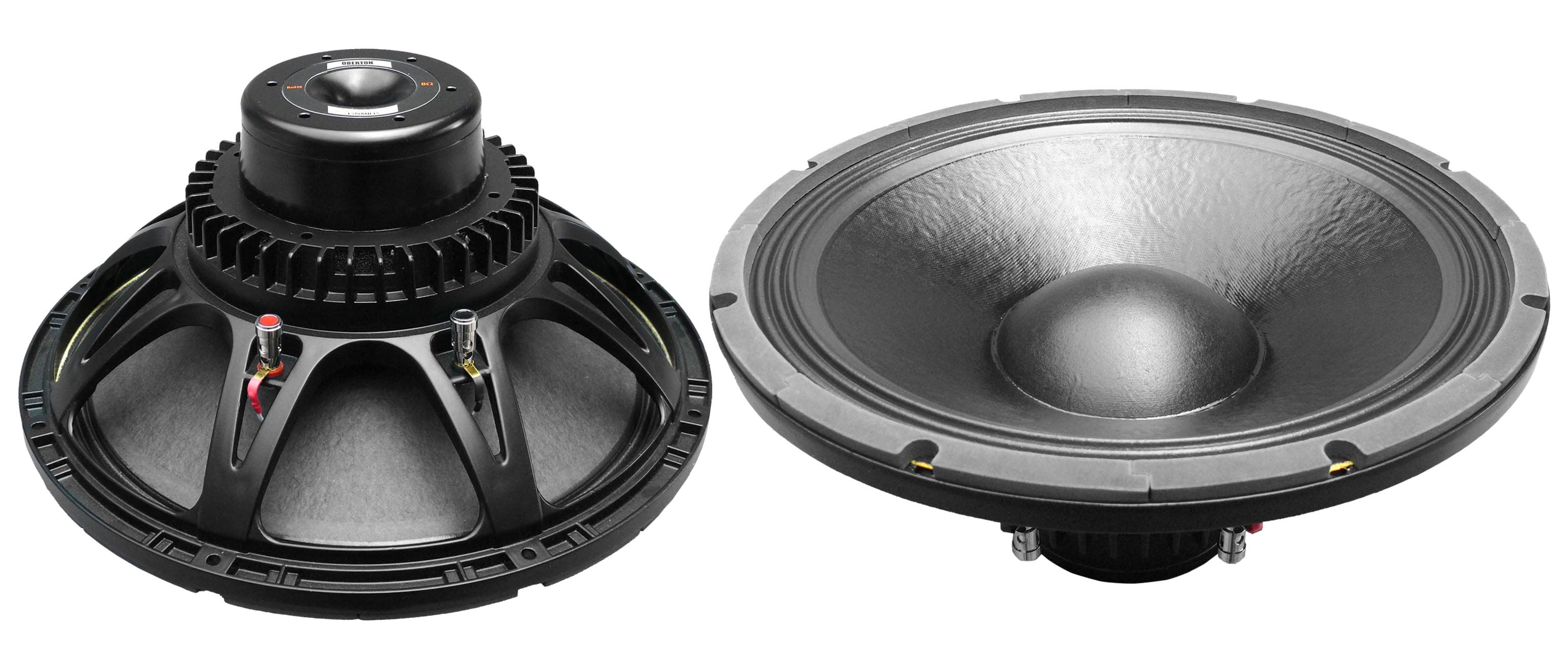

Oberton
15NMB35
15"
Xmax6.8mm+7%
Qts0.34+2%
BL18.5Tm+2%
Vas177.5L-25%
Qes0.35-1%
87%
Similarity
£181.89
Eighteen Sound
15W700
15"
Xmax6.5mm+3%
Qts0.3-9%
BL18.4Tm+1%
Vas217L-8%
Qes0.33-6%
87%
Similarity
£125.00

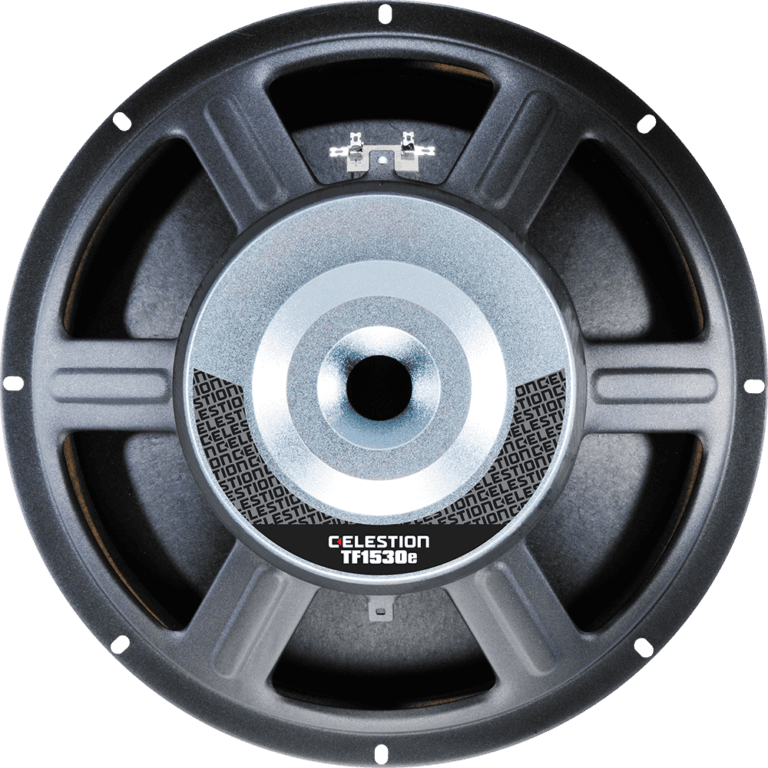

Celestion
TF1530E
15"
Xmax6.5mm+3%
Qts0.33-1%
BL17Tm-6%
Vas191.6L-19%
Qes0.37+7%
87%
Similarity
£180.74
FaitalPRO
15PR450
15"
Xmax6mm-5%
Qts0.35+6%
BL16.6Tm-9%
Vas235.6L0%
Qes0.37+6%
86%
Similarity
£189.00
FaitalPRO
15PR400
15"
Xmax5.8mm-9%
Qts0.32-3%
BL16.7Tm-8%
Vas248.9L+5%
Qes0.34-3%
86%
Similarity
Beyma
115WR408
15"
Xmax6.3mm0%
Qts0.3-9%
BL19.2Tm+5%
Vas236L0%
Qes0.31-11%
82%
Similarity
£175.00

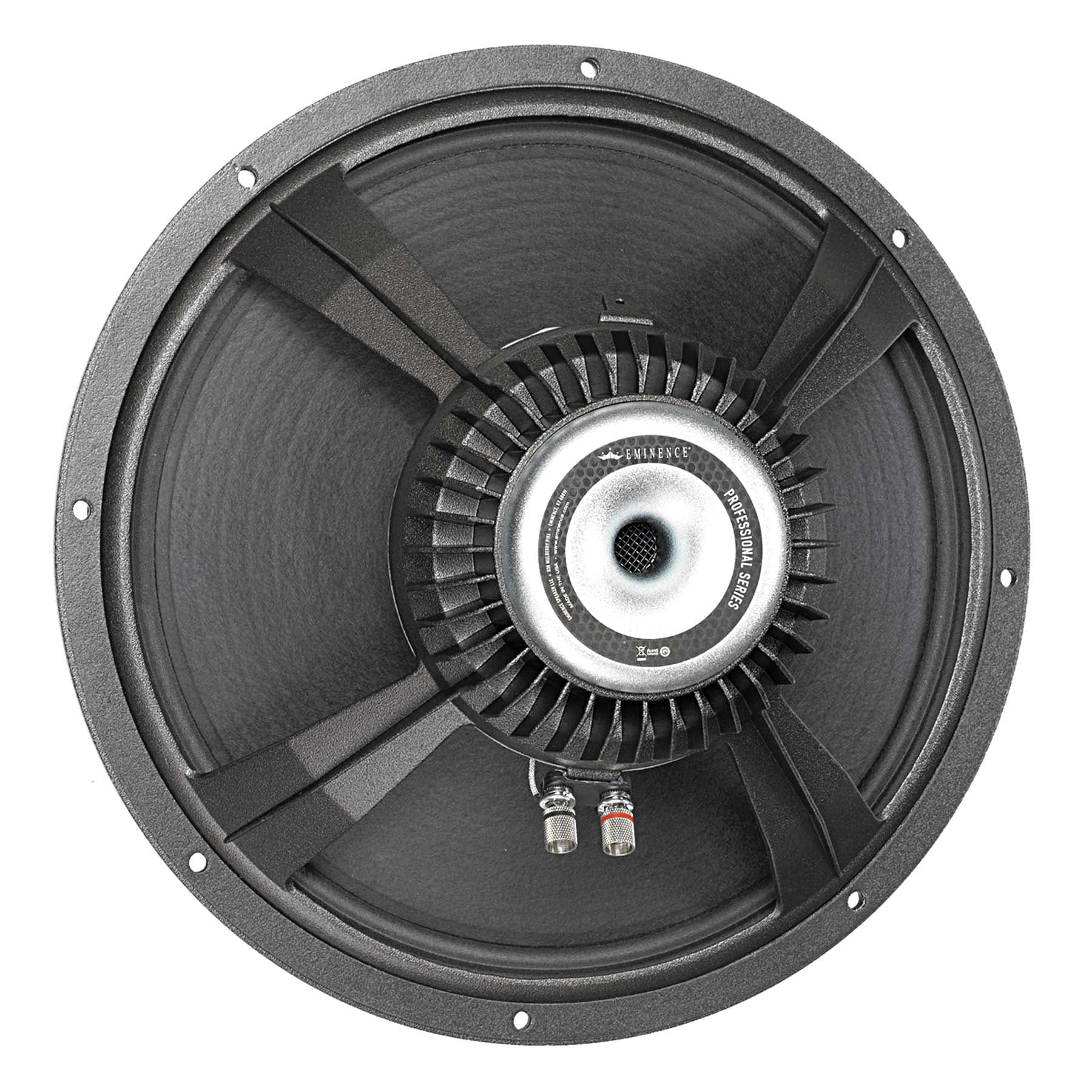

Eminence
KAPPALITE 3015
15"
Xmax5.9mm-6%
Qts0.34+3%
BL18.6Tm+2%
Vas153L-35%
Qes0.36+3%
82%
Similarity

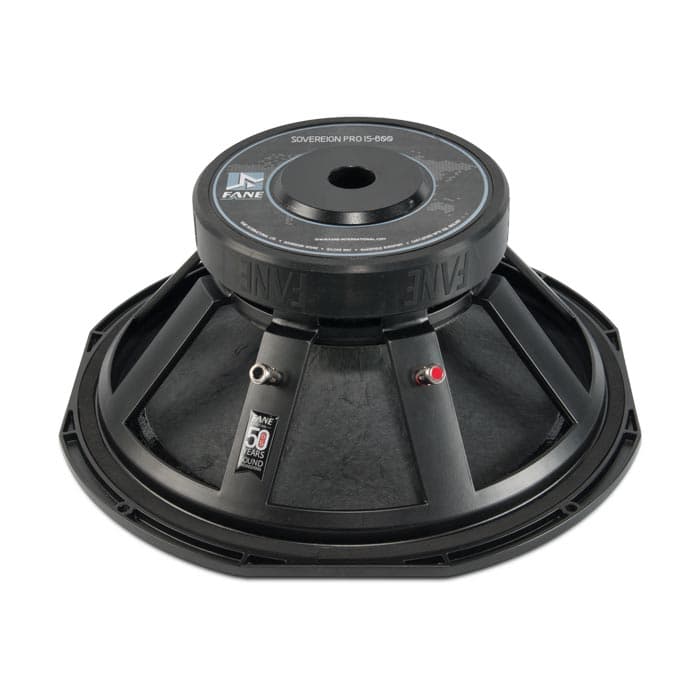

Fane
SOVEREIGN PRO 15-600
15"
Xmax6mm-5%
Qts0.35+6%
BL17.5Tm-4%
Vas201L-15%
Qes0.39+11%
82%
Similarity
Sica
15 FE 3 CP
15"
Xmax5.5mm-13%
Qts0.330%
BL19.1Tm+5%
Vas170.4L-28%
Qes0.34-3%
81%
Similarity
Eighteen Sound
15NMB420
15"
Xmax6.5mm+3%
Qts0.29-12%
BL19Tm+4%
Vas225L-5%
Qes0.3-14%
80%
Similarity
Beyma
115XA38ND8
15"
Xmax6mm-5%
Qts0.3-9%
BL20.4Tm+12%
Vas238L+1%
Qes0.31-11%
