Overview
LF Driver
Beyma
Beyma 112CXA4ND8
Beyma 112CXA4ND8 is a 12" 8 ohm LF driver rated at 400W RMS. The validated T/S data includes Fs 45Hz, Qts 0.25, Vas 88.5L, Xmax 6mm, sensitivity 96.9dB, plus 330cm³ Vd and 173 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
12"
Impedance
8Ω
RMS Power
400W
Sensitivity
96.9dB
98.0dBmanufacturer; using T/S-derived value (1.1dB delta).
EBP
173
Vented alignment
Vd
330cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response216 ptsp2medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
216 plotted pointsMedium confidence1,606 selected pixels of 8,902
Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs45Hz
Qts0.25
Qes0.26
Qms7.1
Vas88.5L
Re6.6Ω
Le1.00mH
BL21.4Tm
Sd550cm²
Mms64g
Xmax6.0mm
SPL97dB
Power400W
Impedance8Ω
F Low50Hz
F High20000Hz
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight6.5kg
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Beyma
112CXA4ND8
12"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
95%
Similarity
£337.46
Beyma
12CXA400FE
12"
Xmax6mm0%
Qts0.250%
BL19.8Tm-7%
Vas94L+6%
Qes0.260%
92%
Similarity
£285.67
BMS
12N803
12"
Xmax6mm0%
Qts0.24-4%
BL21.4Tm0%
Vas77L-13%
Qes0.25-4%
89%
Similarity
£247.26
BMS
12N620
12"
Xmax5.5mm-8%
Qts0.250%
BL20.6Tm-4%
Vas72.7L-18%
Qes0.260%
86%
Similarity
£170.65
RCF
MB12N301
12"
Xmax6mm0%
Qts0.24-4%
BL19Tm-11%
Vas71L-20%
Qes0.260%
81%
Similarity
£140.76
Oberton
12B400
12"
Xmax5.3mm-12%
Qts0.250%
BL18.4Tm-14%
Vas74.7L-16%
Qes0.26-2%
81%
Similarity
£230.40

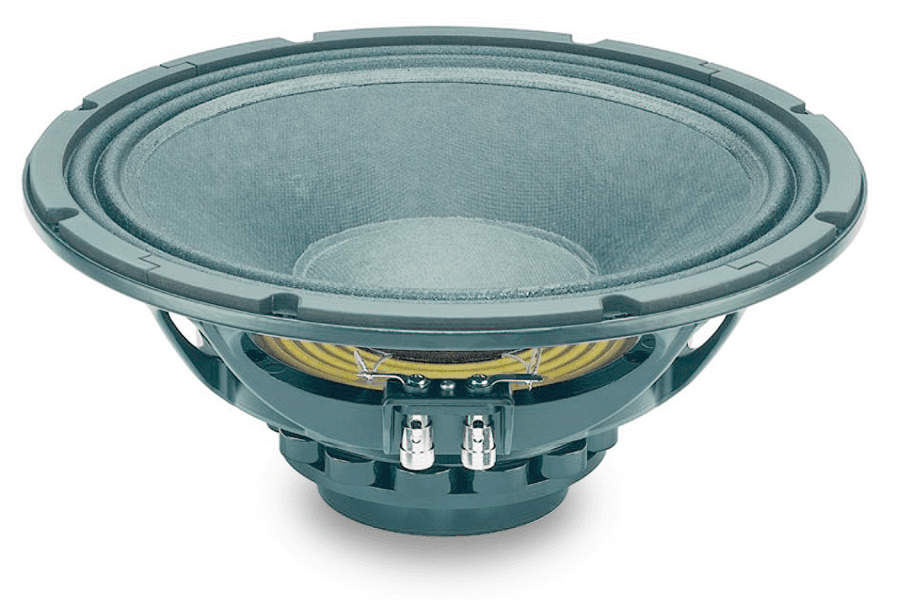

Eighteen Sound
12ND730
12"
Xmax6.5mm+8%
Qts0.23-8%
BL19.2Tm-10%
Vas90L+2%
Qes0.24-8%
81%
Similarity

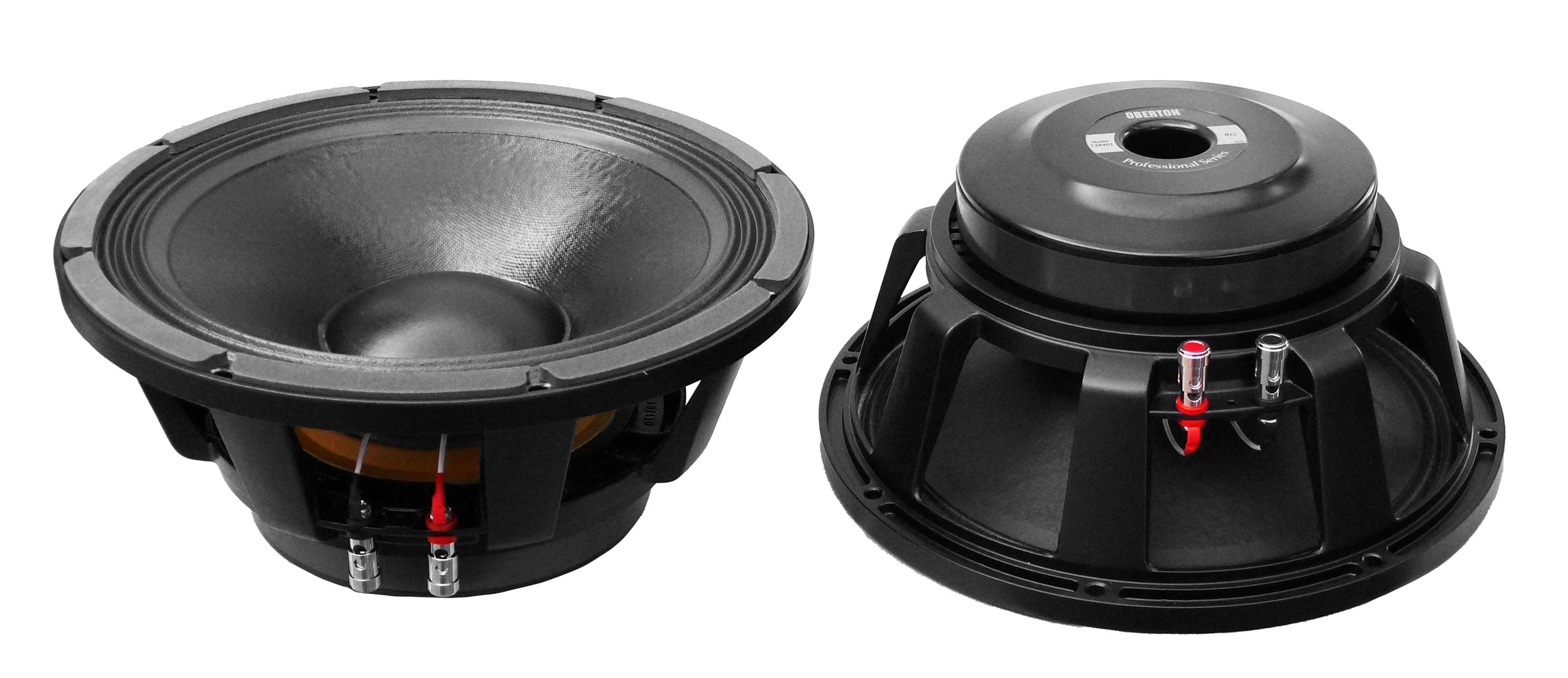

Oberton
12B401
12"
Xmax6.8mm+13%
Qts0.24-2%
BL19.9Tm-7%
Vas69.6L-21%
Qes0.25-4%
81%
Similarity
£153.26

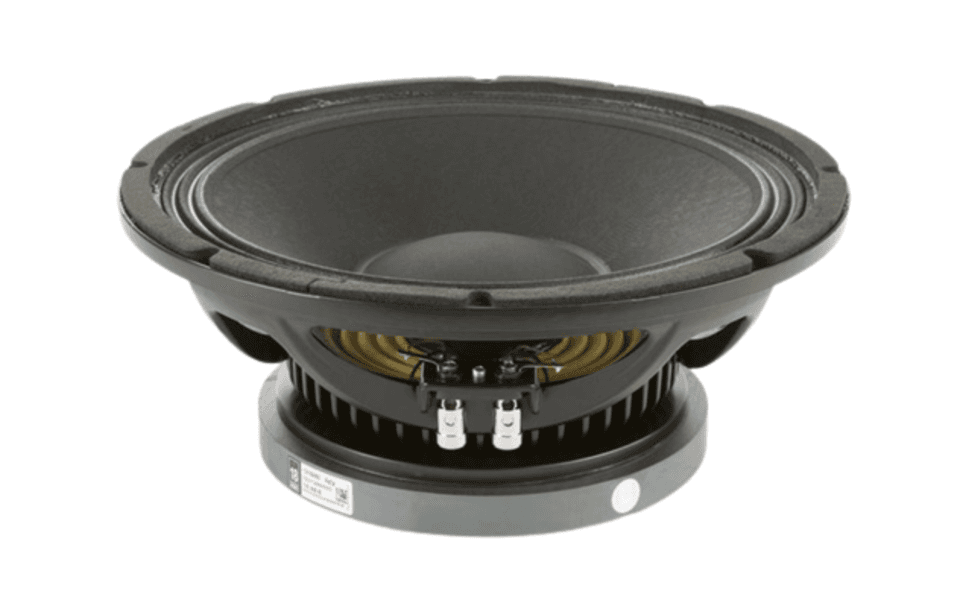

Eighteen Sound
12MB650
12"
Xmax5.5mm-8%
Qts0.23-8%
BL19Tm-11%
Vas90L+2%
Qes0.24-8%
81%
Similarity
£153.54
B&C
12CLA76
12"
Xmax5.3mm-12%
Qts0.250%
BL20.2Tm-6%
Vas56L-37%
Qes0.260%
80%
Similarity
Beyma
112WR408
12"
Xmax6.3mm+5%
Qts0.27+8%
BL18Tm-16%
Vas91L+3%
Qes0.28+8%
79%
Similarity

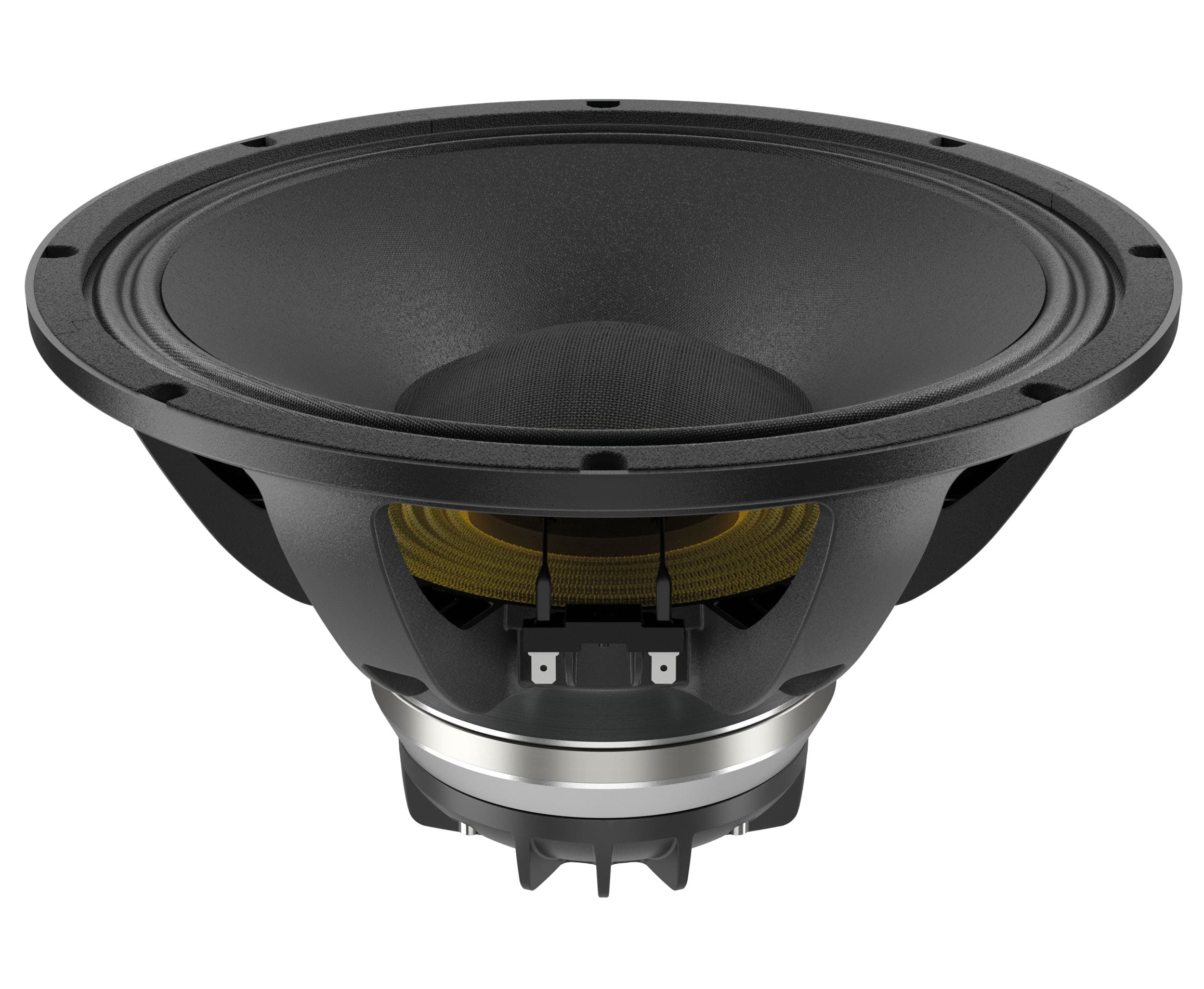

Lavoce
CAN123.00T
12"
Xmax6mm0%
Qts0.22-12%
BL18.5Tm-14%
Vas91L+3%
Qes0.23-12%
79%
Similarity

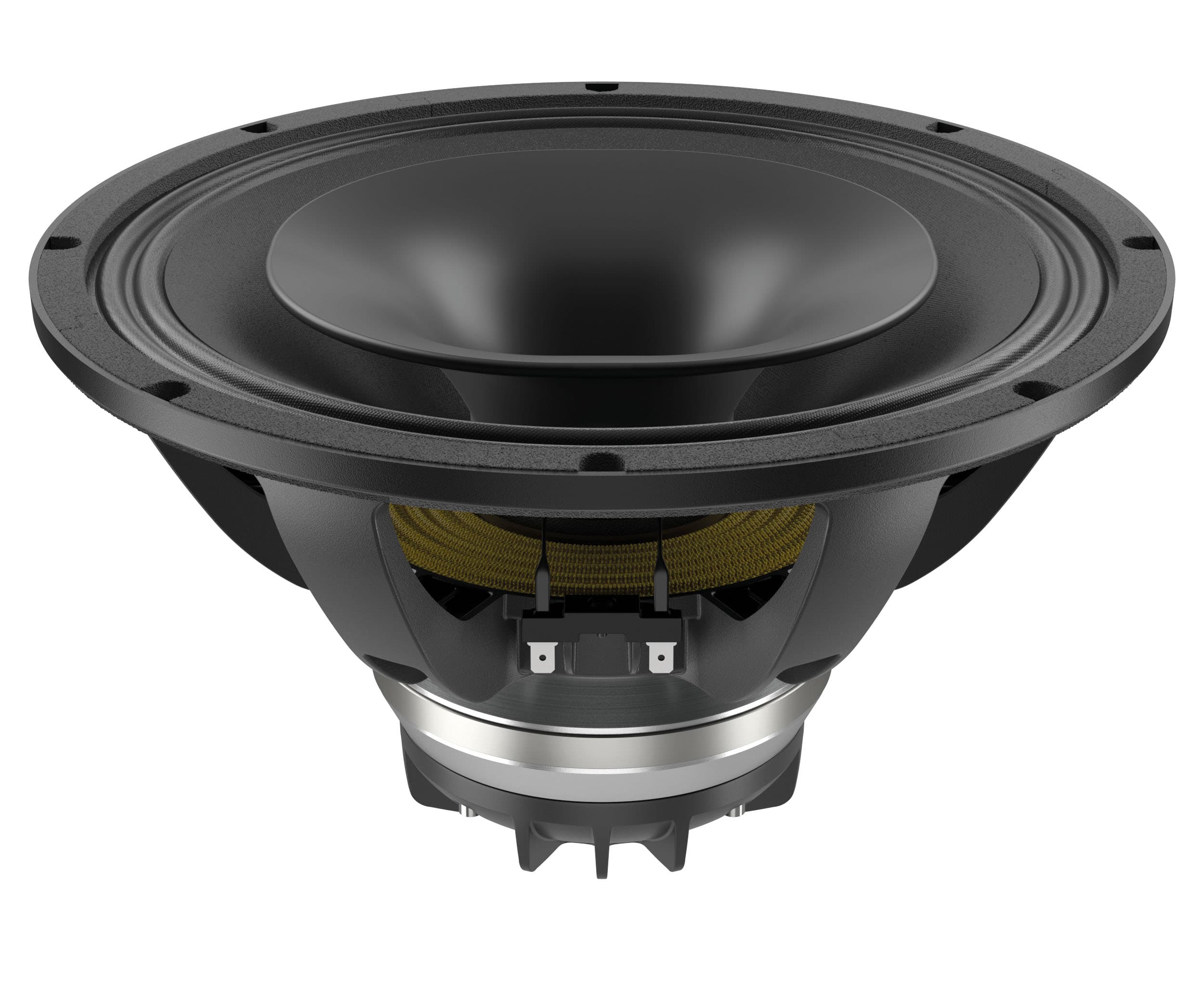

Lavoce
