Hornresp
.txt · Hornresp driver database
Driver file ready to place in Hornresp’s Drivers folder.
Download for HornrespBeyma 112WR408 8Ω
LF DriverMedia
Overview
LF Driver
Beyma
Beyma 112WR408
Beyma 112WR408 is a 12" 8 ohm LF driver rated at 400W RMS. The validated T/S data includes Fs 42Hz, Qts 0.27, Vas 91L, Xmax 6.3mm, sensitivity 95.8dB, plus 334cm³ Vd and 150 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
12"
Impedance
8Ω
RMS Power
400W
Sensitivity
95.8dB
97.0dBmanufacturer; using T/S-derived value (1.2dB delta).
EBP
150
Vented alignment
Vd
334cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp2medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence4,189 selected pixels of 4,189 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence3,679 selected pixels of 3,679
Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs42Hz
Qts0.27
Qes0.28
Qms5.6
Vas91.0L
Re5.6Ω
Le1.00mH
BL18.0Tm
Sd530cm²
Mms63g
Xmax6.3mm
SPL96dB
Power400W
Impedance8Ω
F Low45Hz
F High5000Hz
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight5.5kg
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Beyma
112WR408
12"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
94%
Similarity
£106.55
SB Audience
ROSSO-12MW300
12"
Xmax6.7mm+6%
Qts0.270%
BL17.4Tm-3%
Vas85.9L-6%
Qes0.280%
89%
Similarity
£122.29
Beyma
12WRS400
12"
Xmax6.3mm0%
Qts0.29+7%
BL17.4Tm-3%
Vas91L0%
Qes0.31+11%
89%
Similarity
£136.50
RCF
MB12G301
12"
Xmax6mm-5%
Qts0.270%
BL17Tm-6%
Vas72L-21%
Qes0.280%
88%
Similarity
PRV Audio
12MB1000FT-4
12"
Xmax6.1mm-3%
Qts0.270%
BL14.5Tm-19%
Vas95.5L+5%
Qes0.280%
88%
Similarity
£163.28
Lavoce
WAN123.00
12"
Xmax6.9mm+10%
Qts0.270%
BL17.9Tm-1%
Vas68.8L-24%
Qes0.280%
86%
Similarity
£248.59
Eighteen Sound
12ND830
12"
Xmax6.5mm+3%
Qts0.28+4%
BL17.6Tm-2%
Vas72L-21%
Qes0.3+7%
84%
Similarity
£337.46
Beyma
12CXA400FE
12"
Xmax6mm-5%
Qts0.25-7%
BL19.8Tm+10%
Vas94L+3%
Qes0.26-7%
83%
Similarity

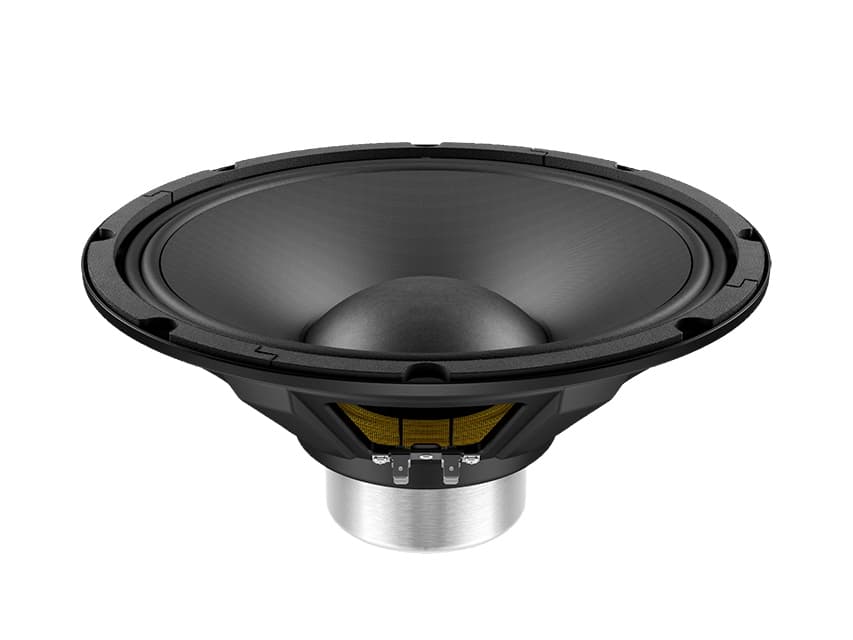

Lavoce
