Hornresp
.txt · Hornresp driver database
Driver file ready to place in Hornresp’s Drivers folder.
Download for HornrespBeyma 112G48 8Ω
LF DriverMedia
Overview
LF Driver
Beyma
Beyma 112G48
Beyma 112G48 is a 12" 8 ohm LF driver rated at 500W RMS. The validated T/S data includes Fs 44Hz, Qts 0.30, Vas 81L, Xmax 7mm, sensitivity 95.6dB, plus 371cm³ Vd and 147 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
12"
Impedance
8Ω
RMS Power
500W
Sensitivity
95.6dB
97.0dBmanufacturer; using T/S-derived value (1.4dB delta).
EBP
147
Vented alignment
Vd
371cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp2medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence4,489 selected pixels of 4,493 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence3,416 selected pixels of 3,416
Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs44Hz
Qts0.30
Qes0.30
Qms11.6
Vas81.0L
Re6.0Ω
Le2.10mH
BL18.4Tm
Sd530cm²
Mms62g
Xmax7.0mm
SPL96dB
Power500W
Impedance8Ω
F Low45Hz
F High4000Hz
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight7.1kg
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Beyma
112G48
12"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
91%
Similarity
£194.30
FaitalPRO
12FH520
12"
Xmax7.3mm+4%
Qts0.29-3%
BL17.3Tm-6%
Vas73.7L-9%
Qes0.30%
89%
Similarity
£436.54
Eighteen Sound
12NCX910
12"
Xmax6.9mm-1%
Qts0.30%
BL18.1Tm-2%
Vas58L-28%
Qes0.31+3%
89%
Similarity
£1,150.00

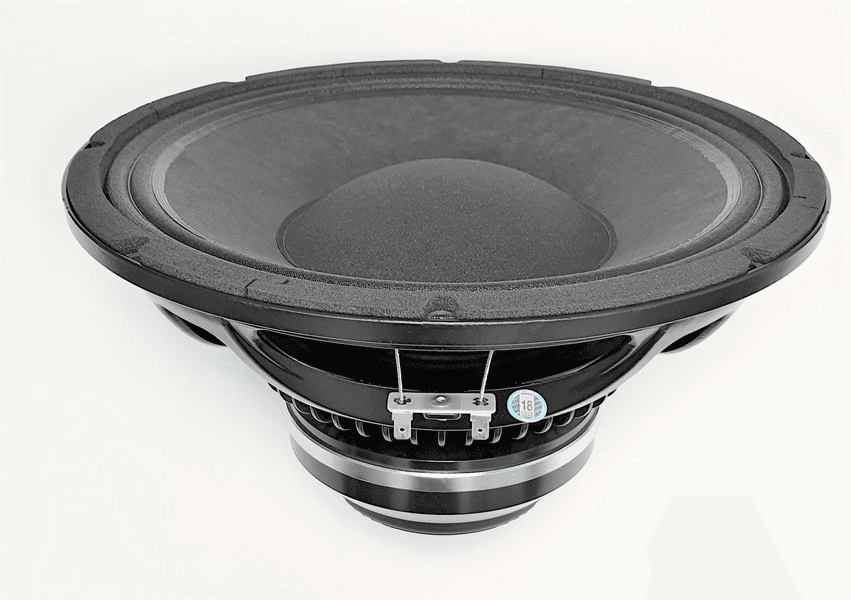

Eighteen Sound
12NCX910BE
12"
Xmax6.9mm-1%
Qts0.30%
BL18.1Tm-2%
Vas58L-28%
Qes0.31+3%
89%
Similarity
£478.98
Eighteen Sound
12NCX910N
12"
Xmax6.9mm-1%
Qts0.30%
BL18.1Tm-2%
Vas58L-28%
Qes0.31+3%
87%
Similarity
£248.59

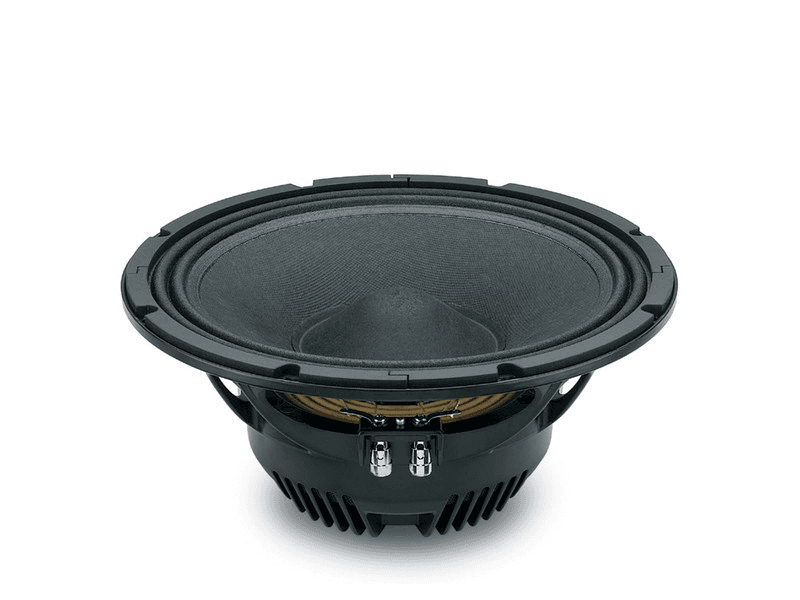

Eighteen Sound
12ND830
12"
Xmax6.5mm-7%
Qts0.28-7%
BL17.6Tm-4%
Vas72L-11%
Qes0.30%
86%
Similarity
PRV Audio
12MB2000FT-NDY
12"
Xmax6mm-14%
Qts0.30%
BL17.7Tm-4%
Vas71.5L-12%
Qes0.31+3%
85%
Similarity
£122.29
Beyma
12WRS400
12"
Xmax6.3mm-10%
Qts0.29-3%
BL17.4Tm-5%
Vas91L+12%
Qes0.31+3%
85%
Similarity
£163.28

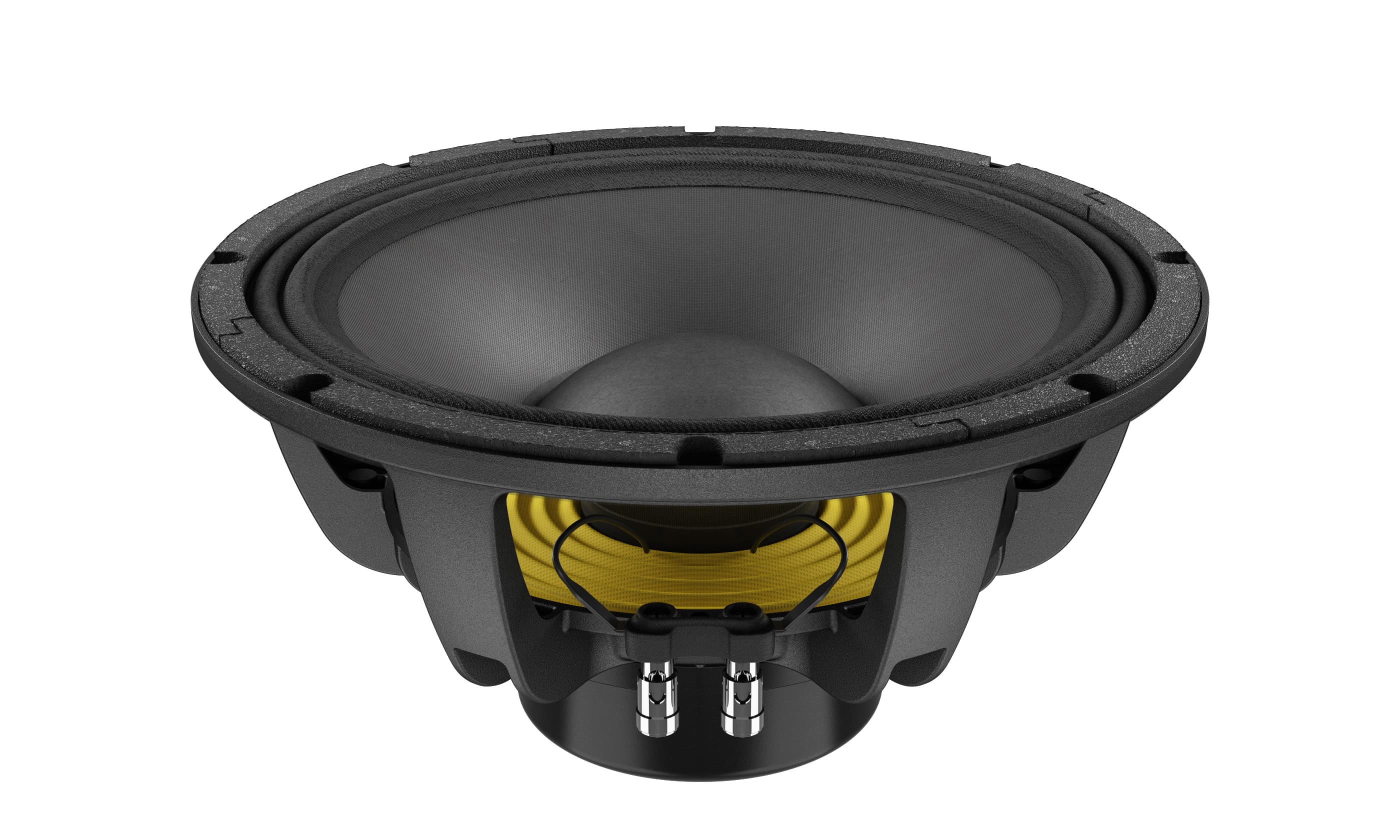

Lavoce
WAN123.00
12"
Xmax6.9mm-1%
Qts0.27-10%
BL17.9Tm-3%
Vas68.8L-15%
Qes0.28-7%
84%
Similarity
£106.55

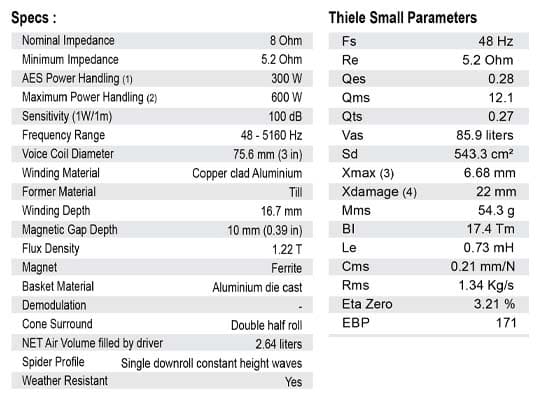

SB Audience
ROSSO-12MW300
12"
Xmax6.7mm-5%
Qts0.27-10%
BL17.4Tm-5%
Vas85.9L+6%
Qes0.28-7%
84%
Similarity
£169.77

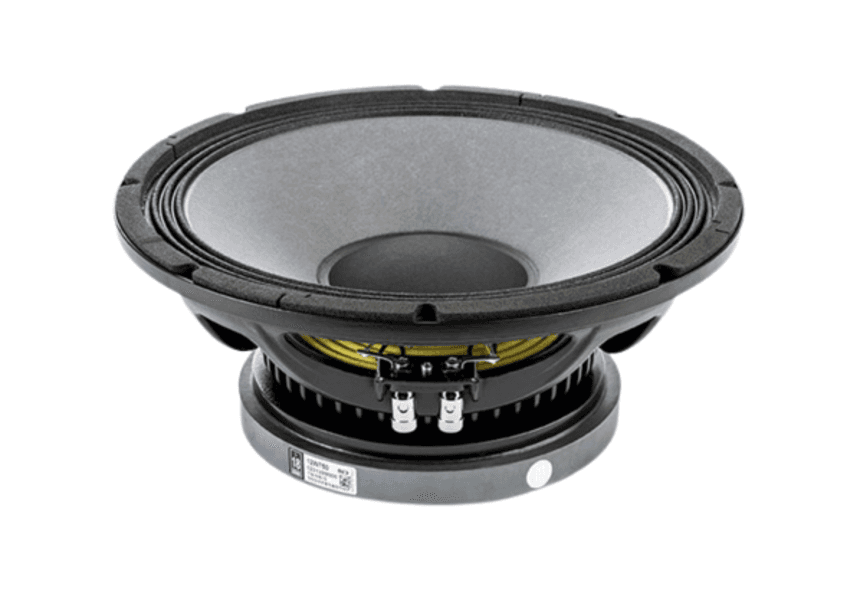

Eighteen Sound
12W750
12"
Xmax8mm+14%
Qts0.28-7%
BL18Tm-2%
Vas73L-10%
Qes0.30%
81%
Similarity
Beyma
112WR408
12"
Xmax6.3mm-10%
Qts0.27-10%
BL18Tm-2%
Vas91L+12%
Qes0.28-7%
80%
Similarity

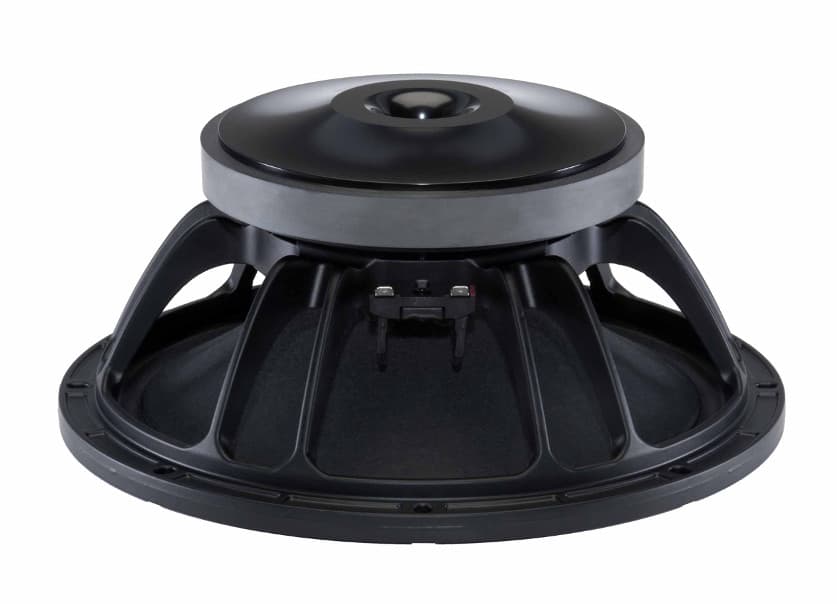

B&C
12FL76
12"
Xmax6mm-14%
Qts0.30%
BL18.7Tm+2%
Vas57L-30%
Qes0.32+7%
