Overview
LF Driver
Beyma
Beyma 110WR308
Beyma 110WR308 is a 10" 8 ohm LF driver rated at 300W RMS. The validated T/S data includes Fs 52Hz, Qts 0.35, Vas 42L, Xmax 6mm, sensitivity 93.8dB, plus 210cm³ Vd and 133 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
10"
Impedance
8Ω
RMS Power
300W
Sensitivity
93.8dB
95.0dBmanufacturer; using T/S-derived value (1.2dB delta).
EBP
133
Vented alignment
Vd
210cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp2medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence5,103 selected pixels of 5,232 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence4,136 selected pixels of 4,136
Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs52Hz
Qts0.35
Qes0.39
Qms3.9
Vas42.0L
Re6.1Ω
Le1.00mH
BL14.2Tm
Sd350cm²
Mms39g
Xmax6.0mm
SPL94dB
Power300W
Impedance8Ω
F Low55Hz
F High5000Hz
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight3.5kg
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Beyma
110WR308
10"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
96%
Similarity
£261.58
Eighteen Sound
10CX650
10"
Xmax6mm0%
Qts0.350%
BL14Tm-1%
Vas36.4L-13%
Qes0.390%
92%
Similarity
Beyma
110WRS308
10"
Xmax6mm0%
Qts0.38+9%
BL13.9Tm-2%
Vas42L0%
Qes0.4+3%
90%
Similarity
Fane
SOVEREIGN 10-300/2
10"
Xmax5.5mm-8%
Qts0.36+3%
BL14Tm-1%
Vas45.3L+8%
Qes0.38-3%
87%
Similarity

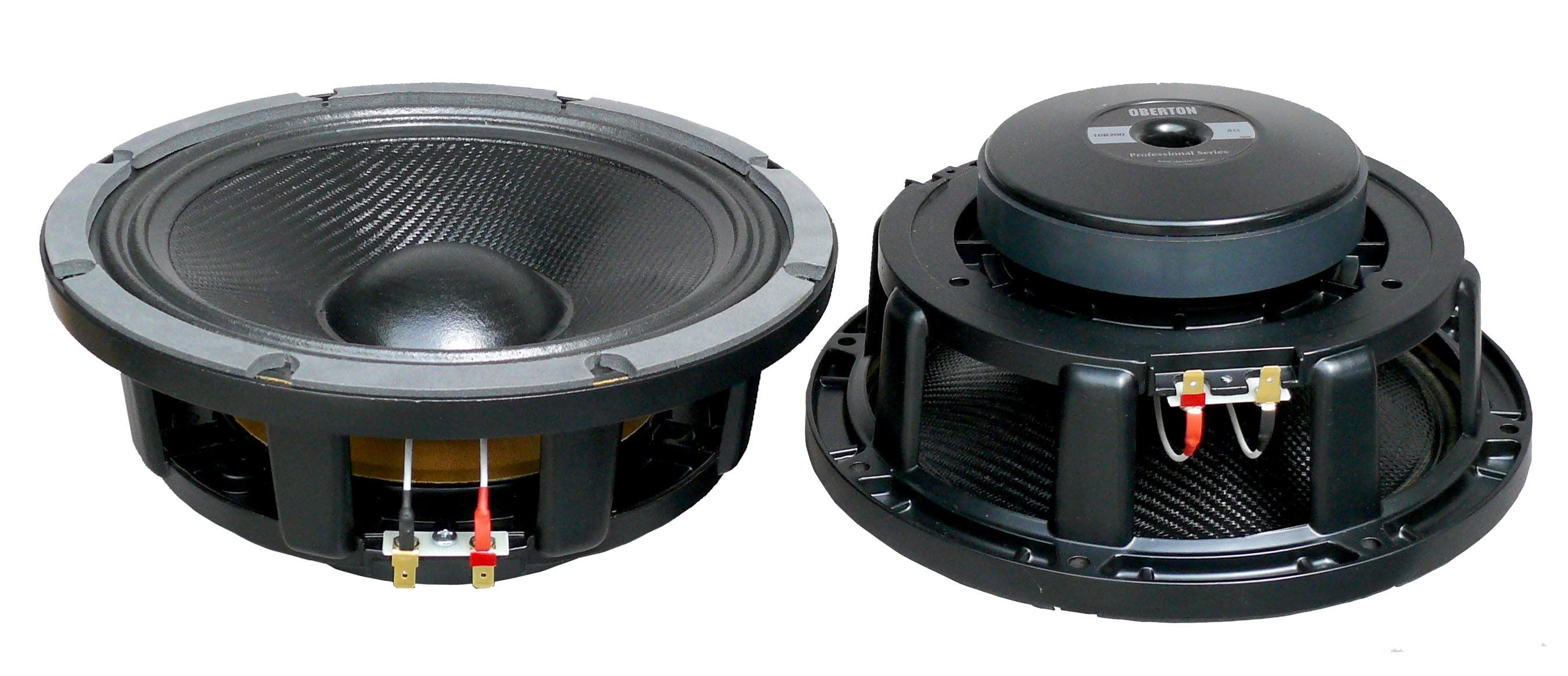

Oberton
10B200
10"
Xmax5.8mm-4%
Qts0.350%
BL14.7Tm+3%
Vas31.9L-24%
Qes0.36-6%
85%
Similarity
Peerless
FSL-1020R02-08
10"
Xmax5.1mm-15%
Qts0.36+3%
BL13.6Tm-4%
Vas38.5L-8%
Qes0.390%
85%
Similarity

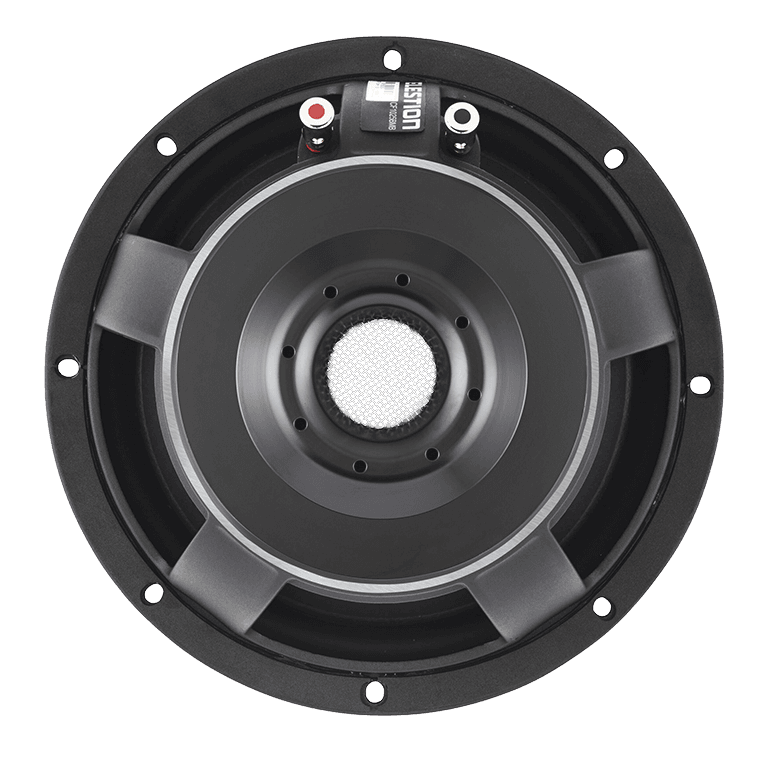

Celestion
